| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58508cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58508cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,470,080 | 94,472,640 |
| Size | 497.3 MB | 90.1 MB |
| Events in quadrant A | 6,033,151 | 522,760 |
| Events in quadrant B | 4,224,107 | 685,157 |
| Events in quadrant C | 3,929,860 | 610,846 |
| Events in quadrant D | 4,595,438 | 574,866 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22611 | 2 |
| B | 0 | 17014 | 2 |
| C | 0 | 16465 | 2 |
| D | 0 | 18112 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6696 | 1507 | 22.505974% |
| B | 6696 | 294 | 4.390681% |
| C | 6695 | 236 | 3.525019% |
| D | 6695 | 257 | 3.838686% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

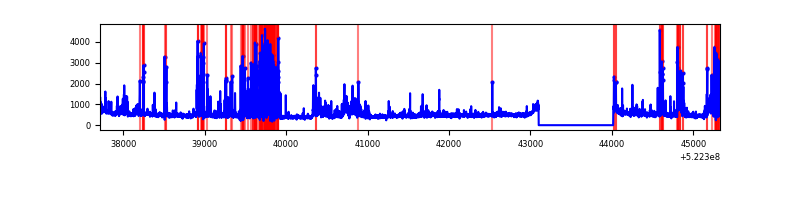

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7611 | 6696 | 933 | 933 | 12.26% | 13.93% |  |
| B | 7611 | 6696 | 190 | 190 | 2.50% | 2.84% |  |
| C | 7610 | 6696 | 194 | 194 | 2.55% | 2.90% |  |
| D | 7610 | 6696 | 184 | 184 | 2.42% | 2.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 3078651 | 18821.82 | 657 | 638 | 163.5 |
| A | 10 | 17 | 144130 | 877.44 | 657 | 638 | 163.5 |
| A | 10 | 251 | 65125 | 394.33 | 657 | 638 | 163.5 |
| B | 5 | 185 | 763448 | 4857.35 | 732 | 705 | 157.0 |
| B | 4 | 171 | 266819 | 1694.69 | 732 | 705 | 157.0 |
| B | 8 | 234 | 70251 | 442.89 | 732 | 705 | 157.0 |
| C | 4 | 5 | 502173 | 2509.13 | 722 | 715 | 199.9 |
| C | 6 | 223 | 311393 | 1554.53 | 722 | 715 | 199.9 |
| C | 12 | 252 | 63164 | 312.47 | 722 | 715 | 199.9 |
| D | 3 | 12 | 568770 | 2787.22 | 720 | 688 | 203.8 |
| D | 8 | 240 | 433565 | 2123.86 | 720 | 688 | 203.8 |
| D | 2 | 153 | 312912 | 1531.89 | 720 | 688 | 203.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

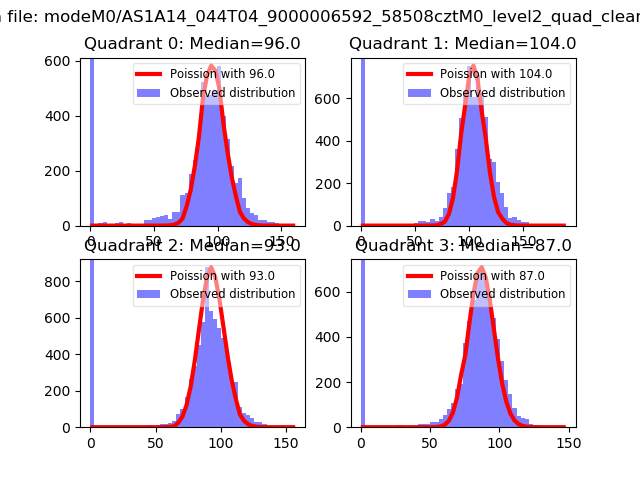

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

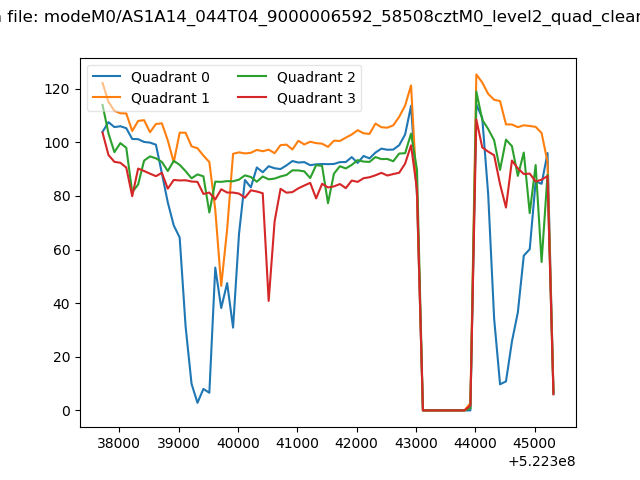

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

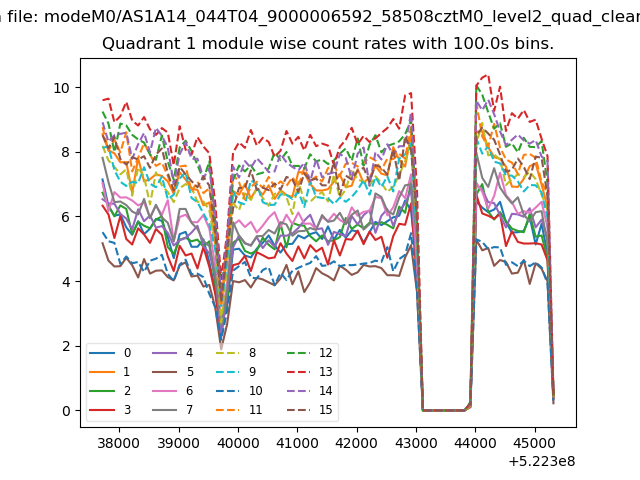

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

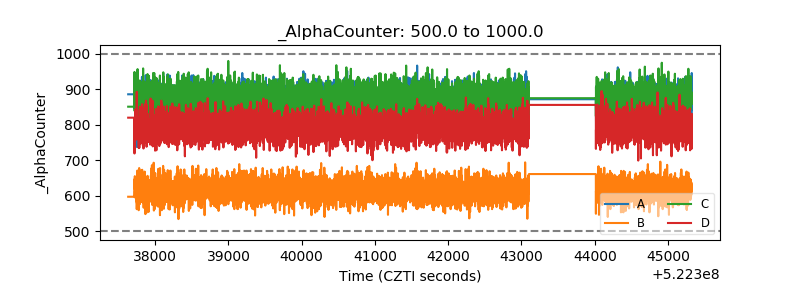

| Alpha Counter |  |
| _CPM_Rate |  |

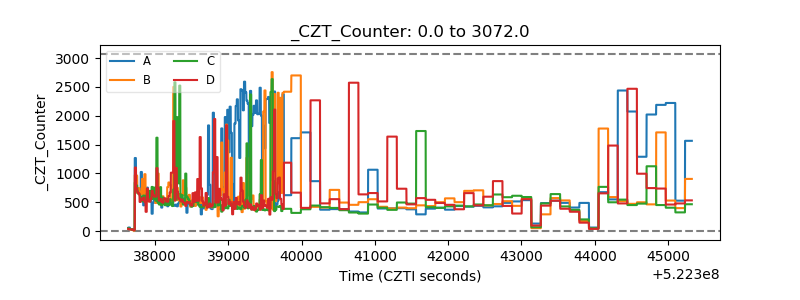

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

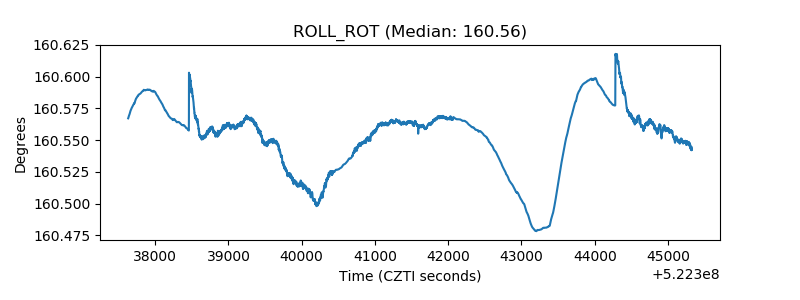

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

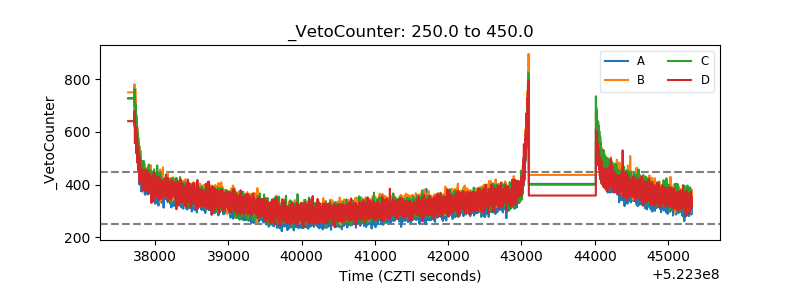

| Veto Counter |  |
