| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58510cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58510cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,006,080 | 95,489,280 |
| Size | 501.6 MB | 91.1 MB |
| Events in quadrant A | 5,191,804 | 561,713 |
| Events in quadrant B | 4,215,706 | 693,790 |
| Events in quadrant C | 4,737,089 | 602,327 |
| Events in quadrant D | 4,816,955 | 576,204 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20035 | 3 |
| B | 0 | 17041 | 2 |
| C | 0 | 18544 | 2 |
| D | 0 | 18808 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6560 | 1055 | 16.082317% |
| B | 6560 | 245 | 3.734756% |
| C | 6560 | 367 | 5.594512% |
| D | 6560 | 292 | 4.451220% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

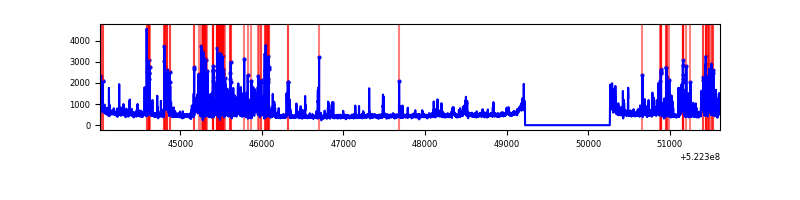

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7600 | 6560 | 623 | 623 | 8.20% | 9.50% |  |
| B | 7600 | 6560 | 139 | 139 | 1.83% | 2.12% |  |
| C | 7600 | 6561 | 370 | 370 | 4.87% | 5.64% |  |
| D | 7600 | 6561 | 259 | 259 | 3.41% | 3.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 2156694 | 12687.72 | 672 | 654 | 169.9 |
| A | 10 | 17 | 152851 | 895.64 | 672 | 654 | 169.9 |
| A | 3 | 14 | 74940 | 437.15 | 672 | 654 | 169.9 |
| B | 5 | 185 | 1001881 | 6440.24 | 724 | 699 | 155.5 |
| B | 8 | 234 | 104892 | 670.24 | 724 | 699 | 155.5 |
| B | 10 | 247 | 45563 | 288.59 | 724 | 699 | 155.5 |
| C | 4 | 5 | 1330448 | 6837.87 | 704 | 694 | 194.5 |
| C | 6 | 223 | 390554 | 2004.74 | 704 | 694 | 194.5 |
| C | 1 | 12 | 65133 | 331.36 | 704 | 694 | 194.5 |
| D | 3 | 12 | 1037318 | 5150.57 | 703 | 672 | 201.3 |
| D | 8 | 240 | 382511 | 1897.16 | 703 | 672 | 201.3 |
| D | 2 | 31 | 184804 | 914.86 | 703 | 672 | 201.3 |

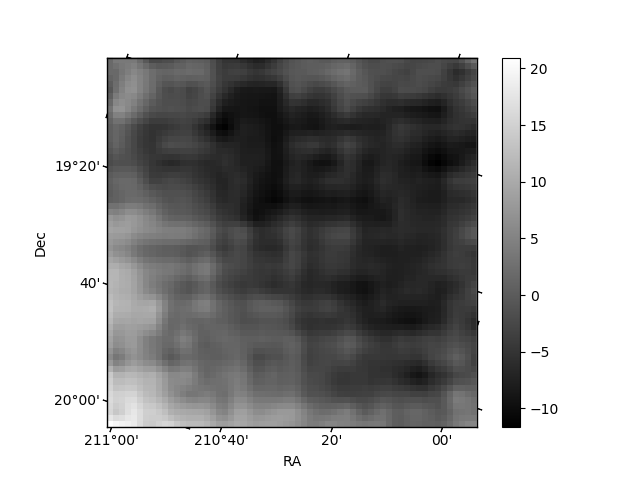

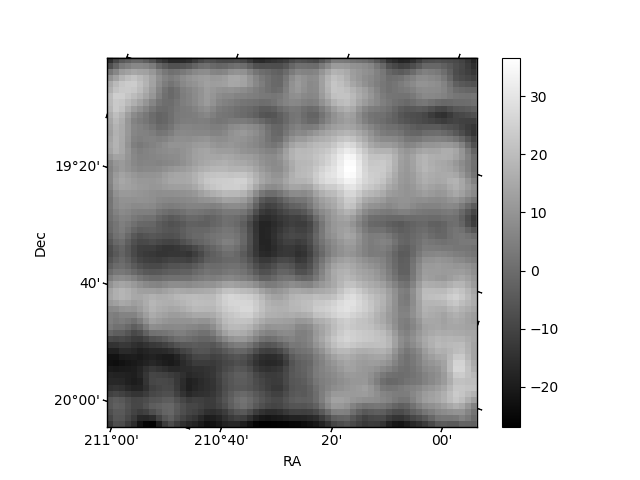

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

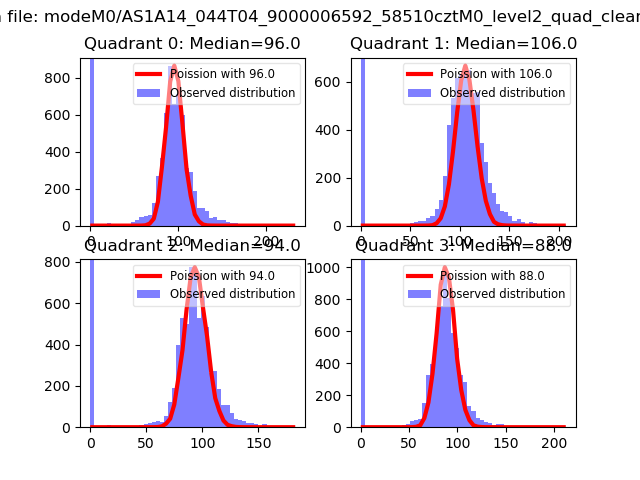

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

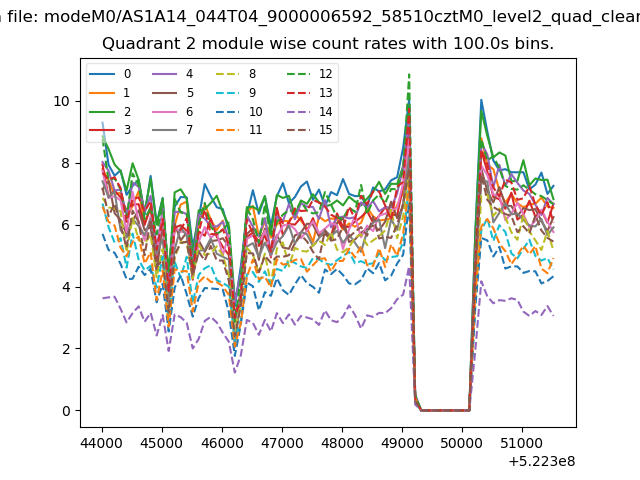

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

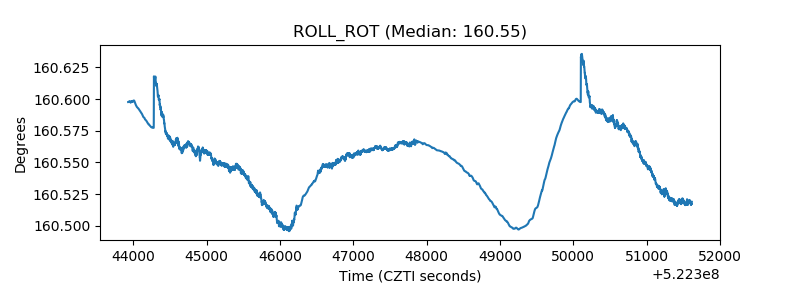

| _ROLL_ROT |  |
| _Roll_DEC |  |

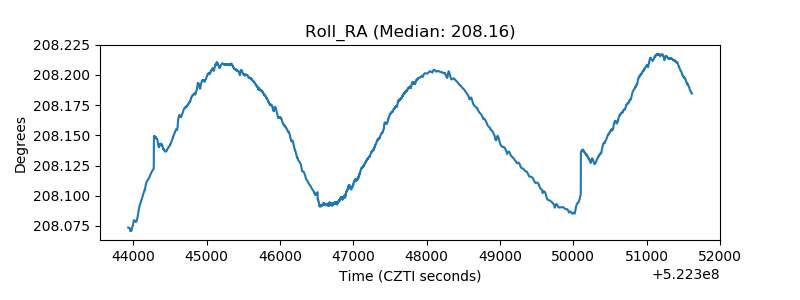

| _Roll_RA |  |

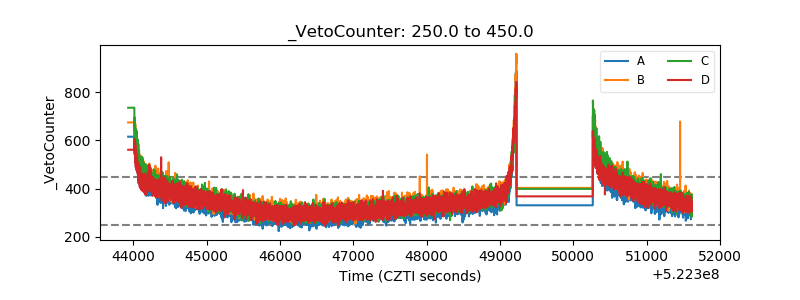

| Veto Counter |  |
