| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58511cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58511cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,279,040 | 94,291,200 |
| Size | 451.4 MB | 89.9 MB |
| Events in quadrant A | 4,074,813 | 592,745 |
| Events in quadrant B | 3,959,472 | 677,167 |
| Events in quadrant C | 4,042,467 | 596,763 |
| Events in quadrant D | 4,951,178 | 547,339 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16452 | 2 |
| B | 0 | 16016 | 2 |
| C | 0 | 16434 | 2 |
| D | 0 | 19134 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6320 | 520 | 8.227848% |
| B | 6320 | 251 | 3.971519% |
| C | 6320 | 271 | 4.287975% |
| D | 6319 | 421 | 6.662447% |

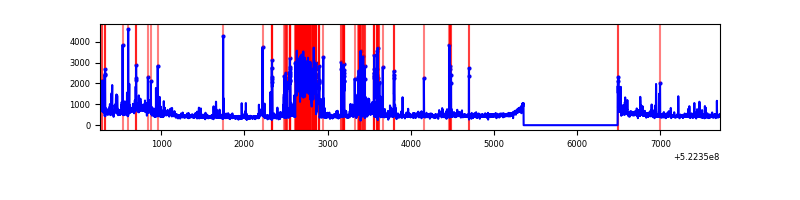

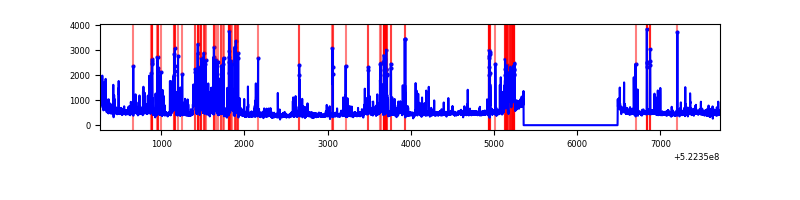

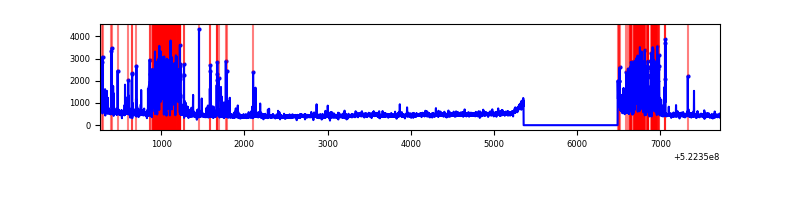

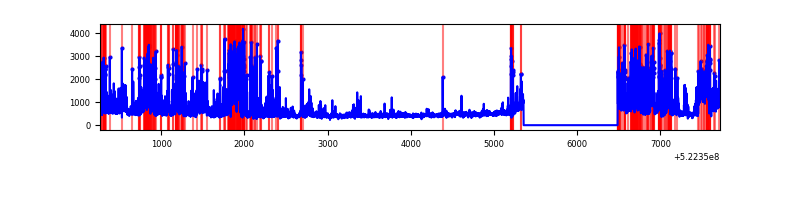

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7450 | 6321 | 309 | 309 | 4.15% | 4.89% |  |
| B | 7450 | 6320 | 129 | 129 | 1.73% | 2.04% |  |
| C | 7450 | 6321 | 269 | 269 | 3.61% | 4.26% |  |
| D | 7449 | 6320 | 388 | 388 | 5.21% | 6.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 1160596 | 6708.17 | 687 | 670 | 172.9 |
| A | 3 | 14 | 108525 | 623.75 | 687 | 670 | 172.9 |
| A | 10 | 17 | 40681 | 231.39 | 687 | 670 | 172.9 |
| B | 5 | 185 | 583838 | 3886.09 | 704 | 680 | 150.1 |
| B | 10 | 247 | 179741 | 1193.24 | 704 | 680 | 150.1 |
| B | 8 | 234 | 175786 | 1166.88 | 704 | 680 | 150.1 |
| C | 4 | 5 | 1082589 | 5681.28 | 688 | 679 | 190.4 |
| C | 9 | 38 | 56726 | 294.31 | 688 | 679 | 190.4 |
| C | 12 | 249 | 42555 | 219.89 | 688 | 679 | 190.4 |
| D | 3 | 12 | 802937 | 4205.34 | 669 | 636 | 190.8 |
| D | 8 | 240 | 665125 | 3482.98 | 669 | 636 | 190.8 |
| D | 2 | 153 | 421606 | 2206.55 | 669 | 636 | 190.8 |

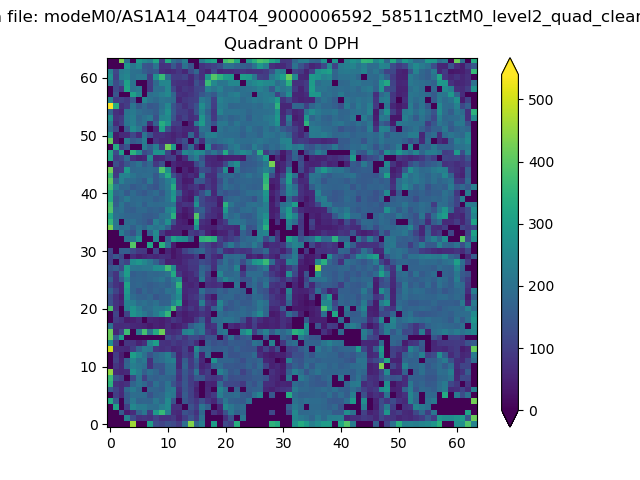

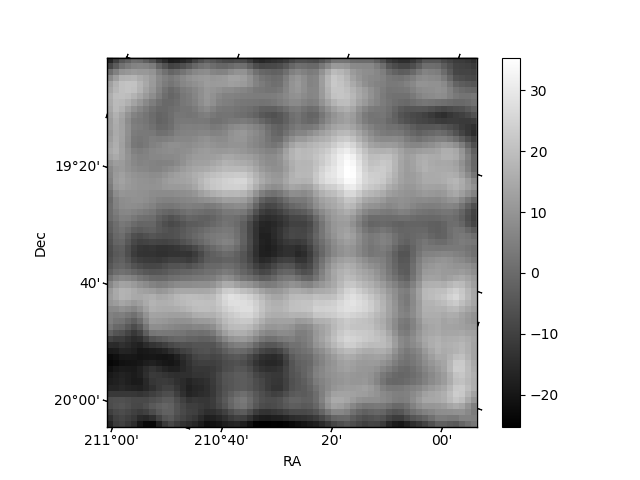

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

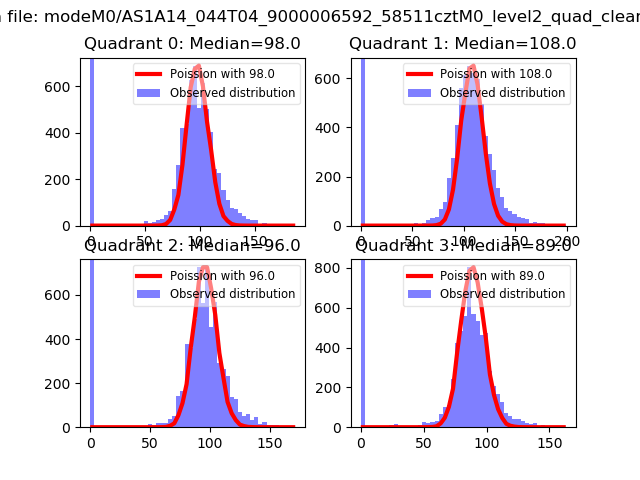

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

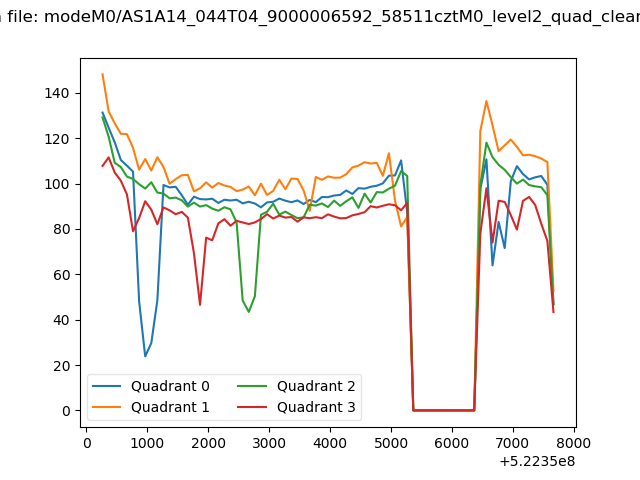

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

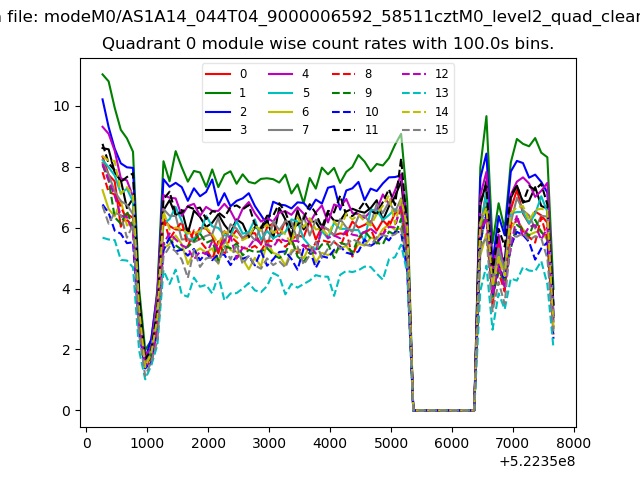

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

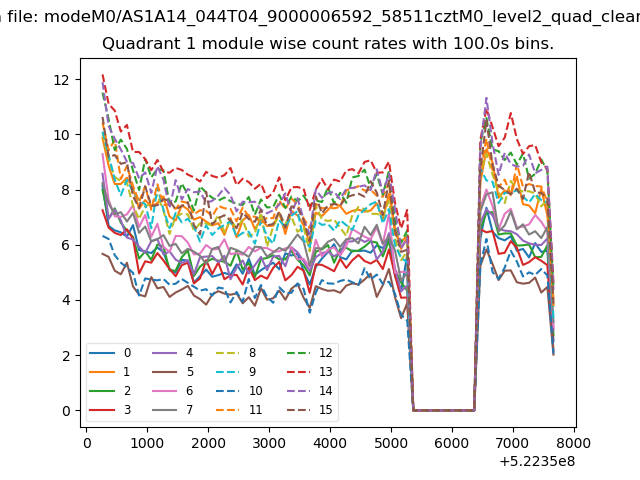

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

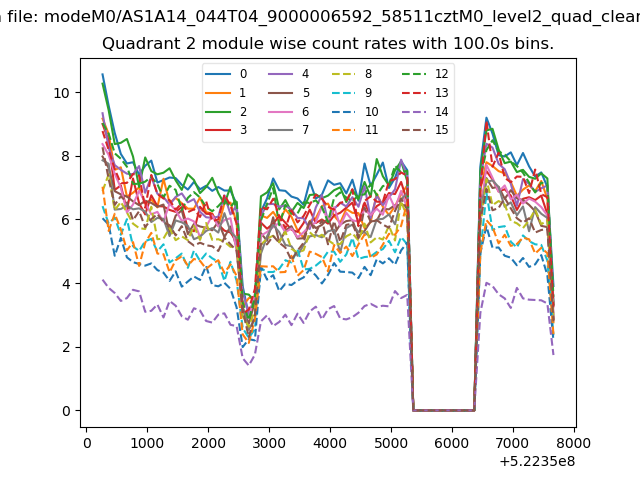

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

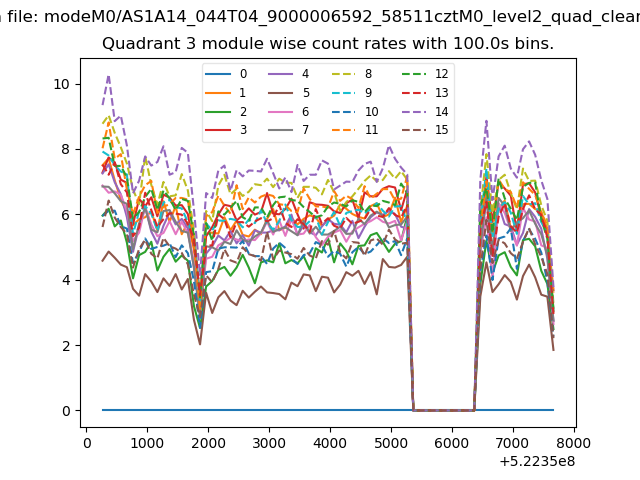

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

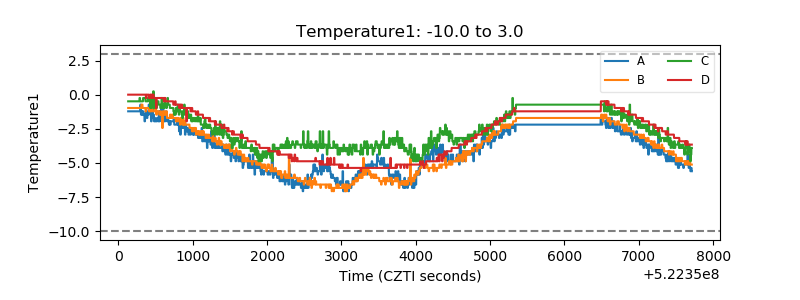

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

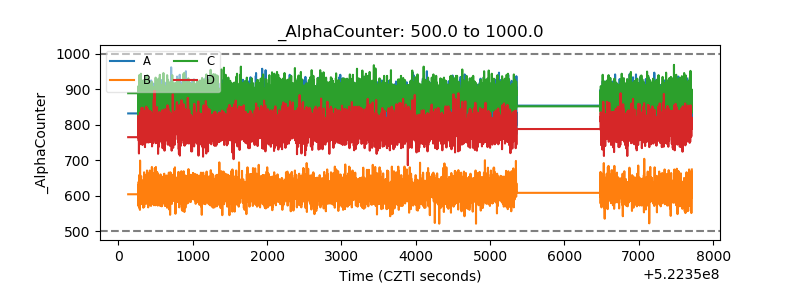

| Alpha Counter |  |
| _CPM_Rate |  |

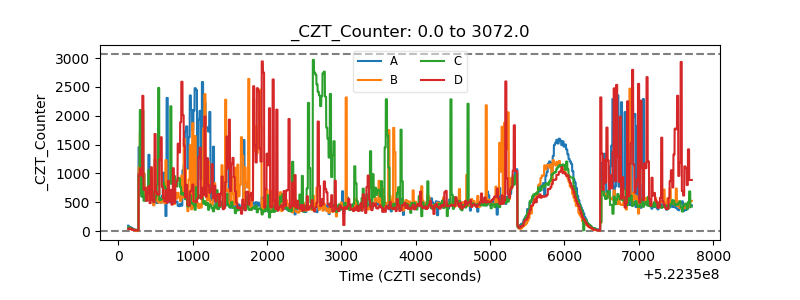

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

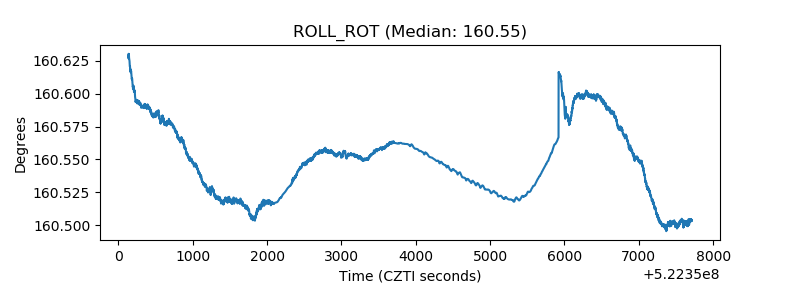

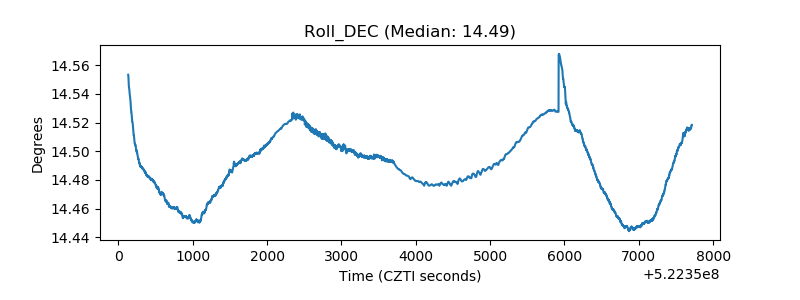

| _ROLL_ROT |  |
| _Roll_DEC |  |

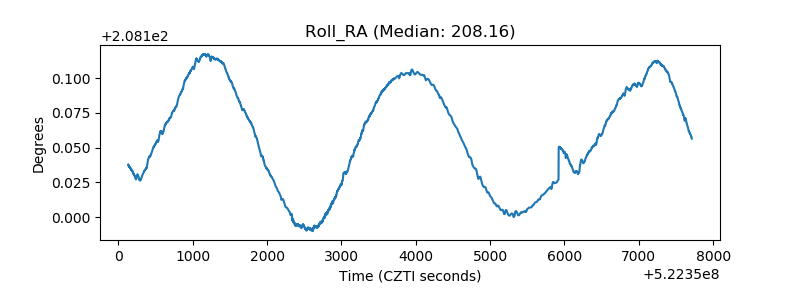

| _Roll_RA |  |

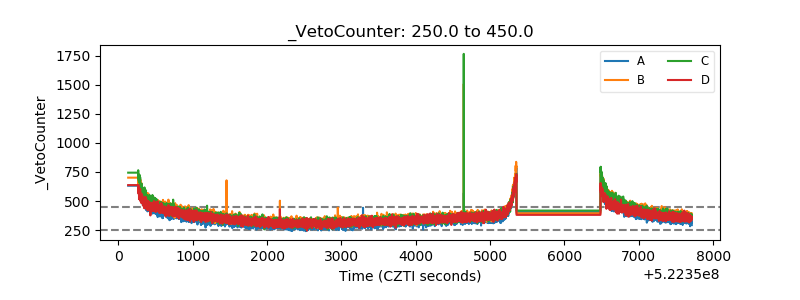

| Veto Counter |  |
