| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58512cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58512cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,026,880 | 97,283,520 |
| Size | 423.5 MB | 92.8 MB |
| Events in quadrant A | 3,511,798 | 637,663 |
| Events in quadrant B | 3,391,581 | 703,195 |
| Events in quadrant C | 3,776,496 | 606,386 |
| Events in quadrant D | 5,257,866 | 550,970 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14918 | 2 |
| B | 0 | 14374 | 2 |
| C | 0 | 15797 | 2 |
| D | 0 | 20093 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6413 | 223 | 3.477312% |
| B | 6413 | 136 | 2.120692% |
| C | 6413 | 256 | 3.991891% |
| D | 6413 | 470 | 7.328863% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6414 | 130 | 130 | 1.71% | 2.03% |  |
| B | 7613 | 6414 | 58 | 58 | 0.76% | 0.90% |  |
| C | 7613 | 6414 | 200 | 200 | 2.63% | 3.12% |  |
| D | 7613 | 6414 | 457 | 457 | 6.00% | 7.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 461737 | 2596.92 | 717 | 699 | 177.5 |
| A | 10 | 17 | 119325 | 668.19 | 717 | 699 | 177.5 |
| A | 3 | 14 | 34852 | 192.38 | 717 | 699 | 177.5 |
| B | 7 | 252 | 131573 | 848.62 | 721 | 694 | 154.2 |
| B | 4 | 171 | 126869 | 818.12 | 721 | 694 | 154.2 |
| B | 5 | 185 | 75030 | 482.0 | 721 | 694 | 154.2 |
| C | 4 | 5 | 628909 | 3280.74 | 697 | 691 | 191.5 |
| C | 13 | 3 | 212678 | 1107.06 | 697 | 691 | 191.5 |
| C | 12 | 249 | 57856 | 298.53 | 697 | 691 | 191.5 |
| D | 3 | 12 | 1269605 | 6539.04 | 674 | 643 | 194.1 |
| D | 2 | 153 | 553571 | 2849.27 | 674 | 643 | 194.1 |
| D | 8 | 240 | 408786 | 2103.19 | 674 | 643 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

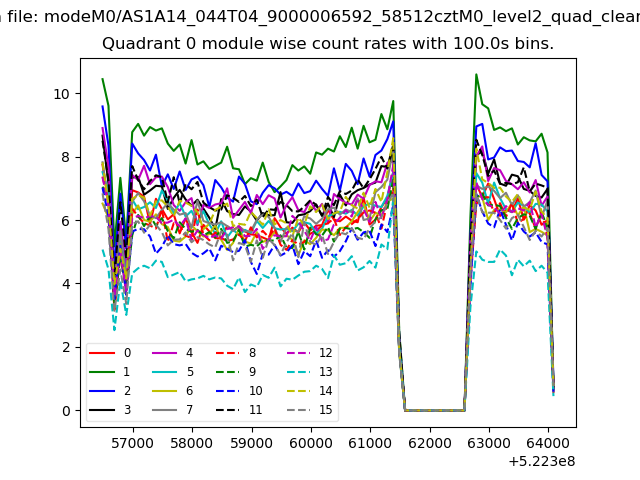

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

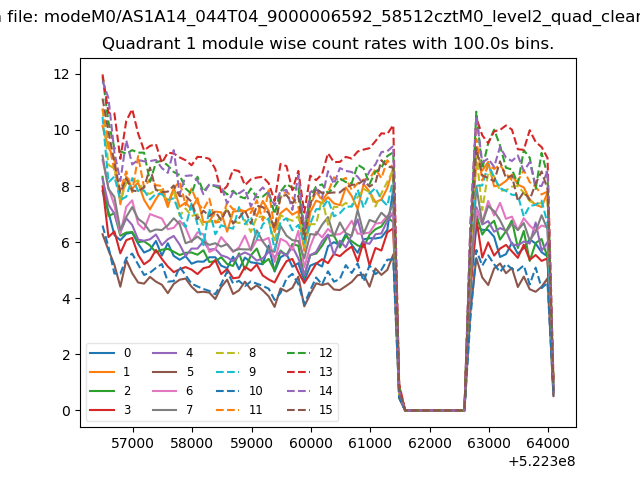

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

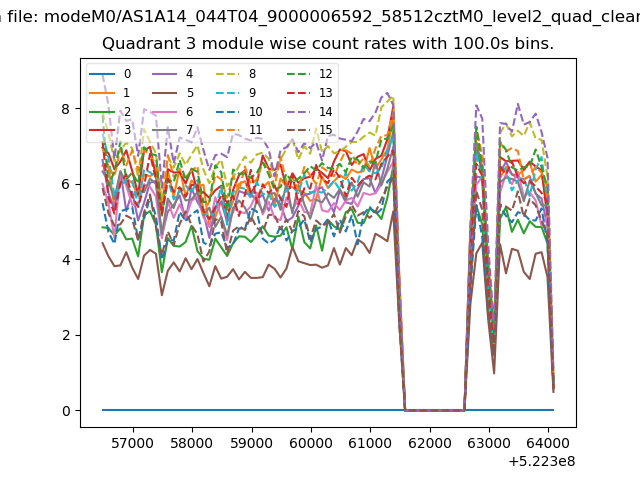

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

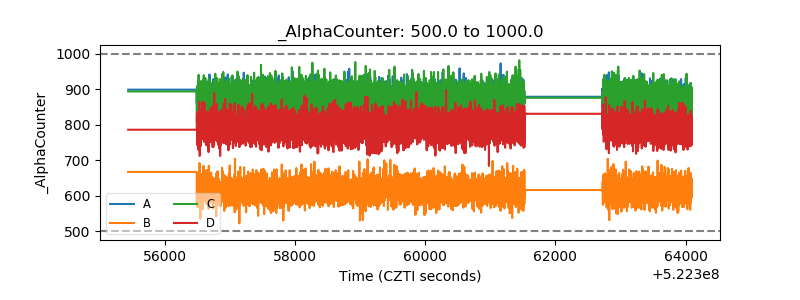

| Alpha Counter |  |
| _CPM_Rate |  |

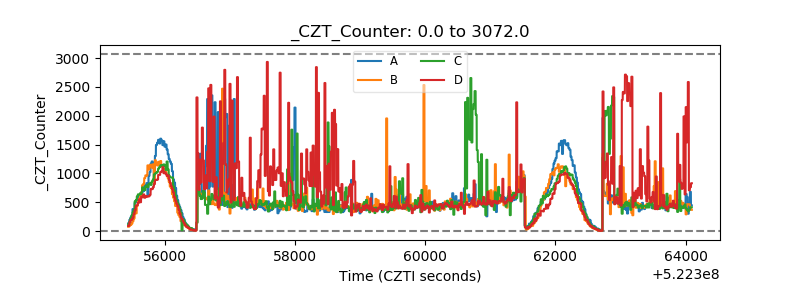

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

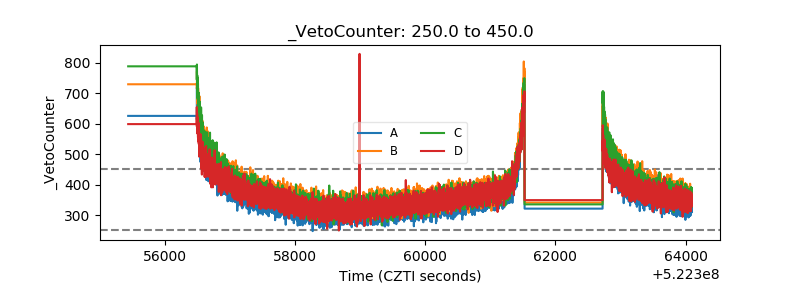

| Veto Counter |  |
