| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58513cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58513cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,802,240 | 96,730,560 |
| Size | 388.9 MB | 92.2 MB |
| Events in quadrant A | 3,426,787 | 642,142 |
| Events in quadrant B | 3,354,454 | 692,687 |
| Events in quadrant C | 3,294,250 | 606,571 |
| Events in quadrant D | 4,526,996 | 545,567 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14545 | 2 |
| B | 0 | 14277 | 2 |
| C | 0 | 14381 | 2 |
| D | 0 | 17966 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6335 | 36 | 0.568272% |
| B | 6335 | 122 | 1.925809% |
| C | 6335 | 124 | 1.957380% |
| D | 6335 | 389 | 6.140489% |

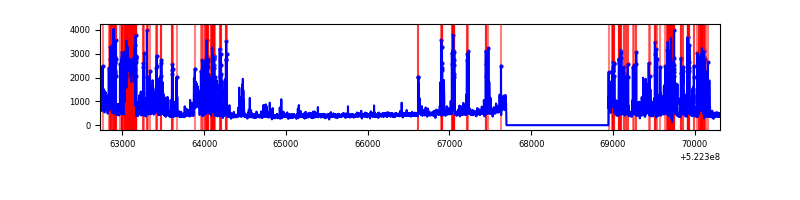

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7585 | 6336 | 21 | 21 | 0.28% | 0.33% |  |
| B | 7585 | 6336 | 57 | 57 | 0.75% | 0.90% |  |
| C | 7585 | 6336 | 95 | 95 | 1.25% | 1.50% |  |
| D | 7585 | 6336 | 361 | 361 | 4.76% | 5.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 534625 | 3030.17 | 710 | 693 | 176.2 |
| A | 10 | 17 | 48299 | 270.17 | 710 | 693 | 176.2 |
| A | 11 | 31 | 27221 | 150.55 | 710 | 693 | 176.2 |
| B | 5 | 185 | 140282 | 917.62 | 707 | 682 | 152.1 |
| B | 4 | 171 | 121887 | 796.7 | 707 | 682 | 152.1 |
| B | 7 | 252 | 88390 | 576.52 | 707 | 682 | 152.1 |
| C | 4 | 5 | 349577 | 1835.96 | 689 | 682 | 190.0 |
| C | 9 | 38 | 84279 | 439.91 | 689 | 682 | 190.0 |
| C | 12 | 249 | 67411 | 351.14 | 689 | 682 | 190.0 |
| D | 3 | 12 | 1333598 | 7006.2 | 661 | 629 | 190.3 |
| D | 8 | 240 | 242487 | 1271.23 | 661 | 629 | 190.3 |
| D | 2 | 153 | 195316 | 1023.29 | 661 | 629 | 190.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

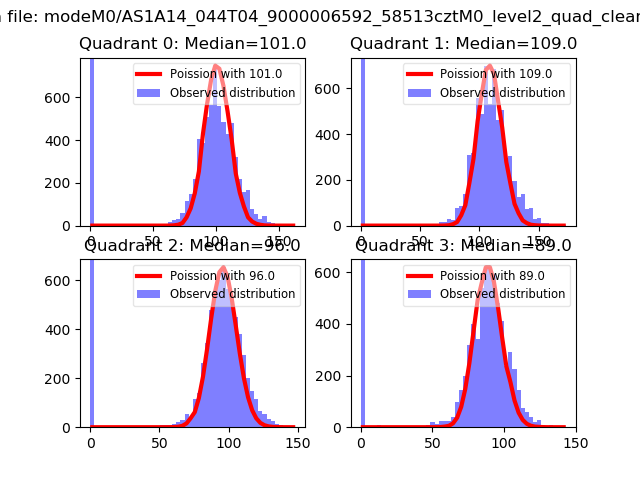

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

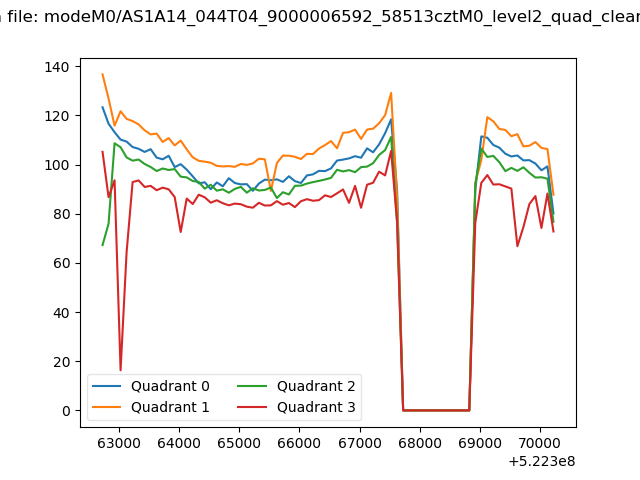

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

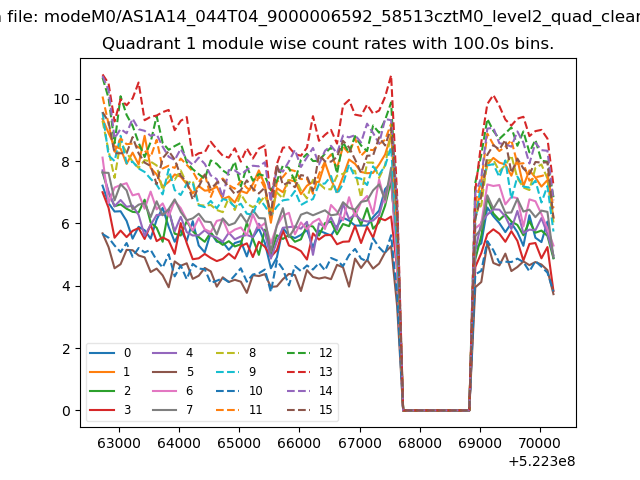

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

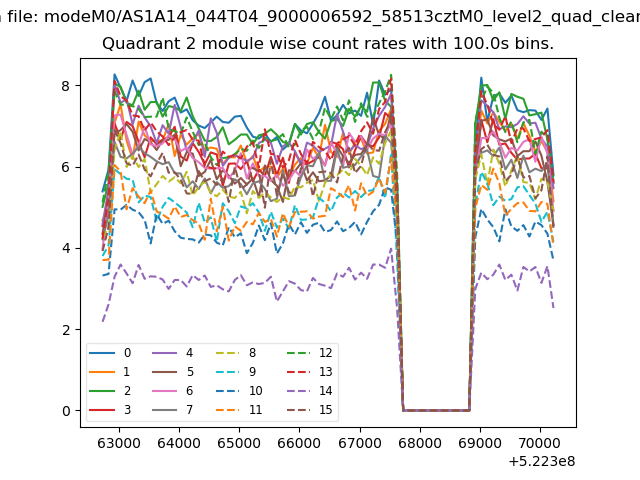

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

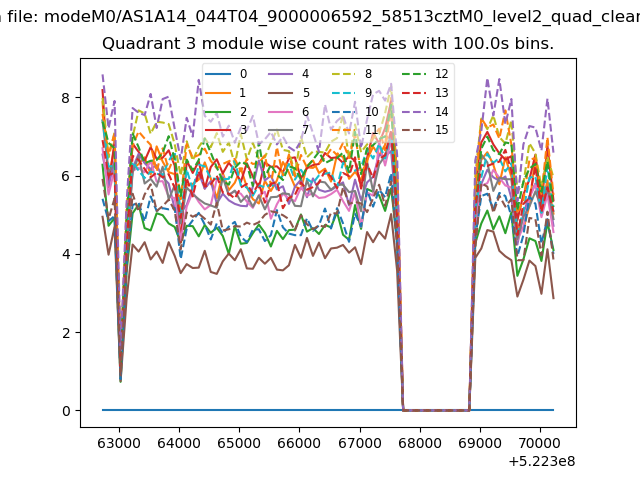

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

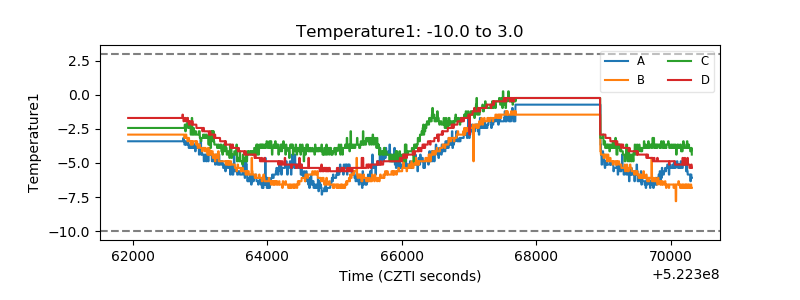

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

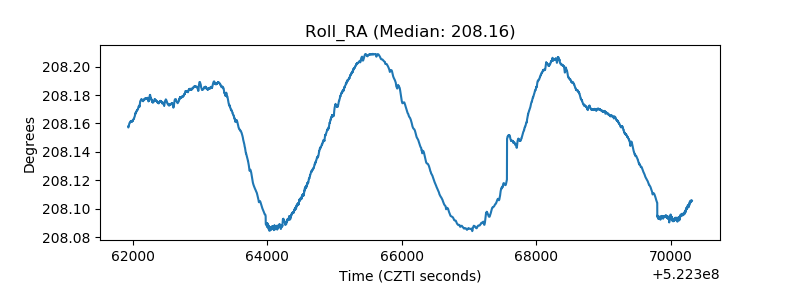

| _Roll_RA |  |
| Veto Counter |  |
