| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58515cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58515cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,389,760 | 102,309,120 |
| Size | 432.4 MB | 97.6 MB |
| Events in quadrant A | 4,221,735 | 661,904 |
| Events in quadrant B | 3,720,571 | 722,945 |
| Events in quadrant C | 4,149,211 | 634,450 |
| Events in quadrant D | 4,148,970 | 592,617 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17446 | 2 |
| B | 0 | 15793 | 2 |
| C | 0 | 17387 | 2 |
| D | 0 | 17471 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6975 | 332 | 4.759857% |
| B | 6975 | 181 | 2.594982% |
| C | 6975 | 295 | 4.229391% |
| D | 6976 | 281 | 4.028096% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

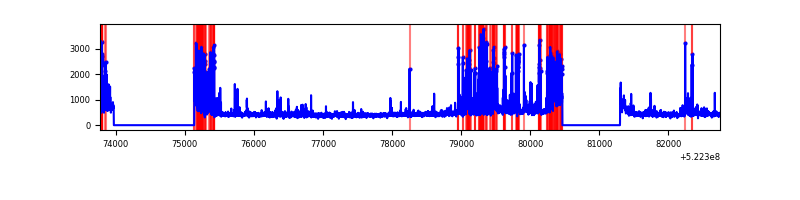

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8975 | 6977 | 229 | 229 | 2.55% | 3.28% |  |
| B | 8975 | 6976 | 27 | 27 | 0.30% | 0.39% |  |
| C | 8975 | 6977 | 248 | 248 | 2.76% | 3.55% |  |
| D | 8976 | 6978 | 205 | 205 | 2.28% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 873194 | 4517.87 | 785 | 766 | 193.1 |
| A | 12 | 114 | 125059 | 643.65 | 785 | 766 | 193.1 |
| A | 10 | 251 | 111747 | 574.72 | 785 | 766 | 193.1 |
| B | 8 | 234 | 305447 | 1779.94 | 785 | 756 | 171.2 |
| B | 0 | 245 | 55729 | 321.14 | 785 | 756 | 171.2 |
| B | 0 | 186 | 50747 | 292.04 | 785 | 756 | 171.2 |
| C | 4 | 5 | 818562 | 3925.66 | 759 | 754 | 208.3 |
| C | 5 | 10 | 180170 | 861.24 | 759 | 754 | 208.3 |
| C | 6 | 223 | 59829 | 283.57 | 759 | 754 | 208.3 |
| D | 3 | 12 | 726437 | 3414.17 | 748 | 714 | 212.6 |
| D | 2 | 31 | 164827 | 772.07 | 748 | 714 | 212.6 |
| D | 8 | 240 | 159983 | 749.28 | 748 | 714 | 212.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

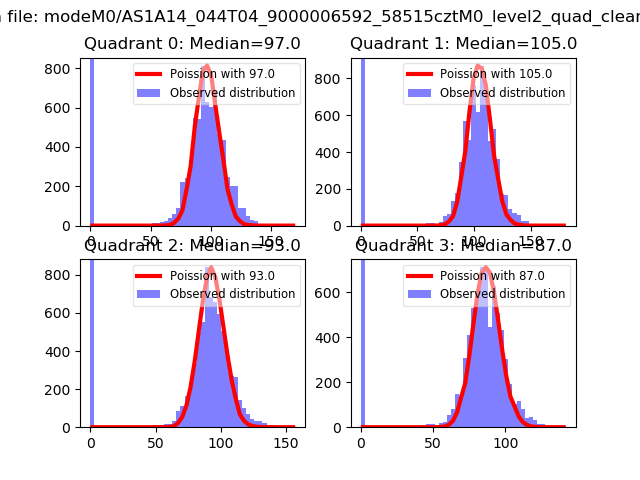

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

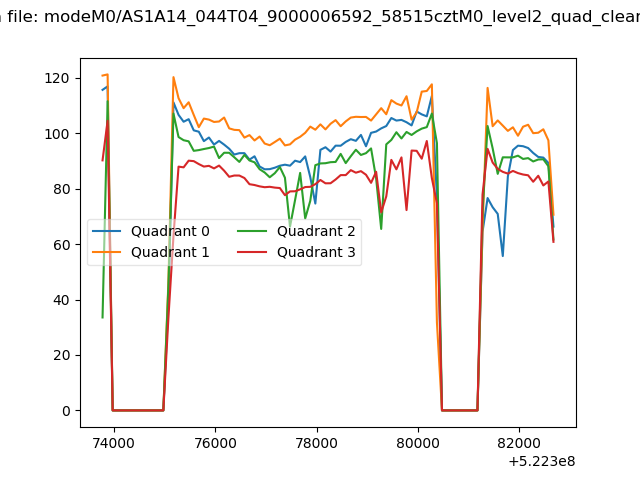

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

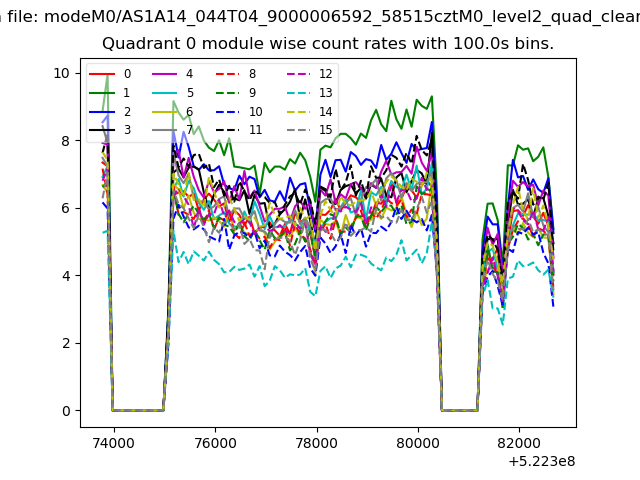

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

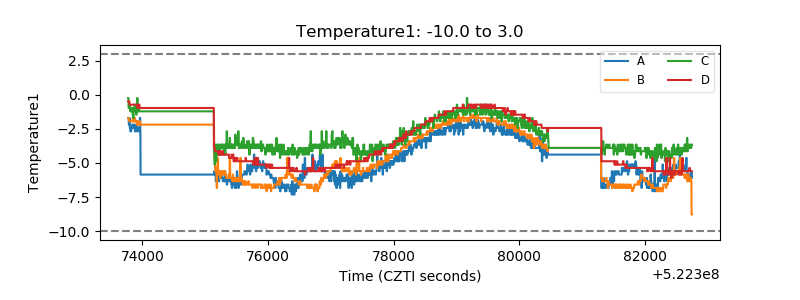

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

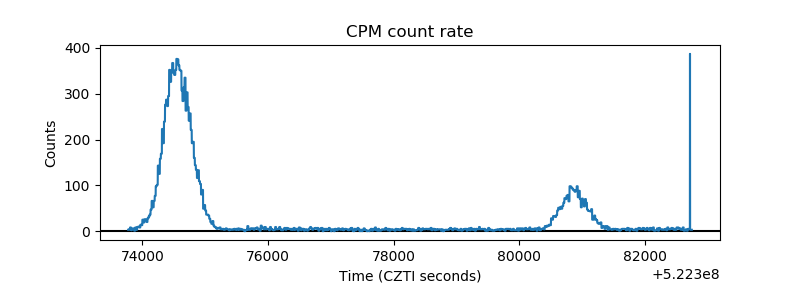

| _CPM_Rate |  |

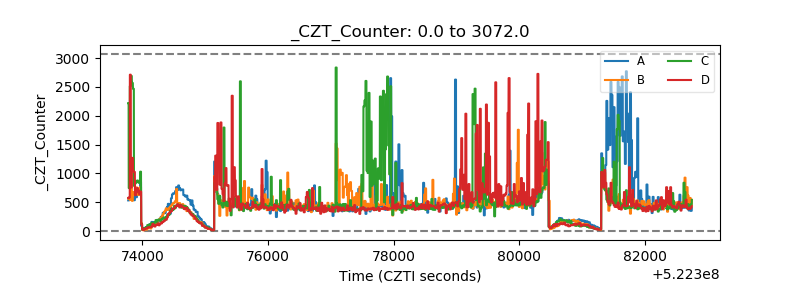

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
