| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58516cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58516cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,012,800 | 108,881,280 |
| Size | 530.3 MB | 103.8 MB |
| Events in quadrant A | 5,764,235 | 662,974 |
| Events in quadrant B | 4,246,700 | 766,041 |
| Events in quadrant C | 4,856,862 | 690,705 |
| Events in quadrant D | 5,106,550 | 633,572 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22651 | 3 |
| B | 0 | 17994 | 3 |
| C | 0 | 20034 | 4 |
| D | 0 | 20785 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7815 | 996 | 12.744722% |
| B | 7815 | 444 | 5.681382% |
| C | 7814 | 390 | 4.991042% |
| D | 7814 | 556 | 7.115434% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8025 | 7816 | 710 | 710 | 8.85% | 9.08% |  |
| B | 8025 | 7816 | 99 | 99 | 1.23% | 1.27% |  |
| C | 8024 | 7815 | 204 | 204 | 2.54% | 2.61% |  |
| D | 8024 | 7815 | 371 | 371 | 4.62% | 4.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1510183 | 7042.79 | 868 | 843 | 214.3 |
| A | 3 | 245 | 672265 | 3132.95 | 868 | 843 | 214.3 |
| A | 10 | 16 | 59205 | 272.33 | 868 | 843 | 214.3 |
| B | 8 | 234 | 284105 | 1456.25 | 887 | 854 | 194.5 |
| B | 5 | 185 | 147515 | 754.01 | 887 | 854 | 194.5 |
| B | 4 | 171 | 75359 | 383.04 | 887 | 854 | 194.5 |
| C | 4 | 5 | 765704 | 3213.13 | 869 | 860 | 238.0 |
| C | 6 | 223 | 181193 | 757.58 | 869 | 860 | 238.0 |
| C | 13 | 3 | 162879 | 680.65 | 869 | 860 | 238.0 |
| D | 3 | 12 | 980361 | 4003.06 | 850 | 812 | 244.7 |
| D | 8 | 240 | 458659 | 1871.05 | 850 | 812 | 244.7 |
| D | 2 | 172 | 77332 | 312.71 | 850 | 812 | 244.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

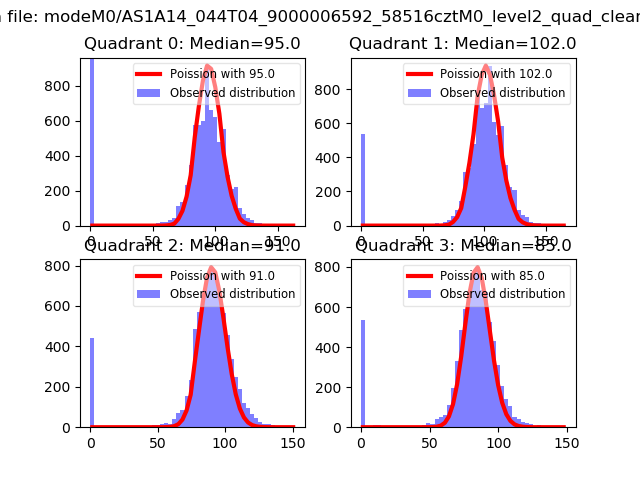

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
