| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58517cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58517cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,343,680 | 113,345,280 |
| Size | 492.4 MB | 108.1 MB |
| Events in quadrant A | 3,668,798 | 741,717 |
| Events in quadrant B | 3,982,757 | 801,432 |
| Events in quadrant C | 5,913,616 | 692,194 |
| Events in quadrant D | 4,936,250 | 648,768 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16672 | 2 |
| B | 0 | 17352 | 2 |
| C | 0 | 22987 | 2 |
| D | 0 | 20380 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7877 | 99 | 1.256824% |
| B | 7877 | 163 | 2.069316% |
| C | 7877 | 415 | 5.268503% |
| D | 7877 | 349 | 4.430621% |

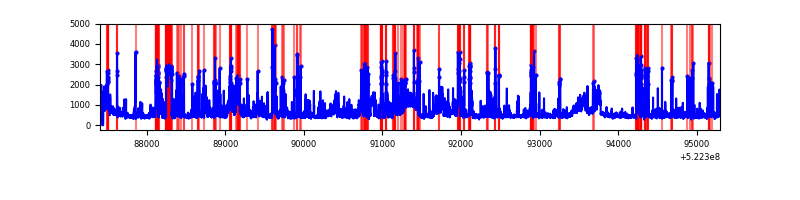

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7892 | 7878 | 21 | 21 | 0.27% | 0.27% |  |
| B | 7892 | 7878 | 38 | 38 | 0.48% | 0.48% |  |
| C | 7892 | 7878 | 333 | 333 | 4.22% | 4.23% |  |
| D | 7892 | 7878 | 299 | 299 | 3.79% | 3.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 72310 | 325.15 | 890 | 865 | 219.7 |
| A | 3 | 245 | 46352 | 207.01 | 890 | 865 | 219.7 |
| A | 10 | 17 | 27496 | 121.2 | 890 | 865 | 219.7 |
| B | 4 | 171 | 83024 | 424.43 | 884 | 847 | 193.6 |
| B | 4 | 201 | 72123 | 368.13 | 884 | 847 | 193.6 |
| B | 8 | 234 | 59787 | 304.41 | 884 | 847 | 193.6 |
| C | 4 | 5 | 1363239 | 5876.4 | 848 | 843 | 231.8 |
| C | 5 | 10 | 318717 | 1371.08 | 848 | 843 | 231.8 |
| C | 13 | 3 | 259712 | 1116.58 | 848 | 843 | 231.8 |
| D | 3 | 12 | 979483 | 4030.5 | 843 | 803 | 242.8 |
| D | 2 | 31 | 231305 | 949.28 | 843 | 803 | 242.8 |
| D | 8 | 240 | 225762 | 926.45 | 843 | 803 | 242.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

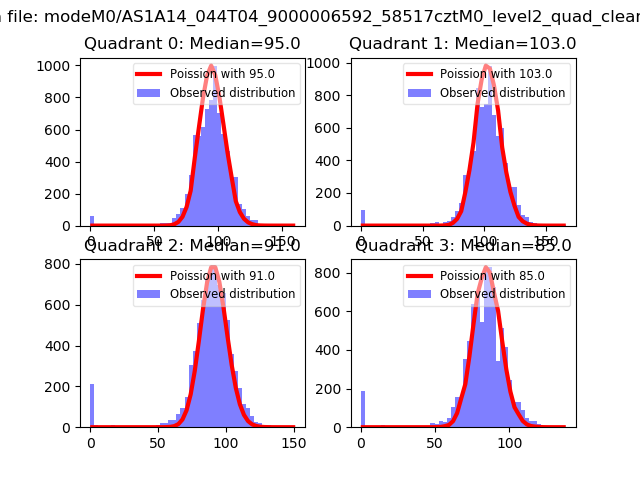

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

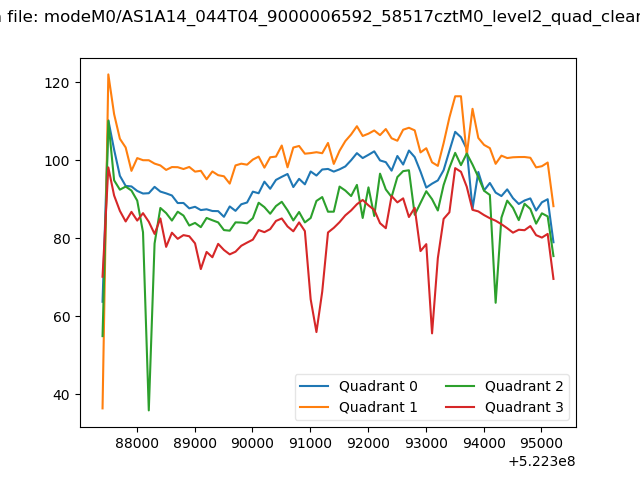

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

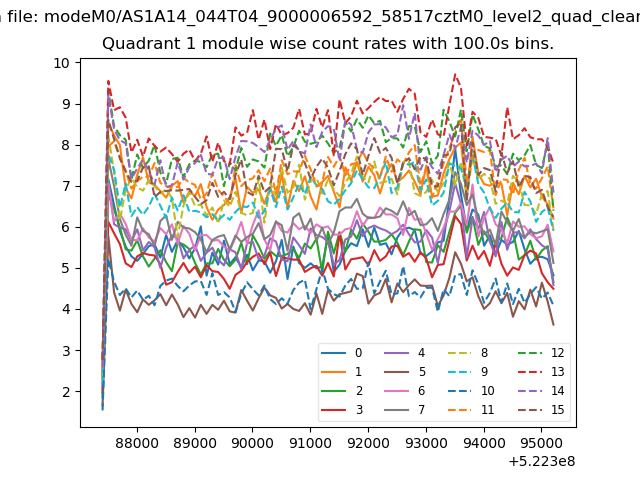

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

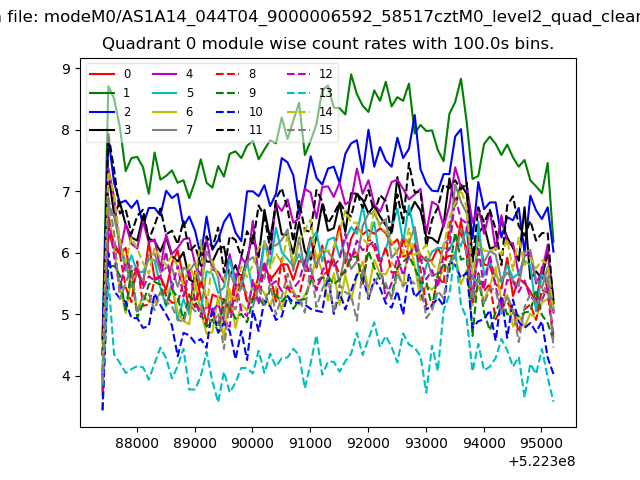

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

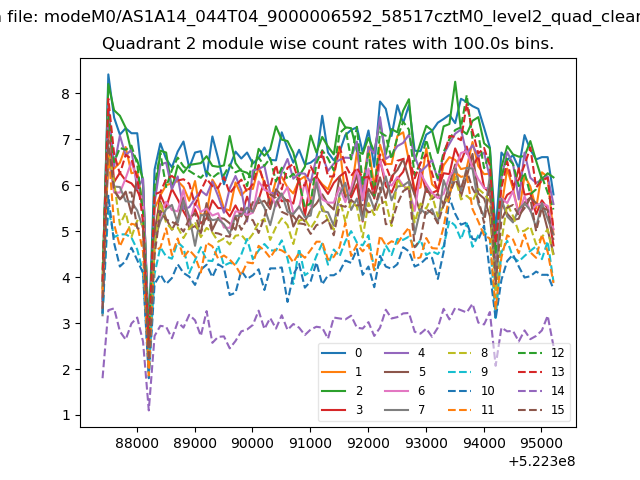

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

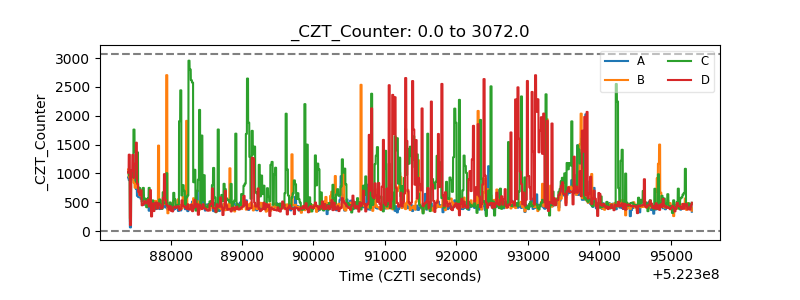

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

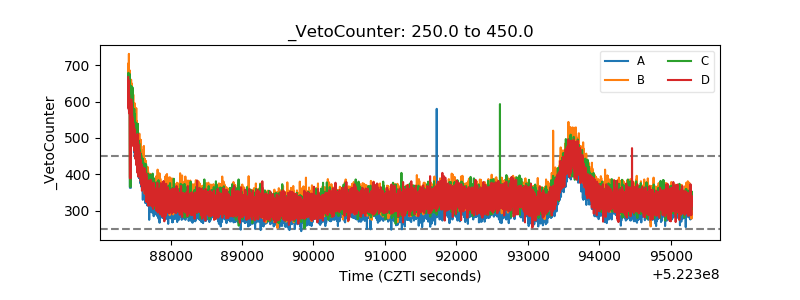

| Veto Counter |  |
