| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58518cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58518cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,554,560 | 117,149,760 |
| Size | 457.3 MB | 111.7 MB |
| Events in quadrant A | 3,716,791 | 761,172 |
| Events in quadrant B | 4,099,493 | 824,608 |
| Events in quadrant C | 4,825,978 | 720,109 |
| Events in quadrant D | 4,482,654 | 680,770 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16883 | 0 |
| B | 0 | 17689 | 0 |
| C | 0 | 19983 | 0 |
| D | 0 | 19002 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8061 | 51 | 0.632676% |
| B | 8062 | 112 | 1.389233% |
| C | 8062 | 248 | 3.076160% |
| D | 8062 | 113 | 1.401637% |

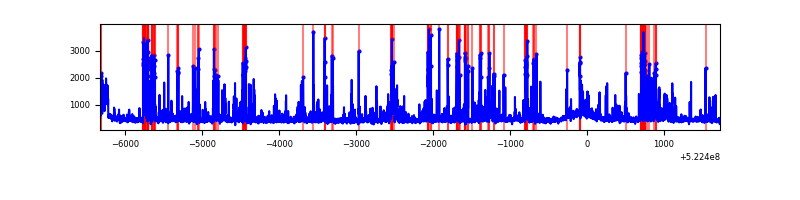

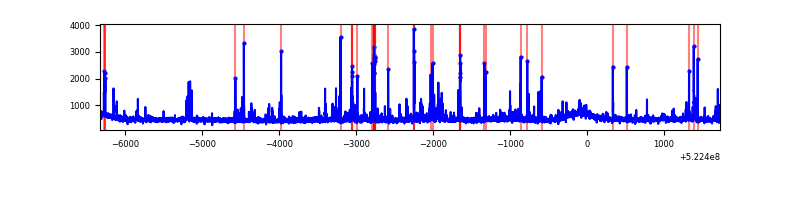

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8061 | 8061 | 14 | 14 | 0.17% | 0.17% |  |
| B | 8062 | 8062 | 44 | 44 | 0.55% | 0.55% |  |
| C | 8062 | 8062 | 200 | 200 | 2.48% | 2.48% |  |
| D | 8062 | 8062 | 115 | 115 | 1.43% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 68355 | 304.44 | 900 | 876 | 221.6 |
| A | 15 | 250 | 42232 | 186.58 | 900 | 876 | 221.6 |
| A | 10 | 17 | 33639 | 147.82 | 900 | 876 | 221.6 |
| B | 10 | 247 | 111039 | 567.16 | 894 | 859 | 194.3 |
| B | 8 | 234 | 70204 | 356.96 | 894 | 859 | 194.3 |
| B | 5 | 185 | 70083 | 356.34 | 894 | 859 | 194.3 |
| C | 5 | 10 | 308949 | 1305.28 | 865 | 857 | 236.0 |
| C | 12 | 249 | 261411 | 1103.87 | 865 | 857 | 236.0 |
| C | 6 | 223 | 228866 | 965.99 | 865 | 857 | 236.0 |
| D | 3 | 12 | 503769 | 2053.25 | 866 | 828 | 244.9 |
| D | 8 | 240 | 303613 | 1236.12 | 866 | 828 | 244.9 |
| D | 5 | 173 | 93201 | 377.11 | 866 | 828 | 244.9 |

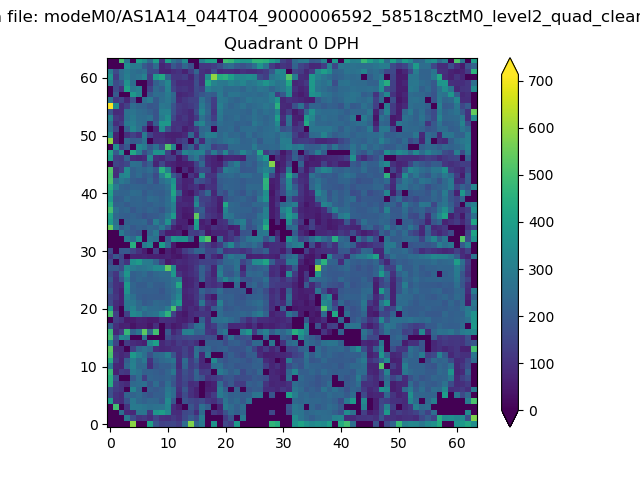

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

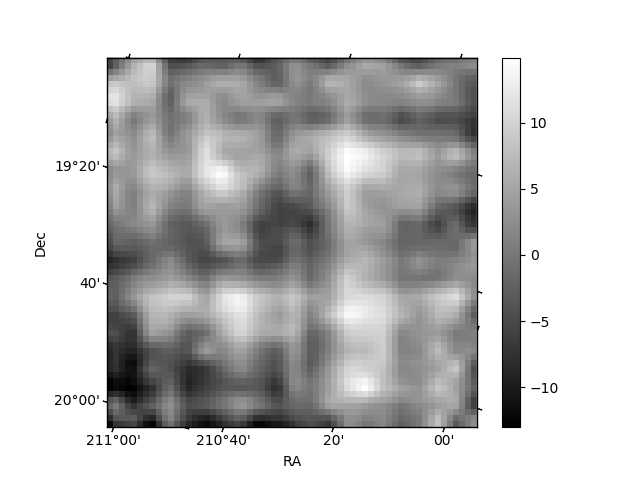

| Plot type | Count rate plots | Images |
|---|---|---|

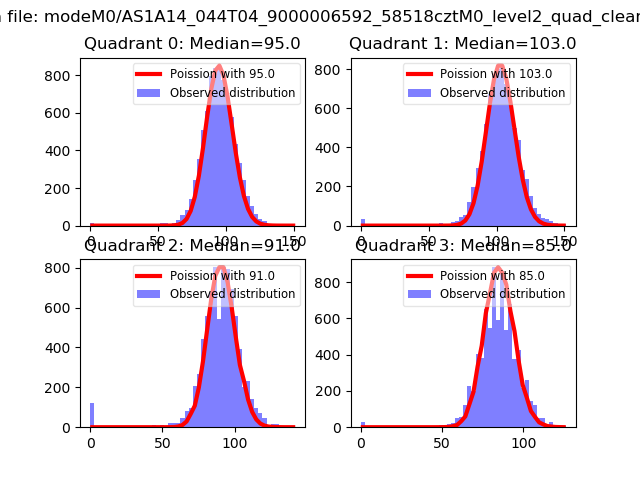

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

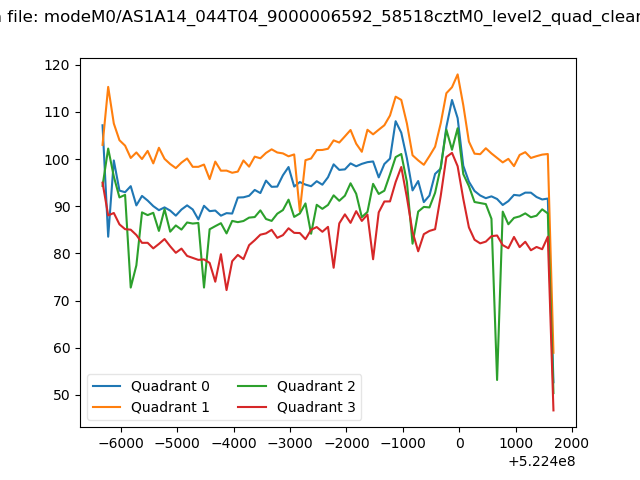

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

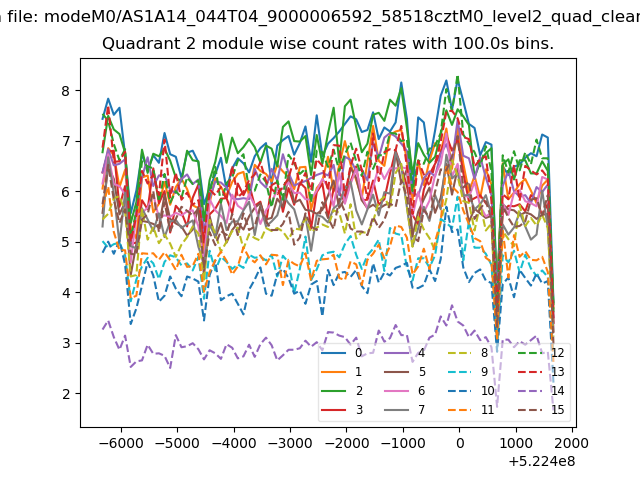

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

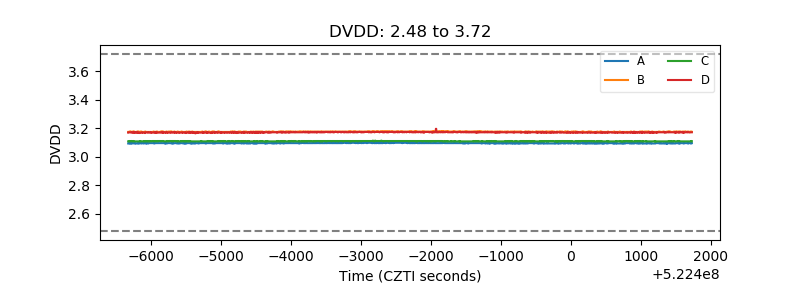

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
