| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58521cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58521cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,310,866,560 | 272,407,680 |
| Size | 1.2 GB | 259.8 MB |
| Events in quadrant A | 10,039,240 | 1,782,422 |
| Events in quadrant B | 11,999,360 | 1,870,545 |
| Events in quadrant C | 12,054,154 | 1,680,601 |
| Events in quadrant D | 12,922,873 | 1,571,447 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43414 | 2 |
| B | 0 | 48658 | 2 |
| C | 0 | 49538 | 2 |
| D | 0 | 51663 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 394 | 0 |
| B | 0 | 394 | 0 |
| C | 0 | 394 | 0 |
| D | 0 | 394 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19484 | 638 | 3.274482% |
| B | 19485 | 1078 | 5.532461% |
| C | 19484 | 972 | 4.988709% |
| D | 19484 | 1171 | 6.010060% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20409 | 19484 | 145 | 145 | 0.71% | 0.74% |  |
| B | 20410 | 19485 | 412 | 412 | 2.02% | 2.11% |  |
| C | 20409 | 19484 | 614 | 614 | 3.01% | 3.15% |  |
| D | 20409 | 19484 | 717 | 717 | 3.51% | 3.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 675141 | 1249.42 | 2184 | 2124 | 538.7 |
| A | 12 | 114 | 278612 | 513.29 | 2184 | 2124 | 538.7 |
| A | 3 | 14 | 208116 | 382.41 | 2184 | 2124 | 538.7 |
| B | 4 | 171 | 1874052 | 4071.65 | 2142 | 2058 | 459.8 |
| B | 8 | 234 | 306040 | 661.17 | 2142 | 2058 | 459.8 |
| B | 0 | 199 | 301363 | 651.0 | 2142 | 2058 | 459.8 |
| C | 14 | 245 | 1112353 | 1933.08 | 2101 | 2080 | 574.4 |
| C | 4 | 5 | 784812 | 1362.8 | 2101 | 2080 | 574.4 |
| C | 6 | 223 | 611043 | 1060.26 | 2101 | 2080 | 574.4 |
| D | 3 | 12 | 2798441 | 4782.69 | 2094 | 2003 | 584.7 |
| D | 8 | 240 | 467447 | 796.04 | 2094 | 2003 | 584.7 |
| D | 12 | 248 | 244722 | 415.12 | 2094 | 2003 | 584.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

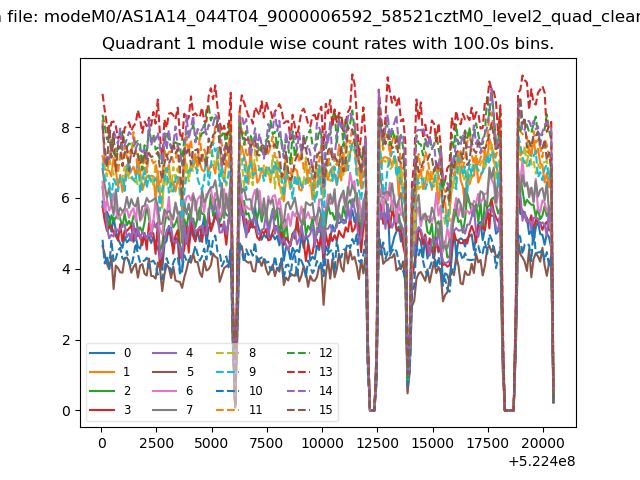

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

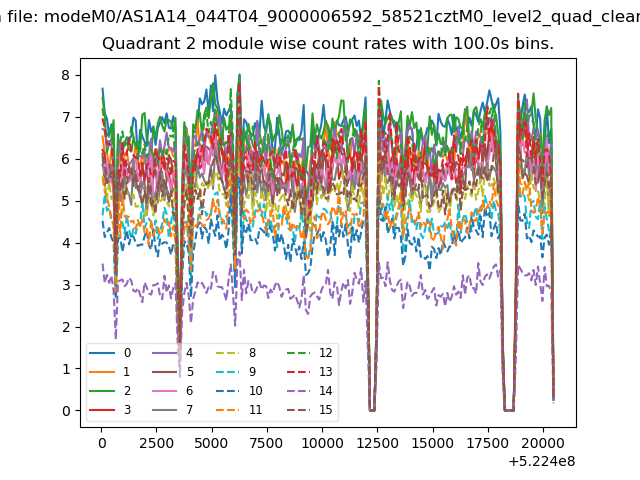

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
