| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58522cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58522cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,159,680 | 94,625,280 |
| Size | 410.2 MB | 90.2 MB |
| Events in quadrant A | 3,312,113 | 617,903 |
| Events in quadrant B | 3,846,981 | 666,188 |
| Events in quadrant C | 3,960,518 | 579,321 |
| Events in quadrant D | 4,297,534 | 547,703 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14329 | 1 |
| B | 0 | 15728 | 1 |
| C | 0 | 16349 | 1 |
| D | 0 | 17199 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6508 | 89 | 1.367548% |
| B | 6509 | 140 | 2.150868% |
| C | 6509 | 255 | 3.917652% |
| D | 6508 | 274 | 4.210203% |

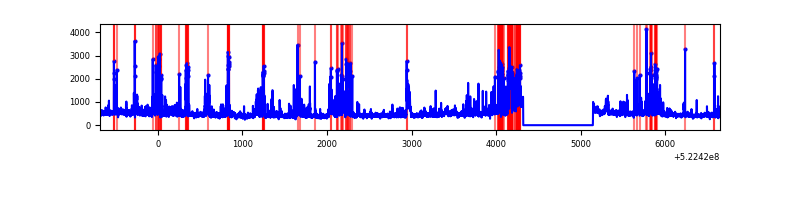

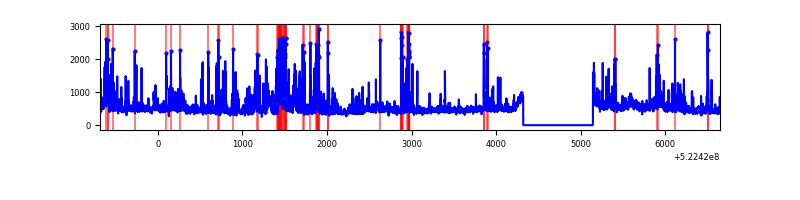

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7333 | 6508 | 15 | 15 | 0.20% | 0.23% |  |
| B | 7334 | 6509 | 71 | 71 | 0.97% | 1.09% |  |
| C | 7334 | 6510 | 169 | 169 | 2.30% | 2.60% |  |
| D | 7333 | 6508 | 217 | 217 | 2.96% | 3.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 344542 | 1920.63 | 714 | 697 | 179.0 |
| A | 2 | 143 | 35035 | 191.8 | 714 | 697 | 179.0 |
| A | 12 | 80 | 32725 | 178.9 | 714 | 697 | 179.0 |
| B | 5 | 185 | 272416 | 1788.3 | 707 | 682 | 152.0 |
| B | 4 | 171 | 199008 | 1305.2 | 707 | 682 | 152.0 |
| B | 2 | 249 | 136575 | 894.32 | 707 | 682 | 152.0 |
| C | 5 | 10 | 390772 | 2062.42 | 686 | 680 | 189.1 |
| C | 6 | 223 | 144895 | 762.47 | 686 | 680 | 189.1 |
| C | 12 | 249 | 131185 | 689.98 | 686 | 680 | 189.1 |
| D | 3 | 12 | 829918 | 4235.53 | 687 | 655 | 195.8 |
| D | 2 | 153 | 168535 | 857.46 | 687 | 655 | 195.8 |
| D | 8 | 160 | 127656 | 648.67 | 687 | 655 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

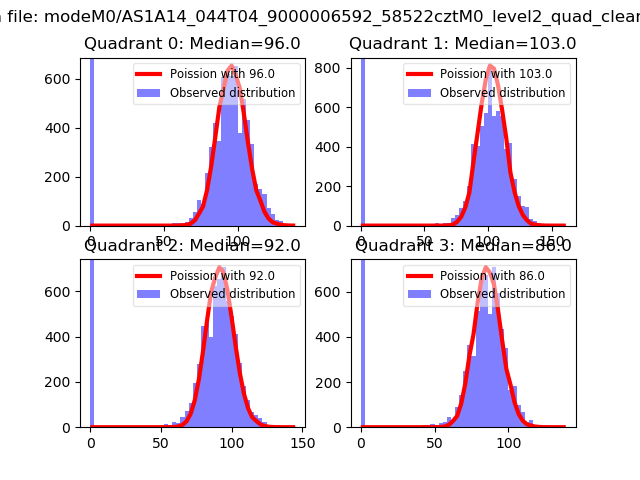

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

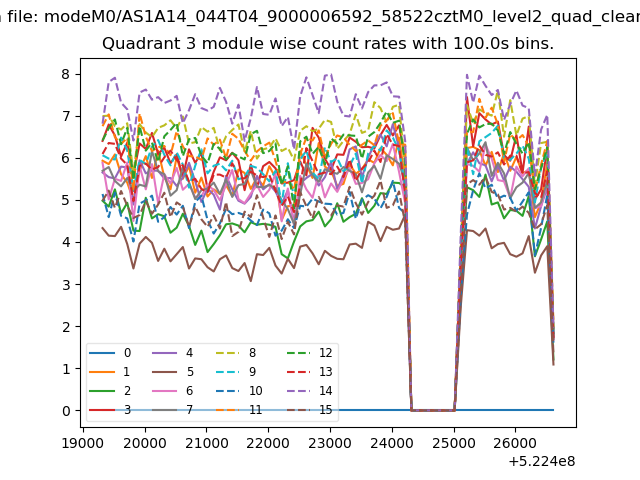

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

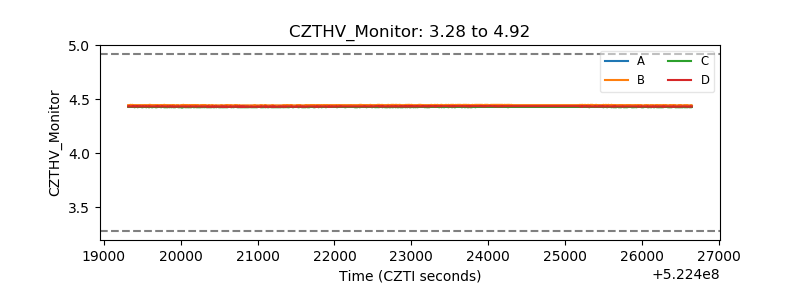

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

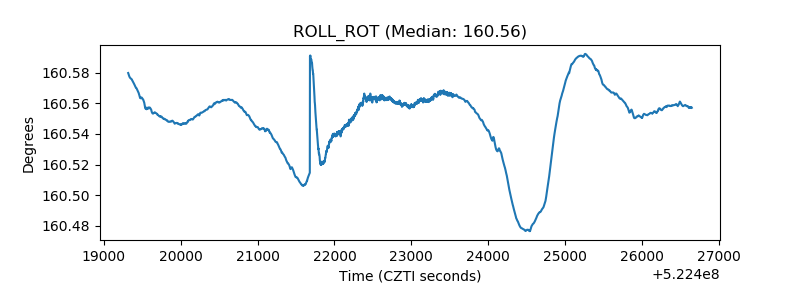

| _ROLL_ROT |  |

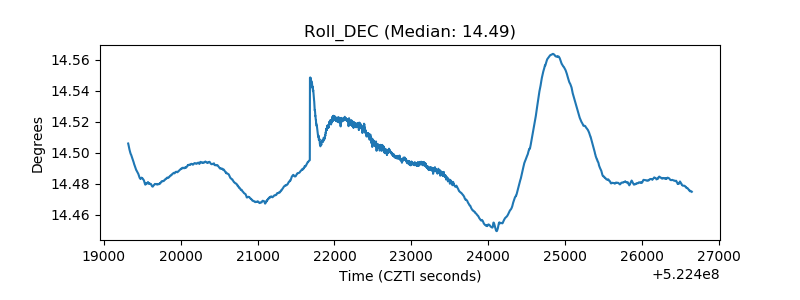

| _Roll_DEC |  |

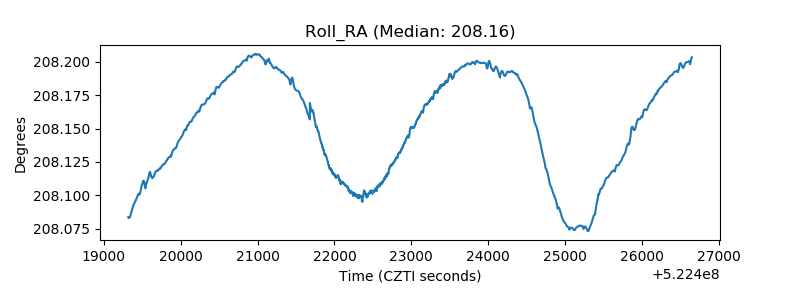

| _Roll_RA |  |
| Veto Counter |  |
