| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58525cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58525cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,768,640 | 96,333,120 |
| Size | 469.0 MB | 91.9 MB |
| Events in quadrant A | 4,146,127 | 642,027 |
| Events in quadrant B | 3,379,262 | 694,923 |
| Events in quadrant C | 4,564,602 | 594,156 |
| Events in quadrant D | 5,606,896 | 530,541 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16781 | 2 |
| B | 0 | 14599 | 2 |
| C | 0 | 18198 | 2 |
| D | 0 | 21114 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6526 | 136 | 2.083972% |
| B | 6526 | 111 | 1.700889% |
| C | 6526 | 388 | 5.945449% |
| D | 6526 | 684 | 10.481152% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

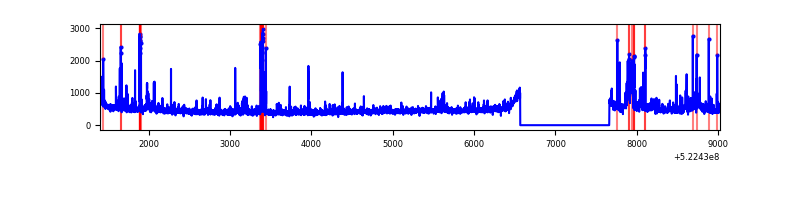

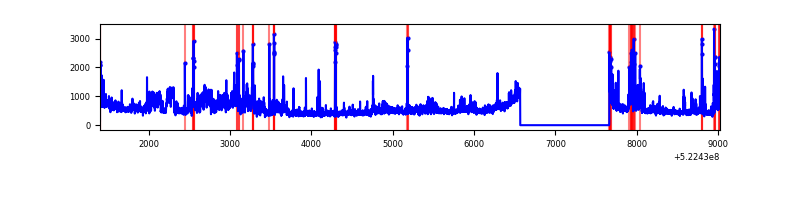

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7621 | 6526 | 65 | 65 | 0.85% | 1.00% |  |
| B | 7621 | 6526 | 39 | 39 | 0.51% | 0.60% |  |
| C | 7621 | 6526 | 345 | 345 | 4.53% | 5.29% |  |
| D | 7621 | 6526 | 678 | 678 | 8.90% | 10.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 660169 | 3657.23 | 726 | 709 | 180.3 |
| A | 10 | 251 | 224467 | 1240.92 | 726 | 709 | 180.3 |
| A | 10 | 17 | 172674 | 953.68 | 726 | 709 | 180.3 |
| B | 2 | 249 | 119393 | 772.59 | 722 | 698 | 153.6 |
| B | 8 | 234 | 94220 | 608.74 | 722 | 698 | 153.6 |
| B | 10 | 247 | 56505 | 363.25 | 722 | 698 | 153.6 |
| C | 4 | 5 | 728572 | 3808.09 | 695 | 688 | 191.1 |
| C | 14 | 245 | 328118 | 1713.02 | 695 | 688 | 191.1 |
| C | 6 | 223 | 291604 | 1521.99 | 695 | 688 | 191.1 |
| D | 2 | 249 | 1497355 | 7742.41 | 676 | 648 | 193.3 |
| D | 3 | 12 | 736837 | 3808.28 | 676 | 648 | 193.3 |
| D | 2 | 31 | 286672 | 1479.59 | 676 | 648 | 193.3 |

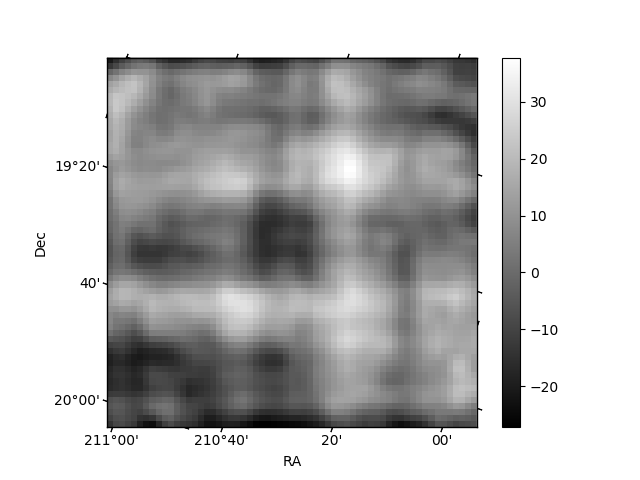

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

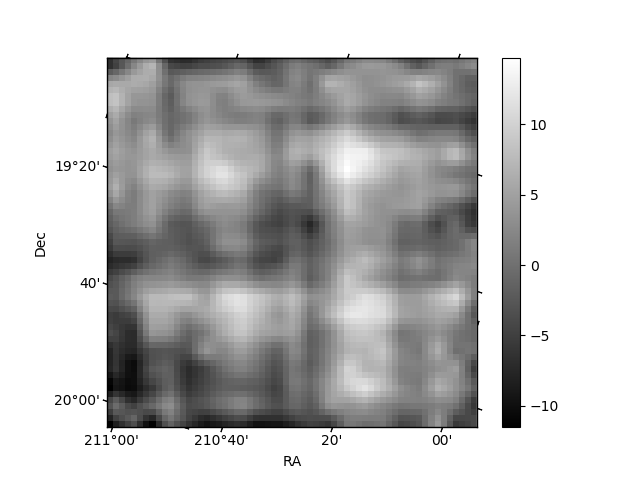

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

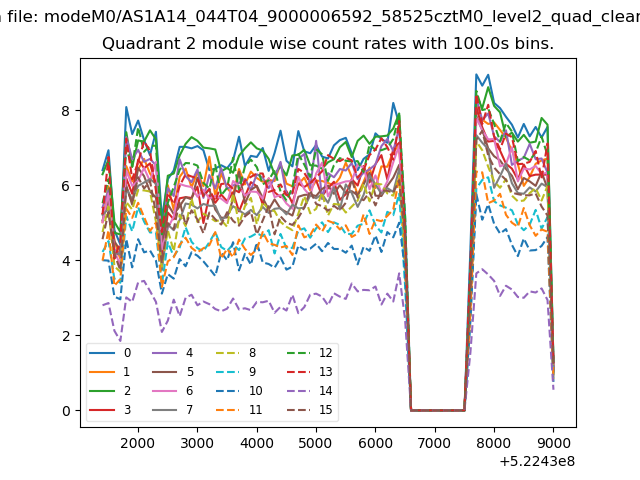

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

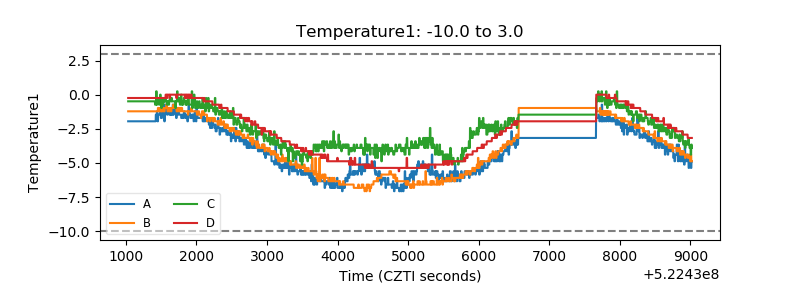

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

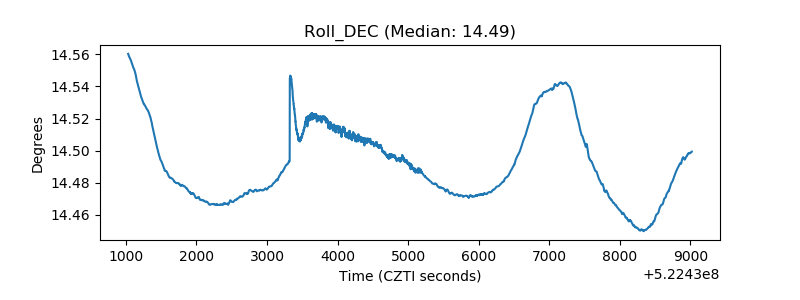

| _Roll_RA |  |

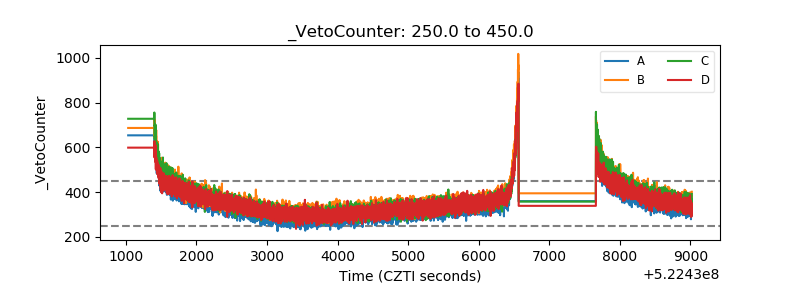

| Veto Counter |  |
