| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58526cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58526cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,468,800 | 91,906,560 |
| Size | 499.2 MB | 87.6 MB |
| Events in quadrant A | 4,151,950 | 627,246 |
| Events in quadrant B | 3,447,907 | 695,904 |
| Events in quadrant C | 3,445,646 | 615,229 |
| Events in quadrant D | 7,836,783 | 400,443 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16568 | 2 |
| B | 0 | 14543 | 2 |
| C | 0 | 14734 | 2 |
| D | 0 | 27750 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6367 | 253 | 3.973614% |
| B | 6367 | 74 | 1.162243% |
| C | 6367 | 73 | 1.146537% |
| D | 6366 | 1964 | 30.851398% |

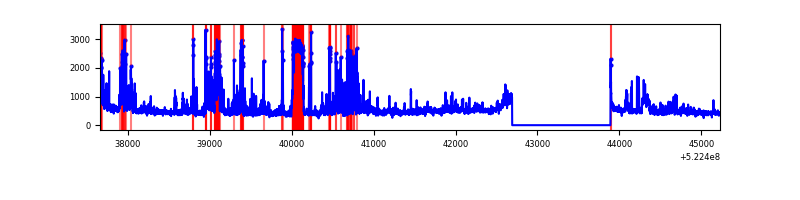

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7567 | 6367 | 226 | 226 | 2.99% | 3.55% |  |
| B | 7567 | 6367 | 27 | 27 | 0.36% | 0.42% |  |
| C | 7567 | 6368 | 59 | 59 | 0.78% | 0.93% |  |
| D | 7565 | 6366 | 1936 | 1936 | 25.59% | 30.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 524721 | 2997.83 | 704 | 687 | 174.8 |
| A | 10 | 251 | 490048 | 2799.48 | 704 | 687 | 174.8 |
| A | 12 | 114 | 157671 | 898.06 | 704 | 687 | 174.8 |
| B | 2 | 249 | 98213 | 649.2 | 711 | 686 | 150.2 |
| B | 4 | 171 | 97146 | 642.1 | 711 | 686 | 150.2 |
| B | 10 | 247 | 78701 | 519.32 | 711 | 686 | 150.2 |
| C | 6 | 223 | 149422 | 777.25 | 693 | 687 | 191.4 |
| C | 13 | 3 | 127254 | 661.4 | 693 | 687 | 191.4 |
| C | 12 | 249 | 98168 | 509.41 | 693 | 687 | 191.4 |
| D | 2 | 249 | 4573819 | 29369.75 | 545 | 520 | 155.7 |
| D | 3 | 12 | 846941 | 5435.72 | 545 | 520 | 155.7 |
| D | 8 | 240 | 135735 | 868.35 | 545 | 520 | 155.7 |

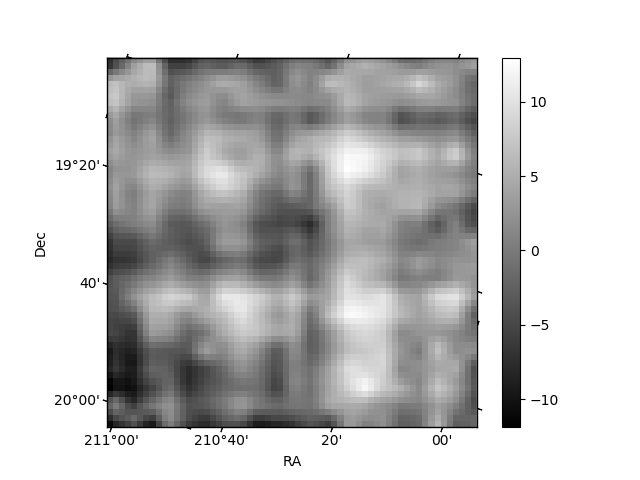

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

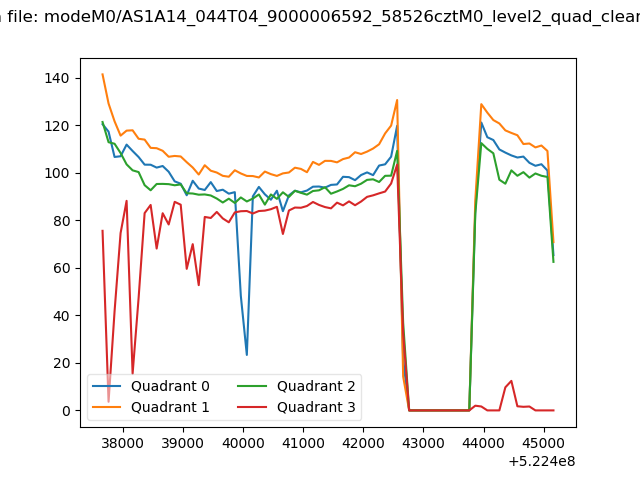

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

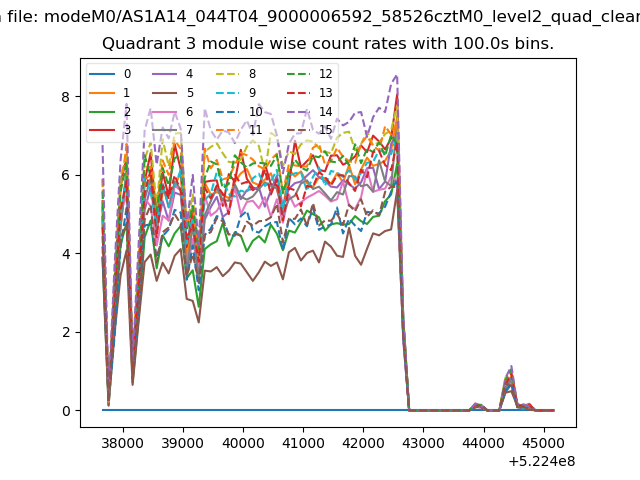

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

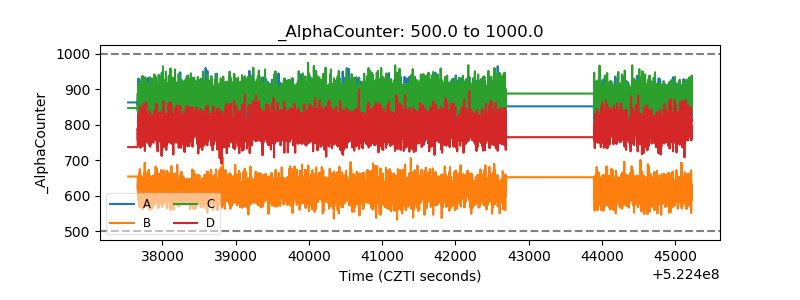

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

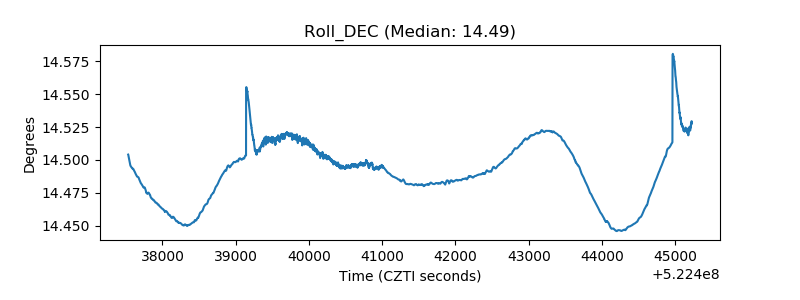

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
