| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58527cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58527cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,349,120 | 91,025,280 |
| Size | 522.9 MB | 86.8 MB |
| Events in quadrant A | 3,668,736 | 638,792 |
| Events in quadrant B | 3,637,556 | 698,628 |
| Events in quadrant C | 4,655,689 | 584,011 |
| Events in quadrant D | 7,840,932 | 390,400 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15071 | 2 |
| B | 0 | 15032 | 2 |
| C | 0 | 18304 | 2 |
| D | 0 | 27795 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6366 | 179 | 2.811813% |
| B | 6366 | 119 | 1.869306% |
| C | 6366 | 539 | 8.466855% |
| D | 6366 | 2095 | 32.909205% |

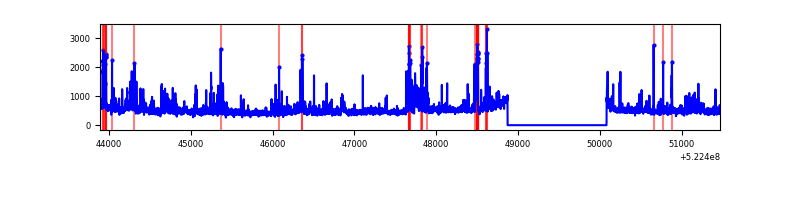

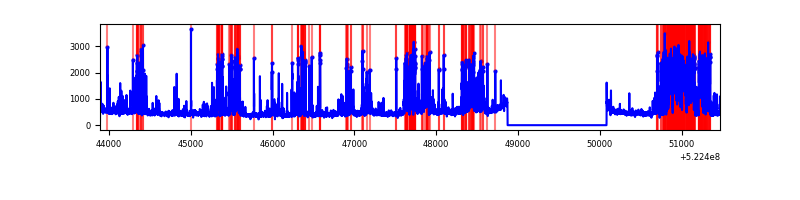

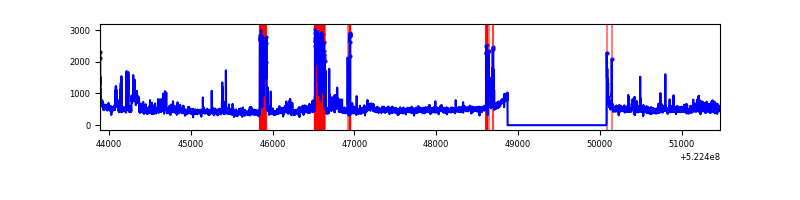

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6367 | 132 | 132 | 1.74% | 2.07% |  |
| B | 7576 | 6367 | 46 | 46 | 0.61% | 0.72% |  |
| C | 7576 | 6367 | 448 | 448 | 5.91% | 7.04% |  |
| D | 7576 | 6366 | 2061 | 2061 | 27.20% | 32.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 469383 | 2663.51 | 711 | 694 | 176.0 |
| A | 3 | 14 | 118824 | 671.32 | 711 | 694 | 176.0 |
| A | 12 | 114 | 116196 | 656.39 | 711 | 694 | 176.0 |
| B | 0 | 171 | 226081 | 1478.82 | 714 | 689 | 152.4 |
| B | 4 | 171 | 163629 | 1069.07 | 714 | 689 | 152.4 |
| B | 8 | 234 | 163493 | 1068.18 | 714 | 689 | 152.4 |
| C | 5 | 10 | 1379896 | 7380.37 | 675 | 671 | 186.9 |
| C | 6 | 223 | 344618 | 1840.49 | 675 | 671 | 186.9 |
| C | 14 | 254 | 69642 | 369.07 | 675 | 671 | 186.9 |
| D | 2 | 249 | 4888419 | 32053.69 | 532 | 508 | 152.5 |
| D | 3 | 12 | 234919 | 1537.21 | 532 | 508 | 152.5 |
| D | 9 | 102 | 196369 | 1284.41 | 532 | 508 | 152.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

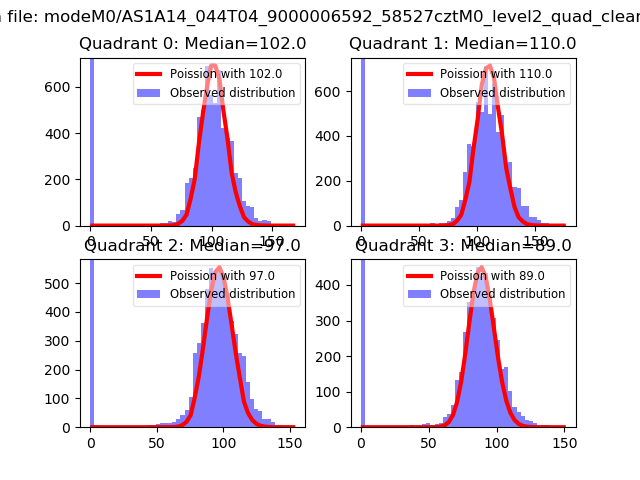

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

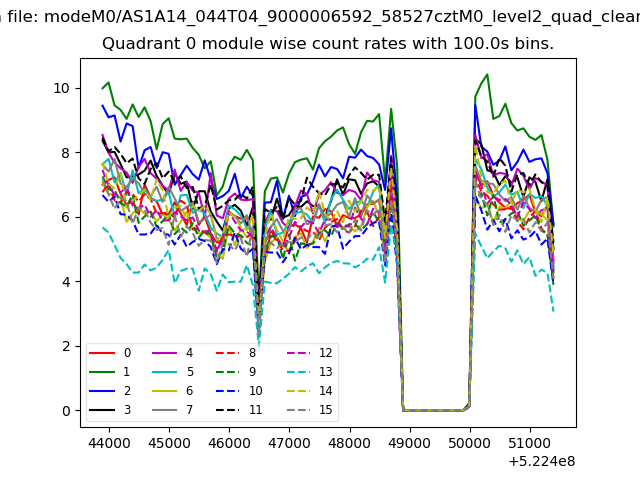

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

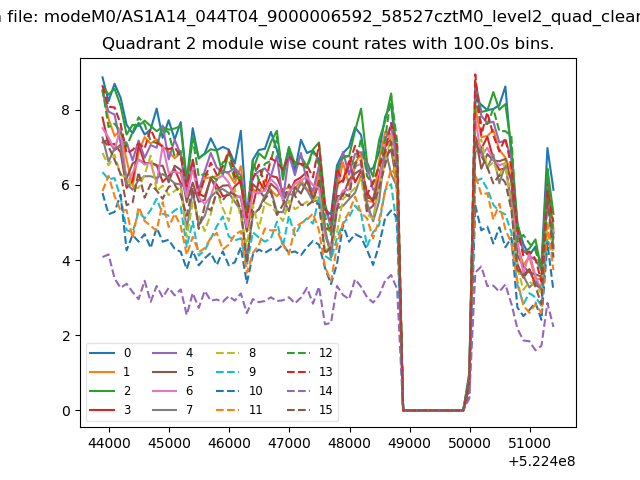

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
