| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58529cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58529cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,735,040 | 91,742,400 |
| Size | 497.6 MB | 87.5 MB |
| Events in quadrant A | 3,092,618 | 612,940 |
| Events in quadrant B | 3,635,751 | 657,450 |
| Events in quadrant C | 6,888,490 | 529,216 |
| Events in quadrant D | 5,177,002 | 512,025 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14070 | 2 |
| B | 0 | 15354 | 2 |
| C | 0 | 25064 | 2 |
| D | 0 | 20294 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6683 | 54 | 0.808020% |
| B | 6684 | 128 | 1.915021% |
| C | 6684 | 950 | 14.213046% |
| D | 6684 | 603 | 9.021544% |

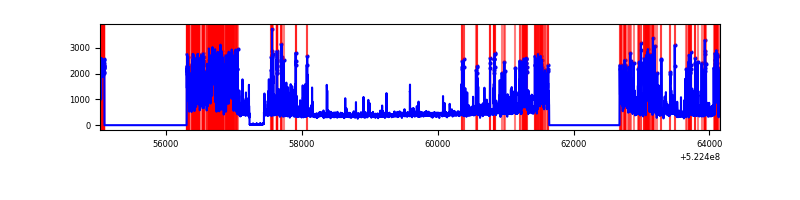

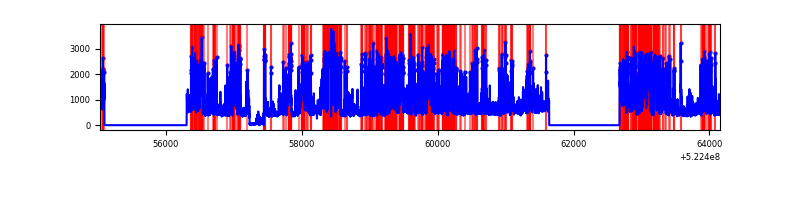

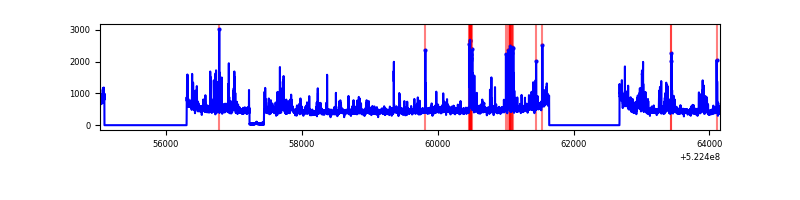

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9123 | 6880 | 5 | 5 | 0.05% | 0.07% |  |
| B | 9124 | 6880 | 36 | 36 | 0.39% | 0.52% |  |
| C | 9124 | 6871 | 895 | 895 | 9.81% | 13.03% |  |
| D | 9124 | 6880 | 567 | 567 | 6.21% | 8.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 41517 | 219.85 | 749 | 729 | 185.5 |
| A | 11 | 31 | 40265 | 213.1 | 749 | 729 | 185.5 |
| A | 10 | 17 | 33335 | 175.75 | 749 | 729 | 185.5 |
| B | 8 | 234 | 243967 | 1514.65 | 745 | 720 | 160.6 |
| B | 0 | 171 | 108425 | 670.66 | 745 | 720 | 160.6 |
| B | 8 | 128 | 87294 | 539.08 | 745 | 720 | 160.6 |
| C | 4 | 5 | 1940845 | 10144.21 | 691 | 684 | 191.3 |
| C | 5 | 10 | 1285418 | 6717.28 | 691 | 684 | 191.3 |
| C | 12 | 252 | 607771 | 3174.18 | 691 | 684 | 191.3 |
| D | 2 | 249 | 1117034 | 5691.76 | 689 | 659 | 196.1 |
| D | 3 | 12 | 674643 | 3436.26 | 689 | 659 | 196.1 |
| D | 2 | 31 | 269401 | 1370.16 | 689 | 659 | 196.1 |

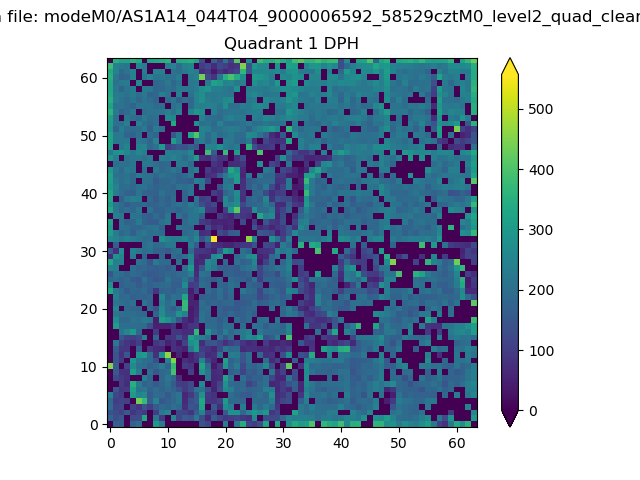

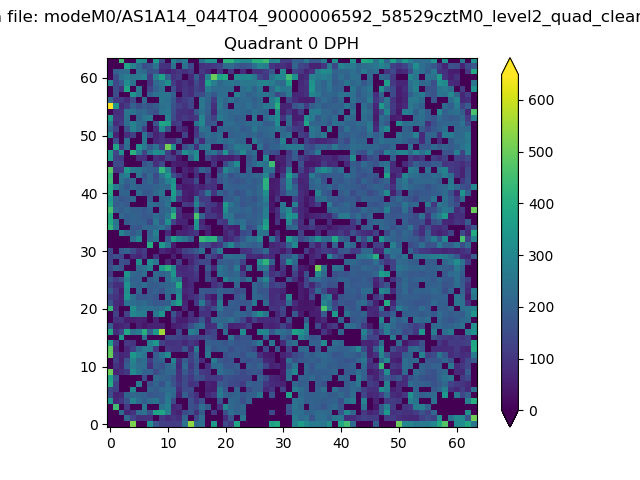

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

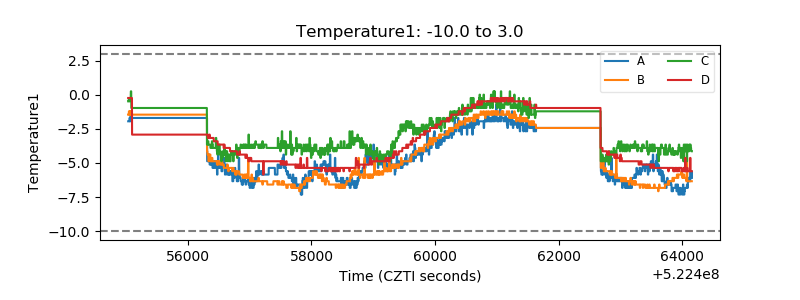

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

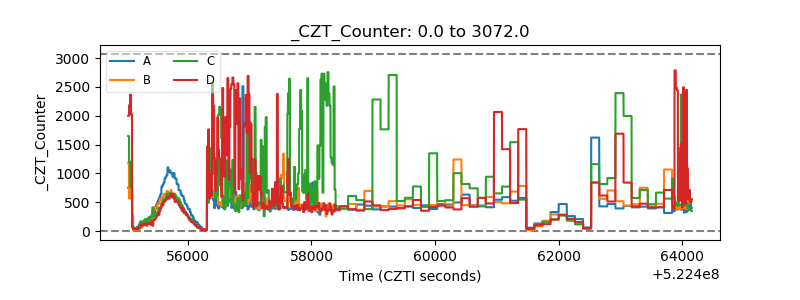

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

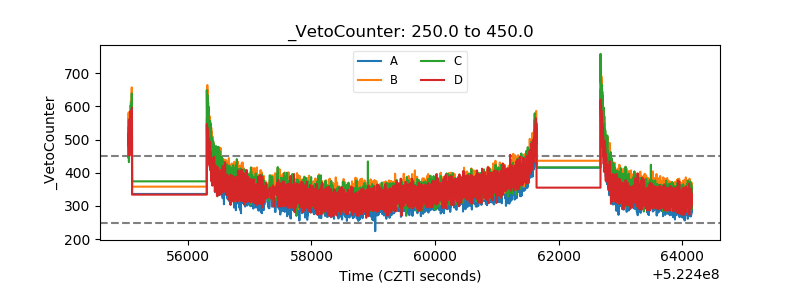

| Veto Counter |  |
