| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58530cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58530cztM0_level2_quad_clean.evt |
| Size (bytes) | 593,496,000 | 92,237,760 |
| Size | 566.0 MB | 88.0 MB |
| Events in quadrant A | 3,487,439 | 620,126 |
| Events in quadrant B | 3,794,495 | 668,841 |
| Events in quadrant C | 8,422,900 | 480,447 |
| Events in quadrant D | 5,722,774 | 537,048 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15510 | 2 |
| B | 0 | 16066 | 2 |
| C | 0 | 29941 | 2 |
| D | 0 | 22034 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6978 | 141 | 2.020636% |
| B | 6978 | 176 | 2.522213% |
| C | 6978 | 1818 | 26.053310% |
| D | 6978 | 543 | 7.781599% |

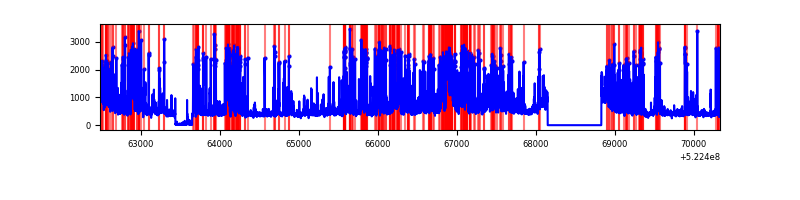

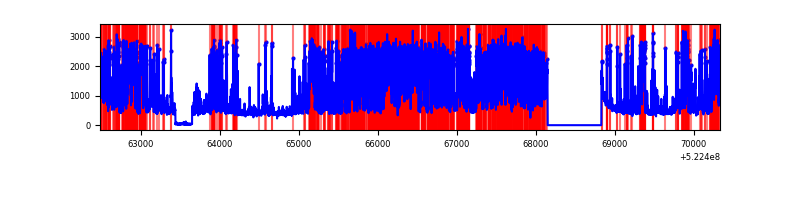

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7853 | 7174 | 46 | 46 | 0.59% | 0.64% |  |
| B | 7853 | 7173 | 39 | 39 | 0.50% | 0.54% |  |
| C | 7852 | 7172 | 1586 | 1586 | 20.20% | 22.11% |  |
| D | 7853 | 7174 | 508 | 508 | 6.47% | 7.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 273021 | 1418.53 | 780 | 759 | 191.9 |
| A | 10 | 251 | 56994 | 292.99 | 780 | 759 | 191.9 |
| A | 11 | 31 | 44833 | 229.63 | 780 | 759 | 191.9 |
| B | 8 | 234 | 262583 | 1561.75 | 776 | 748 | 167.7 |
| B | 4 | 171 | 149602 | 887.86 | 776 | 748 | 167.7 |
| B | 0 | 171 | 99301 | 587.83 | 776 | 748 | 167.7 |
| C | 5 | 10 | 4042982 | 21588.45 | 673 | 664 | 187.2 |
| C | 4 | 5 | 947102 | 5054.56 | 673 | 664 | 187.2 |
| C | 12 | 252 | 483564 | 2578.98 | 673 | 664 | 187.2 |
| D | 3 | 12 | 1561131 | 7486.26 | 732 | 701 | 208.4 |
| D | 2 | 249 | 598972 | 2870.24 | 732 | 701 | 208.4 |
| D | 2 | 31 | 384751 | 1842.5 | 732 | 701 | 208.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

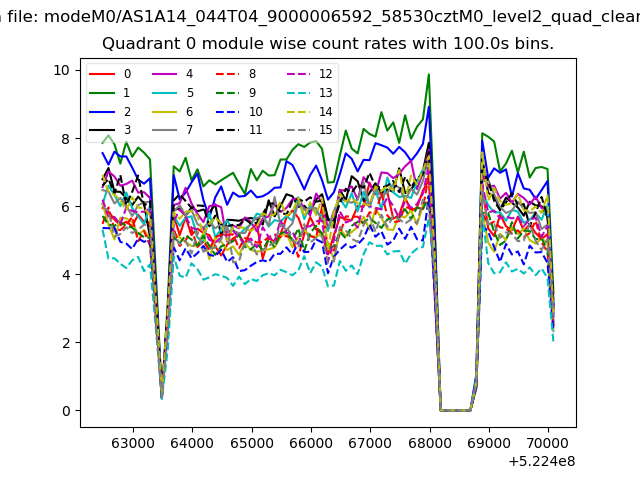

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

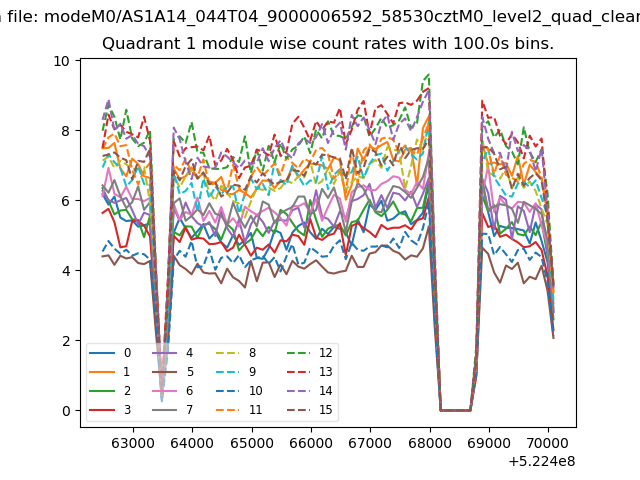

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

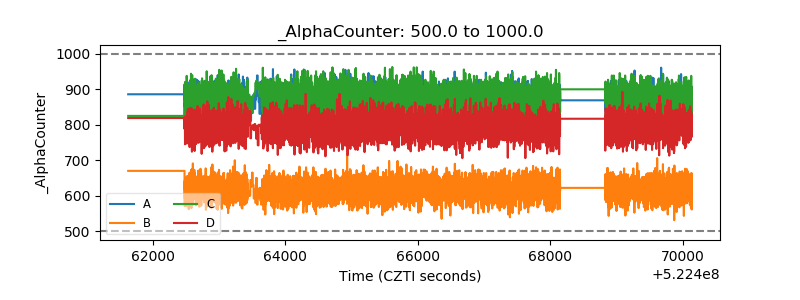

| Alpha Counter |  |

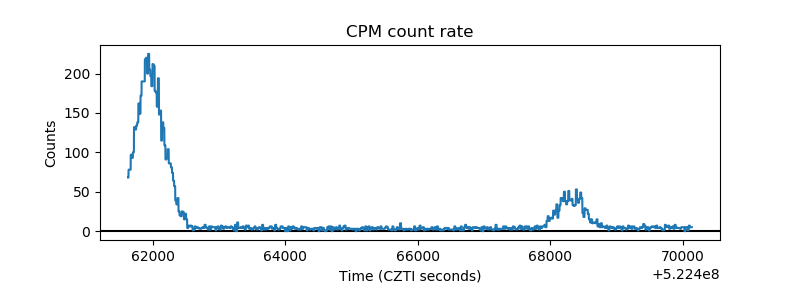

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

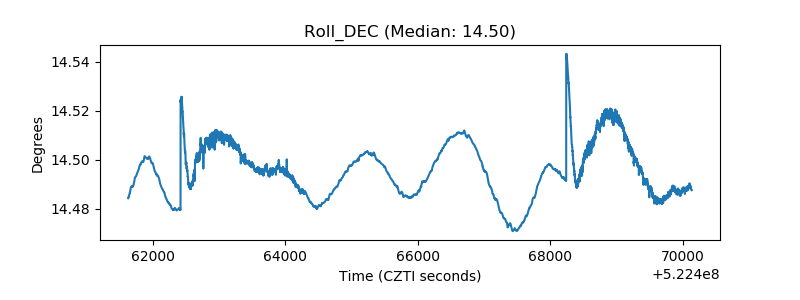

| _Roll_DEC |  |

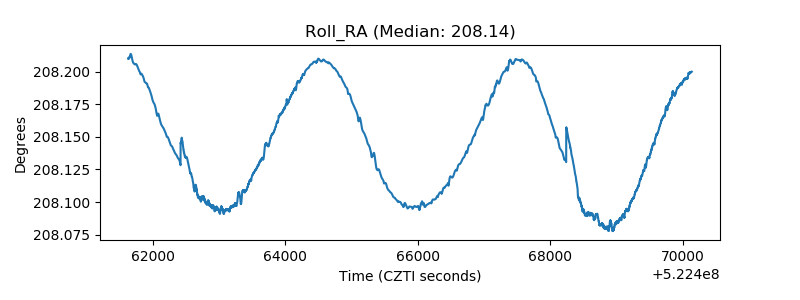

| _Roll_RA |  |
| Veto Counter |  |
