| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58531cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58531cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,648,640 | 112,383,360 |
| Size | 591.9 MB | 107.2 MB |
| Events in quadrant A | 3,963,612 | 756,224 |
| Events in quadrant B | 4,579,530 | 796,628 |
| Events in quadrant C | 6,968,419 | 665,946 |
| Events in quadrant D | 6,834,032 | 621,005 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17619 | 1 |
| B | 0 | 19109 | 2 |
| C | 0 | 26341 | 1 |
| D | 0 | 26186 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8101 | 261 | 3.221824% |
| B | 8100 | 442 | 5.456790% |
| C | 8101 | 992 | 12.245402% |
| D | 8101 | 962 | 11.875077% |

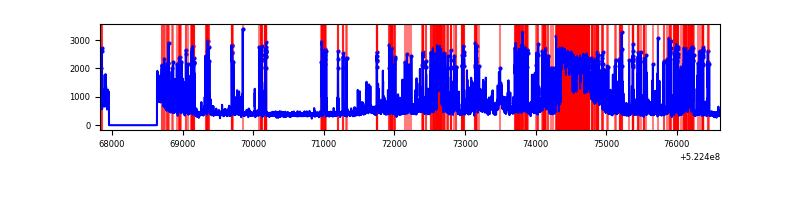

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8781 | 8102 | 7 | 7 | 0.08% | 0.09% |  |
| B | 8780 | 8100 | 52 | 52 | 0.59% | 0.64% |  |
| C | 8781 | 8101 | 849 | 849 | 9.67% | 10.48% |  |
| D | 8781 | 8102 | 813 | 813 | 9.26% | 10.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 89552 | 380.88 | 946 | 919 | 232.7 |
| A | 10 | 251 | 71812 | 304.65 | 946 | 919 | 232.7 |
| A | 12 | 114 | 32166 | 134.28 | 946 | 919 | 232.7 |
| B | 8 | 234 | 215232 | 1062.96 | 932 | 898 | 201.6 |
| B | 0 | 171 | 211714 | 1045.51 | 932 | 898 | 201.6 |
| B | 10 | 247 | 103293 | 507.81 | 932 | 898 | 201.6 |
| C | 4 | 5 | 1970600 | 8239.68 | 871 | 861 | 239.1 |
| C | 5 | 10 | 804951 | 3363.62 | 871 | 861 | 239.1 |
| C | 12 | 252 | 237285 | 988.99 | 871 | 861 | 239.1 |
| D | 3 | 12 | 1254368 | 5184.19 | 846 | 806 | 241.8 |
| D | 2 | 249 | 1237690 | 5115.22 | 846 | 806 | 241.8 |
| D | 8 | 240 | 332260 | 1370.75 | 846 | 806 | 241.8 |

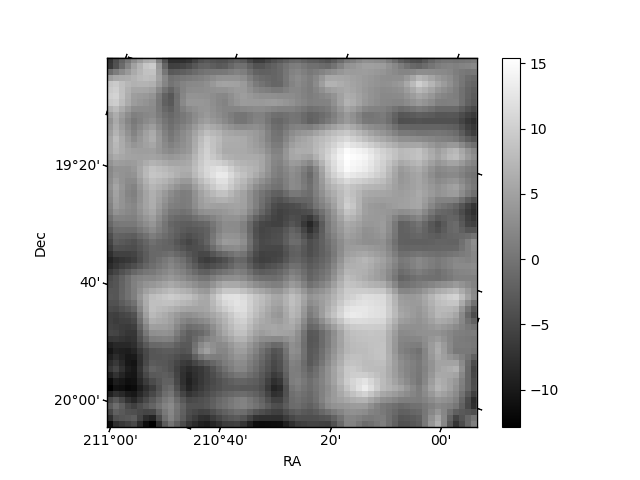

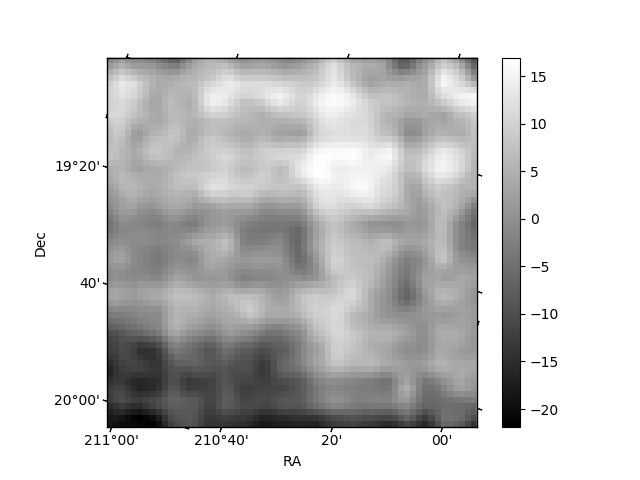

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

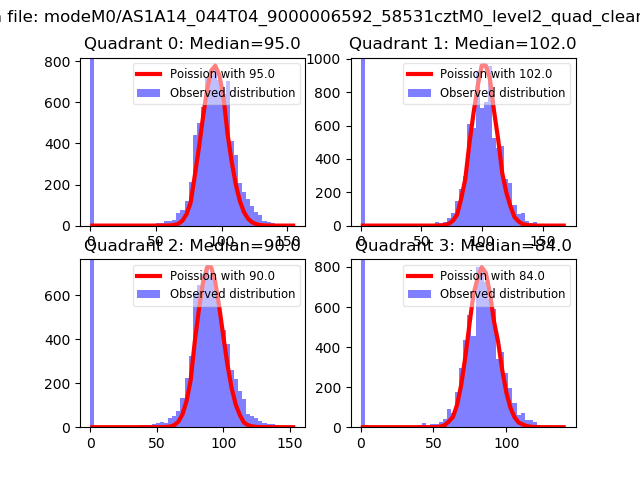

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

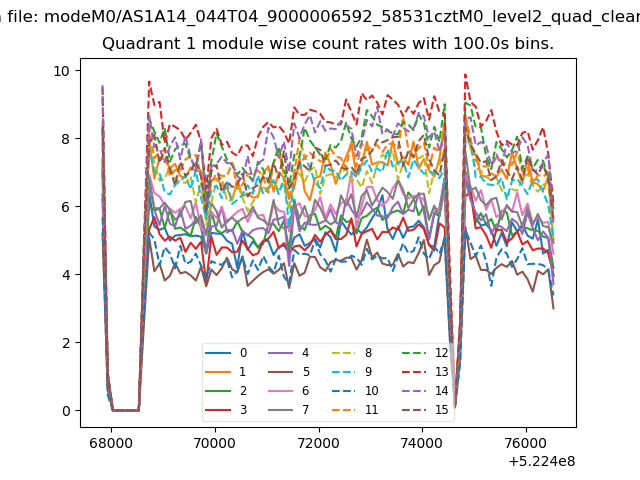

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

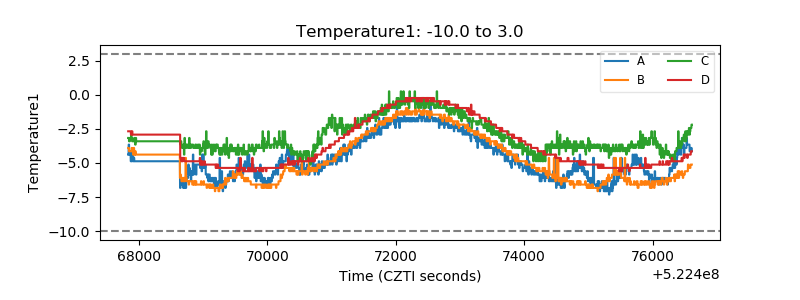

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

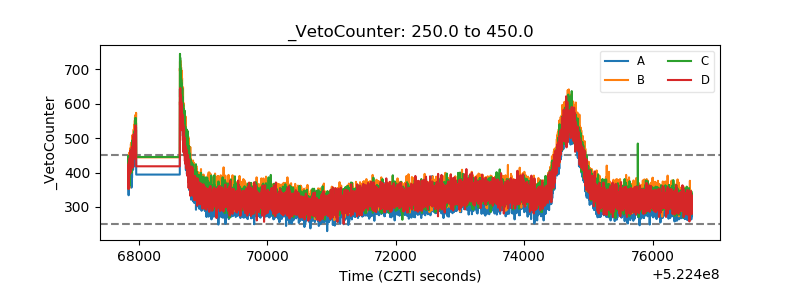

| Veto Counter |  |
