| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58532cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58532cztM0_level2_quad_clean.evt |
| Size (bytes) | 689,670,720 | 118,232,640 |
| Size | 657.7 MB | 112.8 MB |
| Events in quadrant A | 4,541,992 | 806,041 |
| Events in quadrant B | 4,597,164 | 863,006 |
| Events in quadrant C | 7,219,813 | 706,693 |
| Events in quadrant D | 8,498,983 | 603,534 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19463 | 0 |
| B | 0 | 19496 | 0 |
| C | 0 | 27502 | 0 |
| D | 0 | 31301 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8650 | 221 | 2.554913% |
| B | 8651 | 334 | 3.860825% |
| C | 8651 | 1079 | 12.472547% |
| D | 8651 | 1701 | 19.662467% |

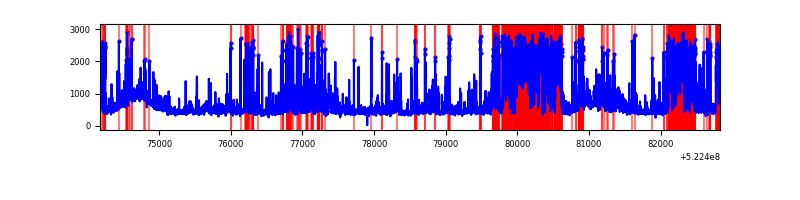

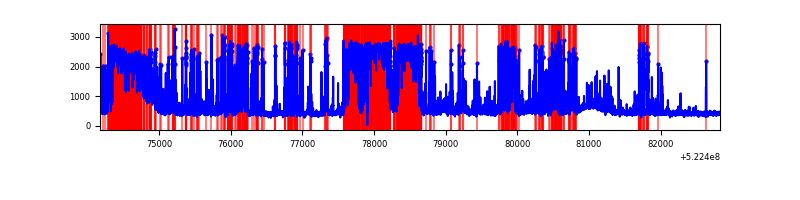

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8651 | 8651 | 27 | 27 | 0.31% | 0.31% |  |
| B | 8651 | 8651 | 11 | 11 | 0.13% | 0.13% |  |
| C | 8652 | 8652 | 860 | 860 | 9.94% | 9.94% |  |
| D | 8652 | 8652 | 1543 | 1543 | 17.83% | 17.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 141292 | 570.73 | 1006 | 979 | 245.8 |
| A | 10 | 17 | 138497 | 559.36 | 1006 | 979 | 245.8 |
| A | 12 | 114 | 130966 | 528.73 | 1006 | 979 | 245.8 |
| B | 0 | 171 | 251019 | 1158.22 | 992 | 952 | 215.9 |
| B | 4 | 171 | 95774 | 439.18 | 992 | 952 | 215.9 |
| B | 10 | 247 | 74524 | 340.76 | 992 | 952 | 215.9 |
| C | 5 | 10 | 2175763 | 8697.2 | 922 | 913 | 250.1 |
| C | 4 | 5 | 1005230 | 4016.25 | 922 | 913 | 250.1 |
| C | 12 | 252 | 191917 | 763.82 | 922 | 913 | 250.1 |
| D | 2 | 249 | 2371420 | 9762.66 | 858 | 819 | 242.8 |
| D | 3 | 12 | 1769004 | 7281.78 | 858 | 819 | 242.8 |
| D | 12 | 248 | 355524 | 1460.75 | 858 | 819 | 242.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

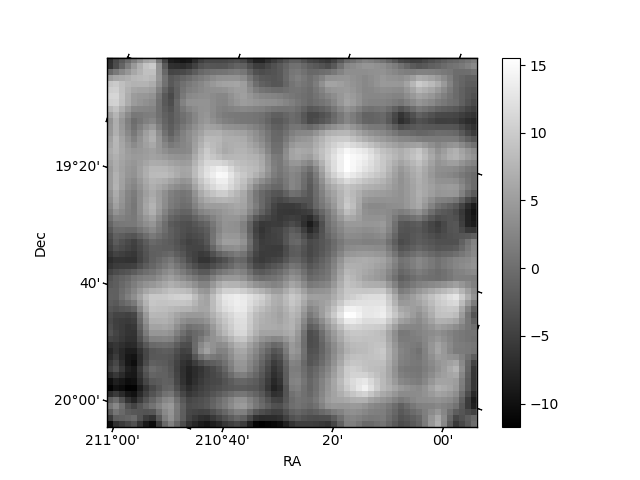

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

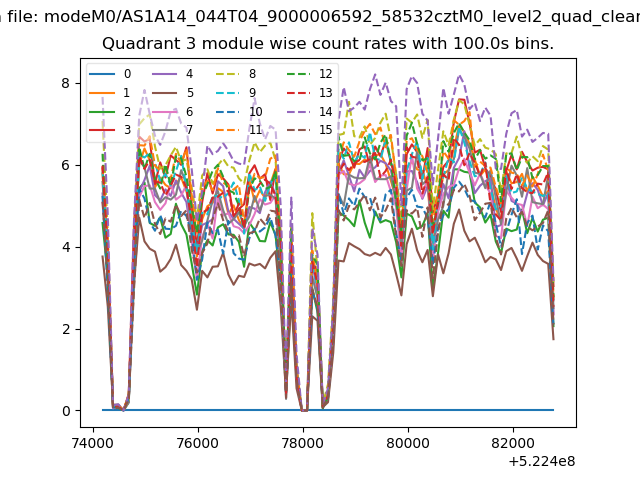

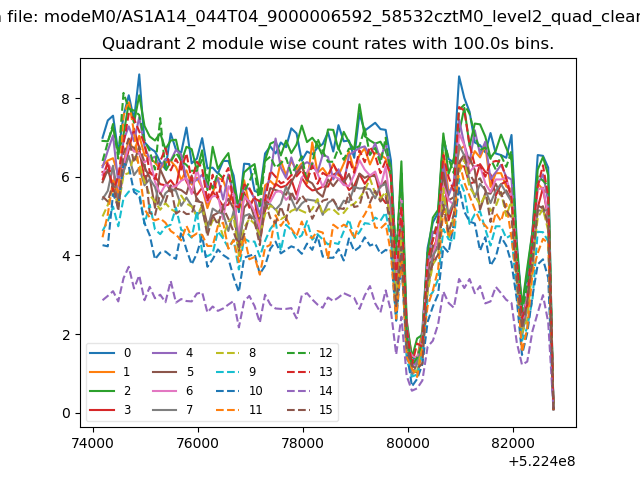

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

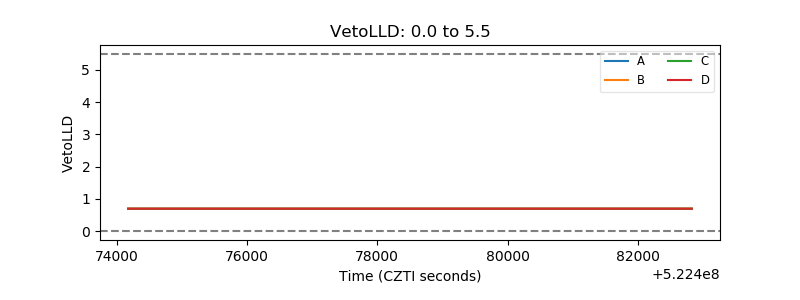

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

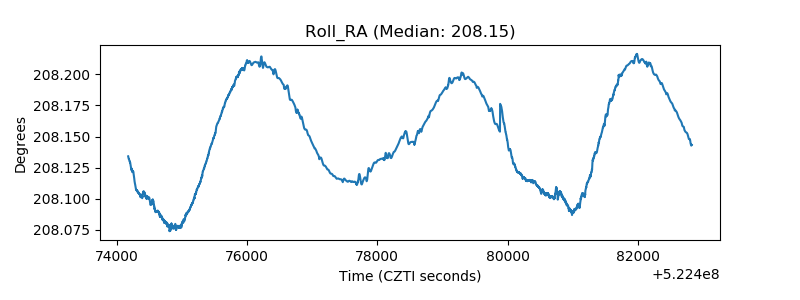

| _Roll_RA |  |
| Veto Counter |  |
