| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58536cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58536cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,949,120,640 | 349,470,720 |
| Size | 1.8 GB | 333.3 MB |
| Events in quadrant A | 14,109,556 | 2,306,504 |
| Events in quadrant B | 13,327,279 | 2,517,862 |
| Events in quadrant C | 21,247,804 | 2,038,379 |
| Events in quadrant D | 21,532,569 | 1,996,681 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 59118 | 4 |
| B | 0 | 56616 | 3 |
| C | 0 | 80548 | 3 |
| D | 0 | 81028 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 506 | 0 |
| B | 0 | 506 | 0 |
| C | 0 | 506 | 0 |
| D | 0 | 506 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 25009 | 990 | 3.958575% |
| B | 25010 | 723 | 2.890844% |
| C | 25010 | 3350 | 13.394642% |
| D | 25010 | 2310 | 9.236305% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26333 | 25009 | 463 | 463 | 1.76% | 1.85% |  |
| B | 26334 | 25010 | 94 | 94 | 0.36% | 0.38% |  |
| C | 26334 | 25010 | 2576 | 2576 | 9.78% | 10.30% |  |
| D | 26334 | 25010 | 2045 | 2045 | 7.77% | 8.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1365620 | 1995.75 | 2773 | 2699 | 682.9 |
| A | 3 | 14 | 600042 | 874.7 | 2773 | 2699 | 682.9 |
| A | 12 | 114 | 311777 | 452.59 | 2773 | 2699 | 682.9 |
| B | 0 | 186 | 691691 | 1161.45 | 2759 | 2655 | 593.3 |
| B | 0 | 171 | 605055 | 1015.42 | 2759 | 2655 | 593.3 |
| B | 8 | 234 | 245103 | 408.68 | 2759 | 2655 | 593.3 |
| C | 5 | 10 | 6505906 | 9286.88 | 2562 | 2538 | 700.3 |
| C | 4 | 5 | 3040288 | 4337.94 | 2562 | 2538 | 700.3 |
| C | 12 | 252 | 464239 | 659.31 | 2562 | 2538 | 700.3 |
| D | 3 | 12 | 4940517 | 6635.66 | 2624 | 2507 | 744.2 |
| D | 8 | 240 | 2145755 | 2880.08 | 2624 | 2507 | 744.2 |
| D | 2 | 31 | 1494813 | 2005.35 | 2624 | 2507 | 744.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

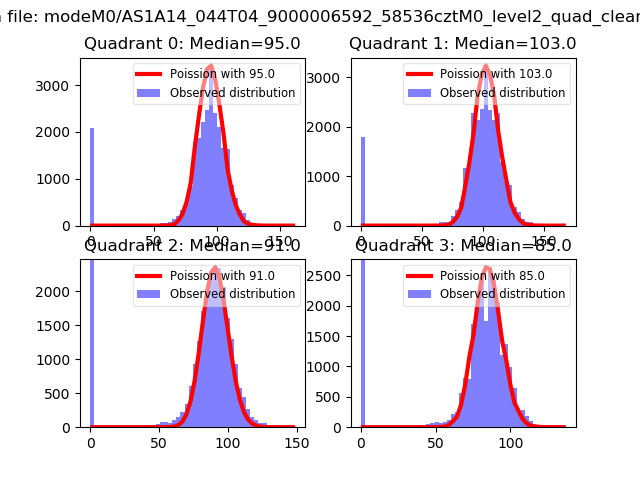

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

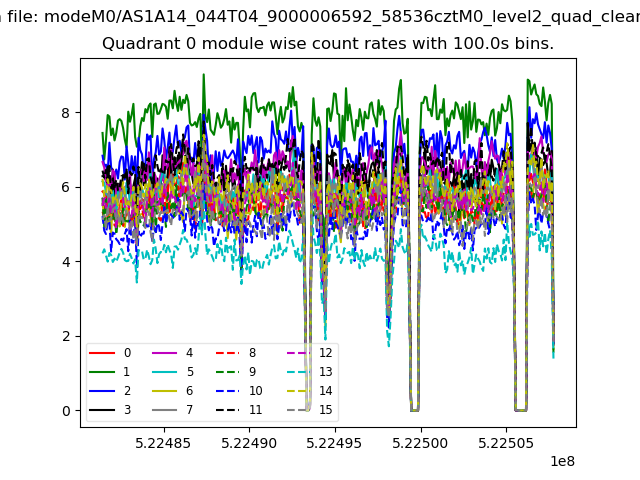

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

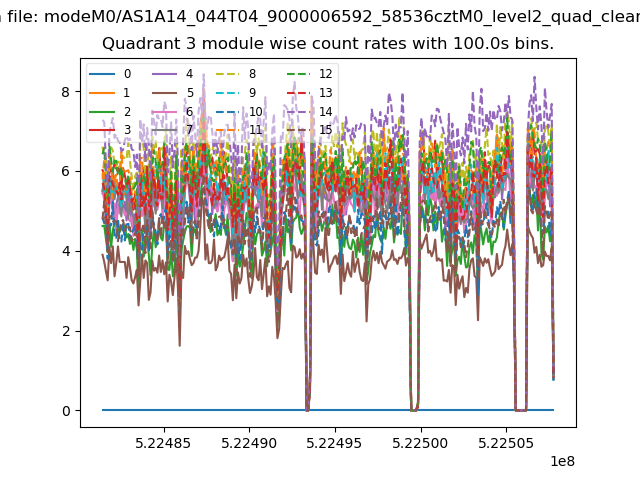

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

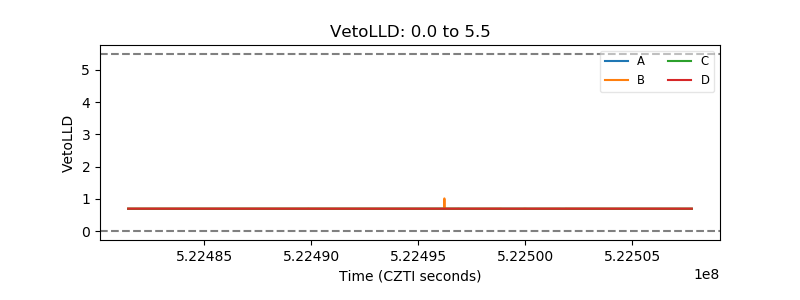

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

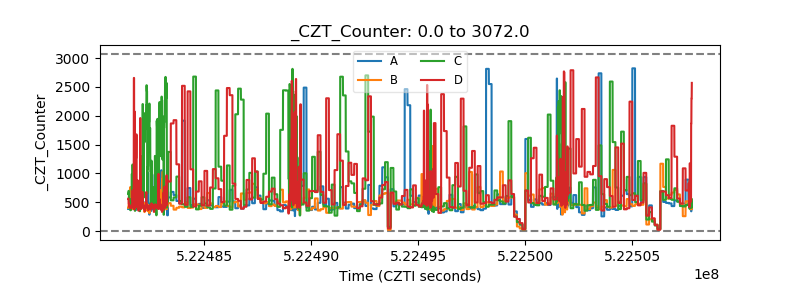

| CZT Counter |  |

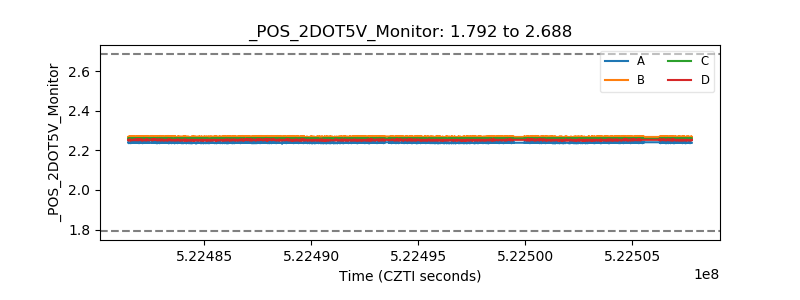

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

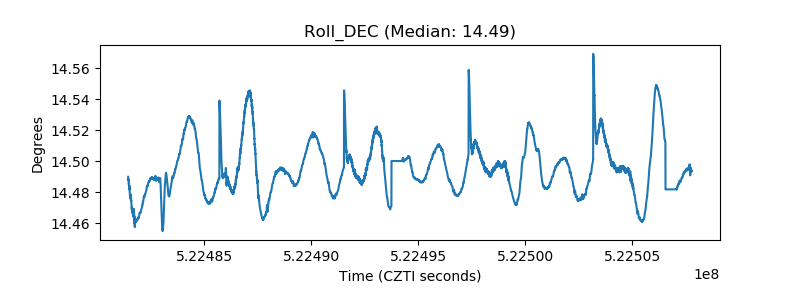

| _Roll_DEC |  |

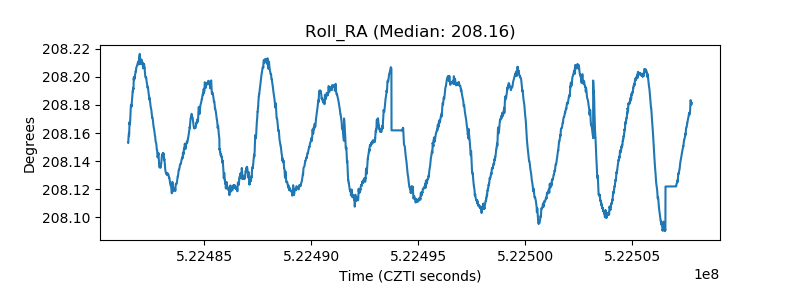

| _Roll_RA |  |
| Veto Counter |  |
