| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58537cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58537cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,202,880 | 99,720,000 |
| Size | 461.8 MB | 95.1 MB |
| Events in quadrant A | 3,556,174 | 661,549 |
| Events in quadrant B | 4,290,609 | 698,868 |
| Events in quadrant C | 4,293,312 | 614,702 |
| Events in quadrant D | 5,252,621 | 567,572 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15448 | 2 |
| B | 0 | 17447 | 2 |
| C | 0 | 17590 | 2 |
| D | 0 | 20238 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6835 | 82 | 1.199707% |
| B | 6835 | 228 | 3.335772% |
| C | 6835 | 310 | 4.535479% |
| D | 6835 | 430 | 6.291149% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

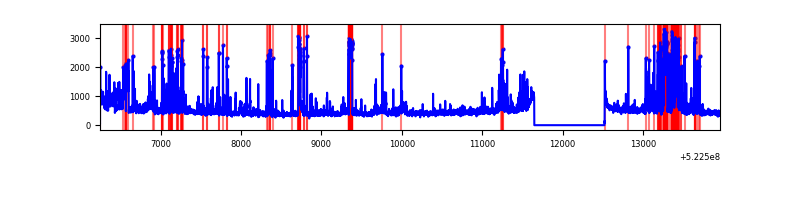

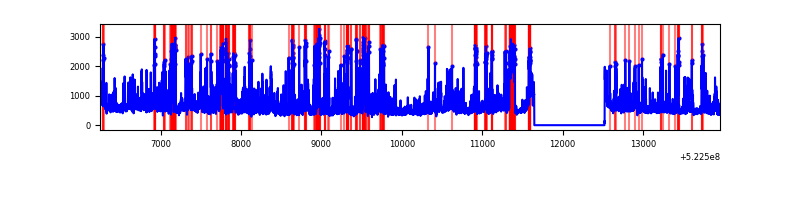

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7710 | 6836 | 14 | 14 | 0.18% | 0.20% |  |
| B | 7710 | 6836 | 92 | 92 | 1.19% | 1.35% |  |
| C | 7710 | 6836 | 242 | 242 | 3.14% | 3.54% |  |
| D | 7710 | 6836 | 356 | 356 | 4.62% | 5.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 159 | 191108 | 994.01 | 769 | 748 | 191.5 |
| A | 10 | 17 | 150054 | 779.64 | 769 | 748 | 191.5 |
| A | 4 | 249 | 55166 | 284.16 | 769 | 748 | 191.5 |
| B | 0 | 186 | 662297 | 4081.71 | 752 | 723 | 162.1 |
| B | 0 | 171 | 273382 | 1682.22 | 752 | 723 | 162.1 |
| B | 8 | 234 | 99168 | 607.38 | 752 | 723 | 162.1 |
| C | 4 | 5 | 873261 | 4283.81 | 734 | 726 | 203.7 |
| C | 14 | 254 | 186877 | 913.93 | 734 | 726 | 203.7 |
| C | 12 | 252 | 114512 | 558.65 | 734 | 726 | 203.7 |
| D | 8 | 240 | 854195 | 4057.51 | 730 | 698 | 210.3 |
| D | 2 | 249 | 310387 | 1472.26 | 730 | 698 | 210.3 |
| D | 3 | 12 | 297867 | 1412.74 | 730 | 698 | 210.3 |

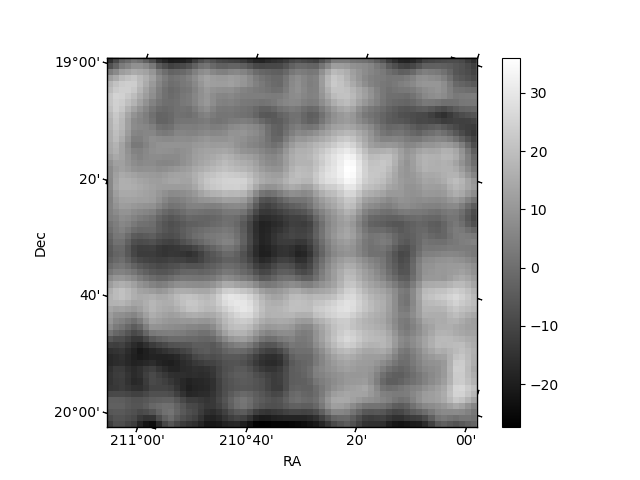

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

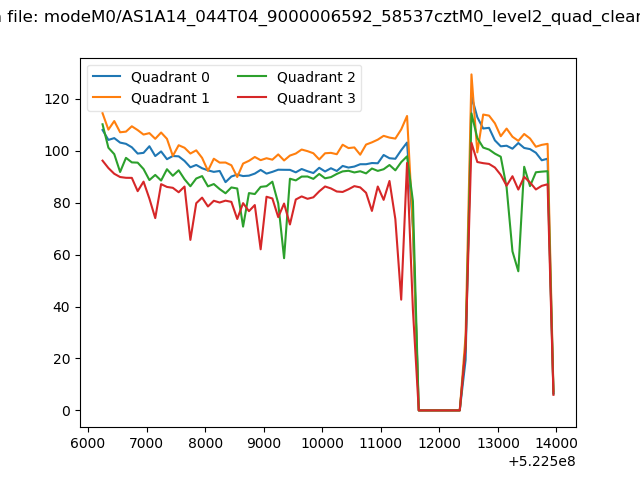

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

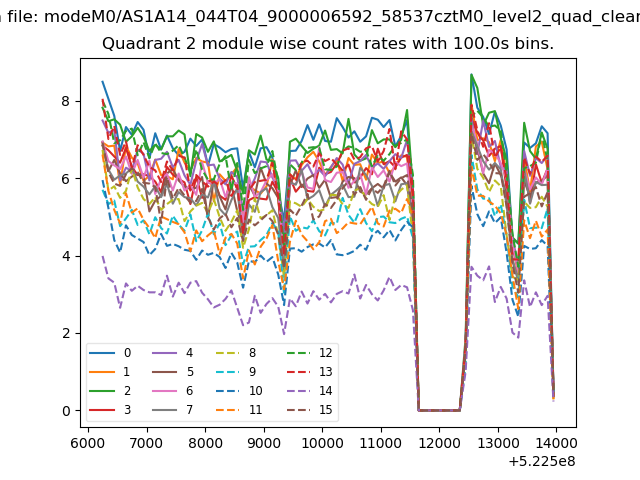

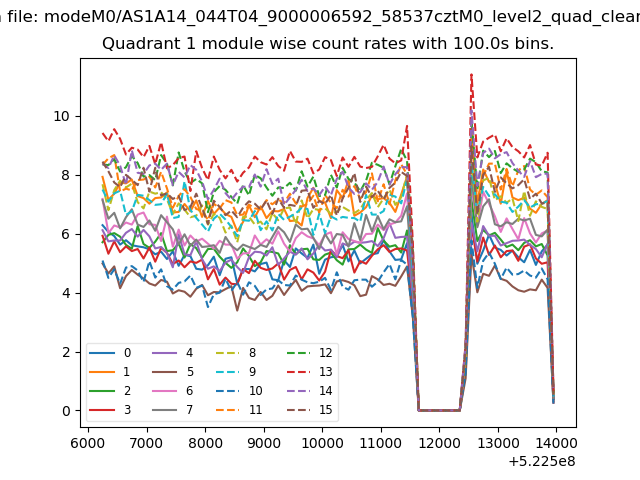

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

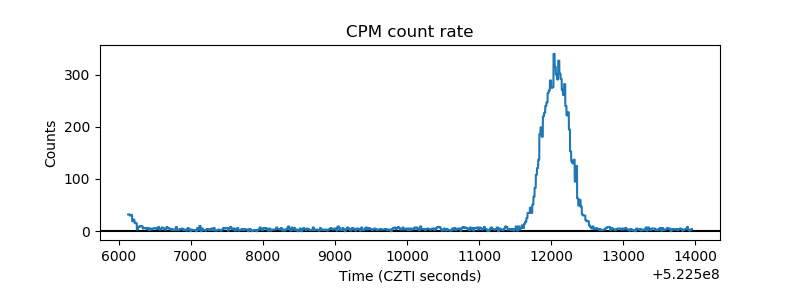

| _CPM_Rate |  |

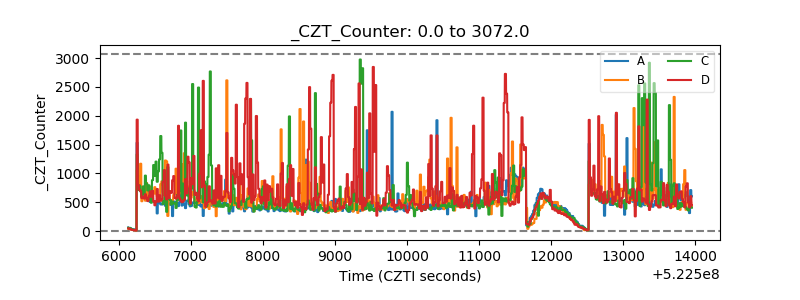

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
