| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58539cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58539cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,051,200 | 97,027,200 |
| Size | 421.6 MB | 92.5 MB |
| Events in quadrant A | 3,744,770 | 633,465 |
| Events in quadrant B | 4,287,696 | 676,364 |
| Events in quadrant C | 3,734,050 | 601,182 |
| Events in quadrant D | 4,088,169 | 570,166 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15536 | 2 |
| B | 0 | 17260 | 2 |
| C | 0 | 15835 | 3 |
| D | 0 | 16697 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6541 | 175 | 2.675432% |
| B | 6542 | 257 | 3.928462% |
| C | 6541 | 235 | 3.592723% |
| D | 6541 | 204 | 3.118789% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7566 | 6542 | 91 | 91 | 1.20% | 1.39% |  |
| B | 7567 | 6543 | 129 | 129 | 1.70% | 1.97% |  |
| C | 7566 | 6542 | 176 | 176 | 2.33% | 2.69% |  |
| D | 7566 | 6542 | 157 | 157 | 2.08% | 2.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 183895 | 1016.29 | 727 | 709 | 180.2 |
| A | 3 | 14 | 174916 | 966.48 | 727 | 709 | 180.2 |
| A | 4 | 249 | 143138 | 790.18 | 727 | 709 | 180.2 |
| B | 0 | 186 | 532272 | 3437.46 | 720 | 696 | 154.6 |
| B | 0 | 171 | 335097 | 2162.42 | 720 | 696 | 154.6 |
| B | 8 | 234 | 136367 | 877.32 | 720 | 696 | 154.6 |
| C | 4 | 5 | 610145 | 3139.05 | 704 | 699 | 194.1 |
| C | 12 | 252 | 103771 | 530.89 | 704 | 699 | 194.1 |
| C | 1 | 12 | 89285 | 456.28 | 704 | 699 | 194.1 |
| D | 8 | 240 | 301512 | 1488.52 | 705 | 672 | 202.1 |
| D | 2 | 153 | 195281 | 962.9 | 705 | 672 | 202.1 |
| D | 11 | 176 | 178385 | 879.3 | 705 | 672 | 202.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

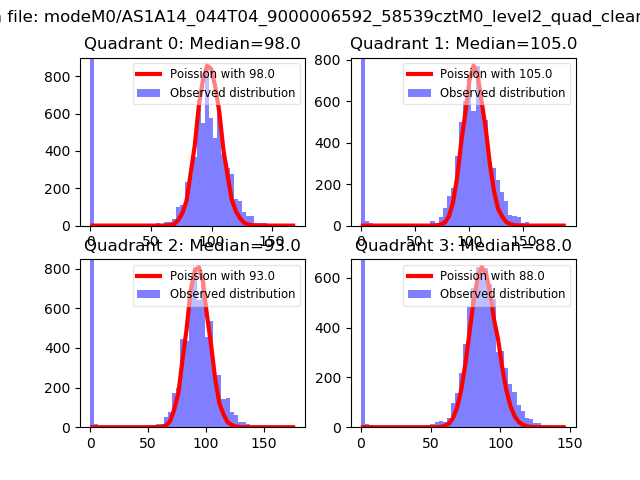

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

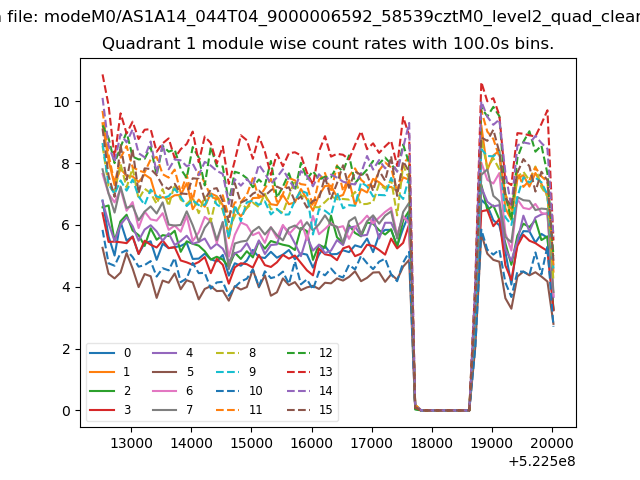

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

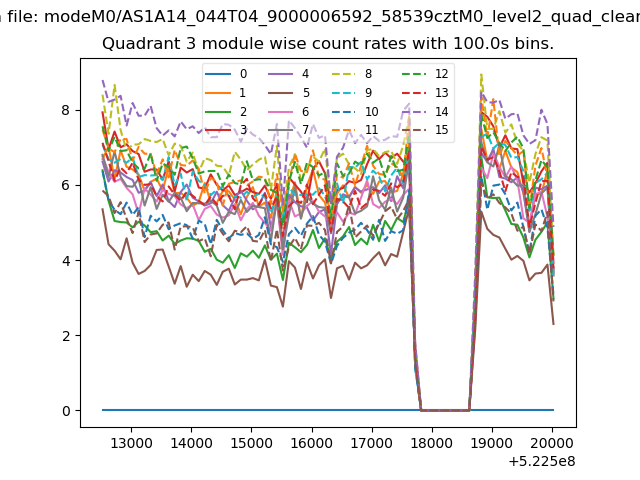

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

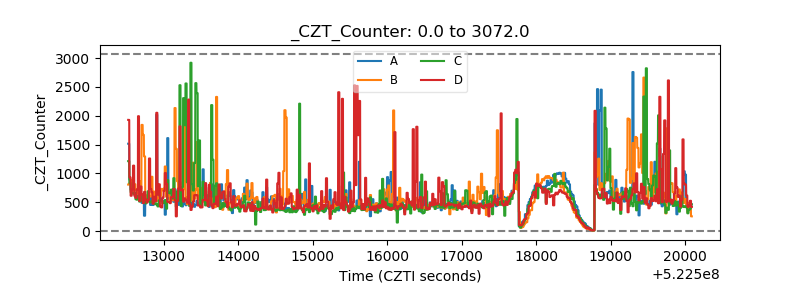

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
