| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58540cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58540cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,845,760 | 95,955,840 |
| Size | 401.3 MB | 91.5 MB |
| Events in quadrant A | 3,508,689 | 629,772 |
| Events in quadrant B | 4,024,505 | 670,953 |
| Events in quadrant C | 3,332,173 | 603,525 |
| Events in quadrant D | 4,219,367 | 558,975 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14837 | 1 |
| B | 0 | 16288 | 1 |
| C | 0 | 14478 | 1 |
| D | 0 | 16931 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6347 | 130 | 2.048212% |
| B | 6348 | 231 | 3.638941% |
| C | 6348 | 123 | 1.937618% |
| D | 6348 | 216 | 3.402647% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

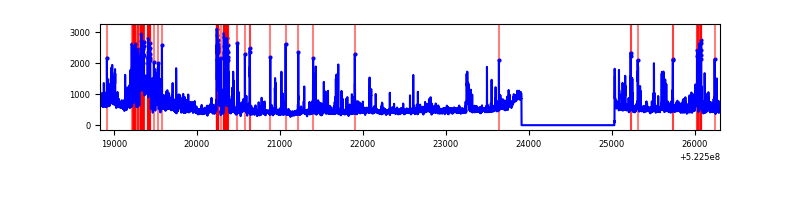

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 6348 | 60 | 60 | 0.80% | 0.95% |  |
| B | 7468 | 6349 | 119 | 119 | 1.59% | 1.87% |  |
| C | 7468 | 6349 | 76 | 76 | 1.02% | 1.20% |  |
| D | 7468 | 6349 | 205 | 205 | 2.75% | 3.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 338710 | 1894.72 | 709 | 691 | 178.4 |
| A | 10 | 17 | 176101 | 983.24 | 709 | 691 | 178.4 |
| A | 4 | 249 | 53570 | 296.41 | 709 | 691 | 178.4 |
| B | 0 | 186 | 603310 | 4051.19 | 702 | 677 | 148.8 |
| B | 0 | 171 | 238445 | 1598.39 | 702 | 677 | 148.8 |
| B | 5 | 32 | 107553 | 718.47 | 702 | 677 | 148.8 |
| C | 4 | 5 | 269413 | 1411.05 | 692 | 685 | 190.4 |
| C | 1 | 12 | 86631 | 451.29 | 692 | 685 | 190.4 |
| C | 6 | 223 | 82531 | 429.76 | 692 | 685 | 190.4 |
| D | 2 | 31 | 345499 | 1764.6 | 683 | 652 | 195.4 |
| D | 8 | 240 | 291180 | 1486.65 | 683 | 652 | 195.4 |
| D | 2 | 249 | 239436 | 1221.87 | 683 | 652 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

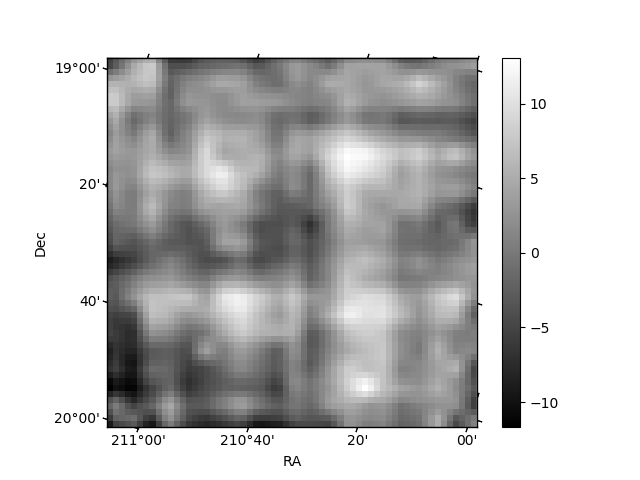

| Plot type | Count rate plots | Images |
|---|---|---|

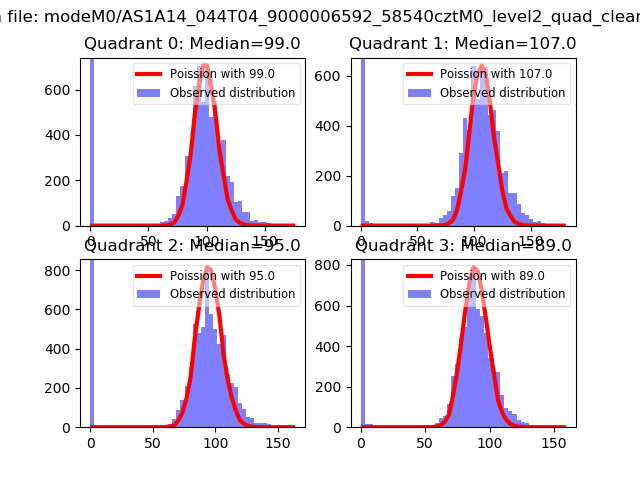

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

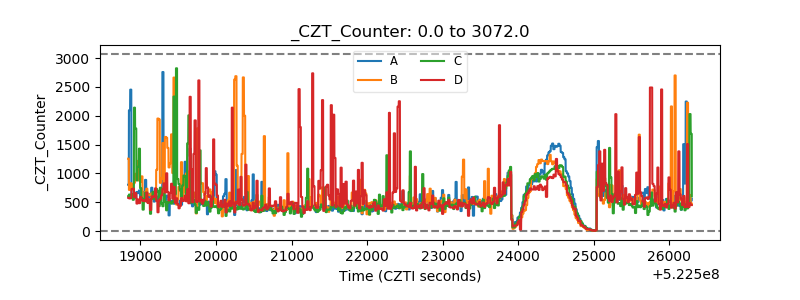

| CZT HV Monitor |  |
| D_VDD |  |

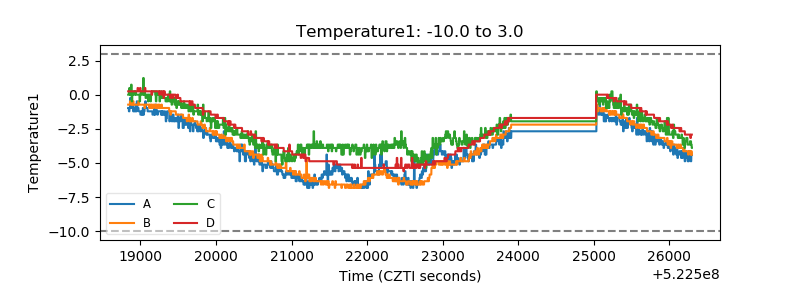

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

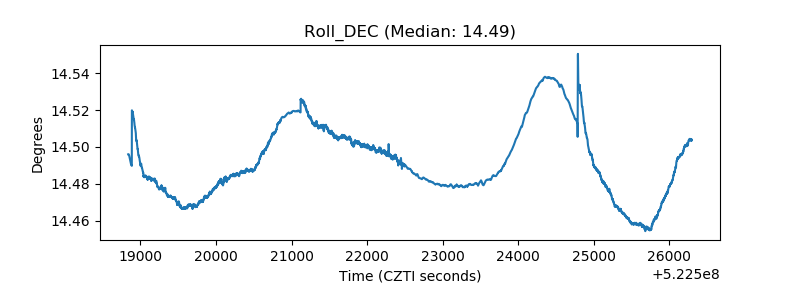

| _Roll_DEC |  |

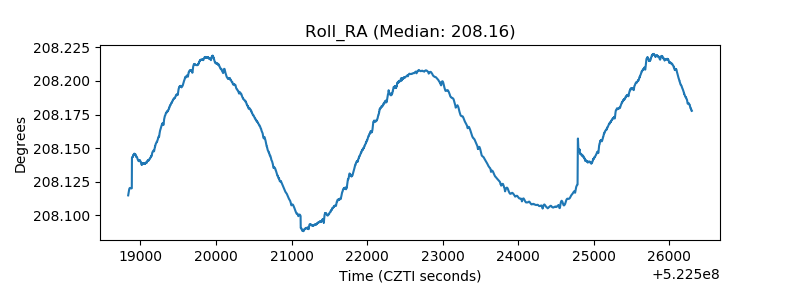

| _Roll_RA |  |

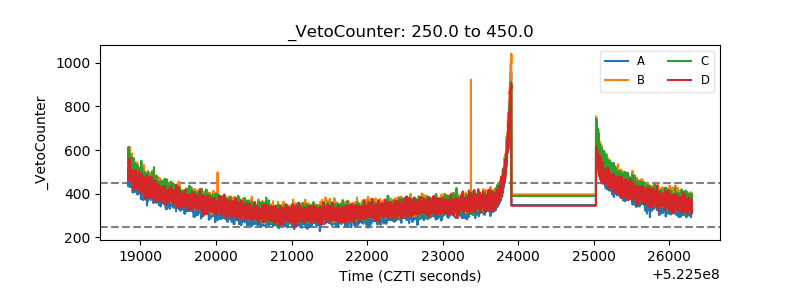

| Veto Counter |  |
