| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58542cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58542cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,382,400 | 99,924,480 |
| Size | 421.9 MB | 95.3 MB |
| Events in quadrant A | 4,227,318 | 658,193 |
| Events in quadrant B | 4,039,743 | 696,271 |
| Events in quadrant C | 3,483,689 | 631,868 |
| Events in quadrant D | 4,118,268 | 584,154 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16933 | 2 |
| B | 0 | 16456 | 3 |
| C | 0 | 14935 | 2 |
| D | 0 | 16695 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6521 | 106 | 1.625518% |
| B | 6520 | 289 | 4.432515% |
| C | 6520 | 78 | 1.196319% |
| D | 6521 | 127 | 1.947554% |

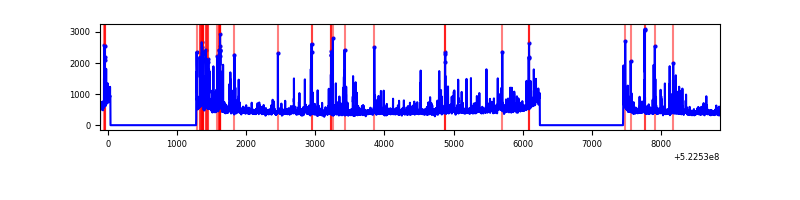

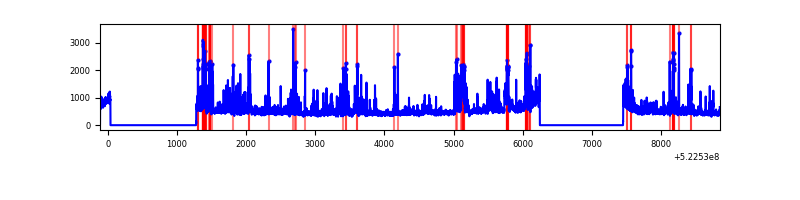

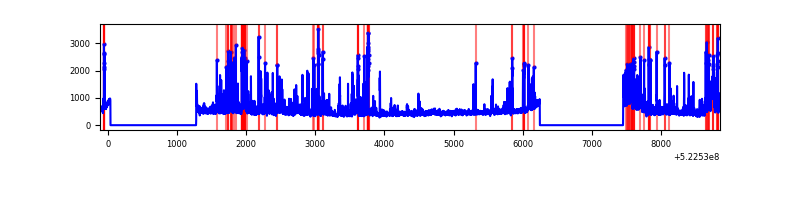

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

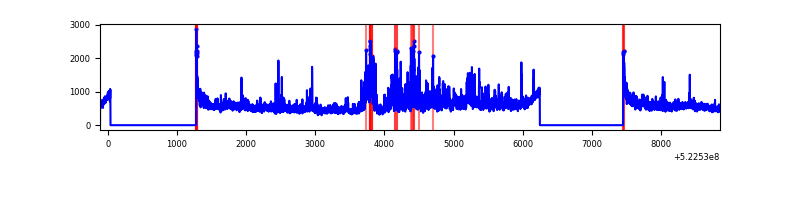

| A | 8966 | 6523 | 32 | 32 | 0.36% | 0.49% |  |
| B | 8965 | 6522 | 95 | 95 | 1.06% | 1.46% |  |
| C | 8965 | 6522 | 53 | 53 | 0.59% | 0.81% |  |
| D | 8966 | 6523 | 124 | 124 | 1.38% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 643322 | 3485.96 | 741 | 721 | 184.3 |
| A | 3 | 14 | 569622 | 3086.15 | 741 | 721 | 184.3 |
| A | 10 | 17 | 45405 | 242.4 | 741 | 721 | 184.3 |
| B | 0 | 186 | 399199 | 2550.21 | 733 | 705 | 156.3 |
| B | 0 | 171 | 279455 | 1783.89 | 733 | 705 | 156.3 |
| B | 8 | 234 | 153421 | 977.32 | 733 | 705 | 156.3 |
| C | 4 | 5 | 287015 | 1438.69 | 719 | 714 | 199.0 |
| C | 12 | 252 | 160499 | 802.93 | 719 | 714 | 199.0 |
| C | 6 | 223 | 86485 | 431.01 | 719 | 714 | 199.0 |
| D | 3 | 12 | 298759 | 1467.41 | 708 | 674 | 203.1 |
| D | 2 | 249 | 265048 | 1301.46 | 708 | 674 | 203.1 |
| D | 2 | 153 | 181924 | 892.26 | 708 | 674 | 203.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

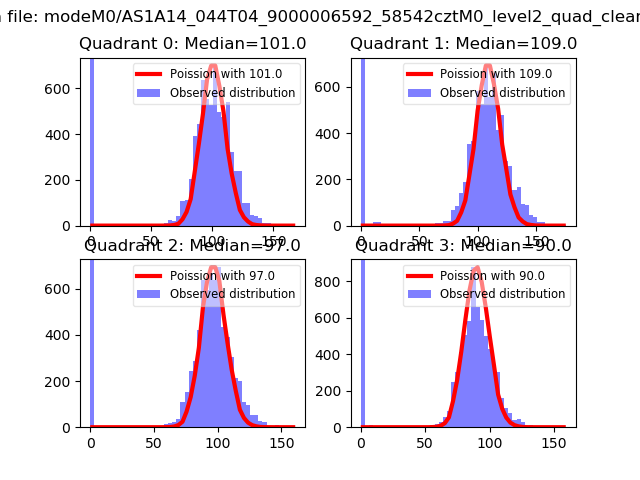

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

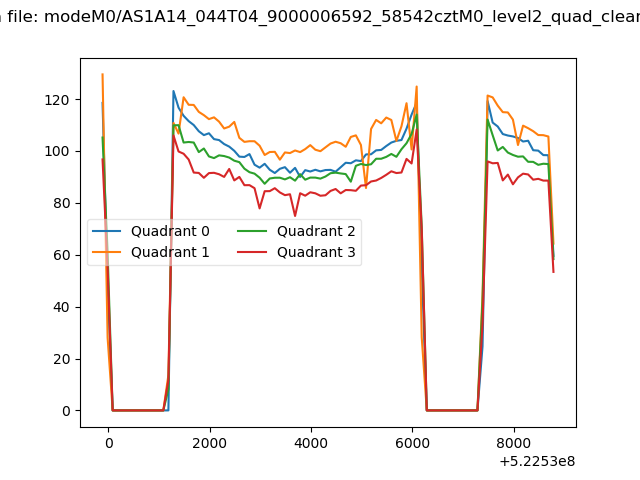

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

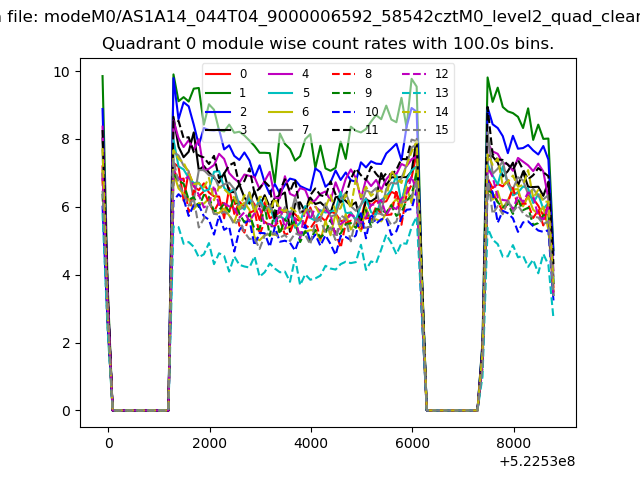

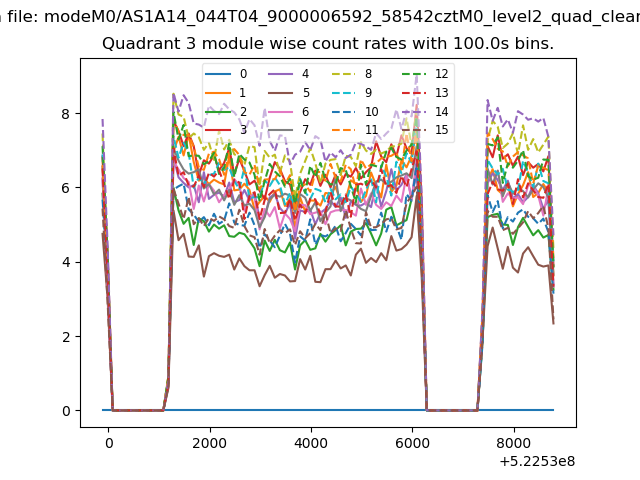

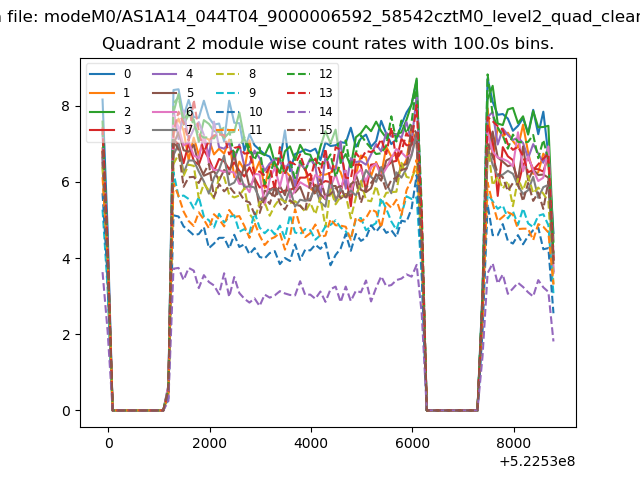

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

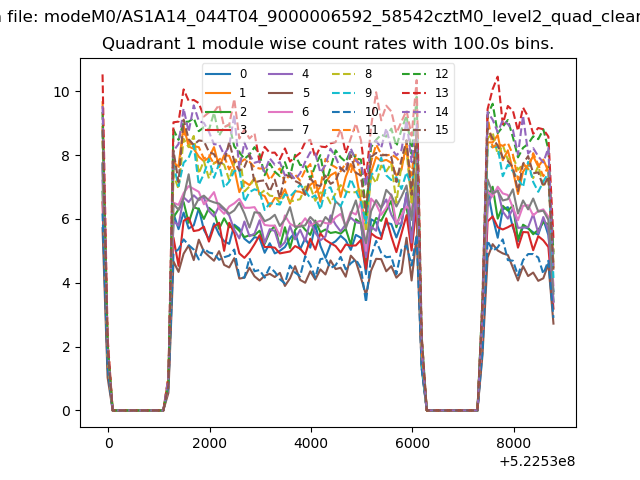

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

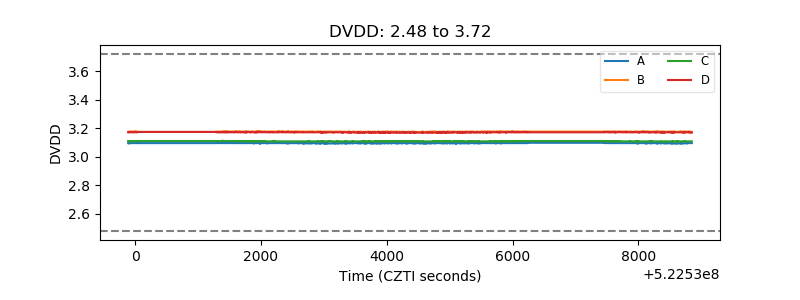

| D_VDD |  |

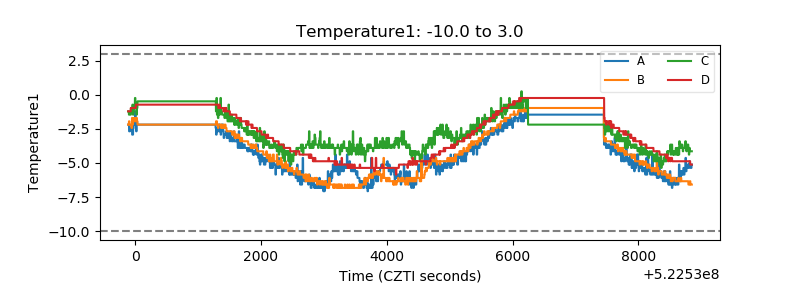

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

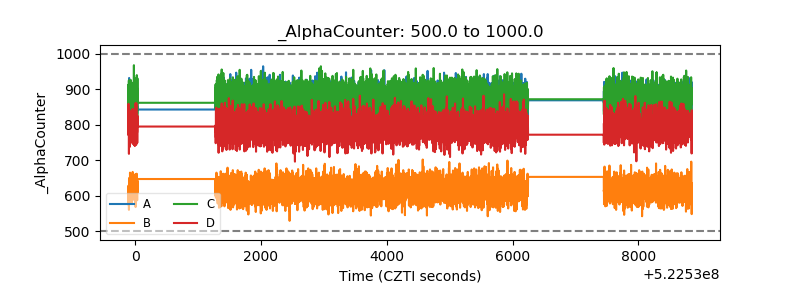

| Alpha Counter |  |

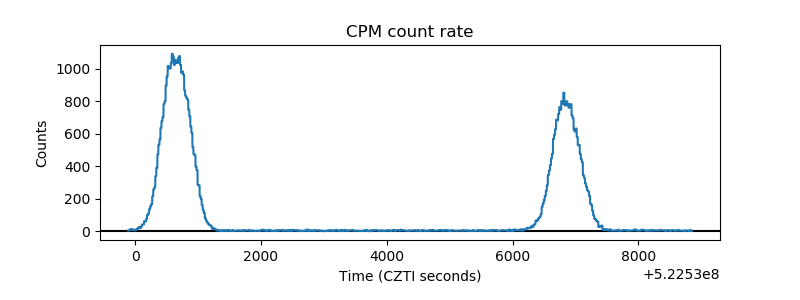

| _CPM_Rate |  |

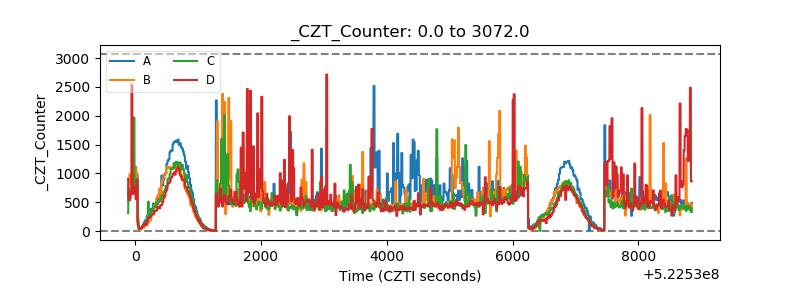

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

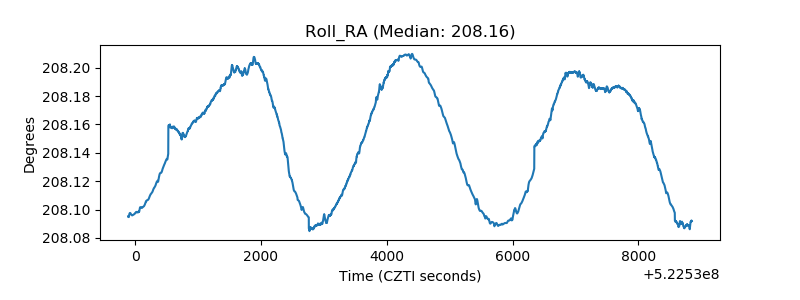

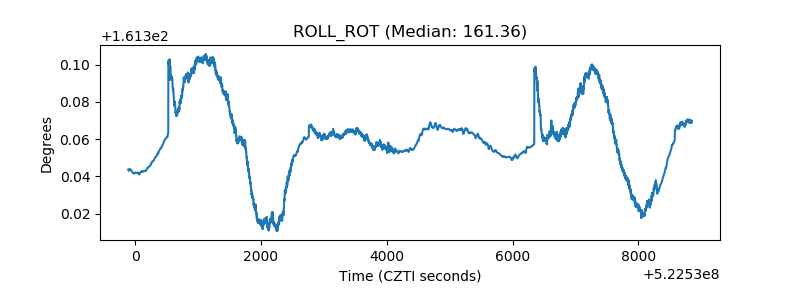

| _ROLL_ROT |  |

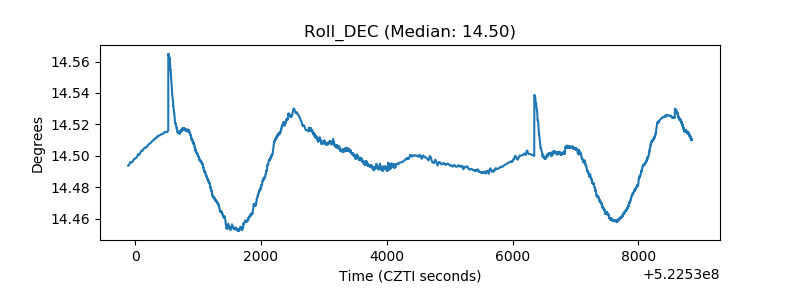

| _Roll_DEC |  |
| _Roll_RA |  |

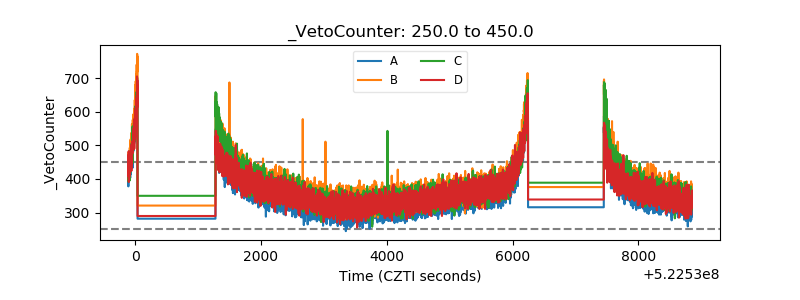

| Veto Counter |  |
