| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58543cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58543cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,076,160 | 96,341,760 |
| Size | 418.7 MB | 91.9 MB |
| Events in quadrant A | 3,741,431 | 640,349 |
| Events in quadrant B | 3,542,913 | 689,181 |
| Events in quadrant C | 4,512,444 | 570,476 |
| Events in quadrant D | 3,952,484 | 565,643 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15445 | 2 |
| B | 0 | 14969 | 2 |
| C | 0 | 18057 | 2 |
| D | 0 | 16426 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6480 | 67 | 1.033951% |
| B | 6480 | 124 | 1.913580% |
| C | 6480 | 570 | 8.796296% |
| D | 6480 | 181 | 2.793210% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6481 | 16 | 16 | 0.21% | 0.25% |  |
| B | 7610 | 6481 | 48 | 48 | 0.63% | 0.74% |  |
| C | 7610 | 6481 | 450 | 450 | 5.91% | 6.94% |  |
| D | 7610 | 6481 | 152 | 152 | 2.00% | 2.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 801988 | 4466.91 | 718 | 700 | 179.4 |
| A | 10 | 17 | 86742 | 479.66 | 718 | 700 | 179.4 |
| A | 4 | 3 | 18513 | 99.3 | 718 | 700 | 179.4 |
| B | 0 | 186 | 144384 | 941.69 | 716 | 690 | 152.6 |
| B | 0 | 171 | 122905 | 800.93 | 716 | 690 | 152.6 |
| B | 10 | 246 | 114077 | 743.07 | 716 | 690 | 152.6 |
| C | 14 | 245 | 1579021 | 8527.75 | 672 | 666 | 185.1 |
| C | 12 | 252 | 106745 | 573.14 | 672 | 666 | 185.1 |
| C | 12 | 249 | 73856 | 395.44 | 672 | 666 | 185.1 |
| D | 8 | 240 | 292767 | 1486.43 | 684 | 652 | 196.5 |
| D | 2 | 249 | 200331 | 1016.07 | 684 | 652 | 196.5 |
| D | 2 | 153 | 184863 | 937.36 | 684 | 652 | 196.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

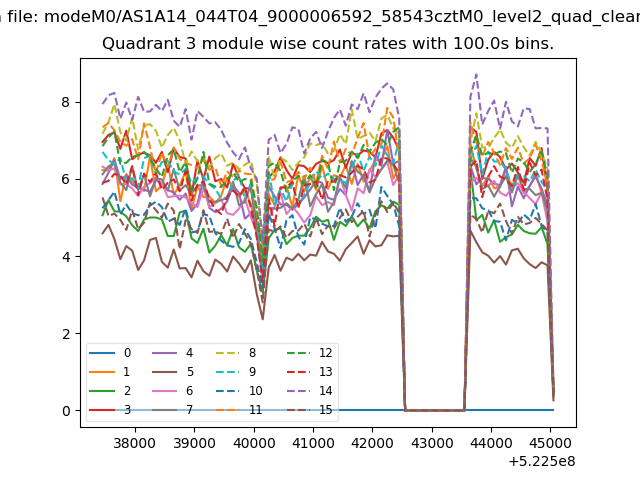

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

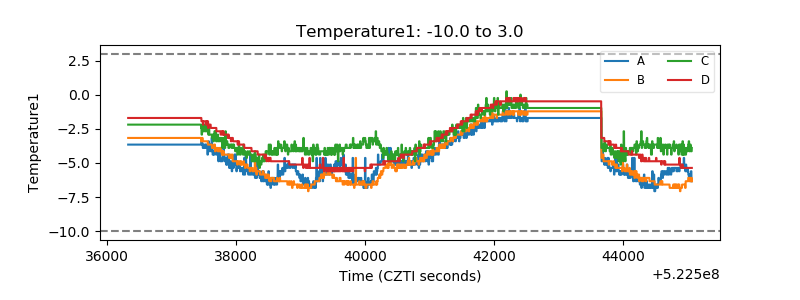

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

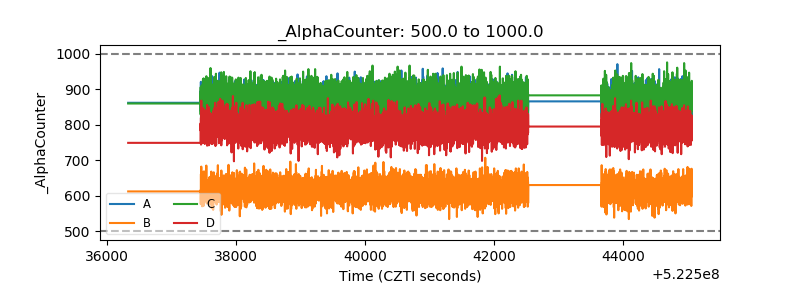

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

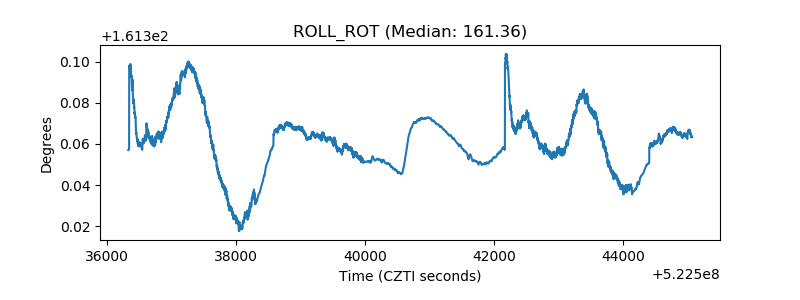

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
