| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58544cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58544cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,703,680 | 99,239,040 |
| Size | 449.9 MB | 94.6 MB |
| Events in quadrant A | 4,083,796 | 654,263 |
| Events in quadrant B | 3,739,667 | 706,094 |
| Events in quadrant C | 4,455,006 | 618,942 |
| Events in quadrant D | 4,653,393 | 551,230 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16623 | 2 |
| B | 0 | 15707 | 2 |
| C | 0 | 18147 | 2 |
| D | 0 | 18764 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6807 | 128 | 1.880417% |
| B | 6807 | 150 | 2.203614% |
| C | 6807 | 247 | 3.628618% |
| D | 6807 | 527 | 7.742030% |

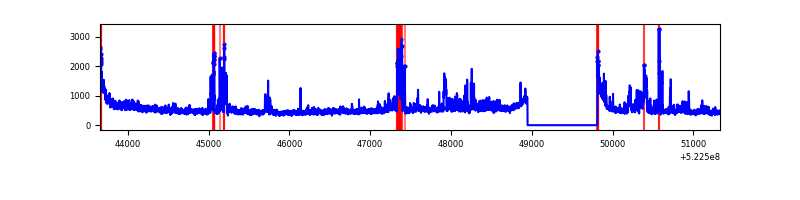

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7672 | 6808 | 65 | 65 | 0.85% | 0.95% |  |
| B | 7672 | 6808 | 39 | 39 | 0.51% | 0.57% |  |
| C | 7672 | 6808 | 210 | 210 | 2.74% | 3.08% |  |
| D | 7672 | 6808 | 452 | 452 | 5.89% | 6.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 571070 | 3064.94 | 750 | 730 | 186.1 |
| A | 10 | 17 | 411526 | 2207.57 | 750 | 730 | 186.1 |
| A | 12 | 114 | 127736 | 682.51 | 750 | 730 | 186.1 |
| B | 0 | 186 | 165392 | 1024.67 | 749 | 722 | 160.7 |
| B | 8 | 234 | 142070 | 879.54 | 749 | 722 | 160.7 |
| B | 0 | 171 | 117091 | 724.11 | 749 | 722 | 160.7 |
| C | 4 | 5 | 982123 | 4933.23 | 726 | 722 | 198.9 |
| C | 12 | 252 | 334491 | 1677.76 | 726 | 722 | 198.9 |
| C | 1 | 12 | 115526 | 577.09 | 726 | 722 | 198.9 |
| D | 11 | 176 | 841231 | 4230.48 | 692 | 661 | 198.7 |
| D | 8 | 240 | 449319 | 2258.04 | 692 | 661 | 198.7 |
| D | 3 | 12 | 181692 | 911.11 | 692 | 661 | 198.7 |

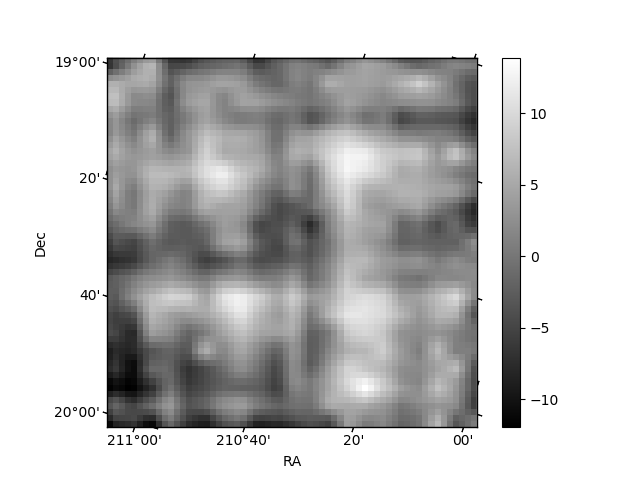

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

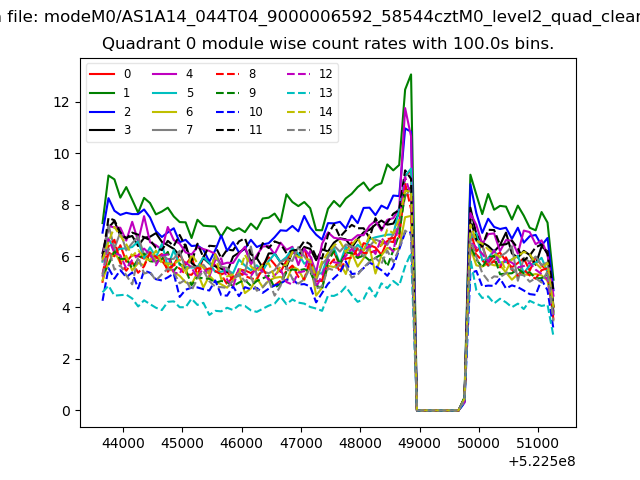

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

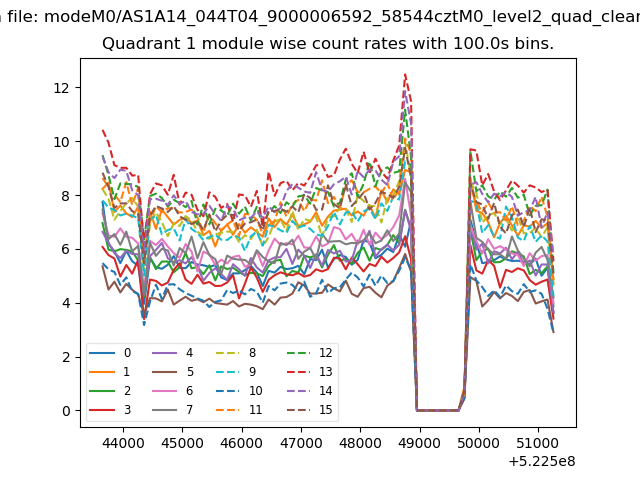

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

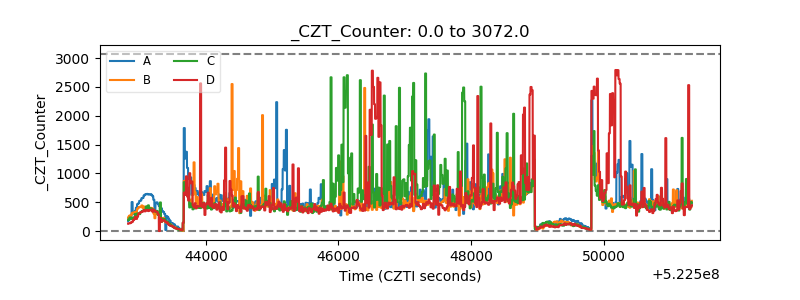

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

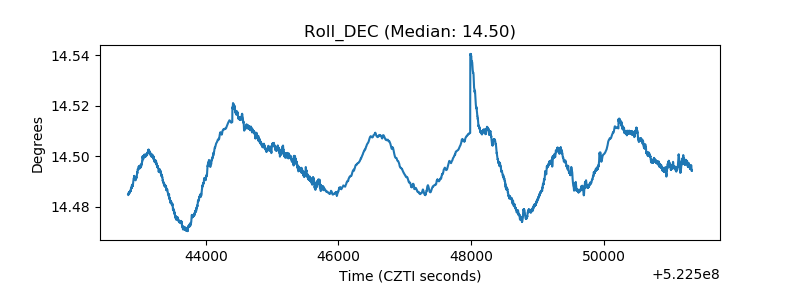

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

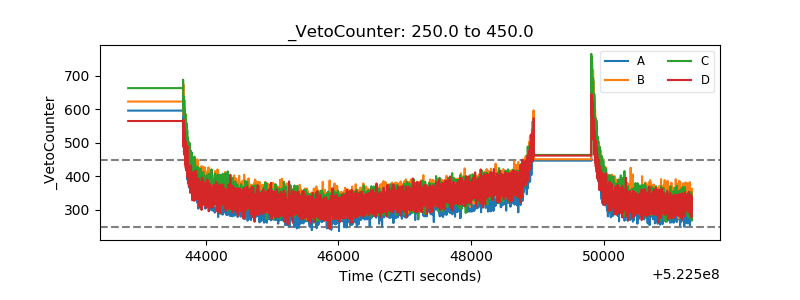

| Veto Counter |  |
