| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58546cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58546cztM0_level2_quad_clean.evt |
| Size (bytes) | 606,084,480 | 128,283,840 |
| Size | 578.0 MB | 122.3 MB |
| Events in quadrant A | 5,368,494 | 831,382 |
| Events in quadrant B | 4,879,053 | 900,436 |
| Events in quadrant C | 5,601,278 | 798,349 |
| Events in quadrant D | 5,901,760 | 741,134 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21653 | 1 |
| B | 0 | 20528 | 1 |
| C | 0 | 22612 | 1 |
| D | 0 | 23833 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 178 | 0 |
| B | 0 | 178 | 0 |
| C | 0 | 178 | 0 |
| D | 0 | 178 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8830 | 240 | 2.718007% |
| B | 8831 | 224 | 2.536519% |
| C | 8831 | 258 | 2.921526% |
| D | 8831 | 327 | 3.702865% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9235 | 8831 | 113 | 113 | 1.22% | 1.28% |  |
| B | 9236 | 8832 | 32 | 32 | 0.35% | 0.36% |  |
| C | 9236 | 8832 | 150 | 150 | 1.62% | 1.70% |  |
| D | 9236 | 8832 | 245 | 245 | 2.65% | 2.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 519386 | 2086.26 | 1003 | 974 | 248.5 |
| A | 3 | 14 | 469120 | 1883.97 | 1003 | 974 | 248.5 |
| A | 12 | 114 | 334380 | 1341.73 | 1003 | 974 | 248.5 |
| B | 0 | 171 | 234279 | 1074.39 | 1001 | 962 | 217.2 |
| B | 8 | 234 | 141193 | 645.75 | 1001 | 962 | 217.2 |
| B | 0 | 186 | 113367 | 517.61 | 1001 | 962 | 217.2 |
| C | 12 | 252 | 981506 | 3660.07 | 977 | 970 | 267.9 |
| C | 15 | 208 | 387752 | 1443.75 | 977 | 970 | 267.9 |
| C | 14 | 254 | 84492 | 311.76 | 977 | 970 | 267.9 |
| D | 3 | 12 | 607306 | 2221.61 | 964 | 923 | 272.9 |
| D | 8 | 240 | 483363 | 1767.52 | 964 | 923 | 272.9 |
| D | 2 | 31 | 365615 | 1336.12 | 964 | 923 | 272.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

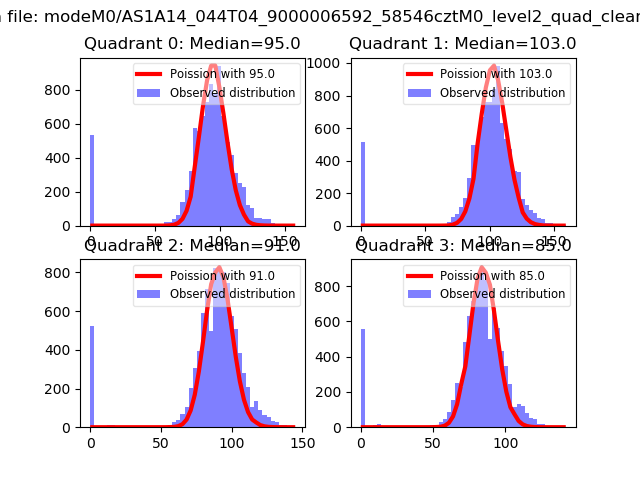

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

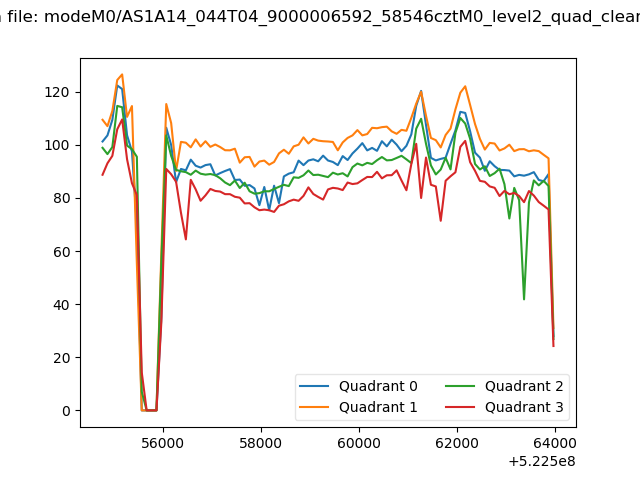

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

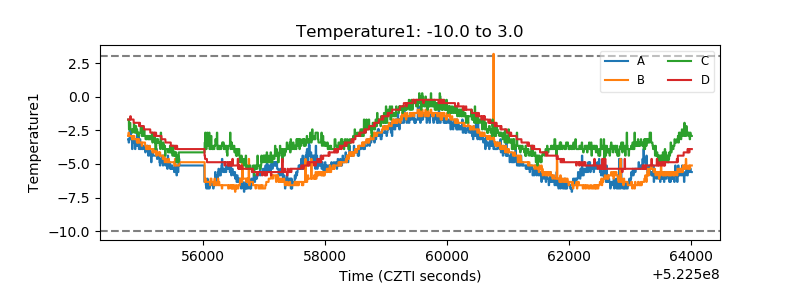

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

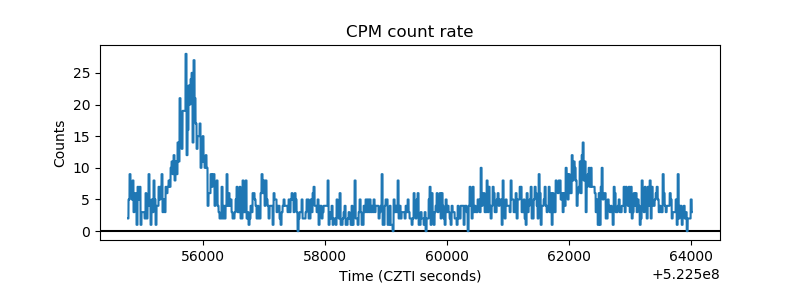

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

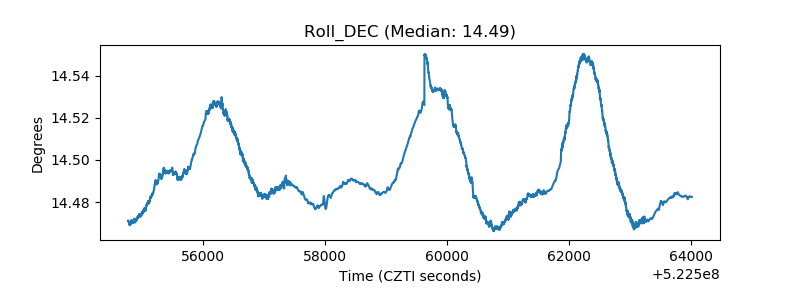

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
