| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58547cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58547cztM0_level2_quad_clean.evt |
| Size (bytes) | 590,688,000 | 129,640,320 |
| Size | 563.3 MB | 123.6 MB |
| Events in quadrant A | 5,262,567 | 829,569 |
| Events in quadrant B | 4,762,015 | 920,508 |
| Events in quadrant C | 5,333,989 | 808,514 |
| Events in quadrant D | 5,813,377 | 746,445 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21556 | 0 |
| B | 0 | 20328 | 0 |
| C | 0 | 21822 | 0 |
| D | 0 | 23632 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 178 | 0 |
| B | 0 | 178 | 0 |
| C | 0 | 178 | 0 |
| D | 0 | 178 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8938 | 263 | 2.942493% |
| B | 8938 | 117 | 1.309018% |
| C | 8938 | 188 | 2.103379% |
| D | 8939 | 267 | 2.986911% |

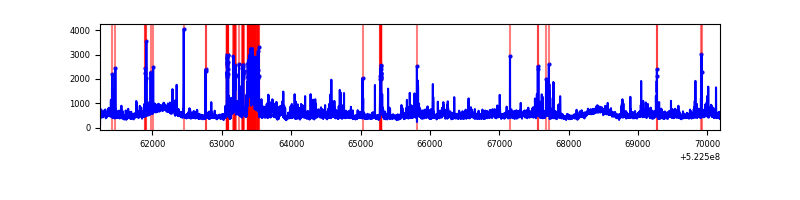

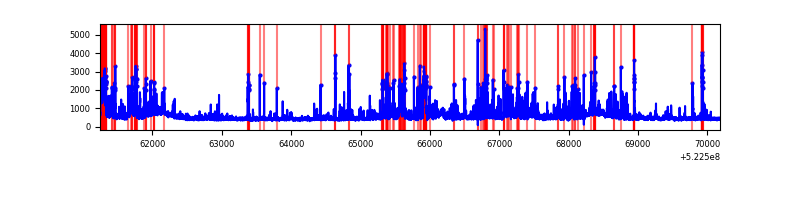

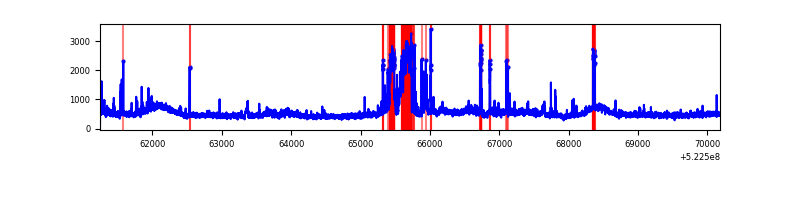

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

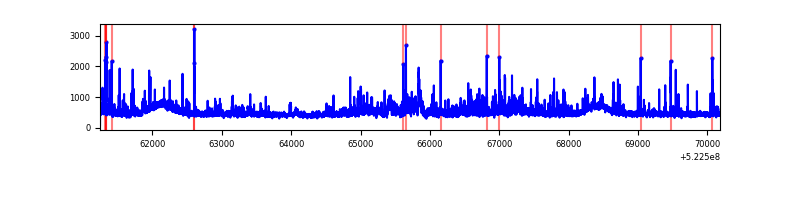

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8938 | 8938 | 227 | 227 | 2.54% | 2.54% |  |
| B | 8938 | 8938 | 15 | 15 | 0.17% | 0.17% |  |
| C | 8938 | 8938 | 149 | 149 | 1.67% | 1.67% |  |
| D | 8939 | 8939 | 244 | 244 | 2.73% | 2.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 806696 | 3215.97 | 1001 | 971 | 250.5 |
| A | 3 | 14 | 419908 | 1672.14 | 1001 | 971 | 250.5 |
| A | 10 | 16 | 50461 | 197.53 | 1001 | 971 | 250.5 |
| B | 0 | 171 | 273469 | 1267.81 | 1003 | 966 | 214.9 |
| B | 0 | 186 | 124000 | 572.41 | 1003 | 966 | 214.9 |
| B | 8 | 234 | 75960 | 348.91 | 1003 | 966 | 214.9 |
| C | 12 | 252 | 833773 | 3108.82 | 977 | 971 | 267.9 |
| C | 15 | 208 | 364199 | 1355.92 | 977 | 971 | 267.9 |
| C | 4 | 5 | 57361 | 210.5 | 977 | 971 | 267.9 |
| D | 3 | 12 | 460086 | 1685.5 | 962 | 917 | 272.4 |
| D | 2 | 249 | 414731 | 1519.01 | 962 | 917 | 272.4 |
| D | 8 | 240 | 331332 | 1212.87 | 962 | 917 | 272.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

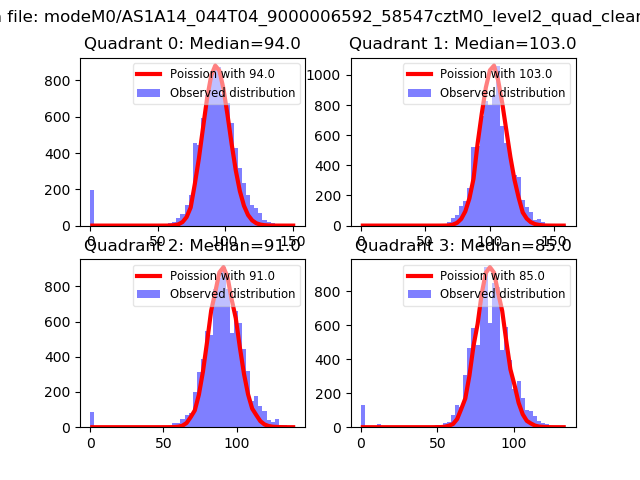

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

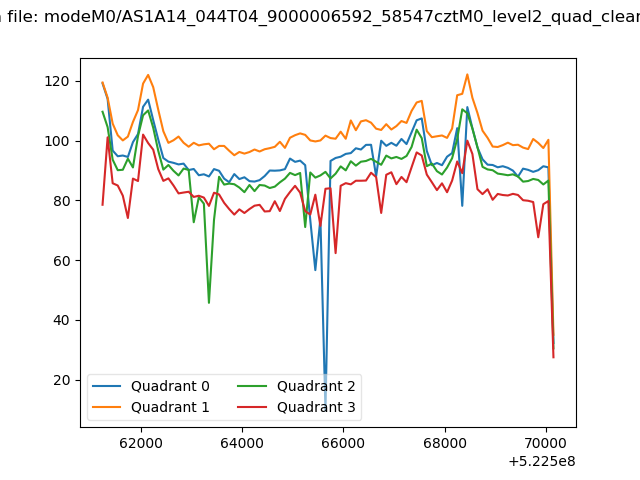

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

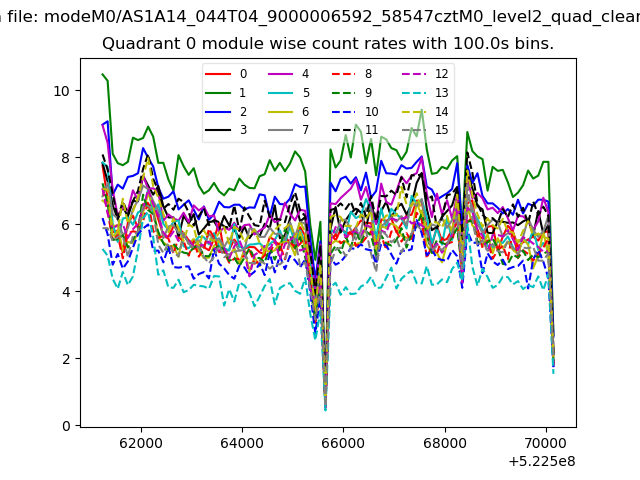

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

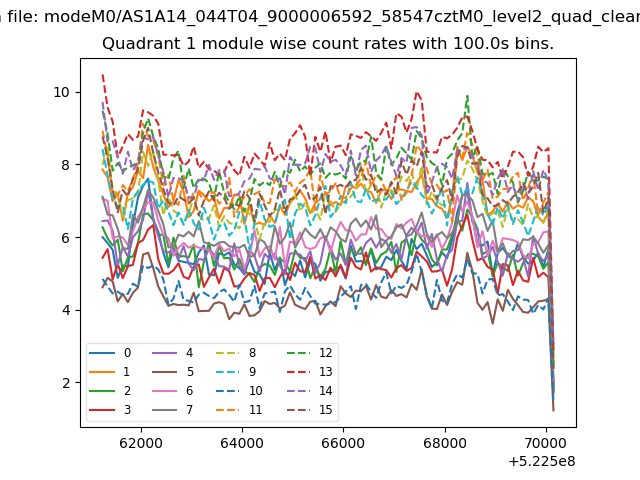

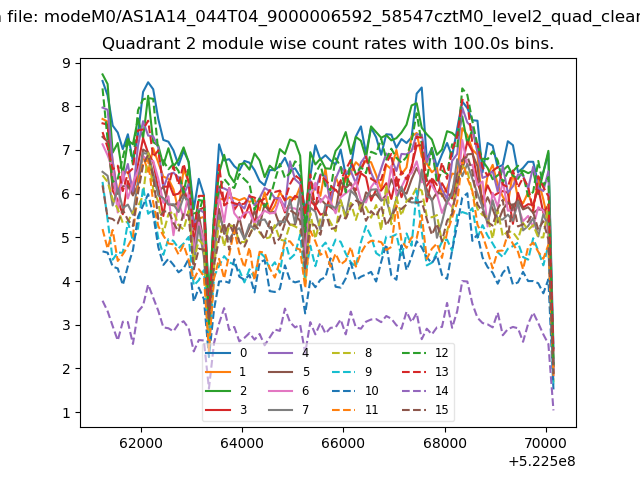

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

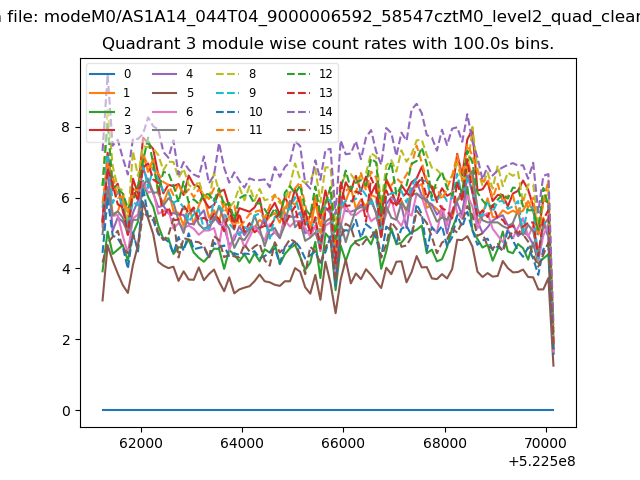

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

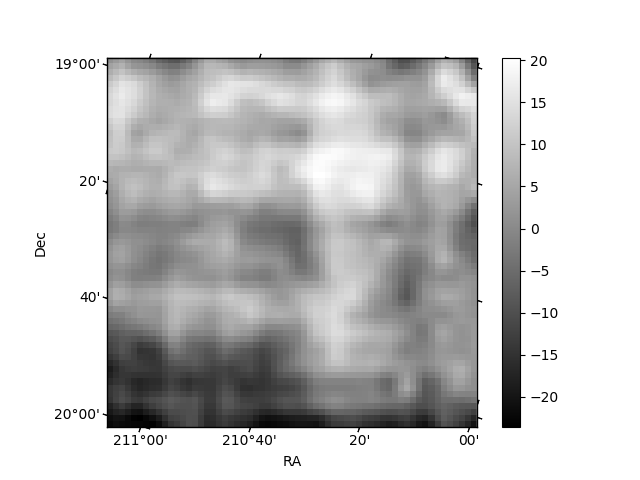

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

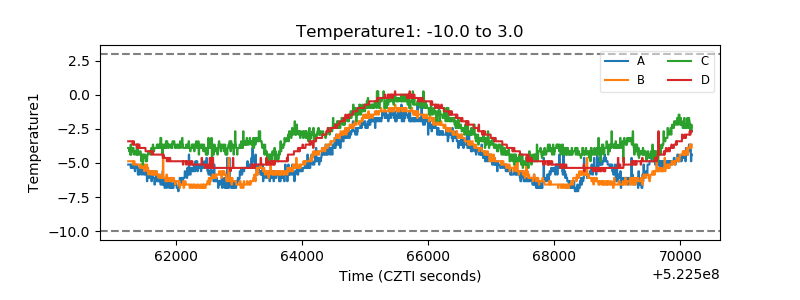

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

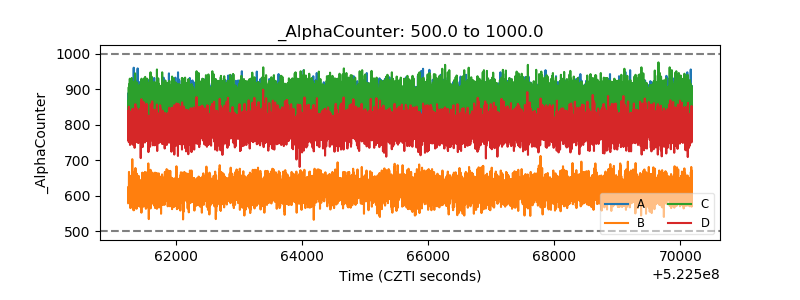

| Alpha Counter |  |

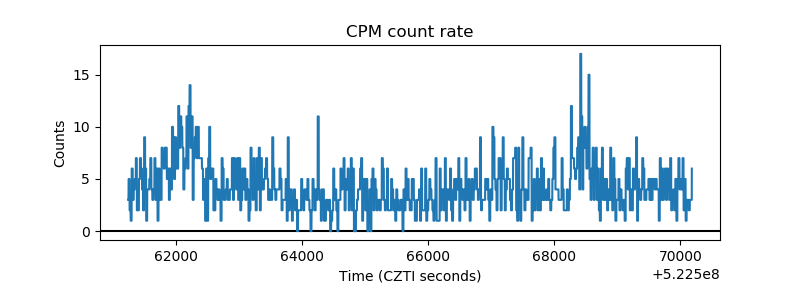

| _CPM_Rate |  |

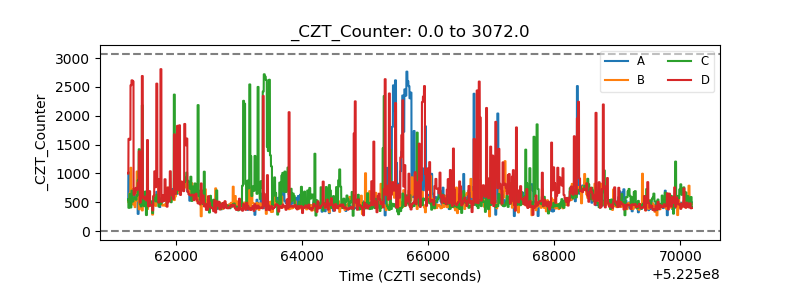

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

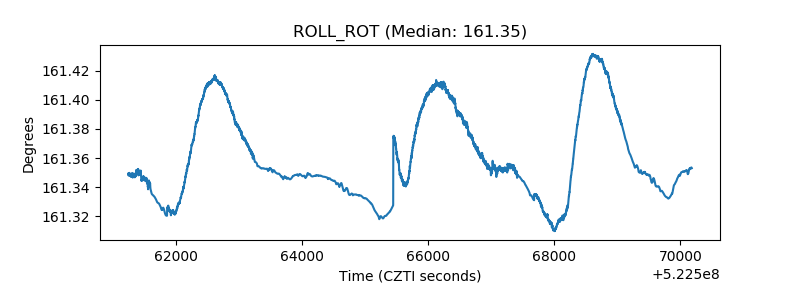

| _ROLL_ROT |  |

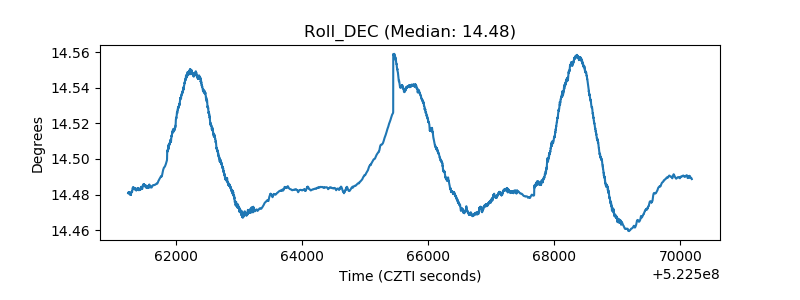

| _Roll_DEC |  |

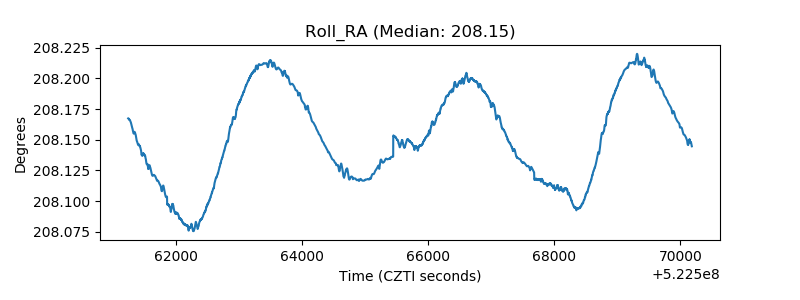

| _Roll_RA |  |

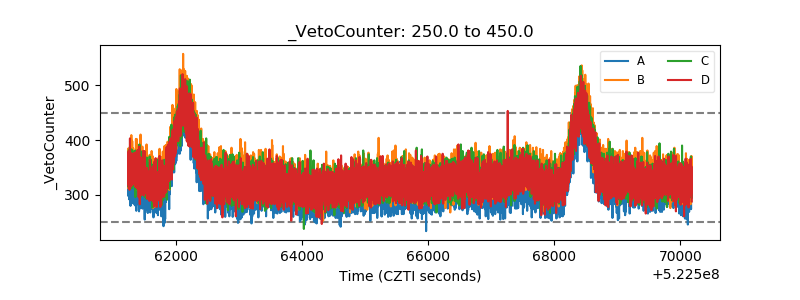

| Veto Counter |  |
