| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58550cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58550cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,388,160,000 | 285,667,200 |
| Size | 1.3 GB | 272.4 MB |
| Events in quadrant A | 10,493,348 | 1,856,438 |
| Events in quadrant B | 11,718,740 | 2,016,412 |
| Events in quadrant C | 12,812,609 | 1,783,944 |
| Events in quadrant D | 14,777,238 | 1,583,409 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 45488 | 2 |
| B | 0 | 48576 | 2 |
| C | 0 | 52032 | 2 |
| D | 0 | 57857 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 412 | 0 |
| B | 0 | 412 | 0 |
| C | 0 | 412 | 0 |
| D | 0 | 412 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20457 | 646 | 3.157843% |
| B | 20457 | 792 | 3.871535% |
| C | 20457 | 733 | 3.583126% |
| D | 20457 | 1530 | 7.479103% |

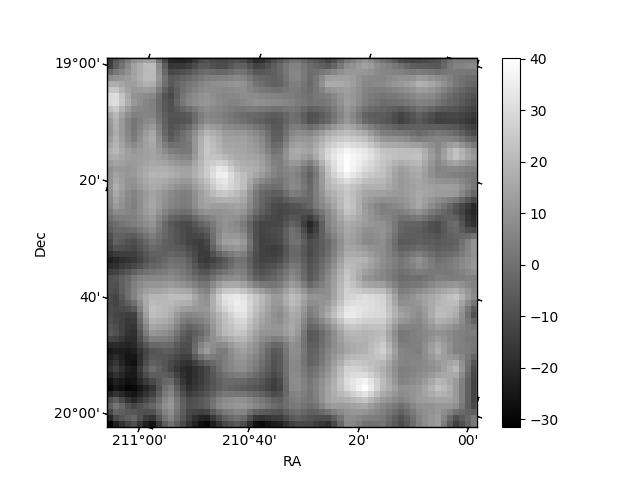

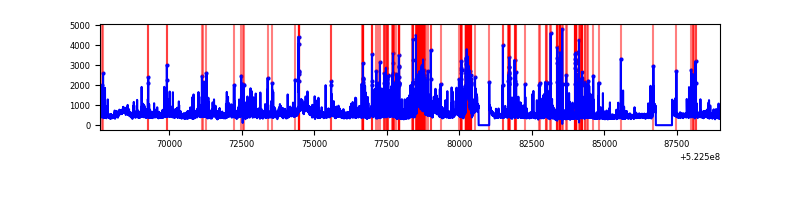

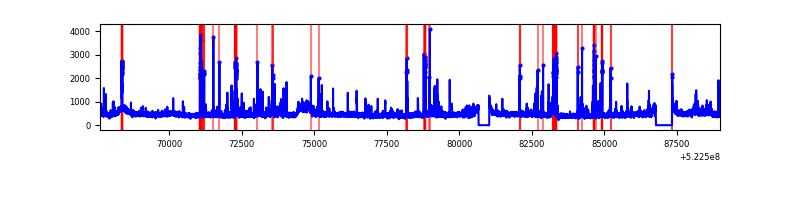

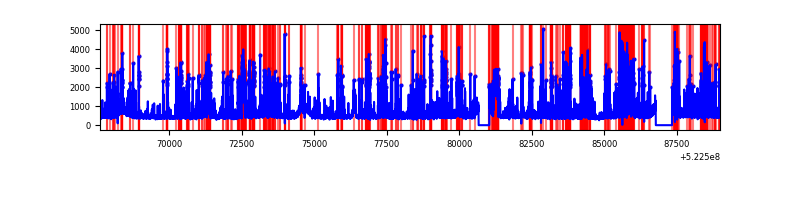

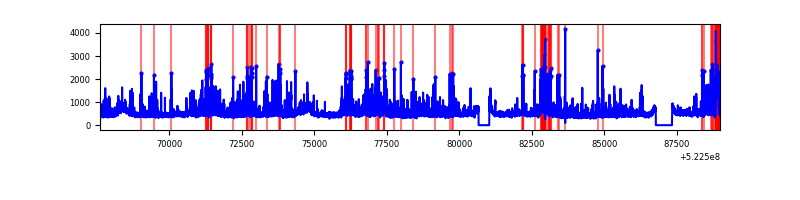

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21387 | 20459 | 185 | 185 | 0.87% | 0.90% |  |
| B | 21387 | 20459 | 175 | 175 | 0.82% | 0.86% |  |
| C | 21387 | 20459 | 344 | 344 | 1.61% | 1.68% |  |
| D | 21387 | 20459 | 1069 | 1069 | 5.00% | 5.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 859085 | 1512.33 | 2295 | 2231 | 566.6 |
| A | 3 | 14 | 170111 | 296.3 | 2295 | 2231 | 566.6 |
| A | 13 | 248 | 156965 | 273.1 | 2295 | 2231 | 566.6 |
| B | 0 | 171 | 947944 | 1957.22 | 2264 | 2172 | 483.2 |
| B | 8 | 234 | 493040 | 1015.82 | 2264 | 2172 | 483.2 |
| B | 0 | 186 | 325902 | 669.94 | 2264 | 2172 | 483.2 |
| C | 12 | 252 | 1160836 | 1912.75 | 2220 | 2202 | 605.7 |
| C | 15 | 147 | 1037775 | 1709.59 | 2220 | 2202 | 605.7 |
| C | 6 | 223 | 650898 | 1070.91 | 2220 | 2202 | 605.7 |
| D | 3 | 12 | 1894180 | 3091.45 | 2171 | 2074 | 612.0 |
| D | 8 | 240 | 1483136 | 2419.86 | 2171 | 2074 | 612.0 |
| D | 2 | 31 | 976958 | 1592.83 | 2171 | 2074 | 612.0 |

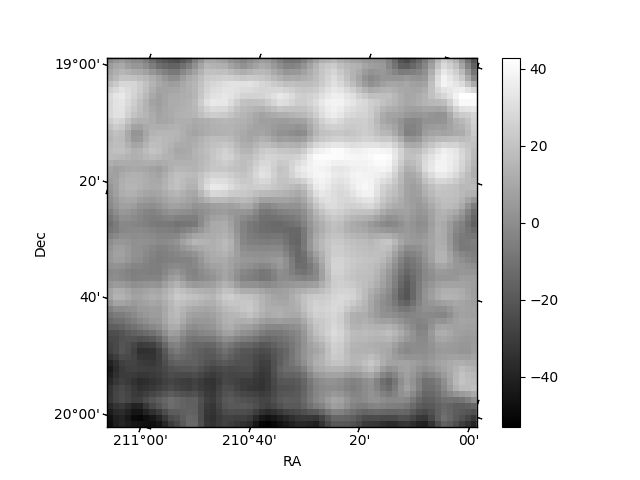

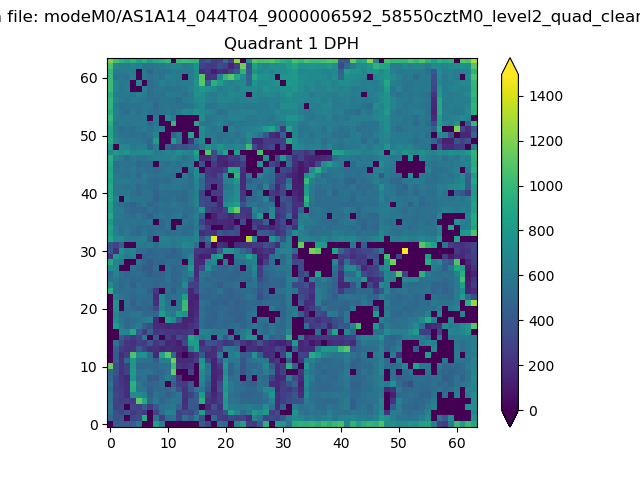

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

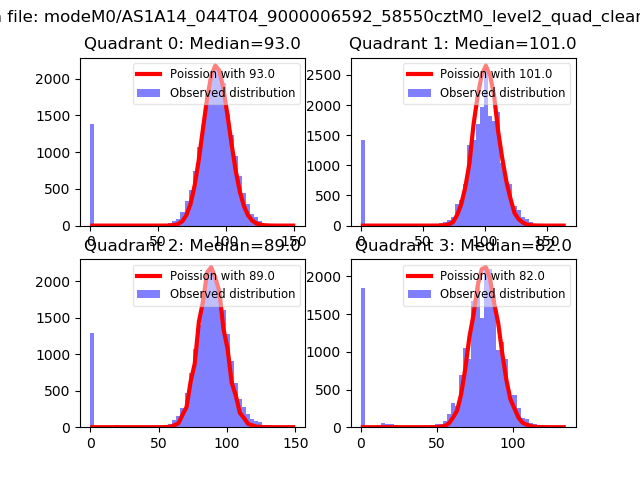

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

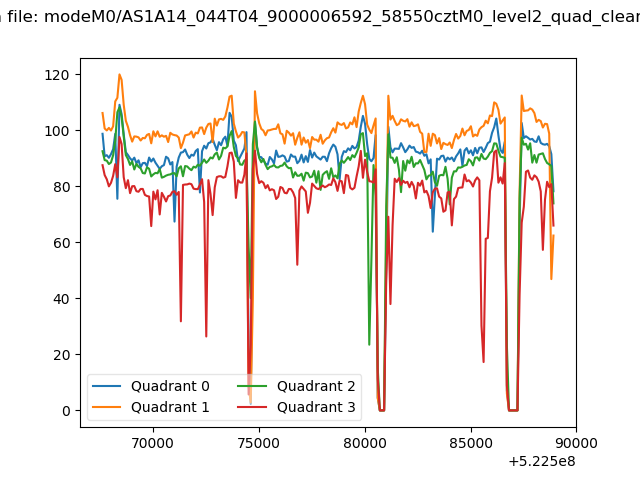

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

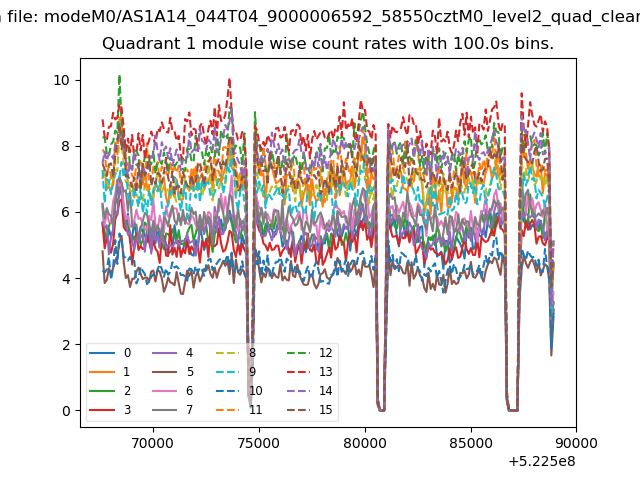

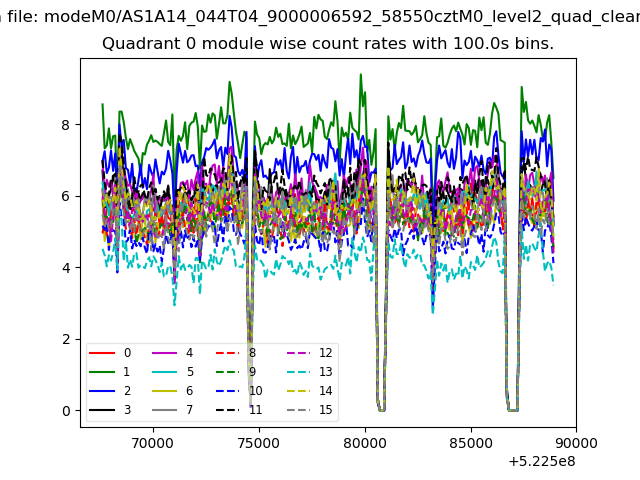

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

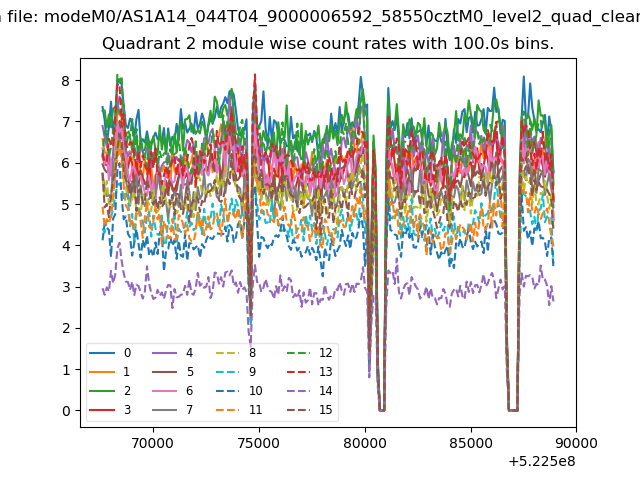

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

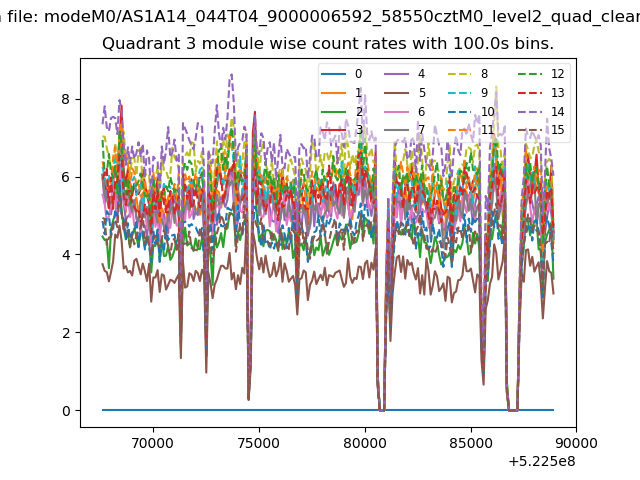

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

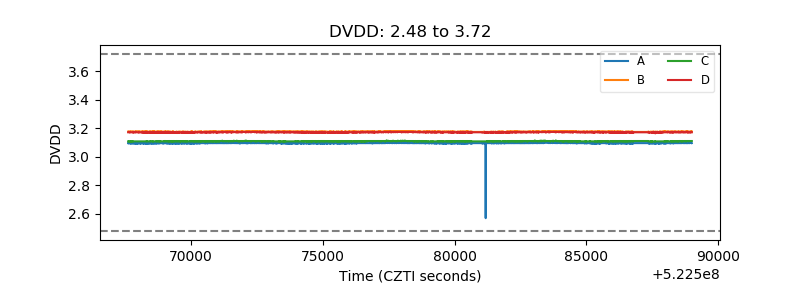

| D_VDD |  |

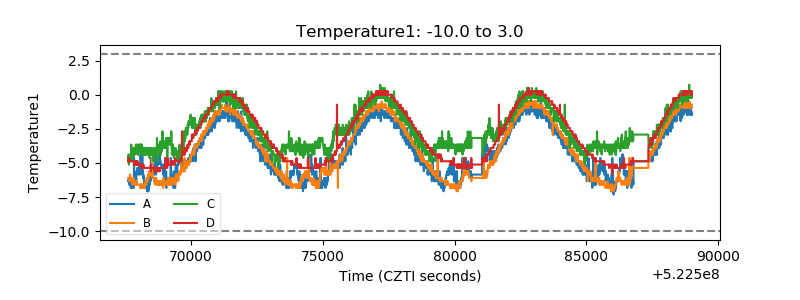

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

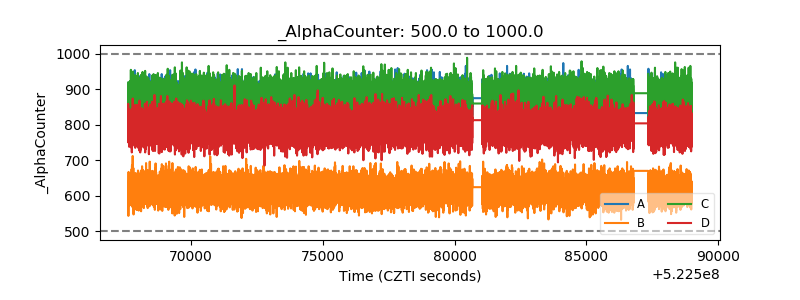

| Alpha Counter |  |

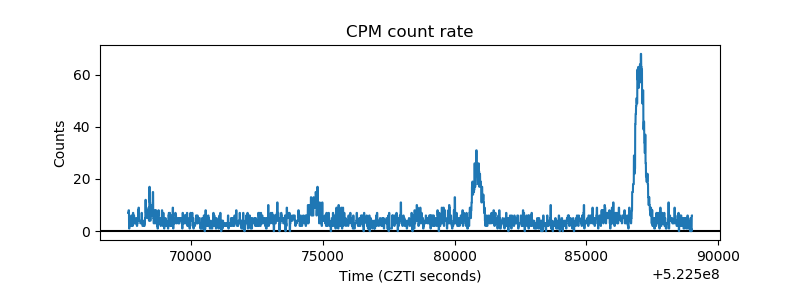

| _CPM_Rate |  |

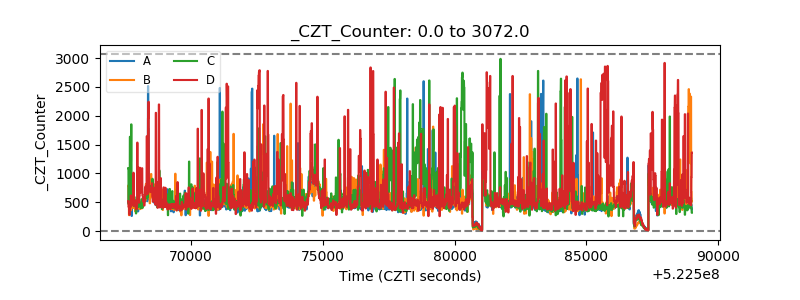

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

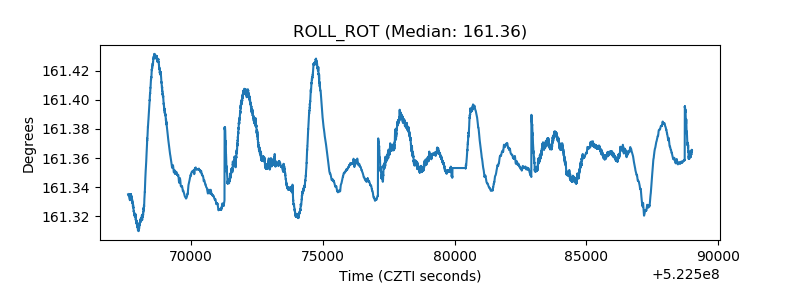

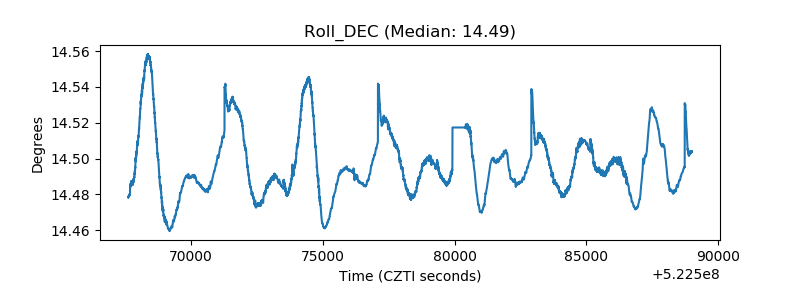

| _ROLL_ROT |  |
| _Roll_DEC |  |

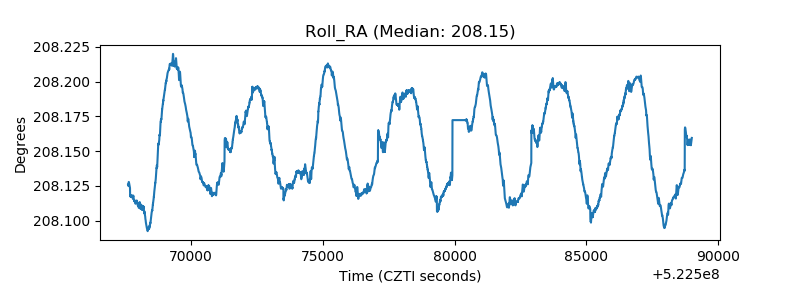

| _Roll_RA |  |

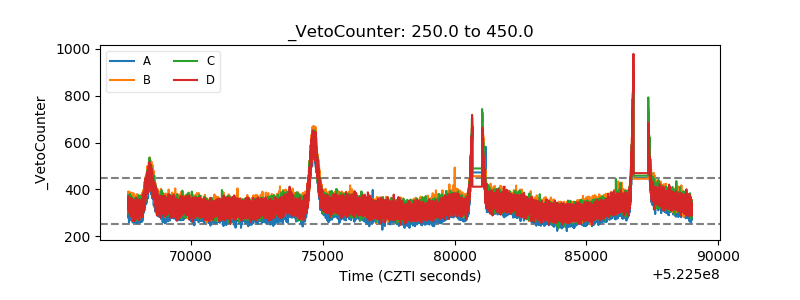

| Veto Counter |  |
