| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58551cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58551cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,722,880 | 88,179,840 |
| Size | 455.6 MB | 84.1 MB |
| Events in quadrant A | 3,001,632 | 600,072 |
| Events in quadrant B | 5,191,295 | 577,672 |
| Events in quadrant C | 3,392,030 | 563,731 |
| Events in quadrant D | 5,612,213 | 491,367 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13382 | 1 |
| B | 0 | 19708 | 3 |
| C | 0 | 14539 | 1 |
| D | 0 | 20902 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6257 | 76 | 1.214640% |
| B | 6257 | 786 | 12.561931% |
| C | 6257 | 148 | 2.365351% |
| D | 6257 | 741 | 11.842736% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7012 | 6258 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7012 | 6258 | 452 | 452 | 6.45% | 7.22% |  |
| C | 7012 | 6258 | 83 | 83 | 1.18% | 1.33% |  |
| D | 7012 | 6258 | 651 | 651 | 9.28% | 10.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 93690 | 535.57 | 694 | 674 | 173.7 |
| A | 4 | 249 | 85580 | 488.88 | 694 | 674 | 173.7 |
| A | 3 | 245 | 44508 | 252.39 | 694 | 674 | 173.7 |
| B | 6 | 255 | 1518902 | 10792.46 | 650 | 625 | 140.7 |
| B | 0 | 171 | 283062 | 2007.66 | 650 | 625 | 140.7 |
| B | 8 | 234 | 260285 | 1845.76 | 650 | 625 | 140.7 |
| C | 4 | 5 | 316480 | 1721.95 | 668 | 661 | 183.4 |
| C | 12 | 252 | 140237 | 761.01 | 668 | 661 | 183.4 |
| C | 9 | 237 | 113435 | 614.88 | 668 | 661 | 183.4 |
| D | 2 | 31 | 1292716 | 7144.73 | 643 | 614 | 180.8 |
| D | 2 | 249 | 627001 | 3463.63 | 643 | 614 | 180.8 |
| D | 8 | 240 | 530564 | 2930.38 | 643 | 614 | 180.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

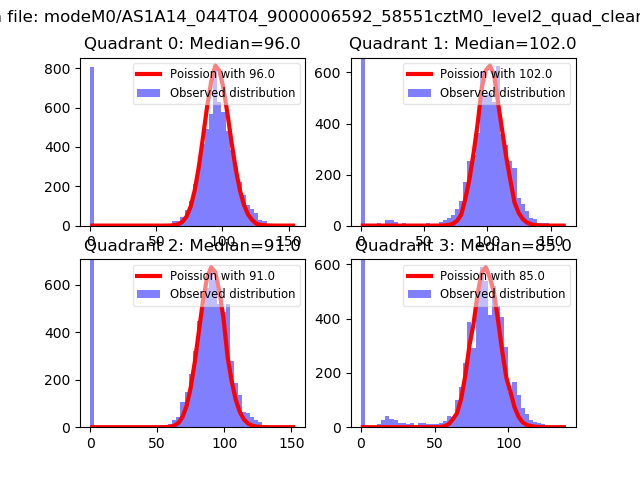

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

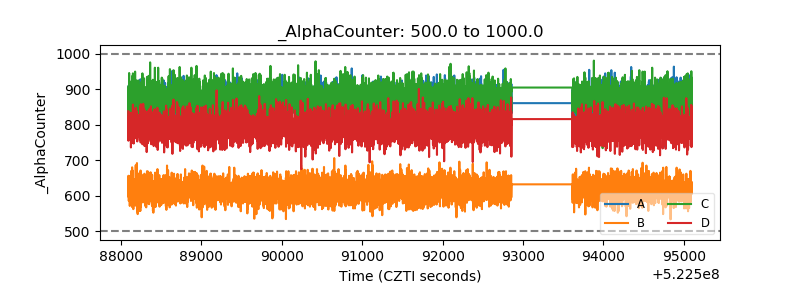

| Alpha Counter |  |
| _CPM_Rate |  |

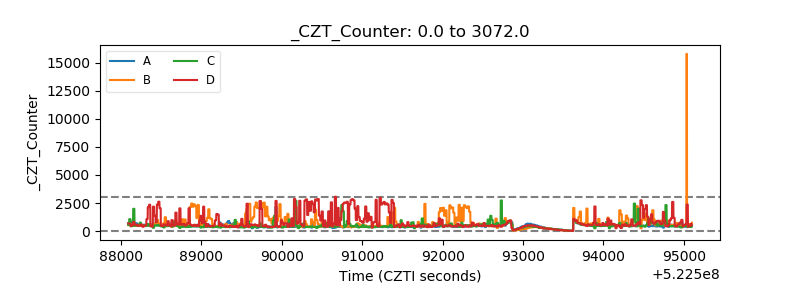

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

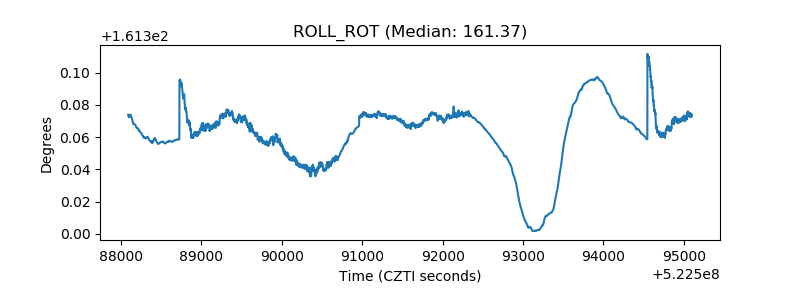

| _ROLL_ROT |  |

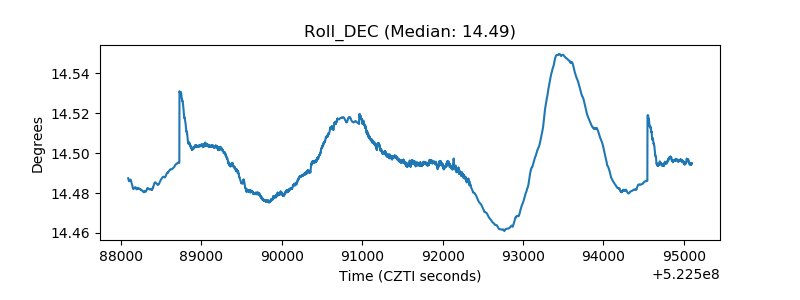

| _Roll_DEC |  |

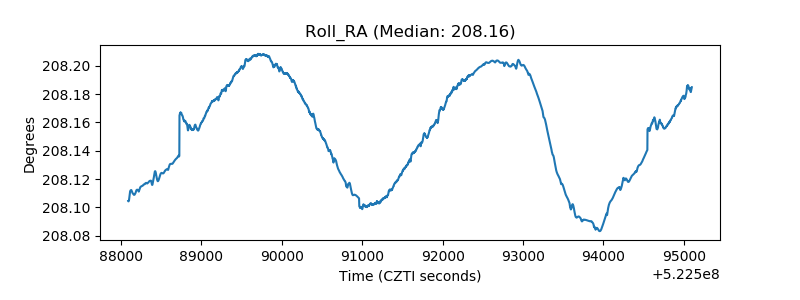

| _Roll_RA |  |
| Veto Counter |  |
