| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58554cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58554cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,814,720 | 95,711,040 |
| Size | 417.5 MB | 91.3 MB |
| Events in quadrant A | 3,386,073 | 640,195 |
| Events in quadrant B | 4,397,962 | 636,949 |
| Events in quadrant C | 3,295,696 | 613,999 |
| Events in quadrant D | 4,622,164 | 554,231 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14653 | 2 |
| B | 0 | 17490 | 2 |
| C | 0 | 14518 | 2 |
| D | 0 | 18192 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6488 | 89 | 1.371763% |
| B | 6488 | 546 | 8.415536% |
| C | 6488 | 64 | 0.986436% |
| D | 6488 | 297 | 4.577682% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6489 | 32 | 32 | 0.42% | 0.49% |  |
| B | 7583 | 6489 | 273 | 273 | 3.60% | 4.21% |  |
| C | 7583 | 6489 | 33 | 33 | 0.44% | 0.51% |  |
| D | 7583 | 6489 | 232 | 232 | 3.06% | 3.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 241401 | 1330.22 | 725 | 704 | 180.9 |
| A | 3 | 245 | 111117 | 610.2 | 725 | 704 | 180.9 |
| A | 10 | 248 | 35720 | 193.52 | 725 | 704 | 180.9 |
| B | 6 | 255 | 959099 | 6691.38 | 670 | 645 | 143.2 |
| B | 4 | 171 | 204989 | 1426.61 | 670 | 645 | 143.2 |
| B | 8 | 234 | 173282 | 1205.25 | 670 | 645 | 143.2 |
| C | 12 | 252 | 139810 | 715.08 | 705 | 698 | 194.5 |
| C | 4 | 5 | 133809 | 684.23 | 705 | 698 | 194.5 |
| C | 9 | 237 | 50204 | 254.48 | 705 | 698 | 194.5 |
| D | 2 | 249 | 934696 | 4655.07 | 693 | 661 | 200.6 |
| D | 8 | 240 | 217580 | 1081.09 | 693 | 661 | 200.6 |
| D | 3 | 12 | 159802 | 793.13 | 693 | 661 | 200.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

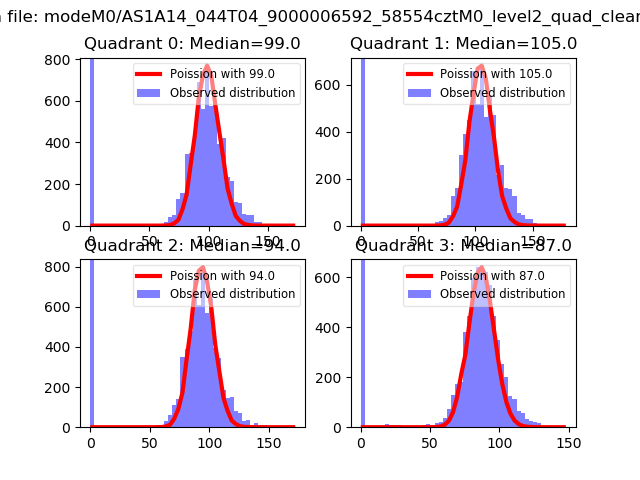

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

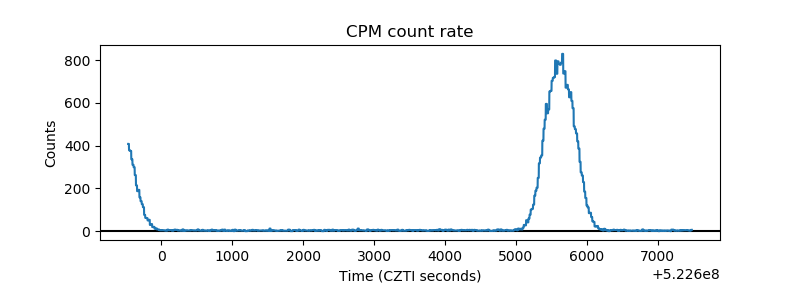

| _CPM_Rate |  |

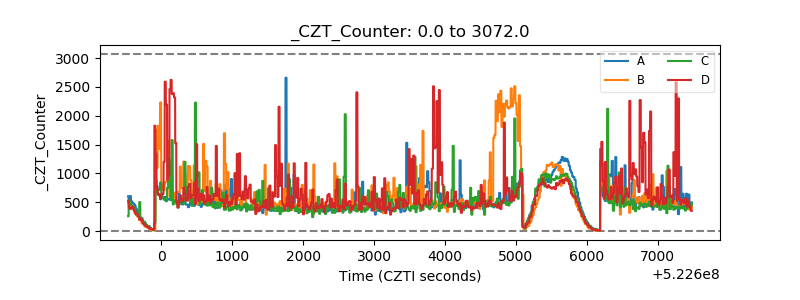

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

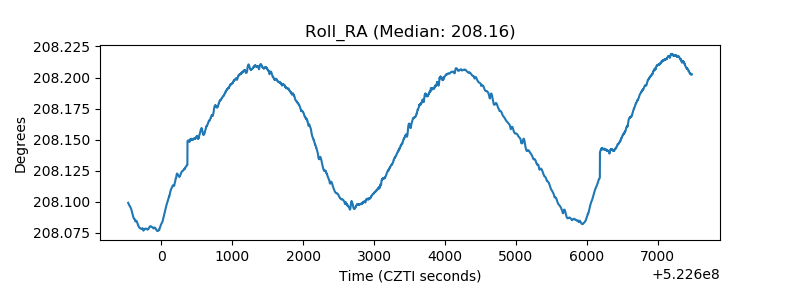

| _Roll_RA |  |
| Veto Counter |  |
