| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58555cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58555cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,832,000 | 89,256,960 |
| Size | 460.5 MB | 85.1 MB |
| Events in quadrant A | 3,502,809 | 625,435 |
| Events in quadrant B | 6,666,084 | 489,113 |
| Events in quadrant C | 2,922,115 | 601,918 |
| Events in quadrant D | 4,295,704 | 549,874 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14786 | 3 |
| B | 0 | 23944 | 3 |
| C | 0 | 13225 | 4 |
| D | 0 | 17144 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6248 | 109 | 1.744558% |
| B | 6248 | 1865 | 29.849552% |
| C | 6247 | 44 | 0.704338% |
| D | 6247 | 201 | 3.217544% |

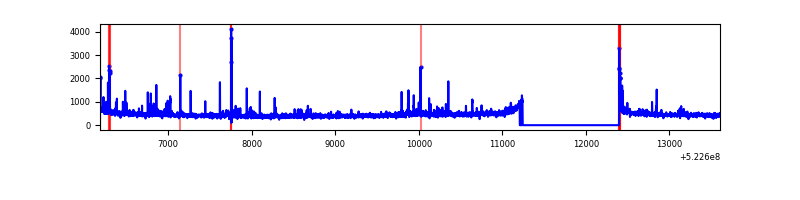

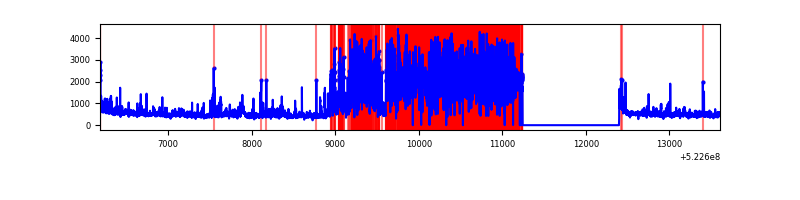

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

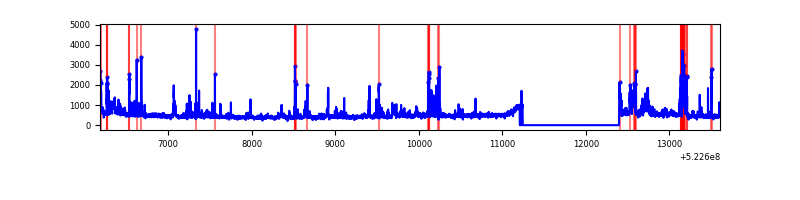

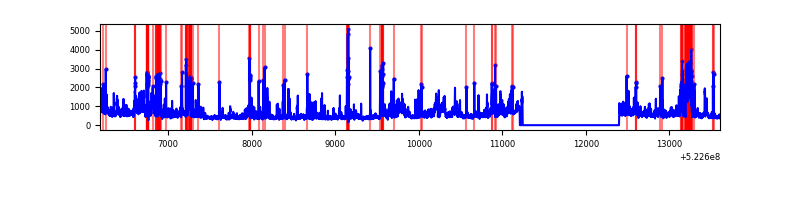

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7423 | 6250 | 58 | 58 | 0.78% | 0.93% |  |
| B | 7423 | 6246 | 1211 | 1211 | 16.31% | 19.39% |  |
| C | 7422 | 6248 | 18 | 18 | 0.24% | 0.29% |  |
| D | 7422 | 6249 | 177 | 177 | 2.38% | 2.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 248 | 435163 | 2509.32 | 697 | 680 | 173.1 |
| A | 10 | 17 | 134710 | 774.08 | 697 | 680 | 173.1 |
| A | 13 | 248 | 53126 | 302.9 | 697 | 680 | 173.1 |
| B | 6 | 255 | 3990436 | 34185.25 | 548 | 529 | 116.7 |
| B | 4 | 171 | 123463 | 1053.29 | 548 | 529 | 116.7 |
| B | 0 | 171 | 109541 | 934.01 | 548 | 529 | 116.7 |
| C | 4 | 5 | 62442 | 328.73 | 680 | 676 | 187.9 |
| C | 12 | 252 | 61928 | 325.99 | 680 | 676 | 187.9 |
| C | 9 | 237 | 43615 | 228.53 | 680 | 676 | 187.9 |
| D | 2 | 249 | 530835 | 2780.41 | 667 | 637 | 190.7 |
| D | 8 | 240 | 413971 | 2167.56 | 667 | 637 | 190.7 |
| D | 3 | 12 | 258939 | 1354.56 | 667 | 637 | 190.7 |

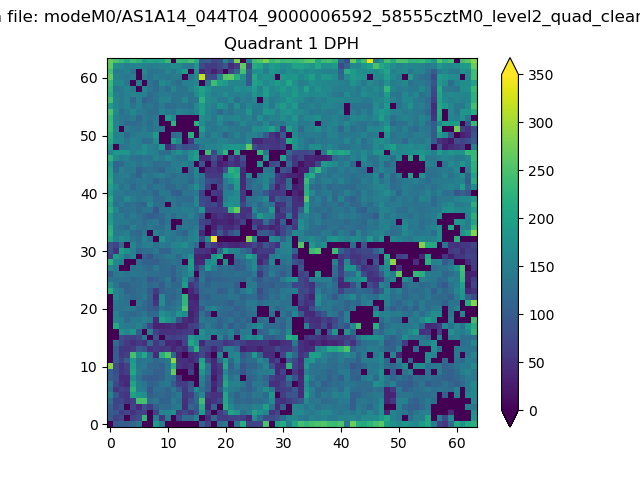

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

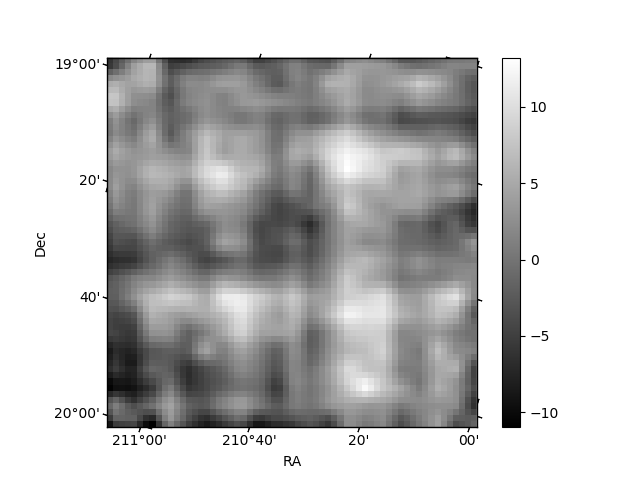

| Plot type | Count rate plots | Images |
|---|---|---|

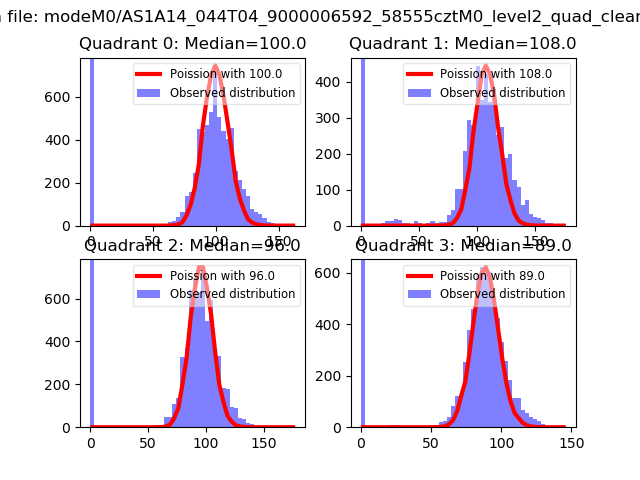

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

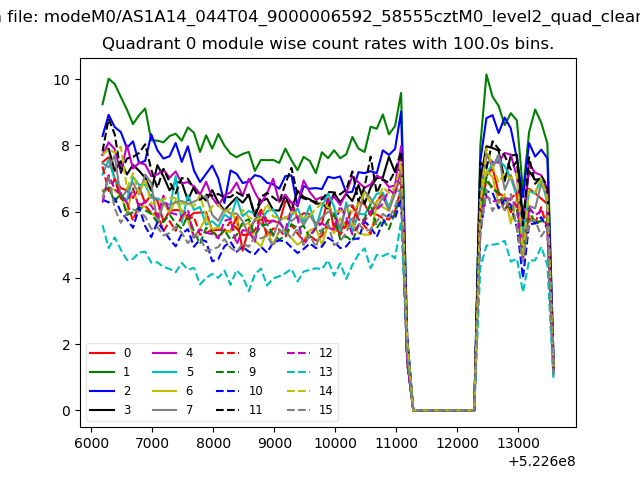

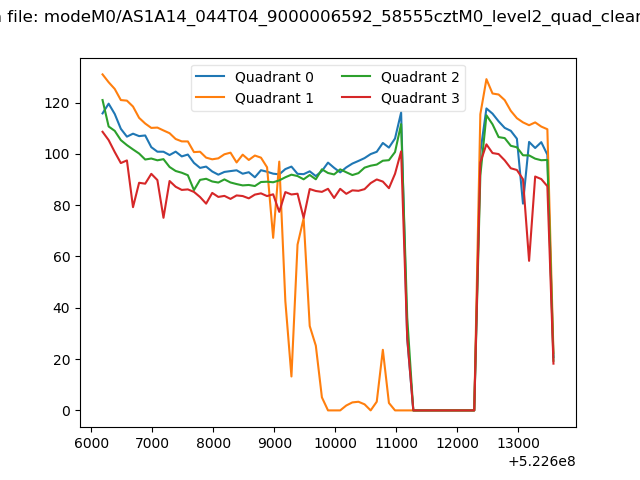

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

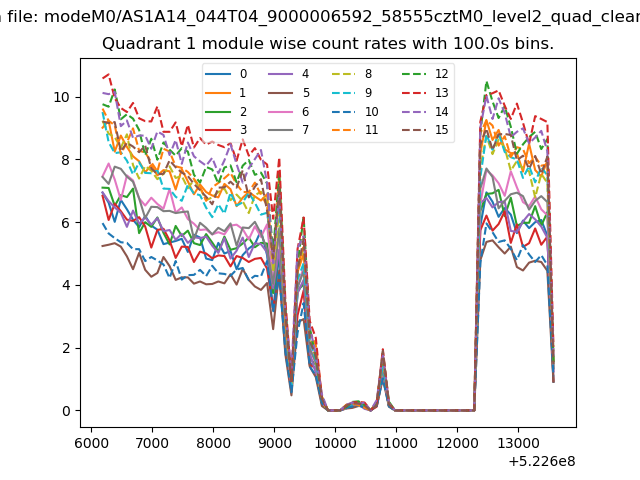

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

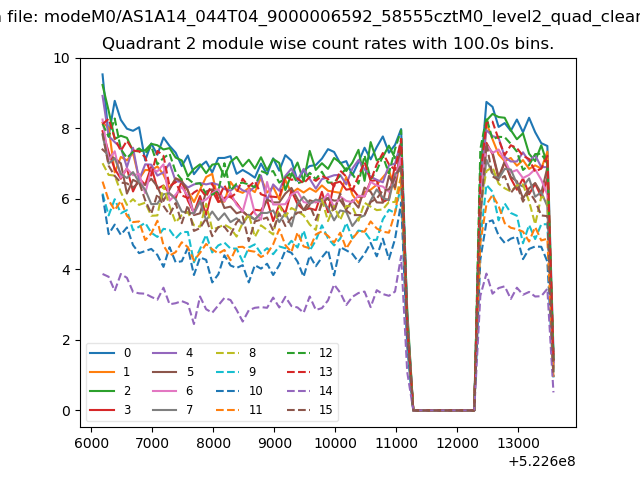

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

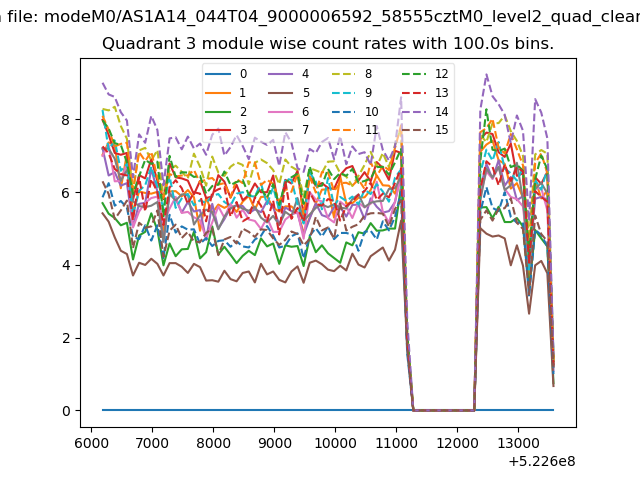

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

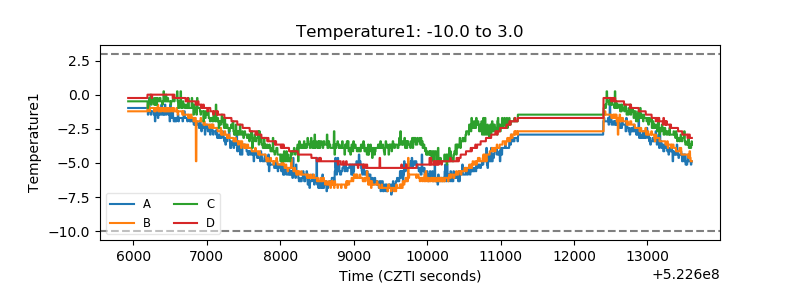

| Temperature 1 |  |

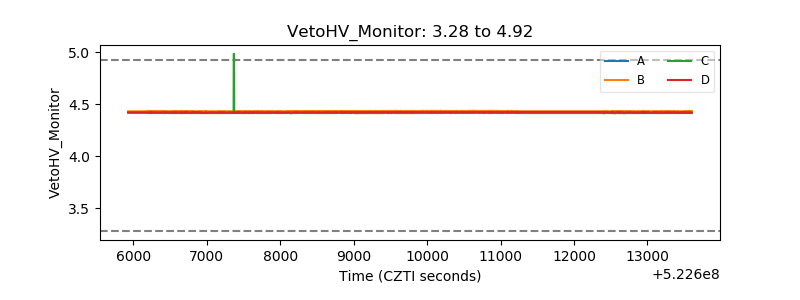

| Veto HV Monitor |  |
| Veto LLD |  |

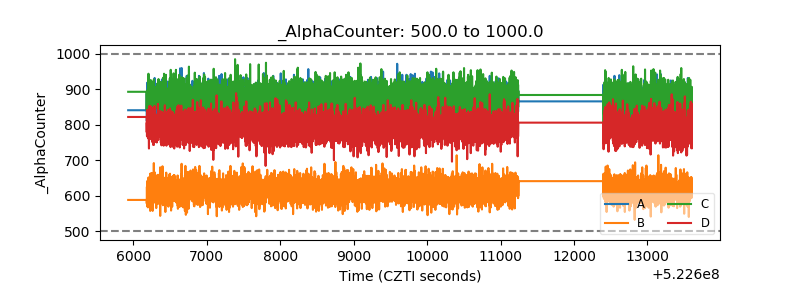

| Alpha Counter |  |

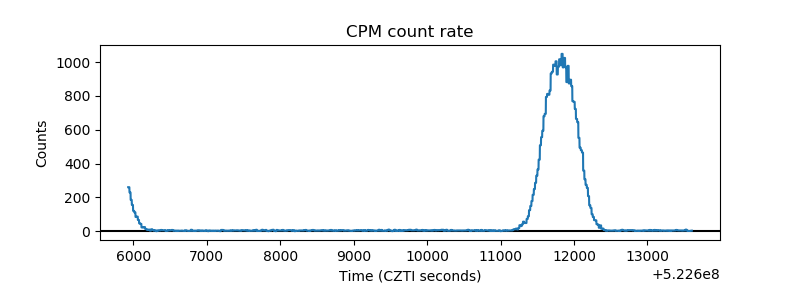

| _CPM_Rate |  |

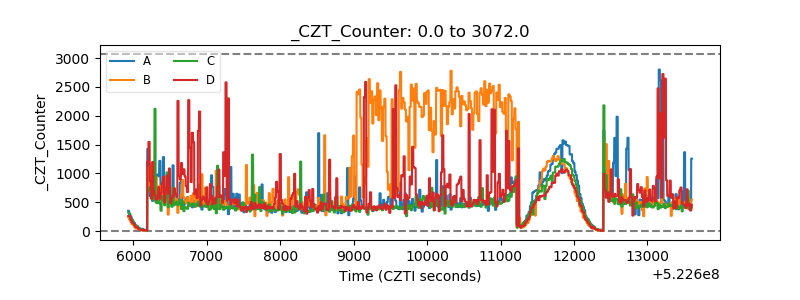

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

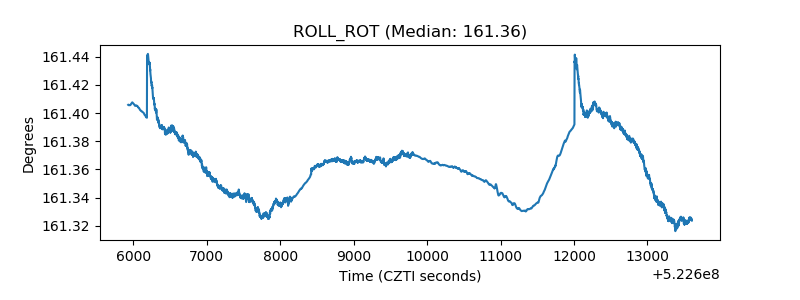

| _ROLL_ROT |  |

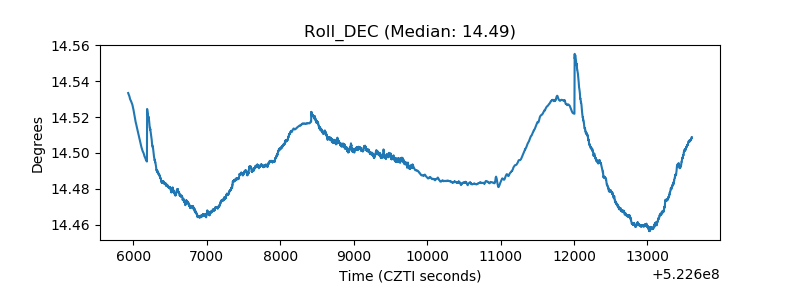

| _Roll_DEC |  |

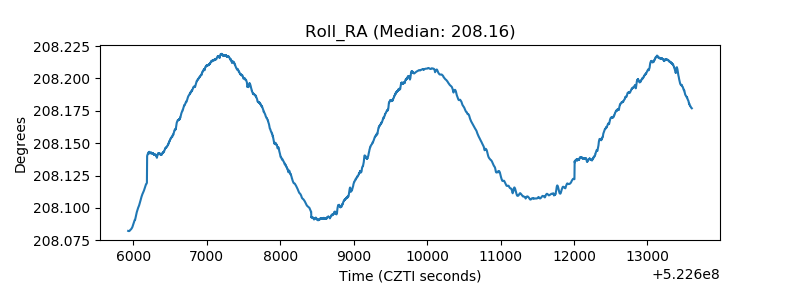

| _Roll_RA |  |

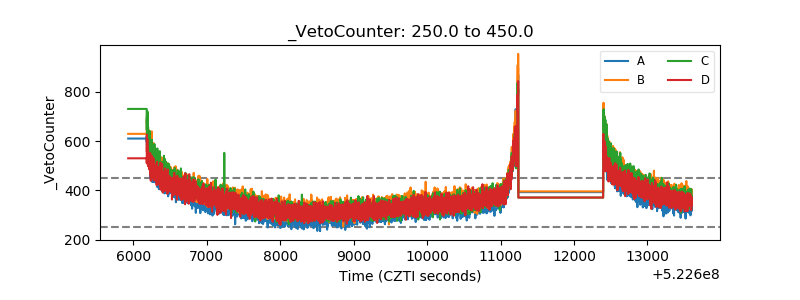

| Veto Counter |  |
