| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58556cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58556cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,544,640 | 96,560,640 |
| Size | 424.9 MB | 92.1 MB |
| Events in quadrant A | 5,132,743 | 611,710 |
| Events in quadrant B | 3,727,590 | 676,563 |
| Events in quadrant C | 2,980,723 | 622,313 |
| Events in quadrant D | 4,154,533 | 566,793 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19698 | 4 |
| B | 0 | 15402 | 3 |
| C | 0 | 13484 | 3 |
| D | 0 | 16754 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6391 | 490 | 7.667032% |
| B | 6392 | 278 | 4.349186% |
| C | 6392 | 37 | 0.578849% |
| D | 6392 | 207 | 3.238423% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

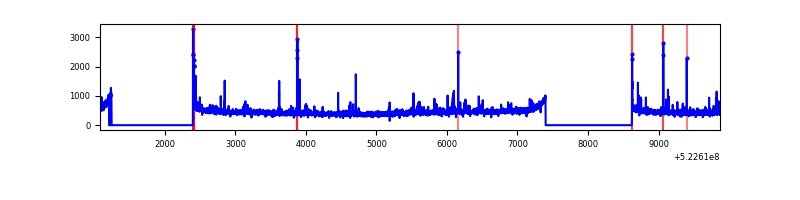

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8791 | 6394 | 382 | 382 | 4.35% | 5.97% |  |
| B | 8792 | 6393 | 138 | 138 | 1.57% | 2.16% |  |
| C | 8792 | 6394 | 16 | 16 | 0.18% | 0.25% |  |
| D | 8792 | 6395 | 174 | 174 | 1.98% | 2.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 248 | 2225144 | 12741.65 | 701 | 682 | 174.6 |
| A | 10 | 17 | 71242 | 404.17 | 701 | 682 | 174.6 |
| A | 13 | 248 | 32974 | 184.97 | 701 | 682 | 174.6 |
| B | 6 | 255 | 270855 | 1808.86 | 700 | 674 | 149.4 |
| B | 8 | 234 | 159149 | 1060.99 | 700 | 674 | 149.4 |
| B | 5 | 185 | 130552 | 869.53 | 700 | 674 | 149.4 |
| C | 12 | 252 | 41987 | 212.0 | 707 | 701 | 194.7 |
| C | 12 | 249 | 34809 | 175.14 | 707 | 701 | 194.7 |
| C | 4 | 5 | 22878 | 113.88 | 707 | 701 | 194.7 |
| D | 3 | 12 | 428751 | 2167.43 | 692 | 661 | 197.5 |
| D | 2 | 207 | 274132 | 1384.59 | 692 | 661 | 197.5 |
| D | 2 | 31 | 226415 | 1143.0 | 692 | 661 | 197.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

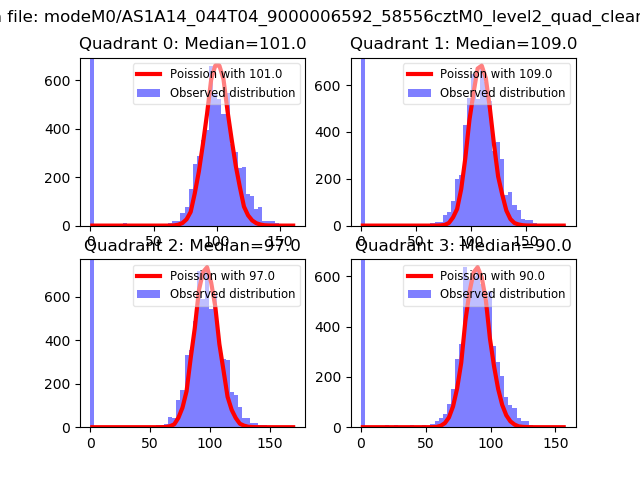

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

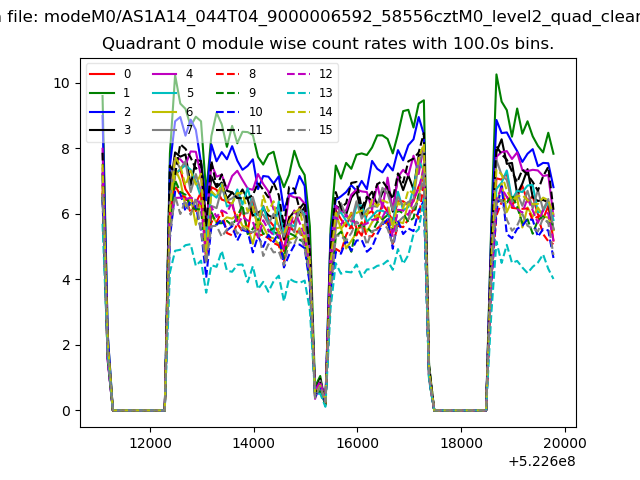

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

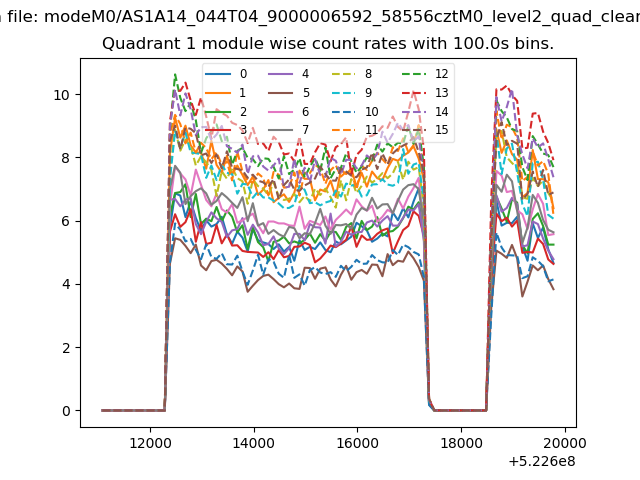

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

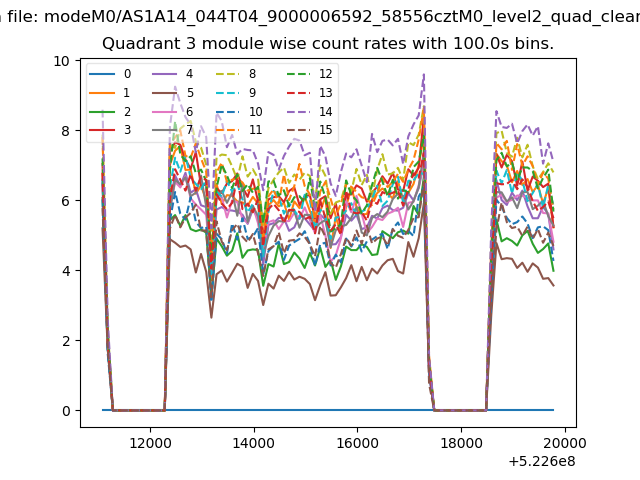

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

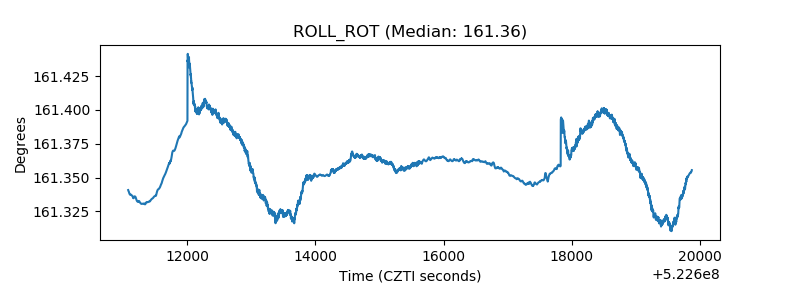

| _ROLL_ROT |  |

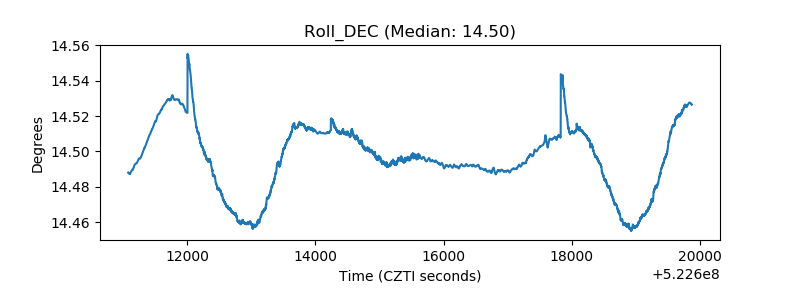

| _Roll_DEC |  |
| _Roll_RA |  |

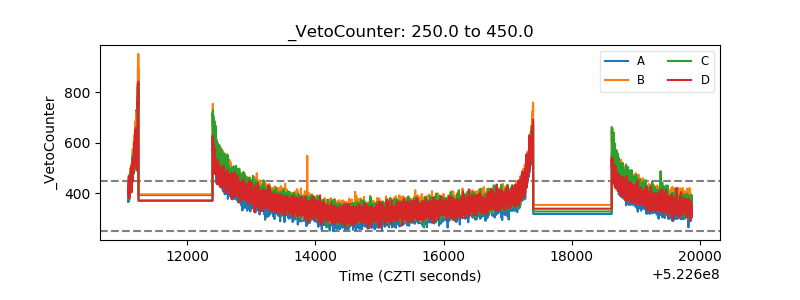

| Veto Counter |  |
