| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58558cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58558cztM0_level2_quad_clean.evt |
| Size (bytes) | 410,656,320 | 95,751,360 |
| Size | 391.6 MB | 91.3 MB |
| Events in quadrant A | 3,036,187 | 631,337 |
| Events in quadrant B | 3,964,833 | 672,017 |
| Events in quadrant C | 2,973,404 | 604,965 |
| Events in quadrant D | 4,722,363 | 538,354 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13773 | 2 |
| B | 0 | 16293 | 2 |
| C | 0 | 13669 | 2 |
| D | 0 | 18644 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6482 | 38 | 0.586239% |
| B | 6482 | 164 | 2.530083% |
| C | 6482 | 31 | 0.478247% |
| D | 6482 | 394 | 6.078371% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7567 | 6483 | 16 | 16 | 0.21% | 0.25% |  |
| B | 7567 | 6483 | 80 | 80 | 1.06% | 1.23% |  |
| C | 7567 | 6483 | 20 | 20 | 0.26% | 0.31% |  |
| D | 7567 | 6483 | 310 | 310 | 4.10% | 4.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 114078 | 639.27 | 712 | 692 | 177.4 |
| A | 13 | 248 | 84408 | 471.99 | 712 | 692 | 177.4 |
| A | 4 | 3 | 29583 | 162.89 | 712 | 692 | 177.4 |
| B | 0 | 171 | 631015 | 4226.92 | 704 | 680 | 149.1 |
| B | 10 | 247 | 201145 | 1344.29 | 704 | 680 | 149.1 |
| B | 7 | 0 | 144364 | 963.52 | 704 | 680 | 149.1 |
| C | 4 | 5 | 69611 | 358.17 | 694 | 687 | 192.4 |
| C | 12 | 249 | 51914 | 266.21 | 694 | 687 | 192.4 |
| C | 6 | 223 | 50645 | 259.61 | 694 | 687 | 192.4 |
| D | 3 | 12 | 725037 | 3801.25 | 665 | 634 | 190.6 |
| D | 2 | 249 | 381842 | 2000.36 | 665 | 634 | 190.6 |
| D | 9 | 102 | 210422 | 1100.85 | 665 | 634 | 190.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

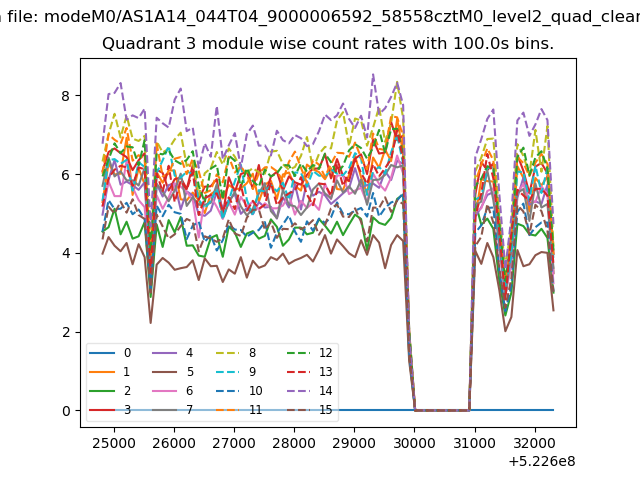

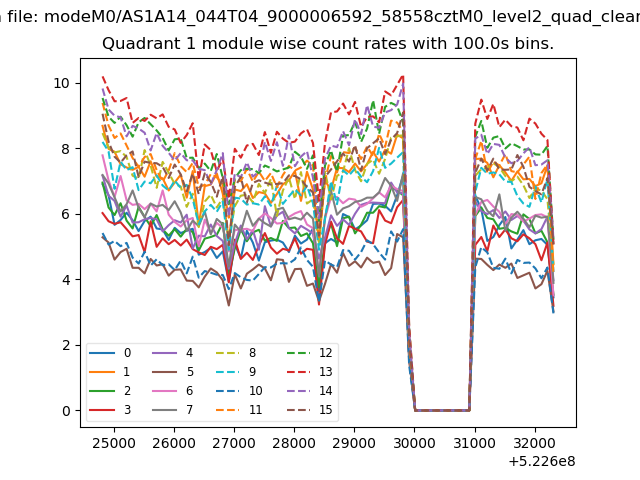

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

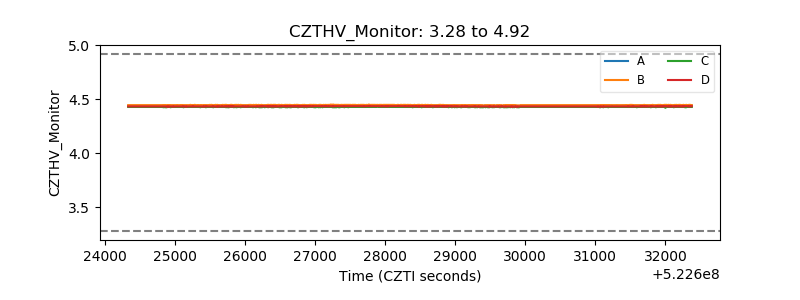

| CZT HV Monitor |  |
| D_VDD |  |

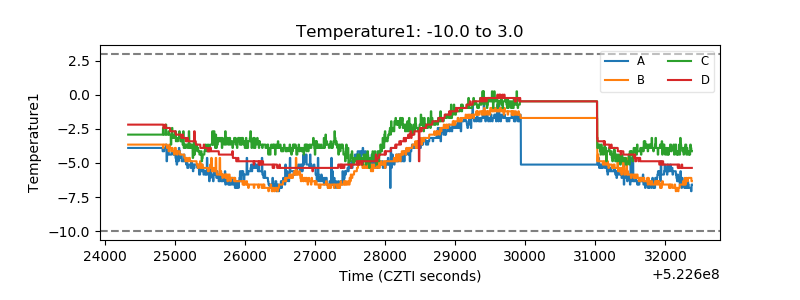

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

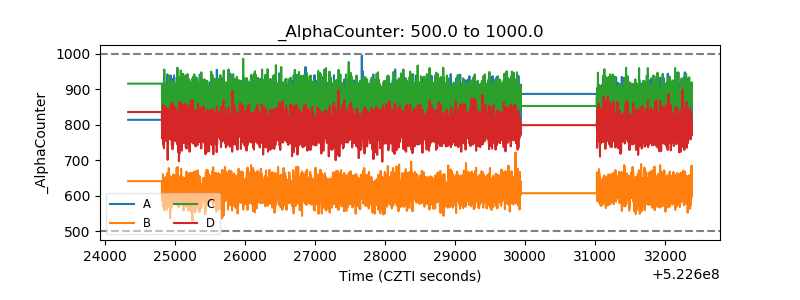

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

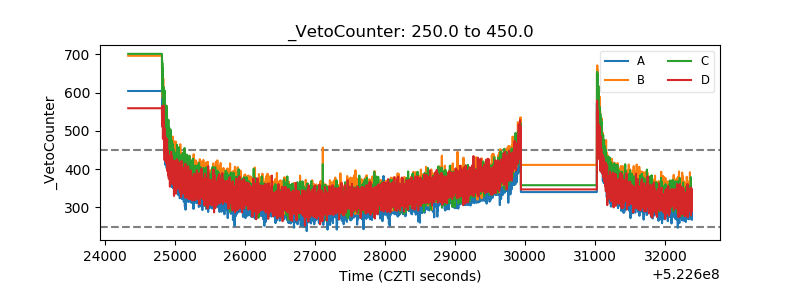

| Veto Counter |  |
