| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58559cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58559cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,697,920 | 107,919,360 |
| Size | 424.1 MB | 102.9 MB |
| Events in quadrant A | 3,546,167 | 705,700 |
| Events in quadrant B | 3,914,955 | 759,806 |
| Events in quadrant C | 3,501,890 | 677,343 |
| Events in quadrant D | 4,926,740 | 612,616 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15830 | 2 |
| B | 0 | 16884 | 2 |
| C | 0 | 15802 | 2 |
| D | 0 | 19922 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7348 | 38 | 0.517148% |
| B | 7349 | 80 | 1.088583% |
| C | 7349 | 53 | 0.721187% |
| D | 7349 | 353 | 4.803375% |

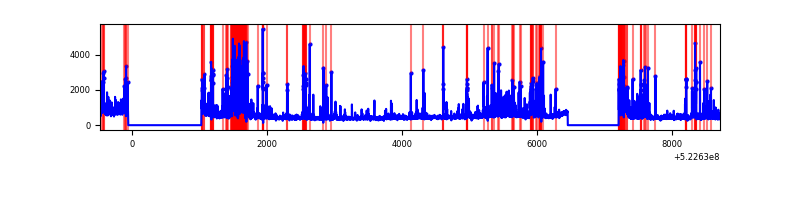

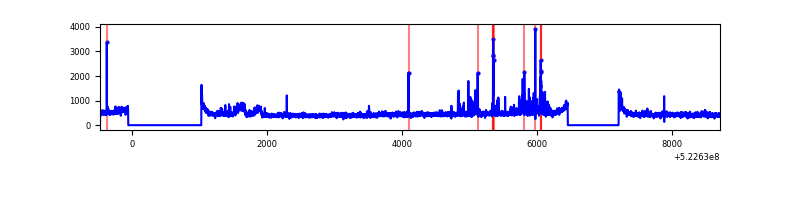

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9188 | 7350 | 12 | 12 | 0.13% | 0.16% |  |
| B | 9189 | 7351 | 19 | 19 | 0.21% | 0.26% |  |
| C | 9189 | 7351 | 36 | 36 | 0.39% | 0.49% |  |
| D | 9189 | 7351 | 269 | 269 | 2.93% | 3.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 129598 | 634.45 | 818 | 796 | 203.0 |
| A | 10 | 251 | 105730 | 516.88 | 818 | 796 | 203.0 |
| A | 4 | 3 | 39479 | 190.54 | 818 | 796 | 203.0 |
| B | 0 | 171 | 299359 | 1704.41 | 814 | 784 | 175.2 |
| B | 0 | 186 | 107122 | 607.03 | 814 | 784 | 175.2 |
| B | 8 | 234 | 78693 | 444.74 | 814 | 784 | 175.2 |
| C | 6 | 223 | 70113 | 315.9 | 794 | 787 | 219.5 |
| C | 14 | 245 | 68664 | 309.3 | 794 | 787 | 219.5 |
| C | 4 | 5 | 62462 | 281.04 | 794 | 787 | 219.5 |
| D | 3 | 12 | 739564 | 3365.6 | 769 | 734 | 219.5 |
| D | 2 | 249 | 484429 | 2203.38 | 769 | 734 | 219.5 |
| D | 8 | 240 | 170396 | 772.86 | 769 | 734 | 219.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

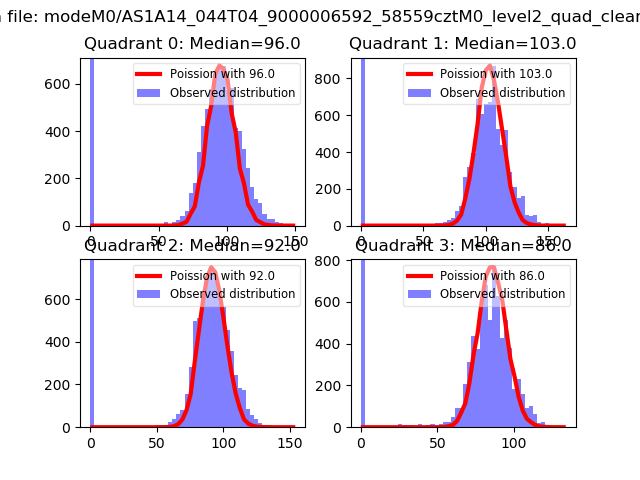

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

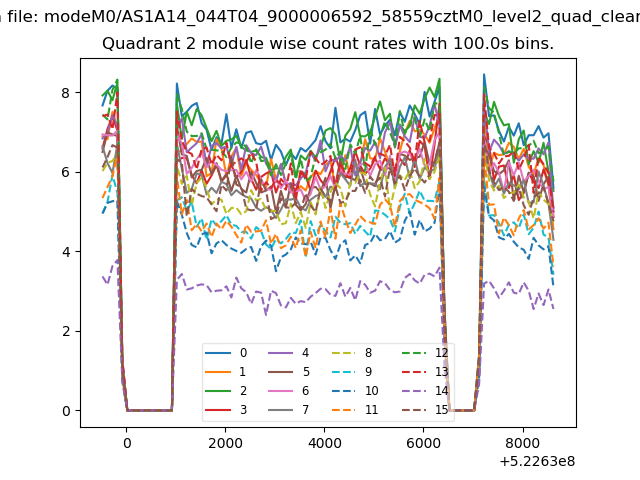

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

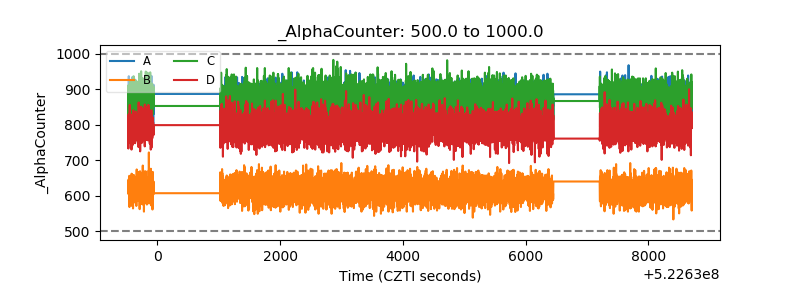

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

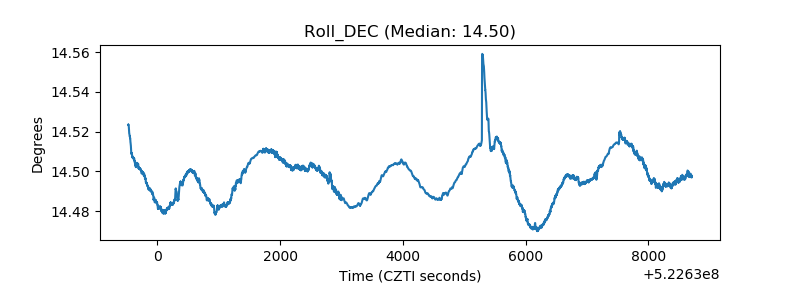

| _Roll_DEC |  |

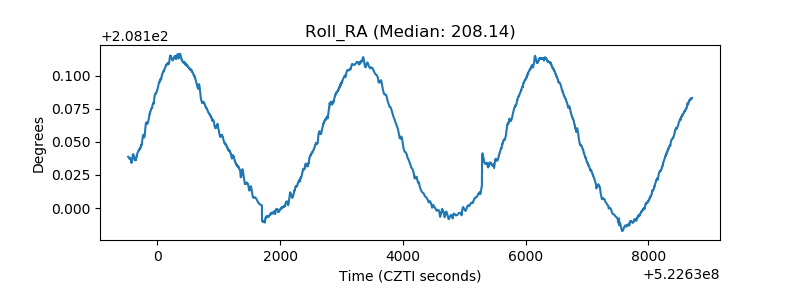

| _Roll_RA |  |

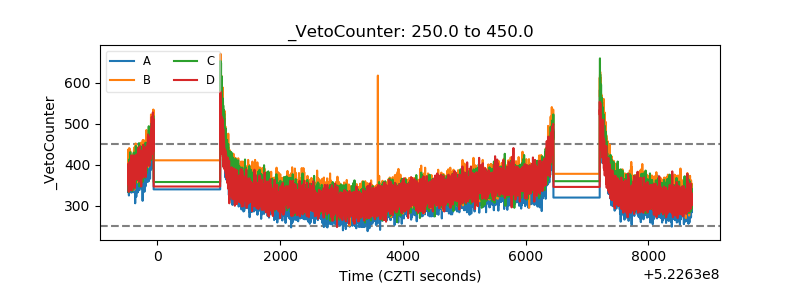

| Veto Counter |  |
