| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58561cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58561cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,630,080 | 115,479,360 |
| Size | 447.9 MB | 110.1 MB |
| Events in quadrant A | 3,517,440 | 747,694 |
| Events in quadrant B | 4,526,590 | 805,333 |
| Events in quadrant C | 3,807,655 | 720,814 |
| Events in quadrant D | 4,912,227 | 667,914 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16352 | 0 |
| B | 0 | 18876 | 0 |
| C | 0 | 17161 | 0 |
| D | 0 | 20268 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7980 | 11 | 0.137845% |
| B | 7981 | 136 | 1.704047% |
| C | 7981 | 18 | 0.225536% |
| D | 7981 | 154 | 1.929583% |

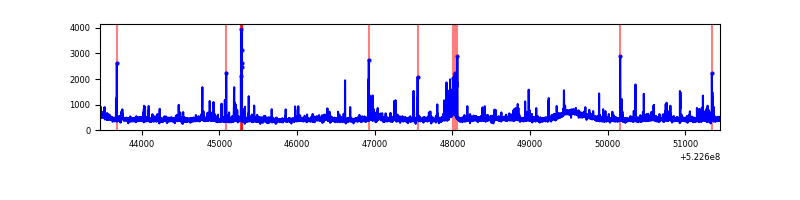

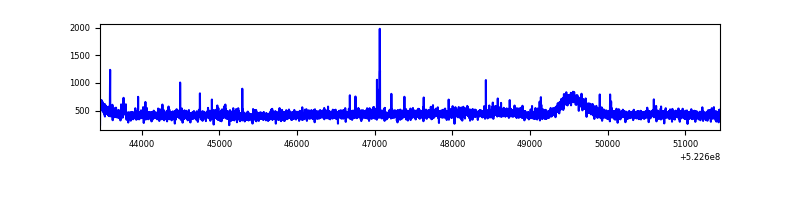

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7980 | 7980 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7981 | 7981 | 67 | 67 | 0.84% | 0.84% |  |
| C | 7981 | 7981 | 14 | 14 | 0.18% | 0.18% |  |
| D | 7981 | 7981 | 165 | 165 | 2.07% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 47333 | 214.3 | 880 | 858 | 216.9 |
| A | 4 | 249 | 19327 | 85.16 | 880 | 858 | 216.9 |
| A | 13 | 254 | 15006 | 65.24 | 880 | 858 | 216.9 |
| B | 0 | 171 | 293622 | 1537.65 | 873 | 838 | 190.4 |
| B | 8 | 234 | 205355 | 1074.08 | 873 | 838 | 190.4 |
| B | 0 | 186 | 139127 | 726.27 | 873 | 838 | 190.4 |
| C | 12 | 252 | 141139 | 591.88 | 857 | 848 | 237.0 |
| C | 4 | 5 | 139037 | 583.01 | 857 | 848 | 237.0 |
| C | 6 | 223 | 61601 | 256.31 | 857 | 848 | 237.0 |
| D | 3 | 12 | 754687 | 3143.53 | 842 | 804 | 239.8 |
| D | 2 | 249 | 323666 | 1346.27 | 842 | 804 | 239.8 |
| D | 8 | 240 | 299446 | 1245.27 | 842 | 804 | 239.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

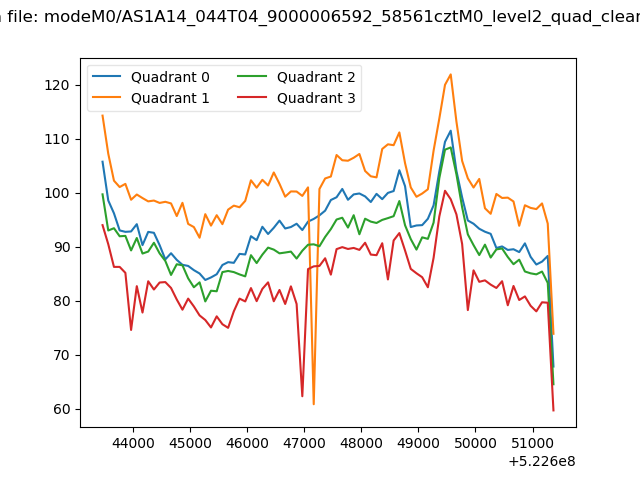

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

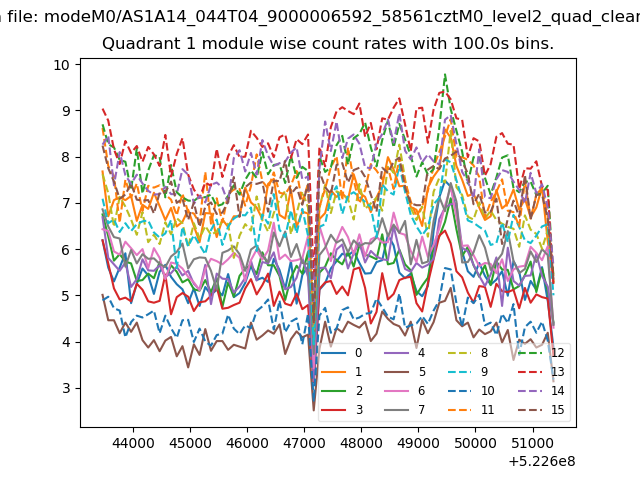

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

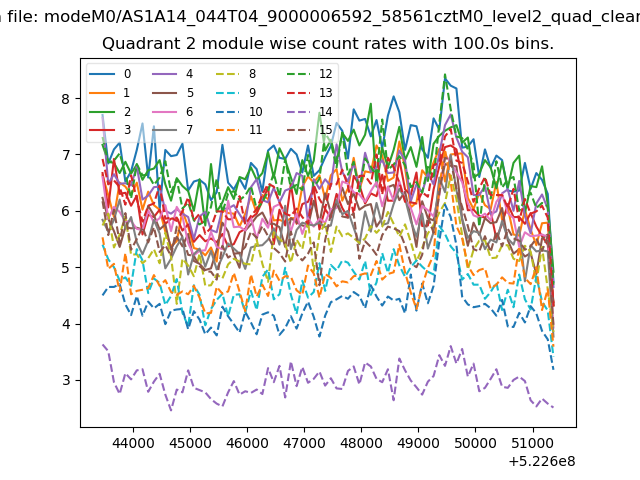

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

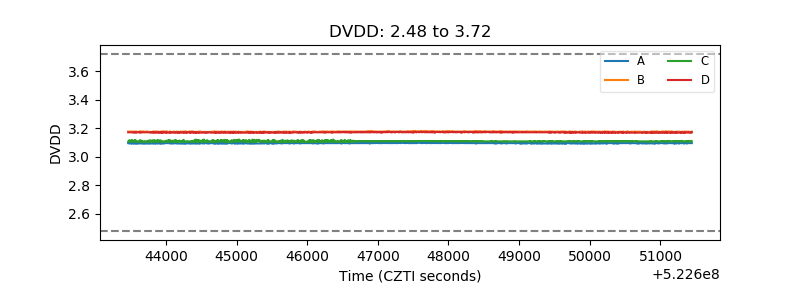

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

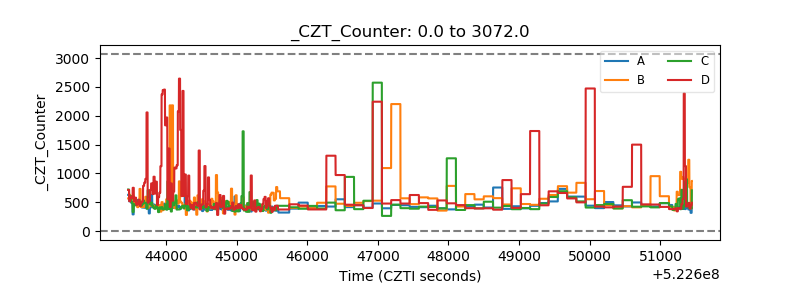

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

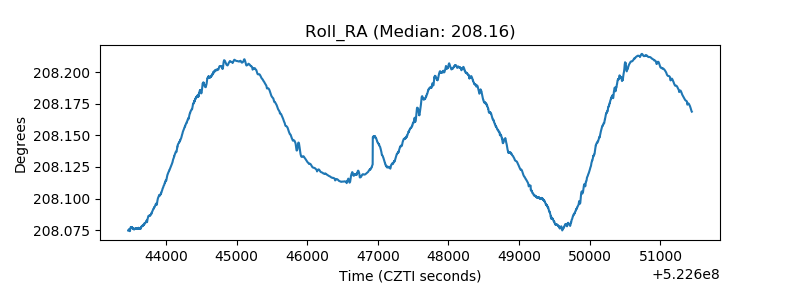

| _Roll_RA |  |
| Veto Counter |  |
