| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58566cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58566cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,143,040 | 87,088,320 |
| Size | 469.3 MB | 83.1 MB |
| Events in quadrant A | 4,176,106 | 584,344 |
| Events in quadrant B | 5,366,393 | 535,270 |
| Events in quadrant C | 4,479,456 | 539,477 |
| Events in quadrant D | 3,706,380 | 538,700 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16670 | 1 |
| B | 0 | 20207 | 1 |
| C | 0 | 17659 | 3 |
| D | 0 | 15382 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6289 | 365 | 5.803784% |
| B | 6290 | 1225 | 19.475358% |
| C | 6289 | 489 | 7.775481% |
| D | 6289 | 153 | 2.432819% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7114 | 6290 | 203 | 203 | 2.85% | 3.23% |  |
| B | 7115 | 6291 | 439 | 439 | 6.17% | 6.98% |  |
| C | 7114 | 6290 | 365 | 365 | 5.13% | 5.80% |  |
| D | 7114 | 6290 | 74 | 74 | 1.04% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 1309449 | 7624.91 | 686 | 668 | 171.6 |
| A | 13 | 248 | 53024 | 305.02 | 686 | 668 | 171.6 |
| A | 10 | 17 | 38127 | 218.23 | 686 | 668 | 171.6 |
| B | 6 | 255 | 2189181 | 16536.74 | 613 | 591 | 132.3 |
| B | 0 | 171 | 328409 | 2476.96 | 613 | 591 | 132.3 |
| B | 8 | 234 | 149761 | 1127.11 | 613 | 591 | 132.3 |
| C | 14 | 245 | 880183 | 4839.35 | 659 | 653 | 181.7 |
| C | 15 | 1 | 500114 | 2748.13 | 659 | 653 | 181.7 |
| C | 12 | 252 | 176426 | 967.14 | 659 | 653 | 181.7 |
| D | 2 | 249 | 238146 | 1228.5 | 678 | 646 | 193.3 |
| D | 2 | 207 | 234216 | 1208.17 | 678 | 646 | 193.3 |
| D | 3 | 12 | 179671 | 926.03 | 678 | 646 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

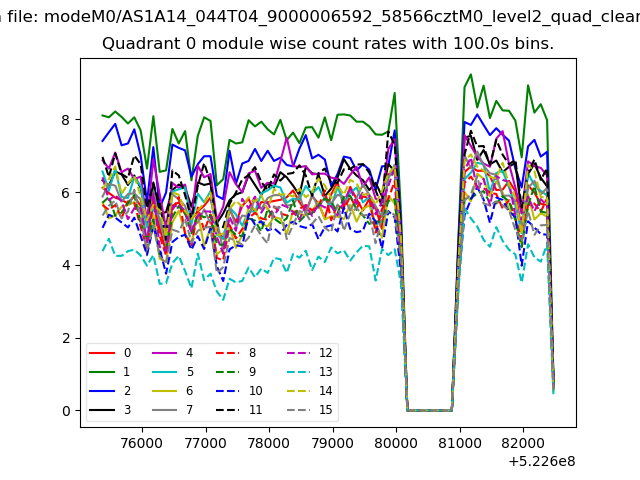

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
