| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58568cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58568cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,805,440 | 89,305,920 |
| Size | 444.2 MB | 85.2 MB |
| Events in quadrant A | 4,467,763 | 570,672 |
| Events in quadrant B | 3,346,884 | 640,996 |
| Events in quadrant C | 5,483,371 | 529,596 |
| Events in quadrant D | 3,465,738 | 532,887 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17375 | 1 |
| B | 0 | 14128 | 1 |
| C | 0 | 20533 | 1 |
| D | 0 | 14617 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6162 | 432 | 7.010711% |
| B | 6162 | 86 | 1.395651% |
| C | 6162 | 608 | 9.866926% |
| D | 6162 | 123 | 1.996105% |

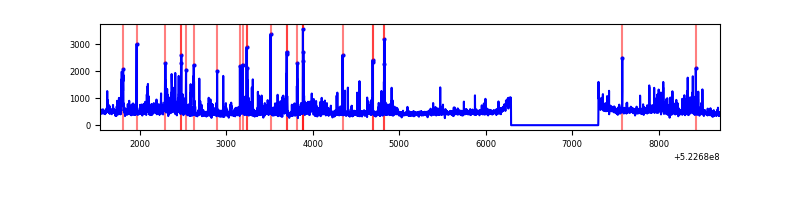

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7172 | 6163 | 282 | 282 | 3.93% | 4.58% |  |
| B | 7172 | 6163 | 26 | 26 | 0.36% | 0.42% |  |
| C | 7172 | 6163 | 568 | 568 | 7.92% | 9.22% |  |
| D | 7172 | 6163 | 67 | 67 | 0.93% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 1524596 | 9163.06 | 662 | 646 | 166.3 |
| A | 3 | 14 | 119485 | 714.54 | 662 | 646 | 166.3 |
| A | 10 | 17 | 116390 | 695.93 | 662 | 646 | 166.3 |
| B | 0 | 171 | 243208 | 1684.34 | 670 | 644 | 144.0 |
| B | 4 | 171 | 121334 | 838.06 | 670 | 644 | 144.0 |
| B | 8 | 234 | 97606 | 673.29 | 670 | 644 | 144.0 |
| C | 15 | 1 | 1896759 | 10780.19 | 637 | 631 | 175.9 |
| C | 14 | 245 | 402894 | 2287.01 | 637 | 631 | 175.9 |
| C | 12 | 252 | 205549 | 1165.03 | 637 | 631 | 175.9 |
| D | 2 | 249 | 183435 | 969.79 | 657 | 626 | 188.5 |
| D | 2 | 120 | 139087 | 734.53 | 657 | 626 | 188.5 |
| D | 2 | 207 | 108909 | 574.44 | 657 | 626 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

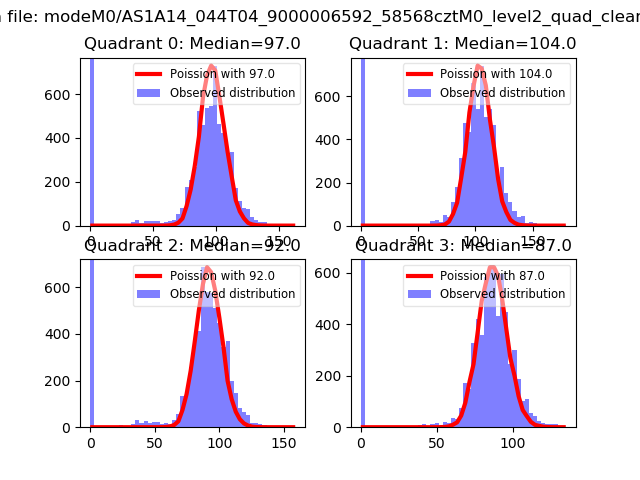

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

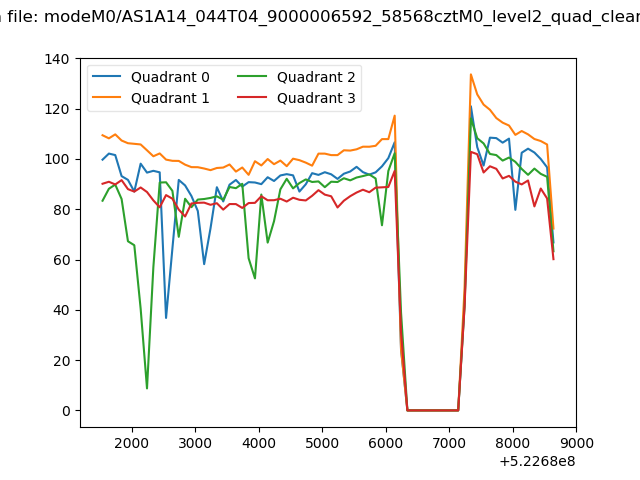

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

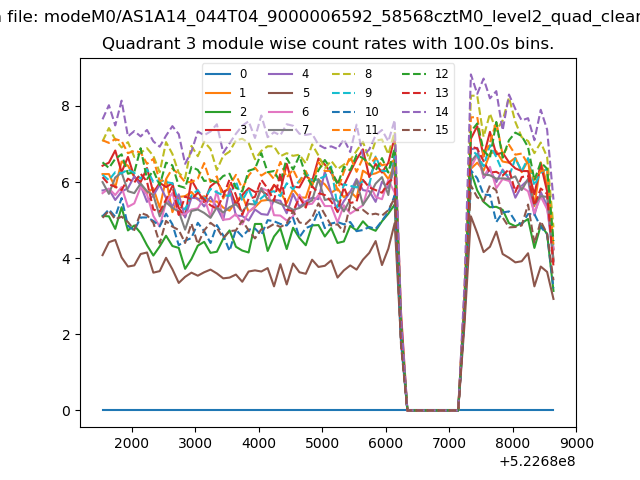

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

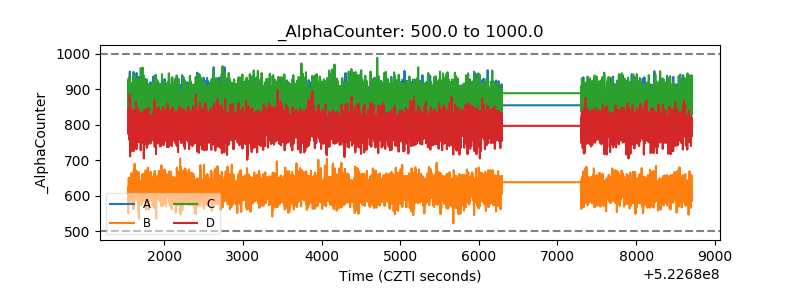

| Alpha Counter |  |
| _CPM_Rate |  |

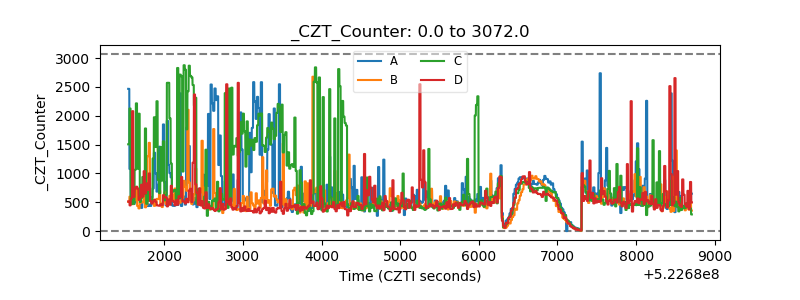

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

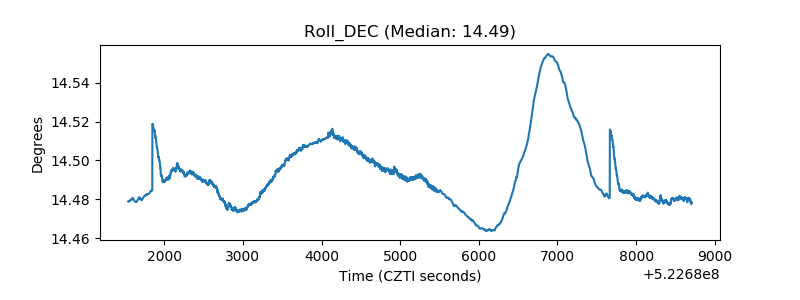

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
