| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58569cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58569cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,981,440 | 98,493,120 |
| Size | 413.9 MB | 93.9 MB |
| Events in quadrant A | 4,315,670 | 640,494 |
| Events in quadrant B | 3,364,914 | 700,855 |
| Events in quadrant C | 3,909,386 | 613,833 |
| Events in quadrant D | 3,970,886 | 574,517 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17289 | 2 |
| B | 0 | 14509 | 2 |
| C | 0 | 16202 | 2 |
| D | 0 | 16275 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6481 | 212 | 3.271100% |
| B | 6481 | 91 | 1.404104% |
| C | 6481 | 136 | 2.098442% |
| D | 6481 | 172 | 2.653911% |

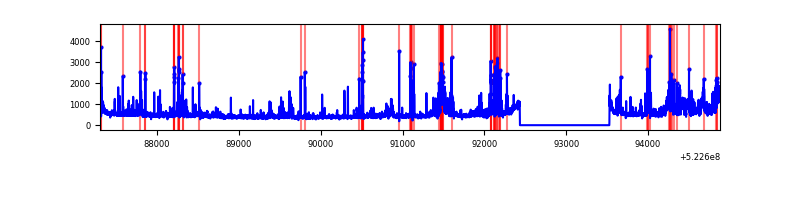

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

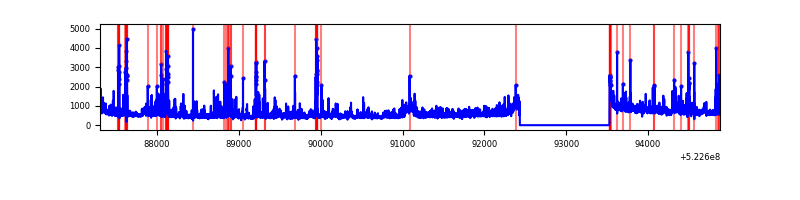

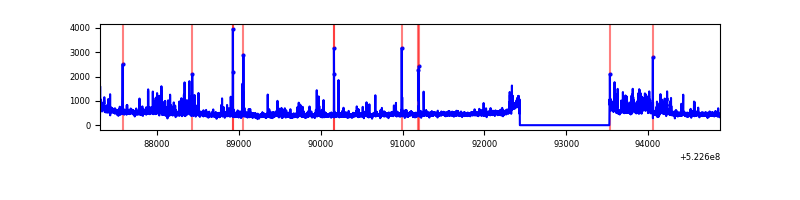

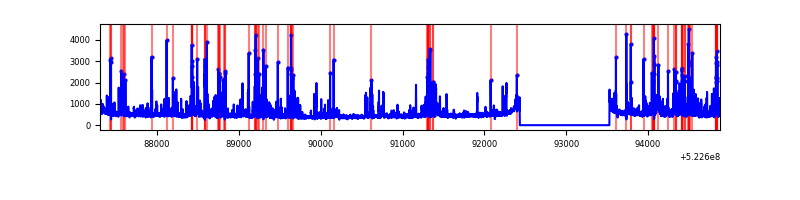

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6482 | 91 | 91 | 1.20% | 1.40% |  |
| B | 7576 | 6482 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7576 | 6482 | 85 | 85 | 1.12% | 1.31% |  |
| D | 7576 | 6482 | 107 | 107 | 1.41% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 594102 | 3312.54 | 724 | 707 | 179.1 |
| A | 15 | 233 | 565559 | 3153.2 | 724 | 707 | 179.1 |
| A | 7 | 64 | 128485 | 713.3 | 724 | 707 | 179.1 |
| B | 0 | 171 | 172785 | 1108.7 | 725 | 699 | 155.2 |
| B | 4 | 171 | 89421 | 571.61 | 725 | 699 | 155.2 |
| B | 8 | 234 | 45398 | 287.98 | 725 | 699 | 155.2 |
| C | 6 | 13 | 348609 | 1794.98 | 709 | 703 | 193.8 |
| C | 12 | 252 | 112183 | 575.17 | 709 | 703 | 193.8 |
| C | 4 | 5 | 107612 | 551.59 | 709 | 703 | 193.8 |
| D | 2 | 249 | 398014 | 1978.41 | 706 | 678 | 200.8 |
| D | 8 | 240 | 303815 | 1509.38 | 706 | 678 | 200.8 |
| D | 2 | 120 | 122818 | 608.16 | 706 | 678 | 200.8 |

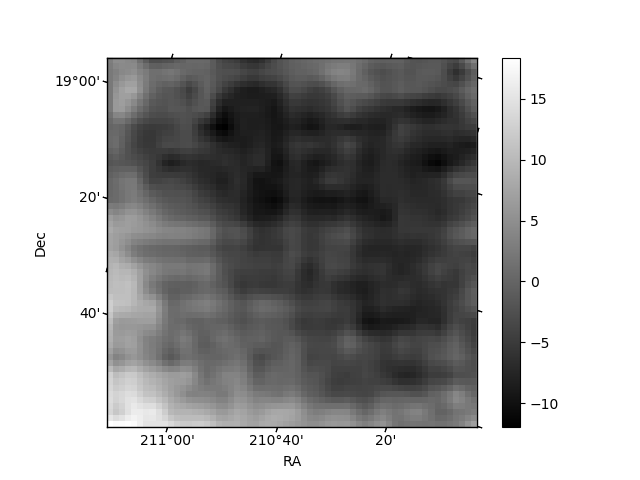

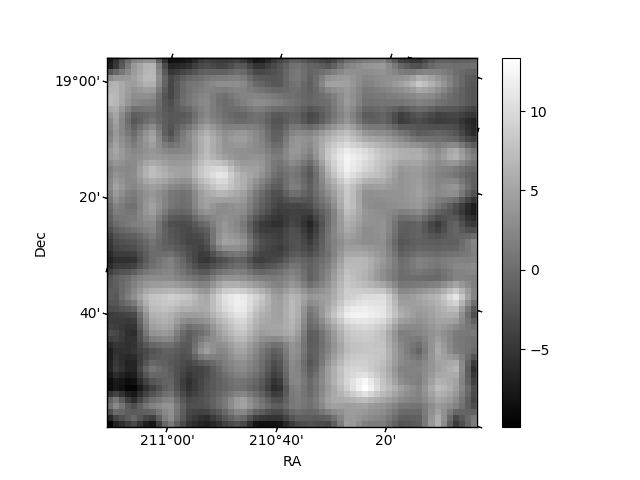

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

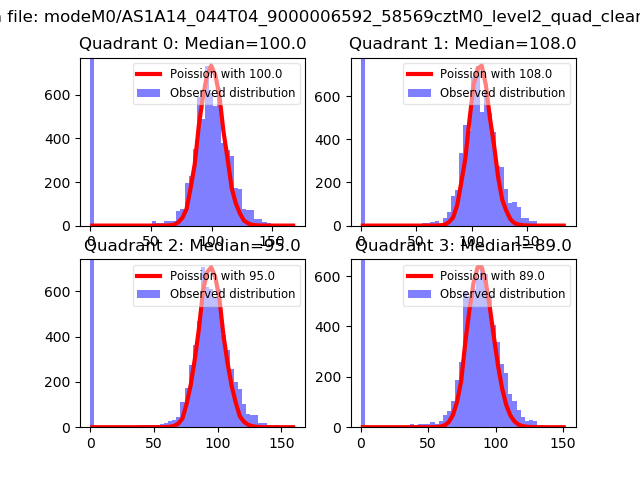

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

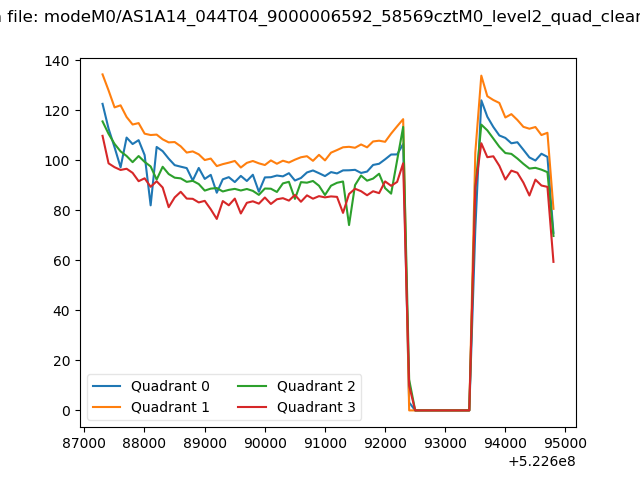

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

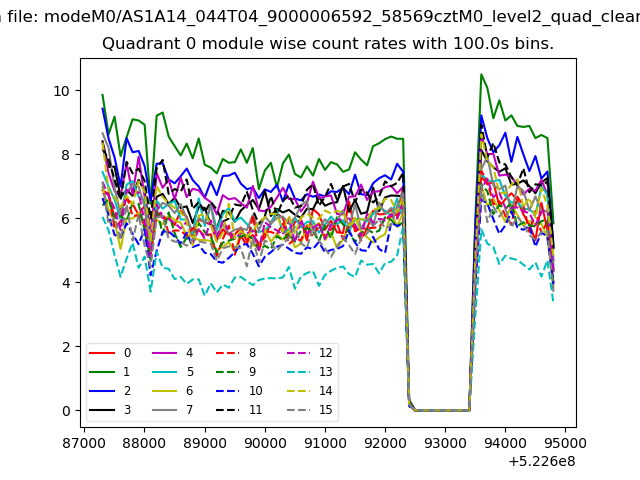

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

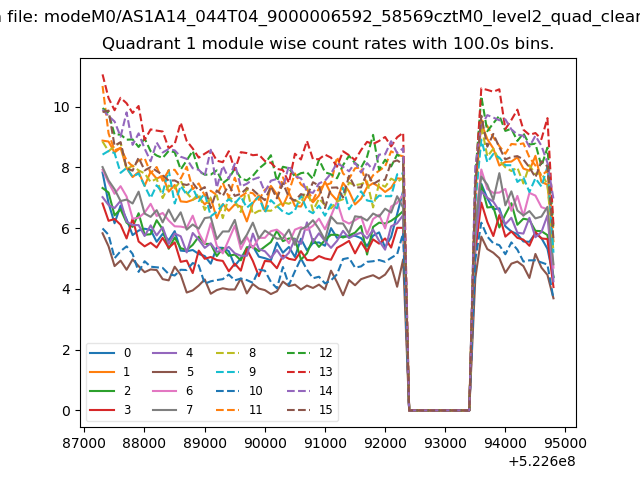

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

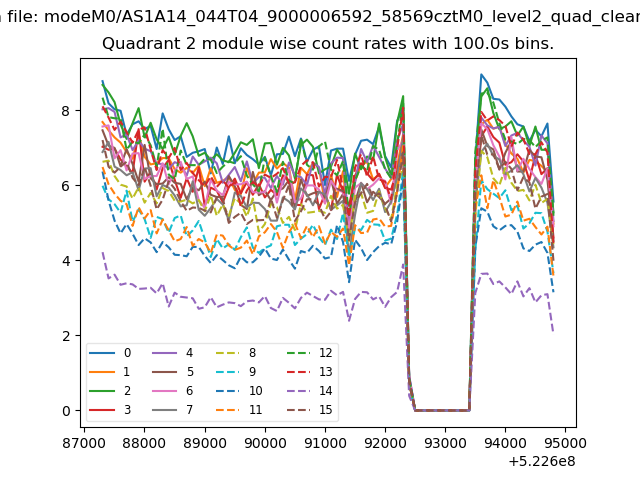

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

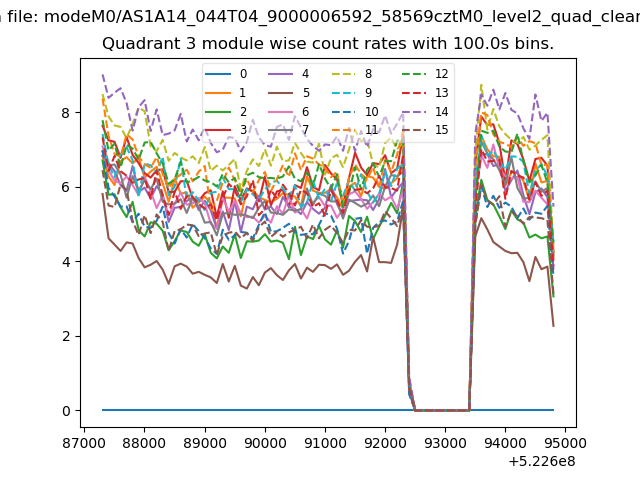

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

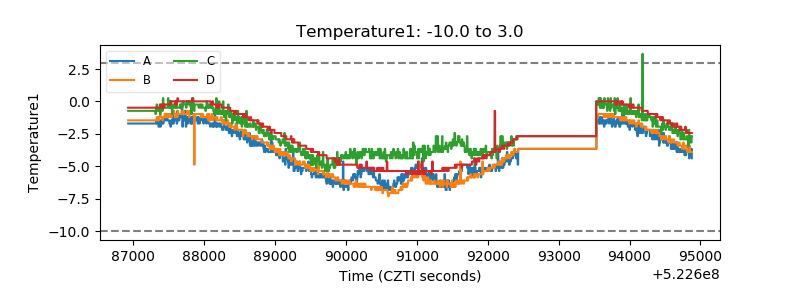

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

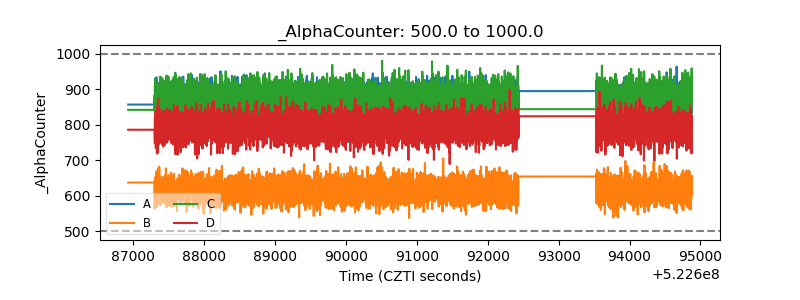

| Alpha Counter |  |
| _CPM_Rate |  |

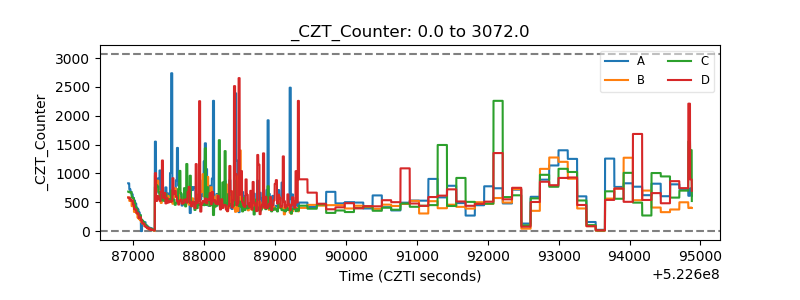

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

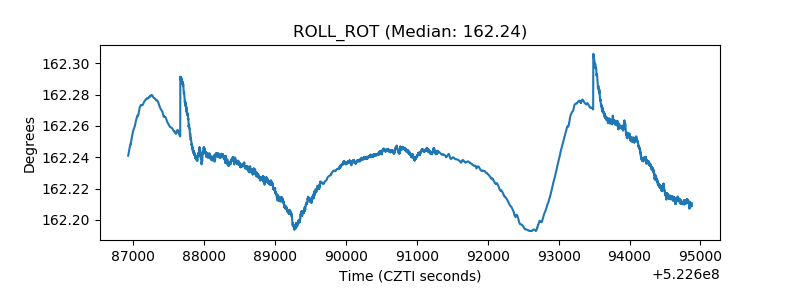

| _ROLL_ROT |  |

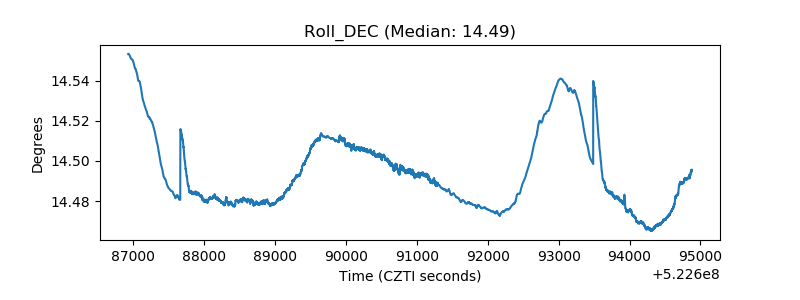

| _Roll_DEC |  |

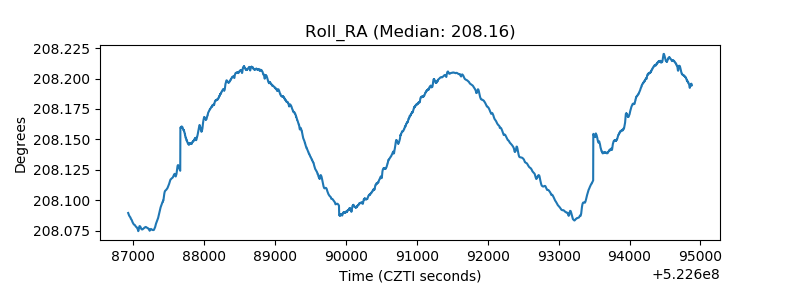

| _Roll_RA |  |

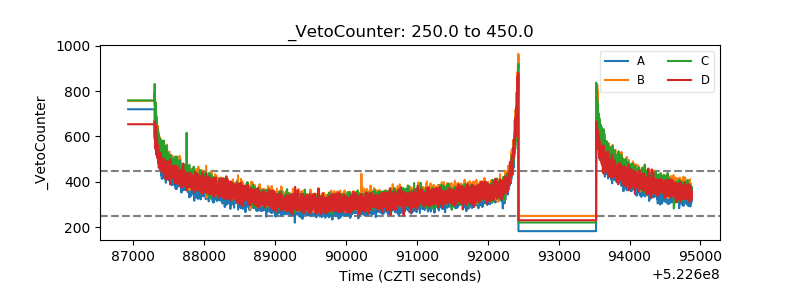

| Veto Counter |  |
