| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58570cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58570cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,655,680 | 98,487,360 |
| Size | 469.8 MB | 93.9 MB |
| Events in quadrant A | 4,883,054 | 644,101 |
| Events in quadrant B | 3,503,208 | 700,676 |
| Events in quadrant C | 4,796,640 | 621,693 |
| Events in quadrant D | 4,554,679 | 567,072 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19273 | 2 |
| B | 0 | 14836 | 2 |
| C | 0 | 18651 | 2 |
| D | 0 | 17988 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6434 | 190 | 2.953062% |
| B | 6434 | 140 | 2.175940% |
| C | 6433 | 111 | 1.725478% |
| D | 6433 | 303 | 4.710089% |

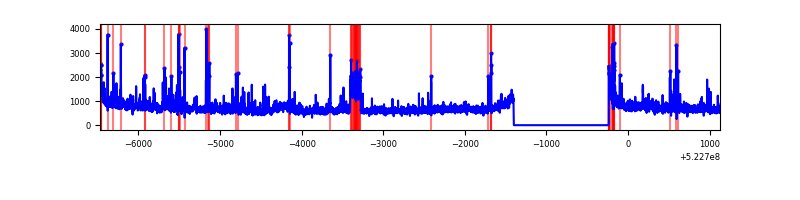

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6435 | 75 | 75 | 0.99% | 1.17% |  |
| B | 7599 | 6435 | 28 | 28 | 0.37% | 0.44% |  |
| C | 7598 | 6434 | 55 | 55 | 0.72% | 0.85% |  |
| D | 7598 | 6434 | 281 | 281 | 3.70% | 4.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1500949 | 8366.43 | 723 | 704 | 179.3 |
| A | 15 | 233 | 395121 | 2199.55 | 723 | 704 | 179.3 |
| A | 10 | 17 | 97100 | 537.57 | 723 | 704 | 179.3 |
| B | 0 | 171 | 162076 | 1041.95 | 724 | 699 | 154.9 |
| B | 10 | 247 | 97338 | 623.96 | 724 | 699 | 154.9 |
| B | 5 | 172 | 94503 | 605.66 | 724 | 699 | 154.9 |
| C | 6 | 13 | 1581141 | 8034.99 | 708 | 702 | 196.7 |
| C | 12 | 252 | 77289 | 389.37 | 708 | 702 | 196.7 |
| C | 12 | 254 | 66662 | 335.34 | 708 | 702 | 196.7 |
| D | 8 | 240 | 610712 | 3068.95 | 696 | 666 | 198.8 |
| D | 2 | 249 | 370862 | 1862.34 | 696 | 666 | 198.8 |
| D | 3 | 160 | 223314 | 1120.07 | 696 | 666 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

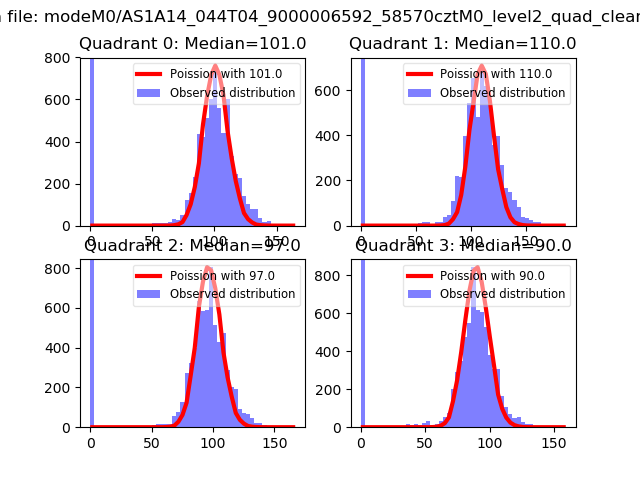

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

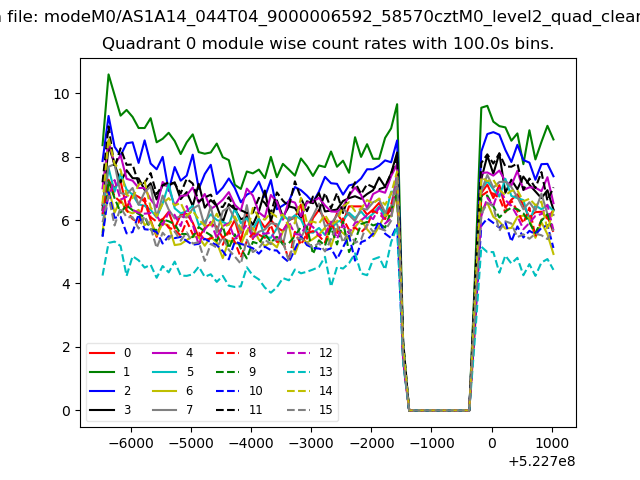

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

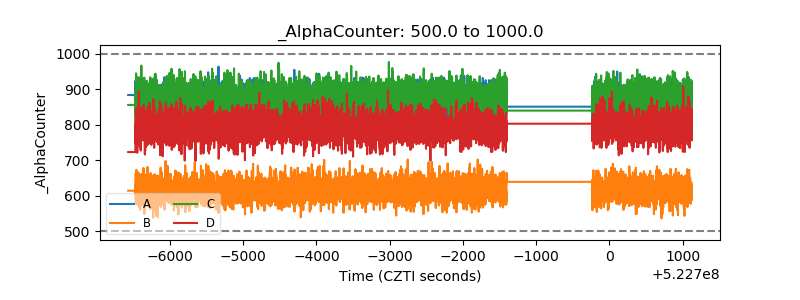

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

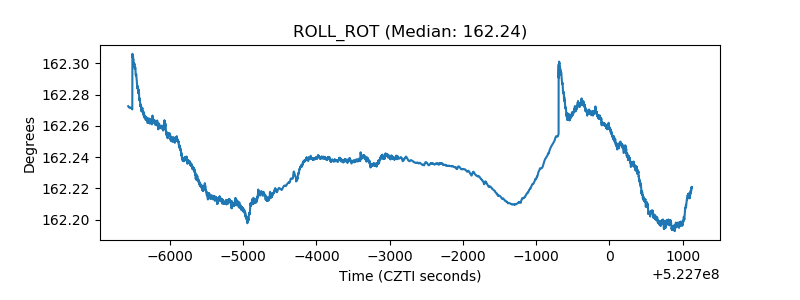

| _ROLL_ROT |  |

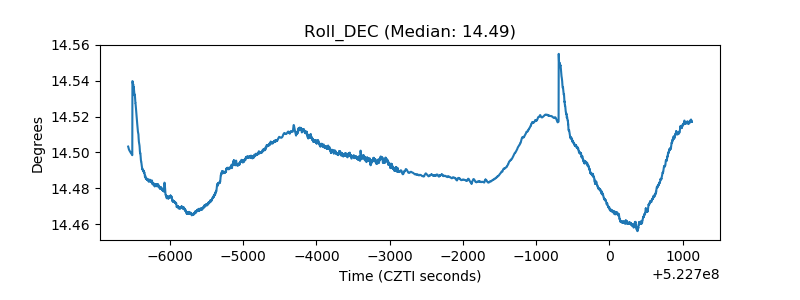

| _Roll_DEC |  |

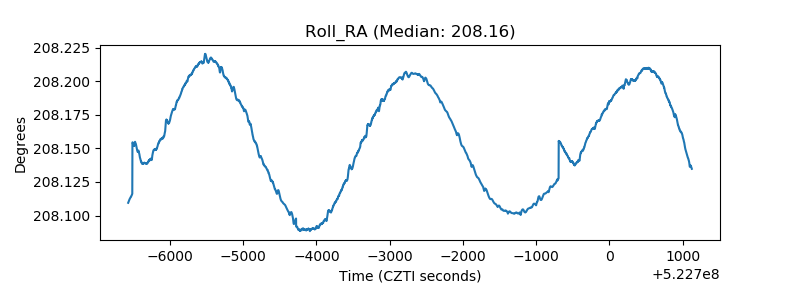

| _Roll_RA |  |

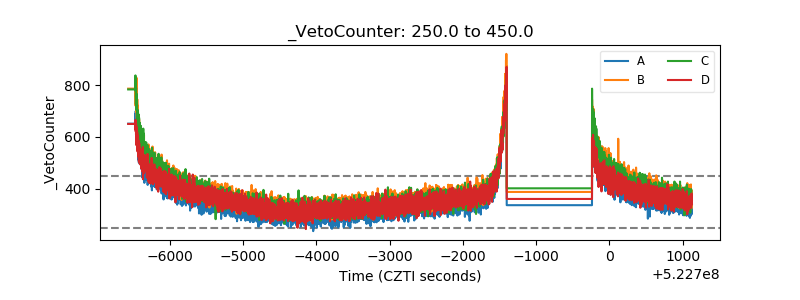

| Veto Counter |  |
