| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58571cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58571cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,838,080 | 96,125,760 |
| Size | 464.3 MB | 91.7 MB |
| Events in quadrant A | 4,457,125 | 631,061 |
| Events in quadrant B | 3,950,863 | 686,013 |
| Events in quadrant C | 3,815,182 | 611,989 |
| Events in quadrant D | 5,304,845 | 538,226 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17808 | 2 |
| B | 0 | 16131 | 2 |
| C | 0 | 15738 | 2 |
| D | 0 | 20242 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6356 | 143 | 2.249843% |
| B | 6356 | 165 | 2.595972% |
| C | 6356 | 84 | 1.321586% |
| D | 6356 | 537 | 8.448710% |

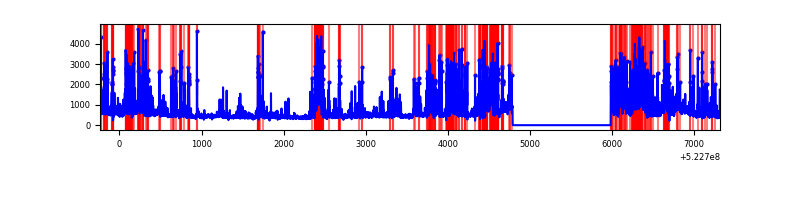

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 6357 | 64 | 64 | 0.85% | 1.01% |  |
| B | 7551 | 6357 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7551 | 6357 | 44 | 44 | 0.58% | 0.69% |  |
| D | 7551 | 6357 | 473 | 473 | 6.26% | 7.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1049715 | 5947.73 | 707 | 691 | 176.4 |
| A | 15 | 233 | 257840 | 1457.98 | 707 | 691 | 176.4 |
| A | 10 | 17 | 198845 | 1123.49 | 707 | 691 | 176.4 |
| B | 4 | 171 | 464728 | 3083.05 | 707 | 683 | 150.5 |
| B | 0 | 171 | 432062 | 2866.02 | 707 | 683 | 150.5 |
| B | 0 | 186 | 40296 | 263.18 | 707 | 683 | 150.5 |
| C | 6 | 13 | 577275 | 3020.16 | 691 | 685 | 190.9 |
| C | 4 | 5 | 152419 | 794.78 | 691 | 685 | 190.9 |
| C | 12 | 252 | 101825 | 529.77 | 691 | 685 | 190.9 |
| D | 2 | 249 | 1174234 | 6155.6 | 664 | 634 | 190.7 |
| D | 8 | 240 | 518911 | 2718.39 | 664 | 634 | 190.7 |
| D | 8 | 160 | 248372 | 1299.4 | 664 | 634 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

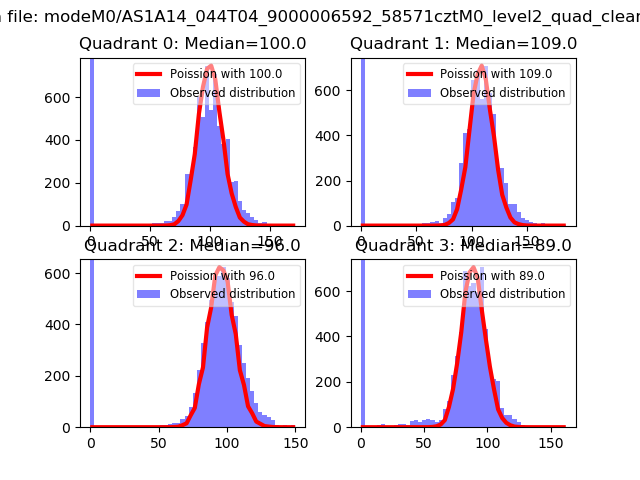

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

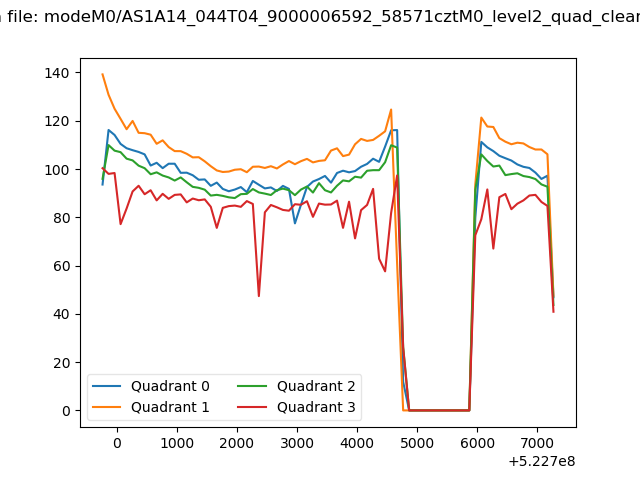

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

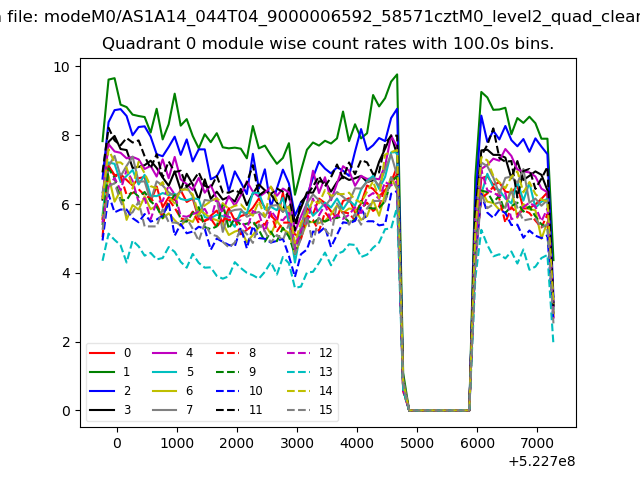

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

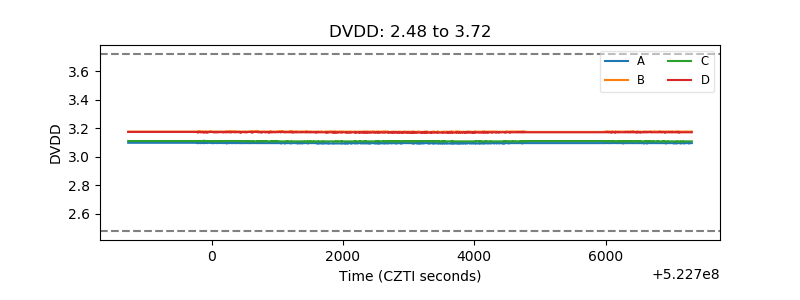

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

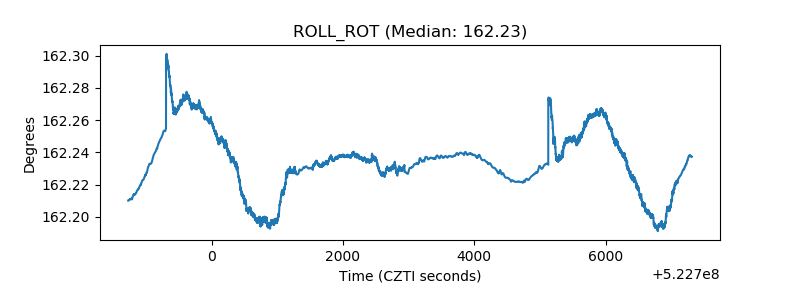

| _ROLL_ROT |  |
| _Roll_DEC |  |

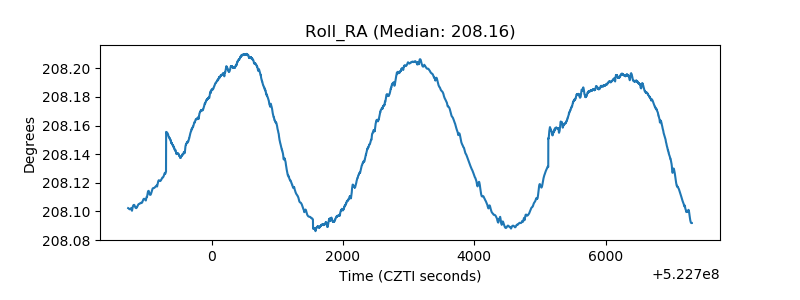

| _Roll_RA |  |
| Veto Counter |  |
