| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58572cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58572cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,557,120 | 95,152,320 |
| Size | 402.0 MB | 90.7 MB |
| Events in quadrant A | 3,456,658 | 621,630 |
| Events in quadrant B | 3,541,695 | 676,695 |
| Events in quadrant C | 3,380,113 | 596,097 |
| Events in quadrant D | 4,732,192 | 543,203 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14898 | 2 |
| B | 0 | 14939 | 2 |
| C | 0 | 14592 | 2 |
| D | 0 | 18578 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6355 | 104 | 1.636507% |
| B | 6355 | 83 | 1.306058% |
| C | 6355 | 97 | 1.526357% |
| D | 6354 | 304 | 4.784388% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6356 | 58 | 58 | 0.77% | 0.91% |  |
| B | 7515 | 6356 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7515 | 6356 | 59 | 59 | 0.79% | 0.93% |  |
| D | 7514 | 6355 | 272 | 272 | 3.62% | 4.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 268789 | 1567.48 | 698 | 681 | 171.0 |
| A | 15 | 233 | 224604 | 1309.16 | 698 | 681 | 171.0 |
| A | 13 | 248 | 125613 | 730.41 | 698 | 681 | 171.0 |
| B | 0 | 171 | 358027 | 2407.85 | 699 | 675 | 148.4 |
| B | 4 | 171 | 115000 | 770.33 | 699 | 675 | 148.4 |
| B | 8 | 234 | 98802 | 661.18 | 699 | 675 | 148.4 |
| C | 14 | 245 | 185444 | 985.54 | 681 | 677 | 187.5 |
| C | 1 | 12 | 144538 | 767.35 | 681 | 677 | 187.5 |
| C | 12 | 252 | 127479 | 676.36 | 681 | 677 | 187.5 |
| D | 2 | 249 | 1280858 | 6697.44 | 664 | 632 | 191.2 |
| D | 8 | 240 | 270821 | 1413.48 | 664 | 632 | 191.2 |
| D | 2 | 31 | 163363 | 851.32 | 664 | 632 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

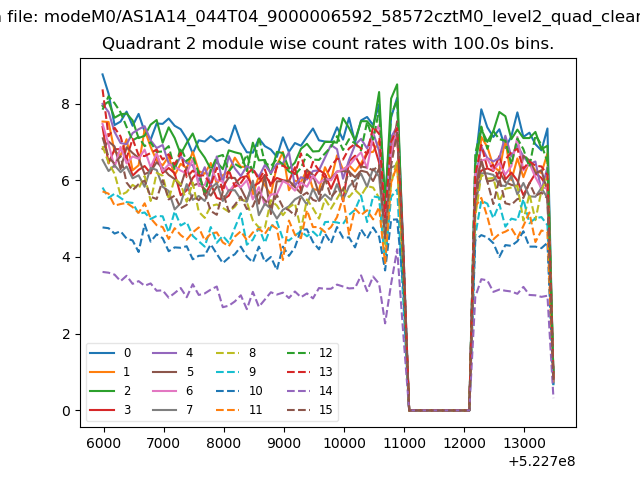

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

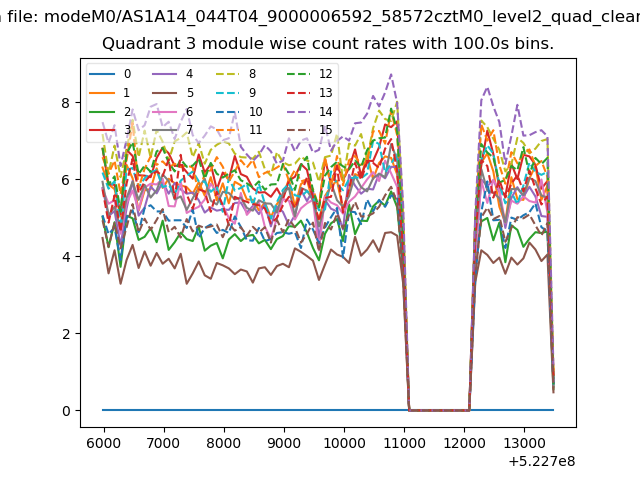

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

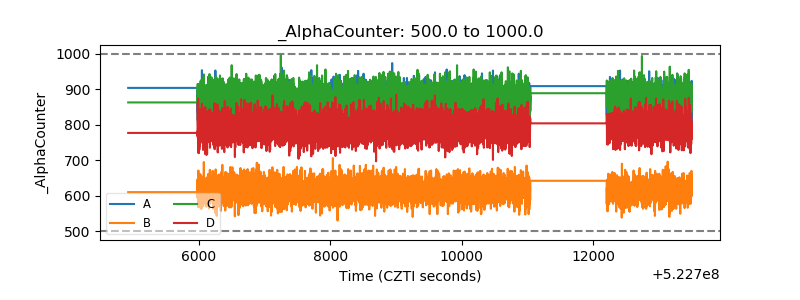

| Alpha Counter |  |

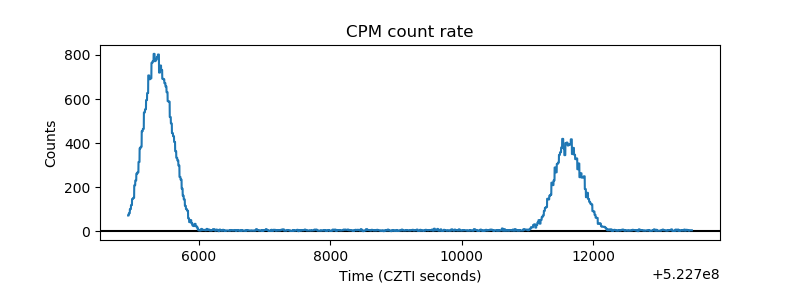

| _CPM_Rate |  |

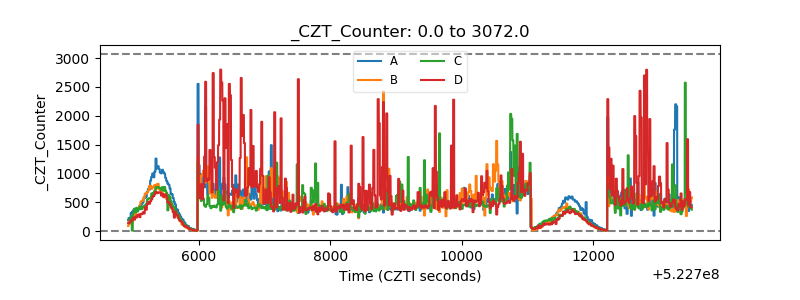

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

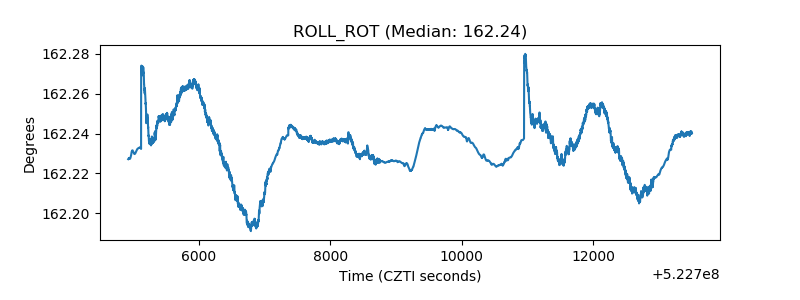

| _ROLL_ROT |  |
| _Roll_DEC |  |

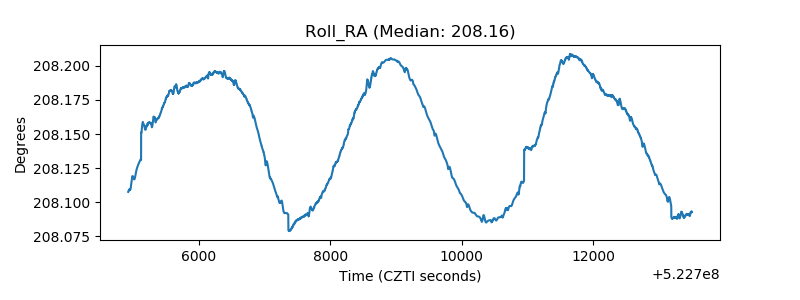

| _Roll_RA |  |
| Veto Counter |  |
