| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58573cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58573cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,859,840 | 91,232,640 |
| Size | 492.0 MB | 87.0 MB |
| Events in quadrant A | 6,127,290 | 551,076 |
| Events in quadrant B | 3,827,187 | 656,915 |
| Events in quadrant C | 4,518,433 | 556,097 |
| Events in quadrant D | 4,107,210 | 535,781 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22733 | 4 |
| B | 0 | 16005 | 2 |
| C | 0 | 18187 | 2 |
| D | 0 | 16932 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6633 | 909 | 13.704206% |
| B | 6633 | 168 | 2.532791% |
| C | 6633 | 498 | 7.507915% |
| D | 6633 | 260 | 3.919795% |

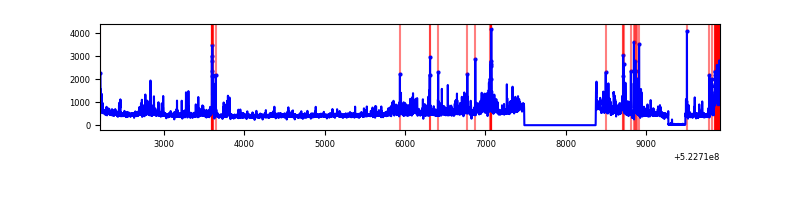

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7718 | 6828 | 707 | 707 | 9.16% | 10.35% |  |
| B | 7717 | 6828 | 55 | 55 | 0.71% | 0.81% |  |
| C | 7718 | 6829 | 379 | 379 | 4.91% | 5.55% |  |
| D | 7718 | 6829 | 201 | 201 | 2.60% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1697480 | 10023.38 | 685 | 669 | 169.3 |
| A | 3 | 14 | 1074168 | 6341.36 | 685 | 669 | 169.3 |
| A | 15 | 233 | 338838 | 1997.63 | 685 | 669 | 169.3 |
| B | 0 | 171 | 441753 | 2835.76 | 724 | 698 | 155.5 |
| B | 8 | 234 | 163650 | 1047.7 | 724 | 698 | 155.5 |
| B | 4 | 171 | 128852 | 823.96 | 724 | 698 | 155.5 |
| C | 4 | 5 | 851490 | 4492.92 | 688 | 684 | 189.4 |
| C | 1 | 12 | 471634 | 2486.98 | 688 | 684 | 189.4 |
| C | 12 | 252 | 148257 | 779.3 | 688 | 684 | 189.4 |
| D | 2 | 249 | 673823 | 3414.92 | 691 | 660 | 197.1 |
| D | 8 | 240 | 365194 | 1849.26 | 691 | 660 | 197.1 |
| D | 2 | 120 | 69356 | 348.49 | 691 | 660 | 197.1 |

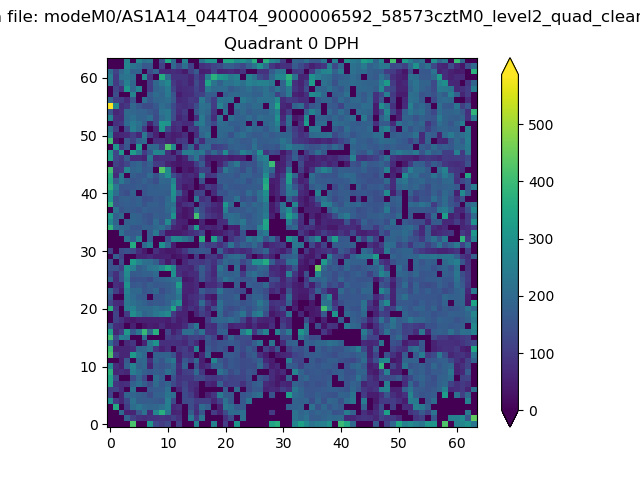

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

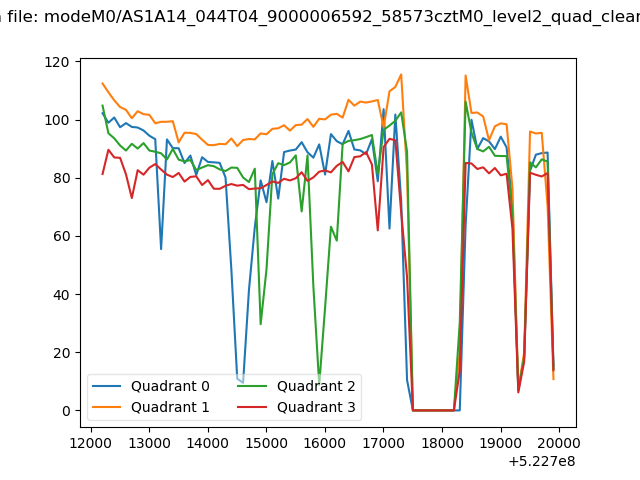

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

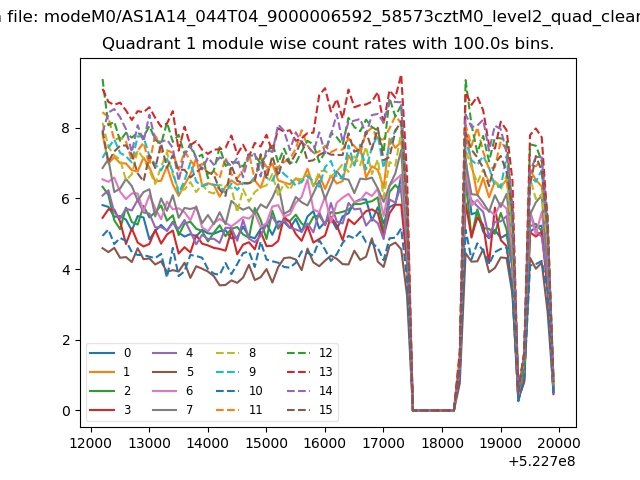

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

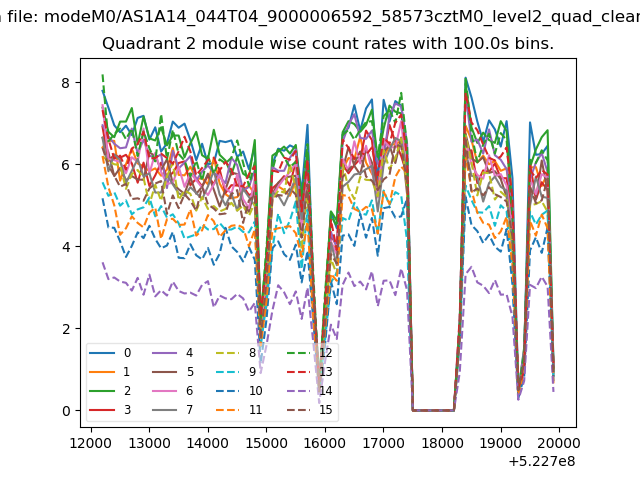

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

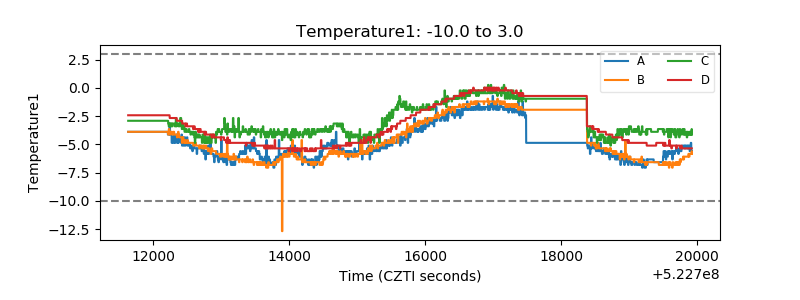

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

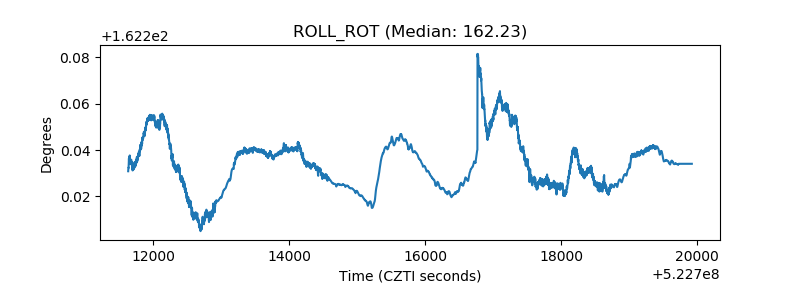

| _ROLL_ROT |  |

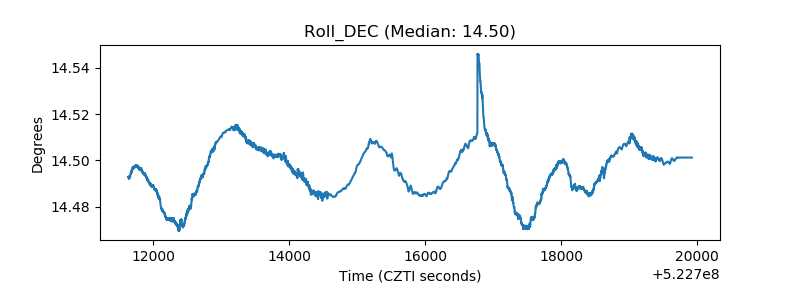

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
