| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58574cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58574cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,087,040 | 109,045,440 |
| Size | 591.4 MB | 104.0 MB |
| Events in quadrant A | 8,161,542 | 621,333 |
| Events in quadrant B | 5,070,396 | 770,750 |
| Events in quadrant C | 4,307,435 | 700,921 |
| Events in quadrant D | 4,781,793 | 641,985 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29890 | 2 |
| B | 0 | 20708 | 2 |
| C | 0 | 18660 | 2 |
| D | 0 | 19883 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8148 | 1470 | 18.041237% |
| B | 8148 | 353 | 4.332351% |
| C | 8148 | 148 | 1.816397% |
| D | 8148 | 286 | 3.510064% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9668 | 8343 | 1066 | 1066 | 11.03% | 12.78% |  |
| B | 9668 | 8345 | 78 | 78 | 0.81% | 0.93% |  |
| C | 9668 | 8346 | 67 | 67 | 0.69% | 0.80% |  |
| D | 9668 | 8346 | 190 | 190 | 1.97% | 2.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 3458649 | 16347.53 | 855 | 831 | 211.5 |
| A | 15 | 233 | 712065 | 3362.5 | 855 | 831 | 211.5 |
| A | 3 | 14 | 344359 | 1624.1 | 855 | 831 | 211.5 |
| B | 0 | 171 | 708787 | 3609.39 | 915 | 881 | 196.1 |
| B | 4 | 171 | 254989 | 1295.62 | 915 | 881 | 196.1 |
| B | 10 | 247 | 155780 | 789.78 | 915 | 881 | 196.1 |
| C | 12 | 252 | 184478 | 735.76 | 902 | 894 | 249.5 |
| C | 12 | 254 | 140052 | 557.71 | 902 | 894 | 249.5 |
| C | 15 | 208 | 125768 | 500.47 | 902 | 894 | 249.5 |
| D | 2 | 249 | 582170 | 2323.27 | 887 | 847 | 250.2 |
| D | 8 | 240 | 229074 | 912.11 | 887 | 847 | 250.2 |
| D | 4 | 206 | 108886 | 431.78 | 887 | 847 | 250.2 |

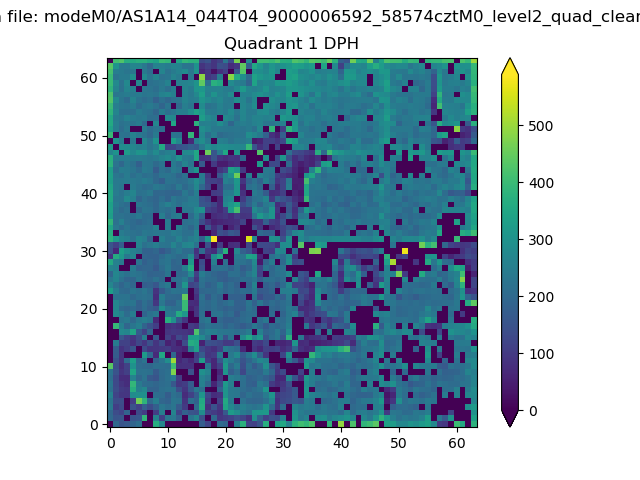

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

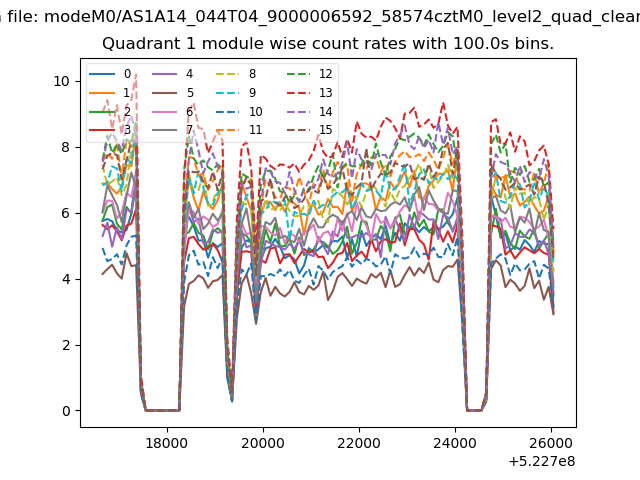

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

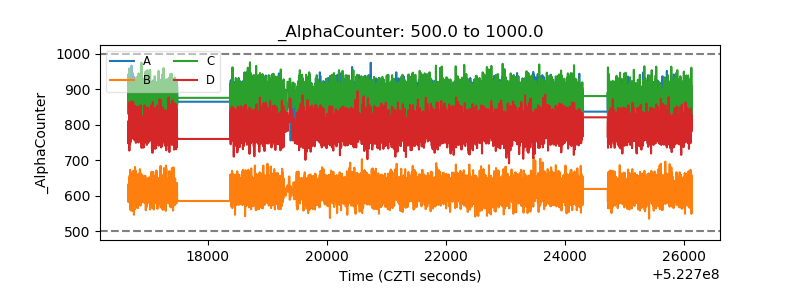

| Alpha Counter |  |

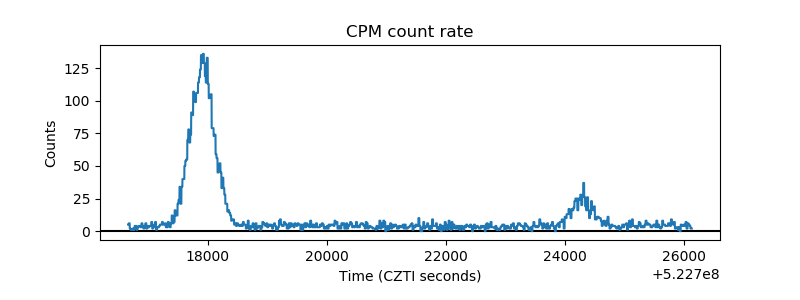

| _CPM_Rate |  |

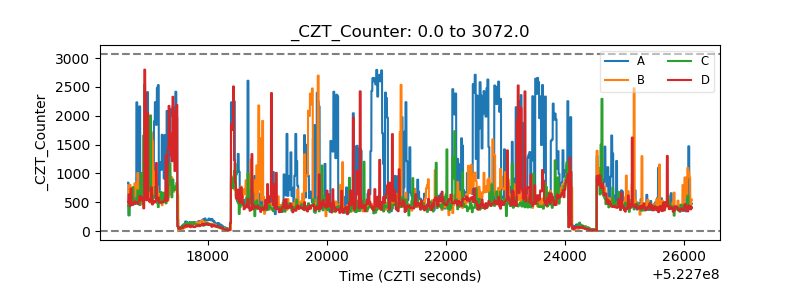

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

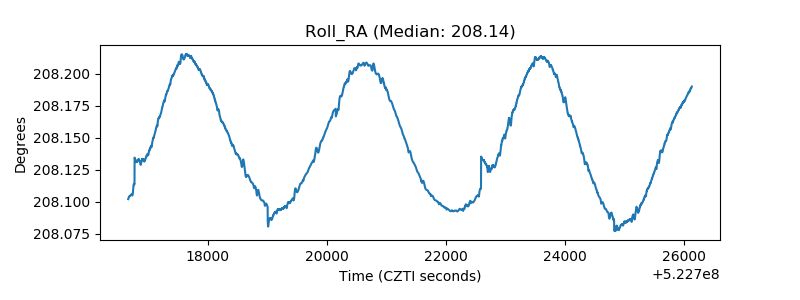

| _Roll_RA |  |
| Veto Counter |  |
