| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58575cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58575cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,650,560 | 106,764,480 |
| Size | 529.0 MB | 101.8 MB |
| Events in quadrant A | 4,693,739 | 709,829 |
| Events in quadrant B | 7,030,074 | 643,288 |
| Events in quadrant C | 3,880,116 | 696,508 |
| Events in quadrant D | 4,332,913 | 650,428 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19316 | 0 |
| B | 0 | 26115 | 0 |
| C | 0 | 17069 | 0 |
| D | 0 | 18419 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7653 | 274 | 3.580295% |
| B | 7653 | 1503 | 19.639357% |
| C | 7653 | 63 | 0.823207% |
| D | 7653 | 102 | 1.332811% |

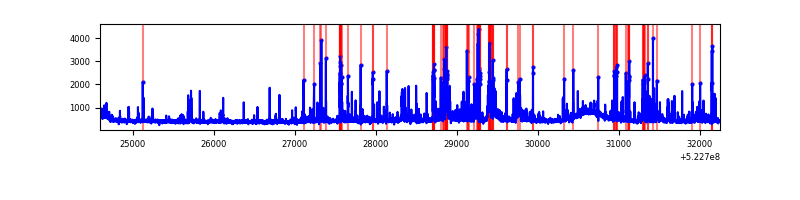

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7653 | 7653 | 147 | 147 | 1.92% | 1.92% |  |
| B | 7653 | 7653 | 986 | 986 | 12.88% | 12.88% |  |
| C | 7653 | 7653 | 40 | 40 | 0.52% | 0.52% |  |
| D | 7653 | 7653 | 110 | 110 | 1.44% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 1026187 | 4876.1 | 850 | 826 | 210.3 |
| A | 12 | 114 | 134231 | 634.41 | 850 | 826 | 210.3 |
| A | 3 | 14 | 121453 | 573.64 | 850 | 826 | 210.3 |
| B | 6 | 255 | 3274246 | 19474.7 | 777 | 749 | 168.1 |
| B | 0 | 171 | 266019 | 1578.14 | 777 | 749 | 168.1 |
| B | 4 | 171 | 142776 | 844.95 | 777 | 749 | 168.1 |
| C | 12 | 249 | 145074 | 630.18 | 835 | 828 | 228.9 |
| C | 12 | 252 | 131767 | 572.05 | 835 | 828 | 228.9 |
| C | 12 | 254 | 118278 | 513.12 | 835 | 828 | 228.9 |
| D | 2 | 249 | 374863 | 1592.12 | 827 | 792 | 235.0 |
| D | 8 | 240 | 233264 | 989.45 | 827 | 792 | 235.0 |
| D | 3 | 12 | 217172 | 920.96 | 827 | 792 | 235.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

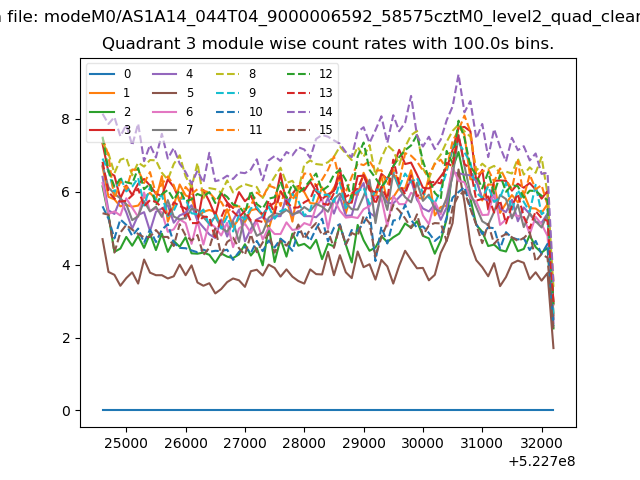

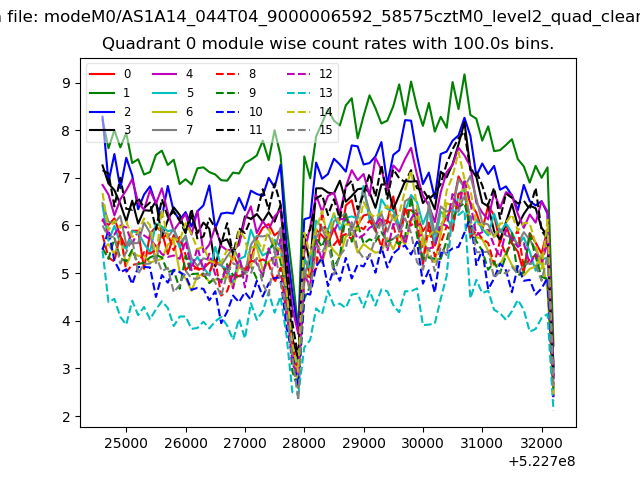

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

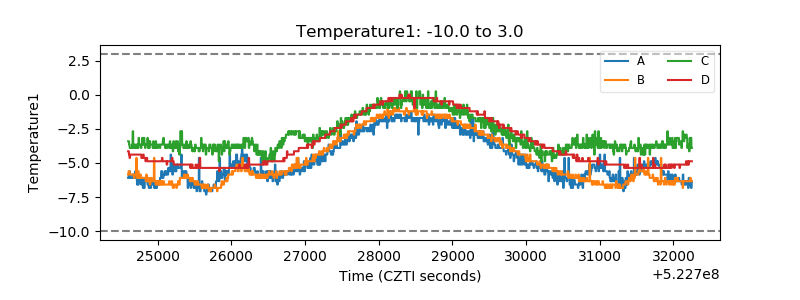

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

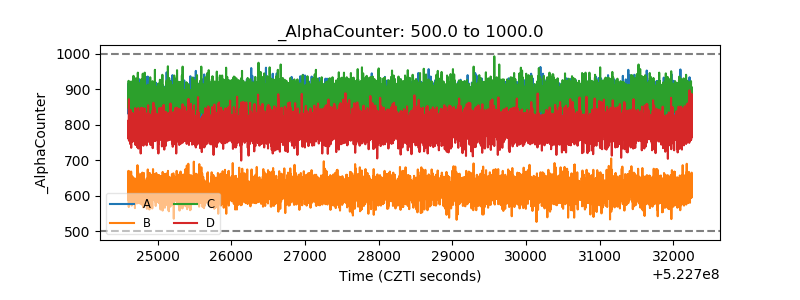

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

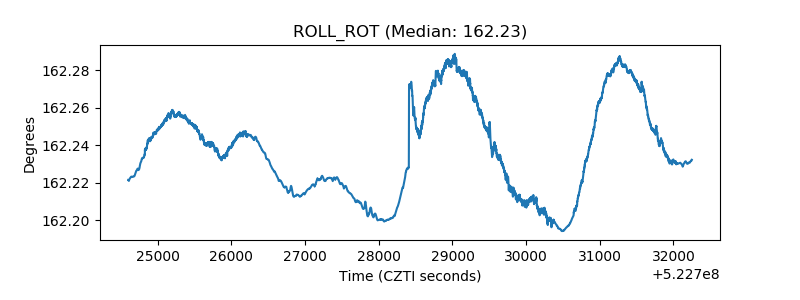

| _ROLL_ROT |  |

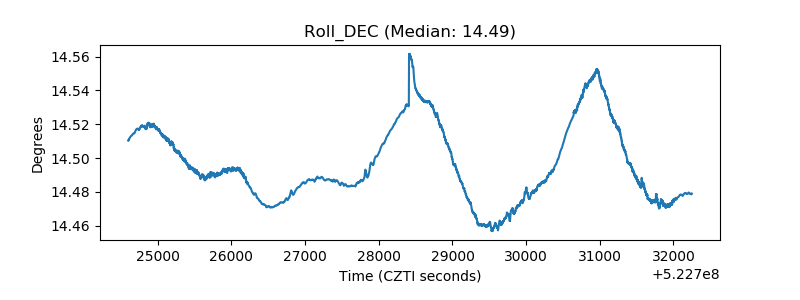

| _Roll_DEC |  |

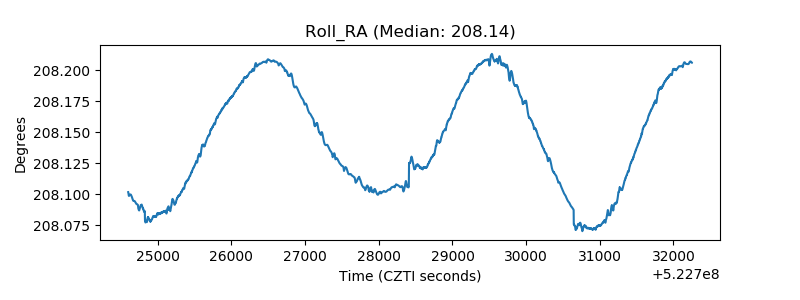

| _Roll_RA |  |
| Veto Counter |  |
