| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58576cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58576cztM0_level2_quad_clean.evt |
| Size (bytes) | 647,458,560 | 108,504,000 |
| Size | 617.5 MB | 103.5 MB |
| Events in quadrant A | 5,631,156 | 749,342 |
| Events in quadrant B | 8,978,994 | 562,146 |
| Events in quadrant C | 4,116,114 | 732,716 |
| Events in quadrant D | 4,613,482 | 679,639 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22227 | 0 |
| B | 0 | 32220 | 0 |
| C | 0 | 18052 | 0 |
| D | 0 | 19377 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8073 | 249 | 3.084355% |
| B | 8073 | 2635 | 32.639663% |
| C | 8073 | 80 | 0.990958% |
| D | 8073 | 116 | 1.436888% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8073 | 8073 | 153 | 153 | 1.90% | 1.90% |  |
| B | 8072 | 8072 | 1732 | 1732 | 21.46% | 21.46% |  |
| C | 8073 | 8073 | 55 | 55 | 0.68% | 0.68% |  |
| D | 8073 | 8073 | 108 | 108 | 1.34% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 1291978 | 5819.93 | 900 | 876 | 221.8 |
| A | 15 | 233 | 439583 | 1977.57 | 900 | 876 | 221.8 |
| A | 10 | 17 | 169297 | 759.19 | 900 | 876 | 221.8 |
| B | 6 | 255 | 5657548 | 37020.36 | 703 | 677 | 152.8 |
| B | 0 | 171 | 247734 | 1616.82 | 703 | 677 | 152.8 |
| B | 4 | 171 | 86098 | 559.02 | 703 | 677 | 152.8 |
| C | 12 | 249 | 174627 | 723.06 | 880 | 874 | 240.3 |
| C | 12 | 252 | 146441 | 605.77 | 880 | 874 | 240.3 |
| C | 14 | 245 | 93878 | 387.03 | 880 | 874 | 240.3 |
| D | 2 | 249 | 474230 | 1933.41 | 870 | 829 | 244.9 |
| D | 8 | 240 | 282865 | 1151.86 | 870 | 829 | 244.9 |
| D | 3 | 12 | 117353 | 475.89 | 870 | 829 | 244.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

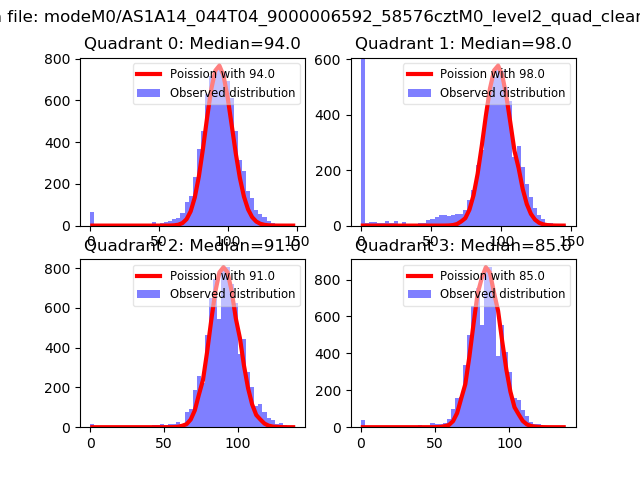

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

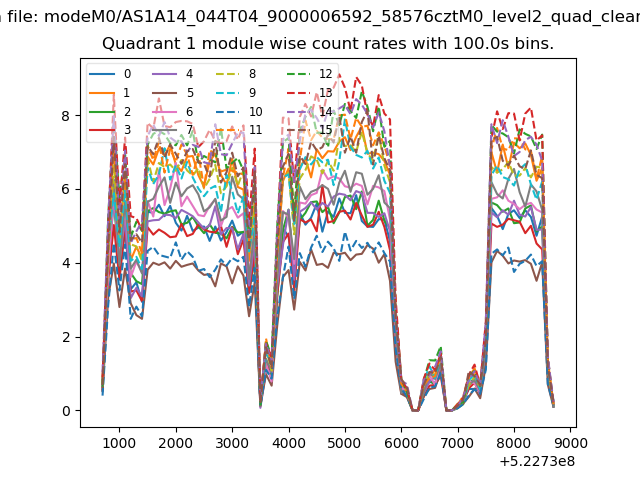

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

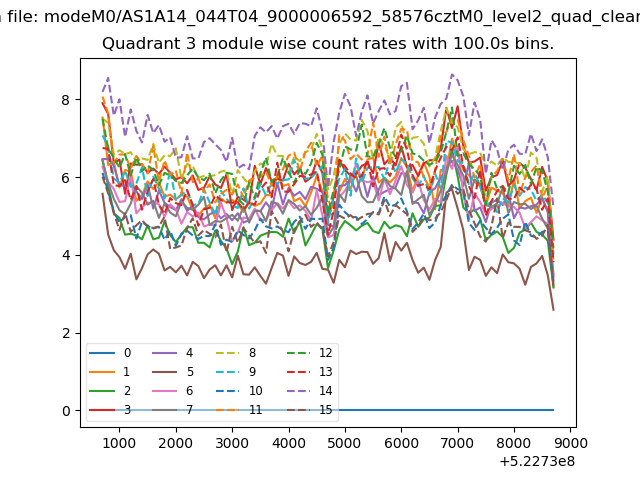

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

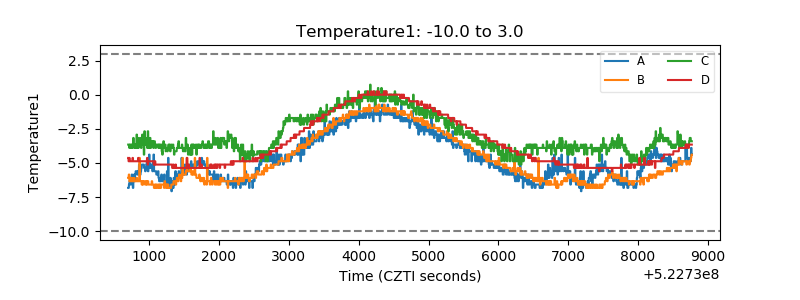

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

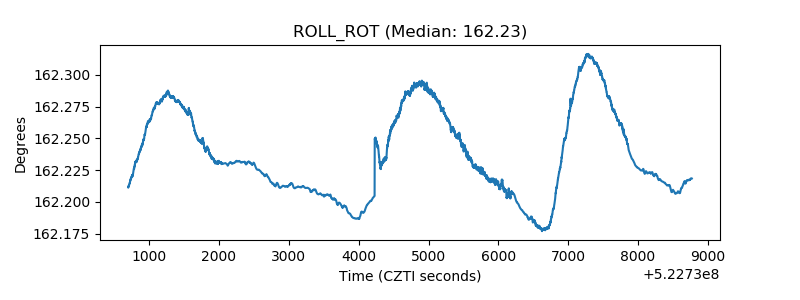

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
