| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58579cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58579cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,446,733,440 | 271,860,480 |
| Size | 1.3 GB | 259.3 MB |
| Events in quadrant A | 12,488,154 | 1,774,587 |
| Events in quadrant B | 13,951,760 | 1,813,108 |
| Events in quadrant C | 11,192,908 | 1,760,917 |
| Events in quadrant D | 14,379,524 | 1,510,728 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50757 | 2 |
| B | 0 | 54914 | 4 |
| C | 0 | 47175 | 2 |
| D | 0 | 56234 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 402 | 0 |
| B | 0 | 402 | 0 |
| C | 0 | 402 | 0 |
| D | 0 | 402 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19911 | 1098 | 5.514540% |
| B | 19910 | 2059 | 10.341537% |
| C | 19910 | 654 | 3.284782% |
| D | 19910 | 1648 | 8.277248% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20861 | 19911 | 436 | 436 | 2.09% | 2.19% |  |
| B | 20860 | 19910 | 1022 | 1022 | 4.90% | 5.13% |  |
| C | 20860 | 19910 | 246 | 246 | 1.18% | 1.24% |  |
| D | 20860 | 19910 | 1267 | 1267 | 6.07% | 6.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 2222801 | 4031.47 | 2232 | 2167 | 550.8 |
| A | 15 | 233 | 672528 | 1217.01 | 2232 | 2167 | 550.8 |
| A | 10 | 17 | 319082 | 575.34 | 2232 | 2167 | 550.8 |
| B | 6 | 255 | 2878845 | 6407.59 | 2102 | 2020 | 449.0 |
| B | 0 | 171 | 809849 | 1799.29 | 2102 | 2020 | 449.0 |
| B | 2 | 249 | 711029 | 1579.18 | 2102 | 2020 | 449.0 |
| C | 13 | 3 | 932367 | 1574.72 | 2178 | 2158 | 590.7 |
| C | 12 | 252 | 628128 | 1059.69 | 2178 | 2158 | 590.7 |
| C | 4 | 5 | 393726 | 662.87 | 2178 | 2158 | 590.7 |
| D | 12 | 128 | 2789301 | 4700.65 | 2130 | 2038 | 593.0 |
| D | 8 | 240 | 713158 | 1199.29 | 2130 | 2038 | 593.0 |
| D | 2 | 31 | 474409 | 796.64 | 2130 | 2038 | 593.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

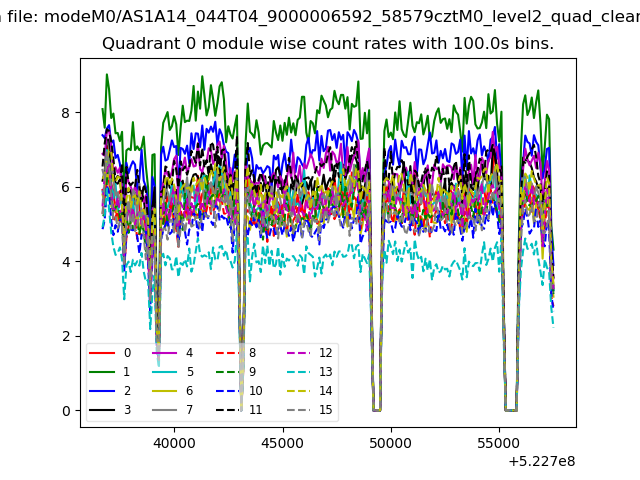

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

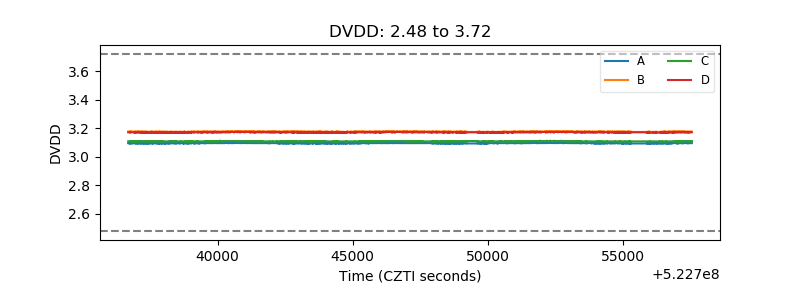

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

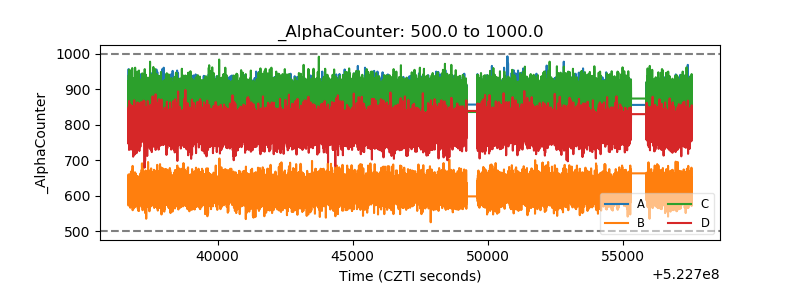

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

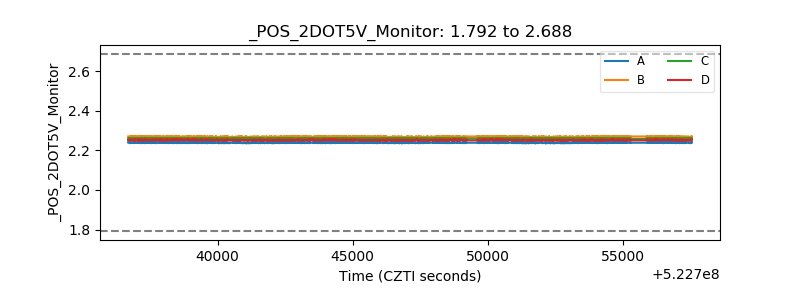

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

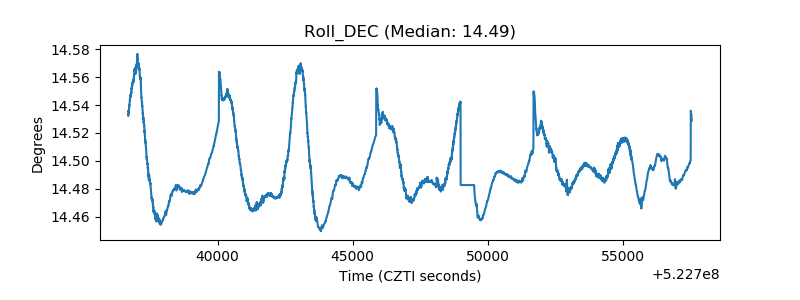

| _Roll_DEC |  |

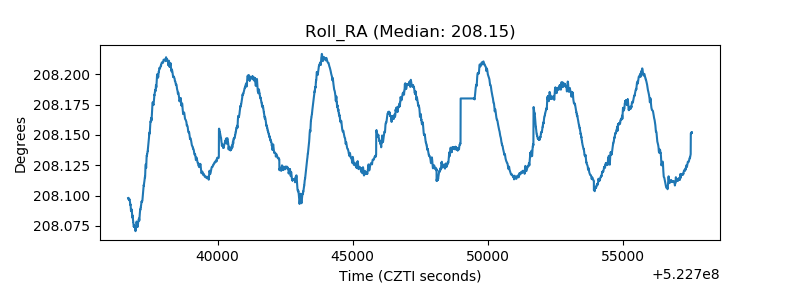

| _Roll_RA |  |
| Veto Counter |  |
