| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58582cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58582cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,962,240 | 95,952,960 |
| Size | 476.8 MB | 91.5 MB |
| Events in quadrant A | 4,181,725 | 629,043 |
| Events in quadrant B | 5,851,046 | 613,630 |
| Events in quadrant C | 3,966,377 | 619,955 |
| Events in quadrant D | 3,985,219 | 573,999 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17008 | 2 |
| B | 0 | 22050 | 2 |
| C | 0 | 16409 | 2 |
| D | 0 | 16362 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6724 | 339 | 5.041642% |
| B | 6725 | 963 | 14.319703% |
| C | 6725 | 158 | 2.349442% |
| D | 6725 | 260 | 3.866171% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7654 | 6724 | 248 | 248 | 3.24% | 3.69% |  |
| B | 7655 | 6725 | 636 | 636 | 8.31% | 9.46% |  |
| C | 7655 | 6725 | 103 | 103 | 1.35% | 1.53% |  |
| D | 7655 | 6725 | 200 | 200 | 2.61% | 2.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 424477 | 2318.29 | 742 | 723 | 182.8 |
| A | 13 | 248 | 355151 | 1939.02 | 742 | 723 | 182.8 |
| A | 15 | 233 | 330096 | 1801.95 | 742 | 723 | 182.8 |
| B | 2 | 249 | 1253366 | 8478.52 | 687 | 662 | 147.8 |
| B | 6 | 255 | 1025113 | 6933.67 | 687 | 662 | 147.8 |
| B | 0 | 171 | 286877 | 1937.15 | 687 | 662 | 147.8 |
| C | 1 | 12 | 357019 | 1761.04 | 732 | 723 | 202.3 |
| C | 13 | 3 | 220066 | 1084.13 | 732 | 723 | 202.3 |
| C | 4 | 5 | 177189 | 872.2 | 732 | 723 | 202.3 |
| D | 8 | 240 | 522383 | 2518.34 | 728 | 694 | 207.2 |
| D | 3 | 12 | 138647 | 665.94 | 728 | 694 | 207.2 |
| D | 2 | 249 | 136566 | 655.89 | 728 | 694 | 207.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

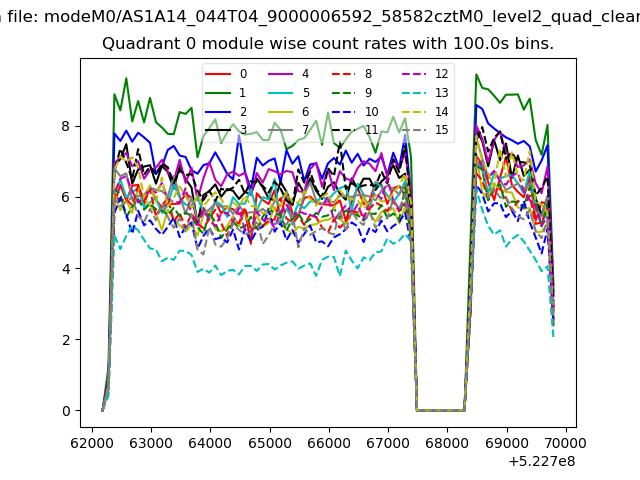

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

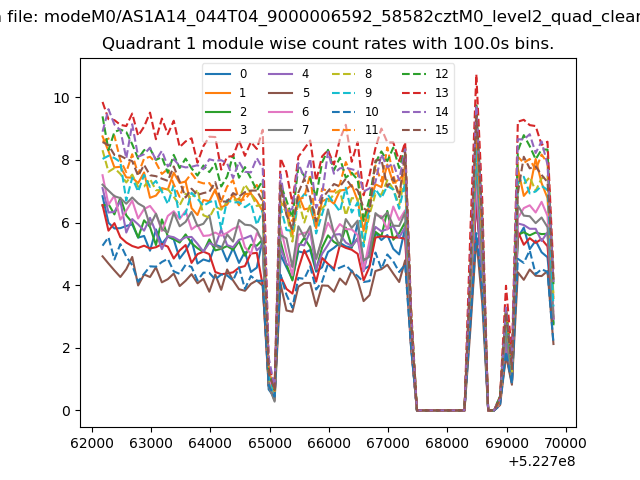

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

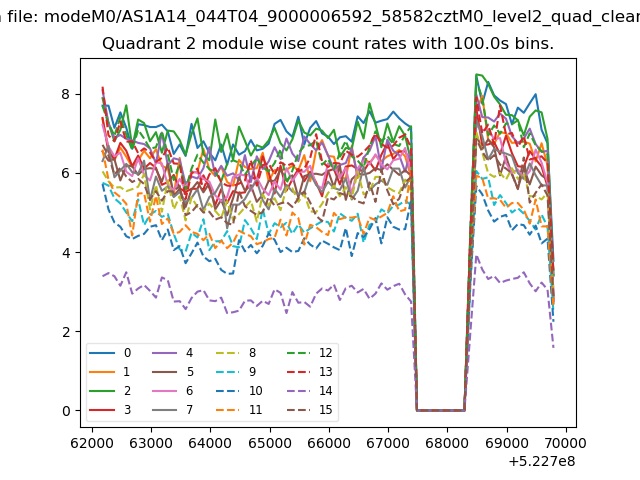

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
