| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58583cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58583cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,264,000 | 92,131,200 |
| Size | 469.5 MB | 87.9 MB |
| Events in quadrant A | 3,443,785 | 637,544 |
| Events in quadrant B | 6,662,585 | 528,809 |
| Events in quadrant C | 4,156,240 | 595,963 |
| Events in quadrant D | 3,454,884 | 574,919 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14752 | 3 |
| B | 0 | 24196 | 2 |
| C | 0 | 16860 | 2 |
| D | 0 | 14715 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6485 | 139 | 2.143408% |
| B | 6485 | 1713 | 26.414803% |
| C | 6485 | 294 | 4.533539% |
| D | 6485 | 101 | 1.557440% |

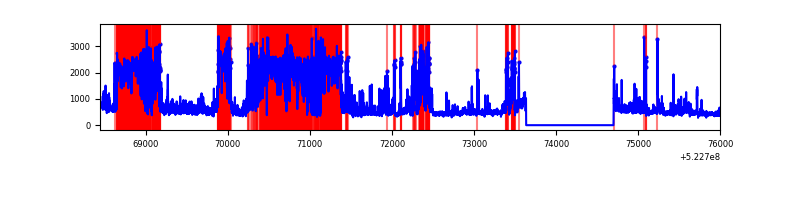

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7550 | 6485 | 67 | 67 | 0.89% | 1.03% |  |
| B | 7550 | 6485 | 1210 | 1210 | 16.03% | 18.66% |  |
| C | 7550 | 6485 | 216 | 216 | 2.86% | 3.33% |  |
| D | 7550 | 6485 | 50 | 50 | 0.66% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 226695 | 1252.38 | 731 | 712 | 180.4 |
| A | 13 | 248 | 130197 | 717.6 | 731 | 712 | 180.4 |
| A | 10 | 251 | 124115 | 683.89 | 731 | 712 | 180.4 |
| B | 6 | 255 | 3572928 | 27372.78 | 607 | 585 | 130.5 |
| B | 2 | 249 | 303100 | 2318.0 | 607 | 585 | 130.5 |
| B | 4 | 171 | 128623 | 981.08 | 607 | 585 | 130.5 |
| C | 4 | 5 | 461407 | 2364.72 | 701 | 694 | 194.8 |
| C | 12 | 241 | 352664 | 1806.57 | 701 | 694 | 194.8 |
| C | 13 | 3 | 235768 | 1206.58 | 701 | 694 | 194.8 |
| D | 2 | 249 | 253199 | 1249.24 | 711 | 680 | 202.1 |
| D | 8 | 240 | 129429 | 636.94 | 711 | 680 | 202.1 |
| D | 3 | 12 | 55757 | 272.47 | 711 | 680 | 202.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

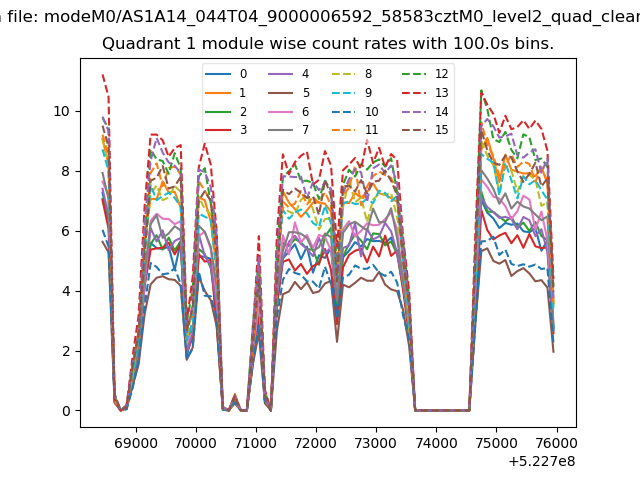

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

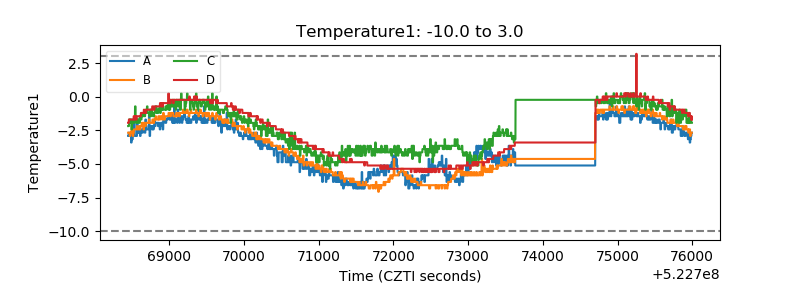

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

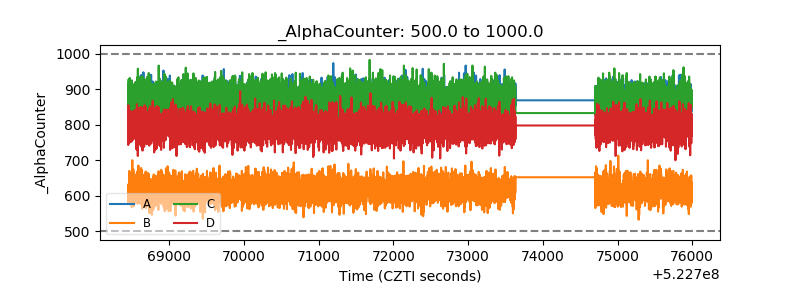

| Alpha Counter |  |
| _CPM_Rate |  |

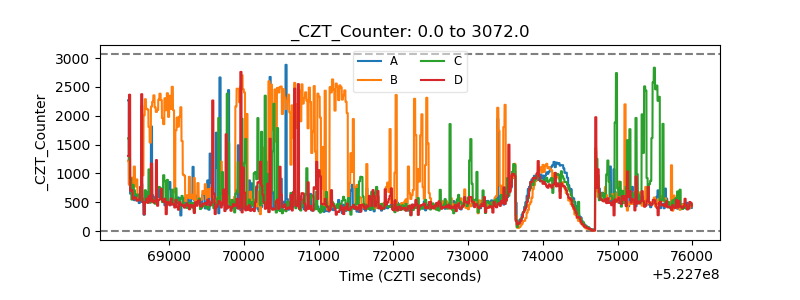

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

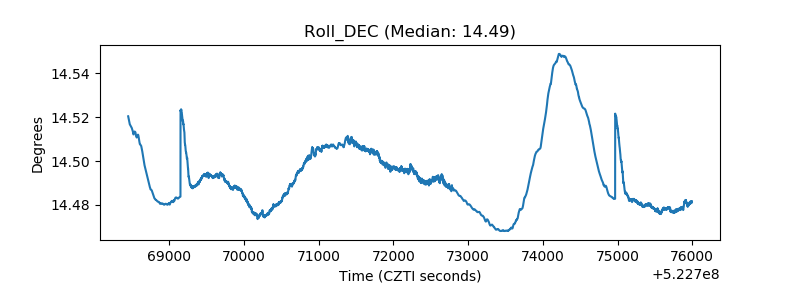

| _Roll_DEC |  |

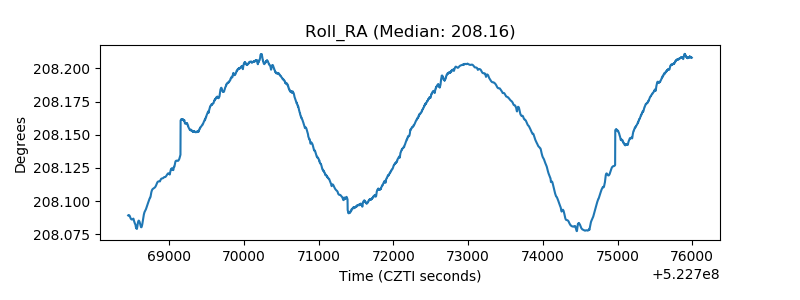

| _Roll_RA |  |

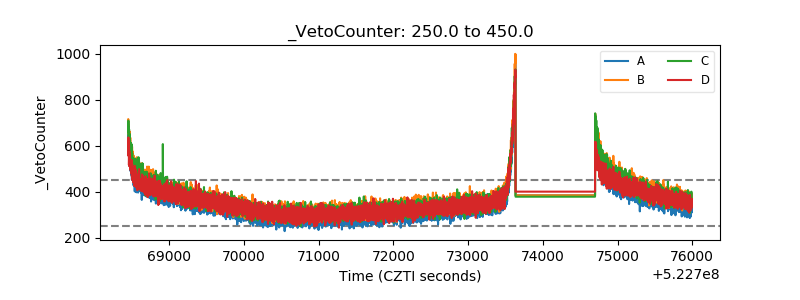

| Veto Counter |  |
