| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58585cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58585cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,115,200 | 96,900,480 |
| Size | 403.5 MB | 92.4 MB |
| Events in quadrant A | 3,432,562 | 646,144 |
| Events in quadrant B | 4,054,222 | 678,473 |
| Events in quadrant C | 3,687,716 | 607,980 |
| Events in quadrant D | 3,993,179 | 558,595 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14564 | 1 |
| B | 0 | 16296 | 1 |
| C | 0 | 15381 | 1 |
| D | 0 | 16275 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6358 | 74 | 1.163888% |
| B | 6358 | 306 | 4.812834% |
| C | 6358 | 187 | 2.941176% |
| D | 6357 | 242 | 3.806827% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7563 | 6359 | 30 | 30 | 0.40% | 0.47% |  |
| B | 7563 | 6358 | 197 | 197 | 2.60% | 3.10% |  |
| C | 7563 | 6359 | 177 | 177 | 2.34% | 2.78% |  |
| D | 7562 | 6358 | 221 | 221 | 2.92% | 3.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 283125 | 1566.48 | 715 | 697 | 180.3 |
| A | 13 | 248 | 107328 | 591.43 | 715 | 697 | 180.3 |
| A | 10 | 17 | 87420 | 481.01 | 715 | 697 | 180.3 |
| B | 6 | 255 | 694123 | 4626.01 | 703 | 679 | 149.9 |
| B | 4 | 171 | 197215 | 1311.1 | 703 | 679 | 149.9 |
| B | 5 | 172 | 93602 | 619.9 | 703 | 679 | 149.9 |
| C | 14 | 245 | 369200 | 1923.35 | 689 | 682 | 191.6 |
| C | 13 | 3 | 278475 | 1449.84 | 689 | 682 | 191.6 |
| C | 4 | 5 | 100529 | 521.12 | 689 | 682 | 191.6 |
| D | 15 | 94 | 606210 | 3121.79 | 679 | 647 | 194.0 |
| D | 5 | 38 | 255576 | 1314.21 | 679 | 647 | 194.0 |
| D | 2 | 249 | 141716 | 727.24 | 679 | 647 | 194.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

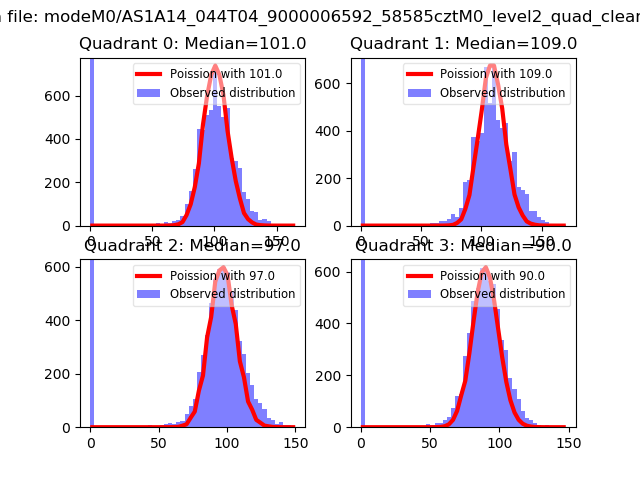

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

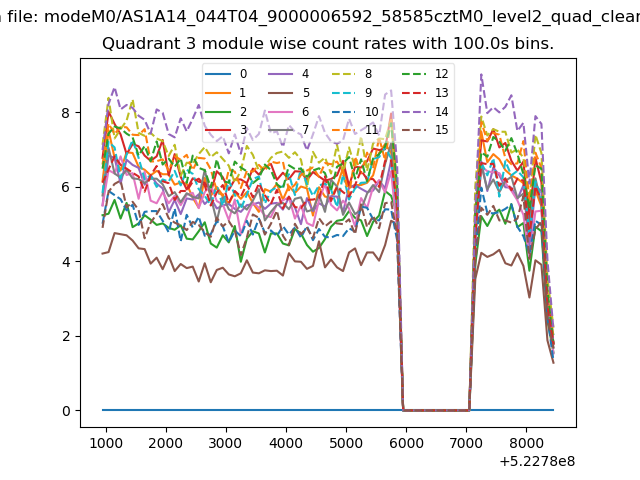

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

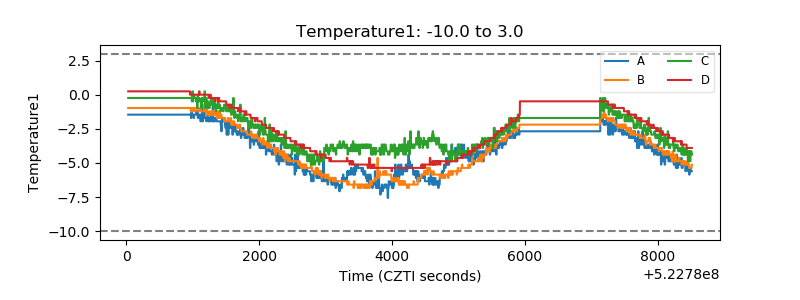

| Temperature 1 |  |

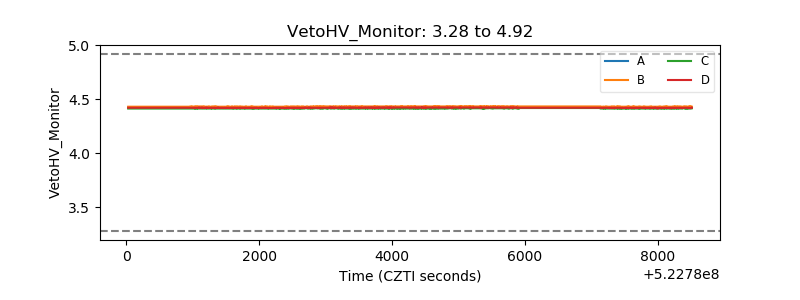

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

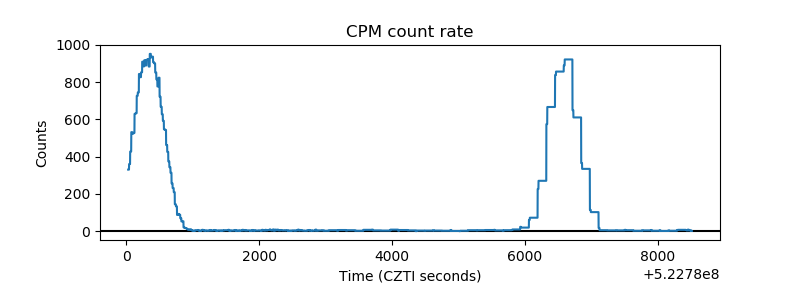

| _CPM_Rate |  |

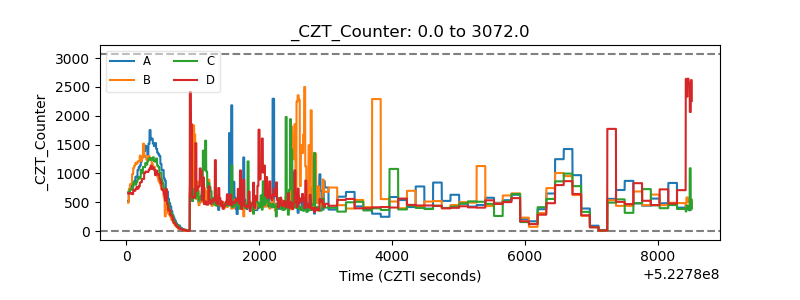

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

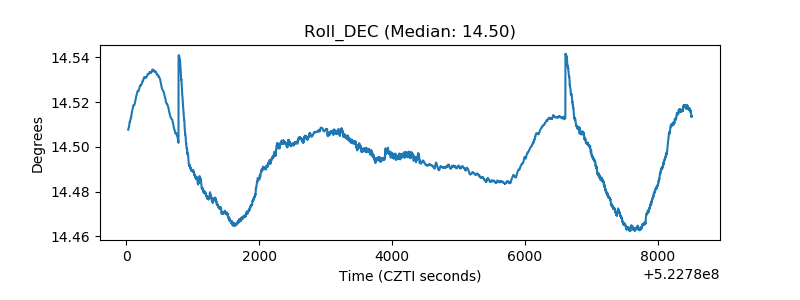

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
