| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58586cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58586cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,876,480 | 95,739,840 |
| Size | 389.9 MB | 91.3 MB |
| Events in quadrant A | 3,478,536 | 631,036 |
| Events in quadrant B | 3,870,539 | 676,729 |
| Events in quadrant C | 3,282,882 | 606,302 |
| Events in quadrant D | 4,011,558 | 543,847 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14834 | 1 |
| B | 0 | 15767 | 1 |
| C | 0 | 14249 | 1 |
| D | 0 | 16374 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6322 | 98 | 1.550142% |
| B | 6322 | 199 | 3.147738% |
| C | 6321 | 75 | 1.186521% |
| D | 6321 | 278 | 4.398038% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

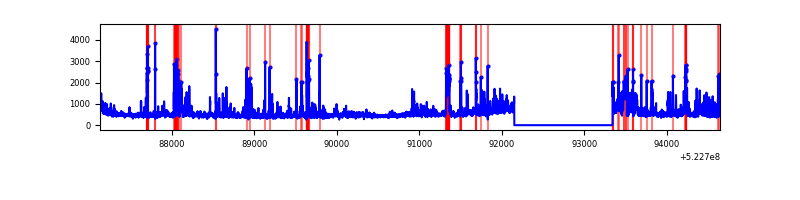

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7513 | 6323 | 52 | 52 | 0.69% | 0.82% |  |
| B | 7513 | 6323 | 112 | 112 | 1.49% | 1.77% |  |
| C | 7512 | 6322 | 69 | 69 | 0.92% | 1.09% |  |
| D | 7512 | 6322 | 261 | 261 | 3.47% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 315745 | 1784.63 | 704 | 683 | 176.5 |
| A | 10 | 17 | 103837 | 584.3 | 704 | 683 | 176.5 |
| A | 12 | 114 | 102386 | 576.09 | 704 | 683 | 176.5 |
| B | 6 | 255 | 345236 | 2292.06 | 698 | 672 | 150.3 |
| B | 5 | 172 | 262903 | 1744.38 | 698 | 672 | 150.3 |
| B | 4 | 171 | 156834 | 1038.8 | 698 | 672 | 150.3 |
| C | 13 | 3 | 226785 | 1187.1 | 686 | 679 | 190.5 |
| C | 12 | 252 | 111407 | 581.34 | 686 | 679 | 190.5 |
| C | 12 | 254 | 89918 | 468.52 | 686 | 679 | 190.5 |
| D | 15 | 94 | 735625 | 3821.21 | 668 | 637 | 192.3 |
| D | 2 | 249 | 150453 | 778.89 | 668 | 637 | 192.3 |
| D | 8 | 160 | 124311 | 642.98 | 668 | 637 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

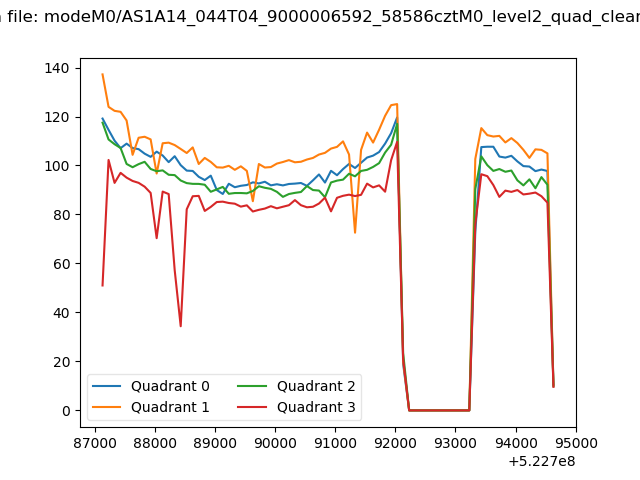

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

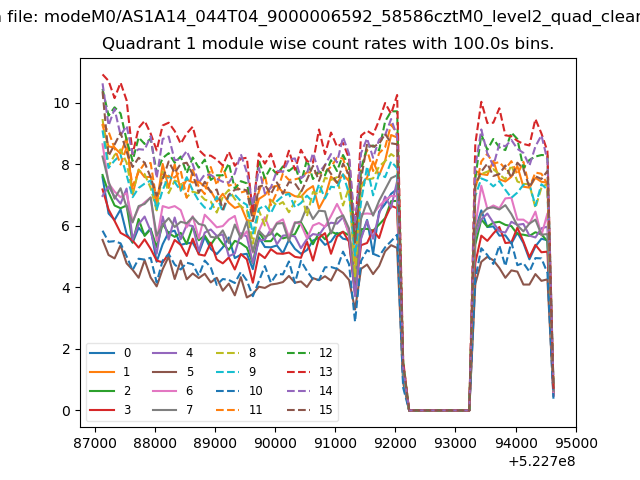

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

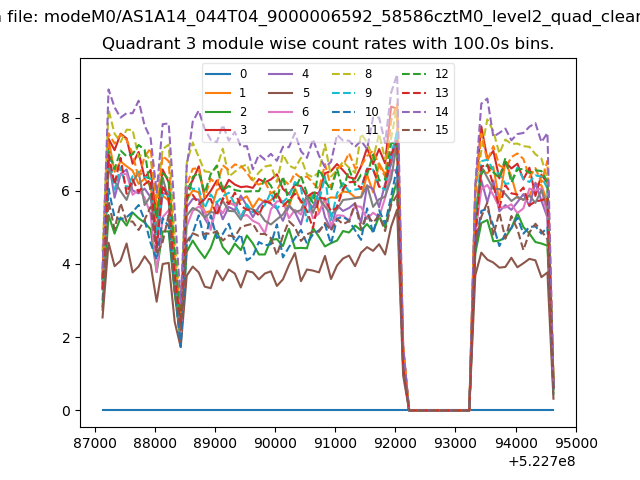

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

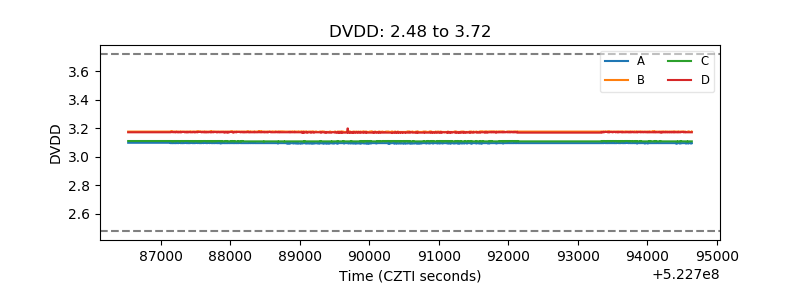

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

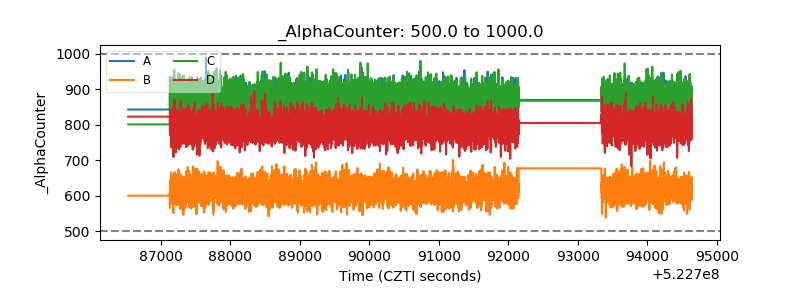

| Alpha Counter |  |

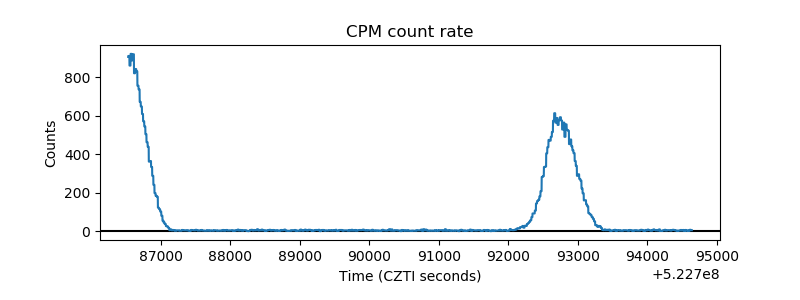

| _CPM_Rate |  |
| CZT Counter |  |

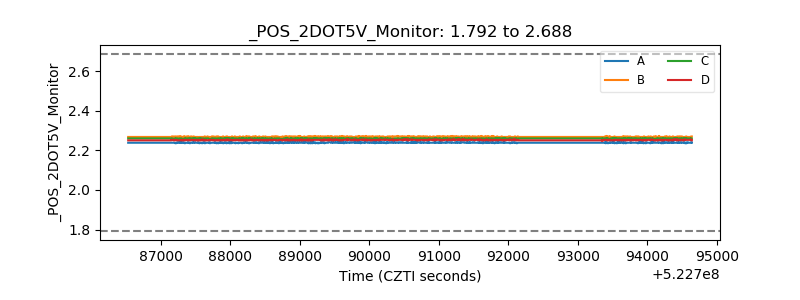

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
